LP8545SQE/NOPB - Texas Instruments

Six channel high-efficiency LED backlight driver for notebooks with flexible ext/int FET control 24-WQFN -30 to 85

Technical Details

Features	I²C
Frequency	1.25MHz
Height	800µm
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	85°C
Max Supply Current	6.7mA
Max Supply Voltage	22V
Min Operating Temperature	-30°C
Min Supply Voltage	5.5V
Mount	Surface Mount
Number of Channels	6
Number of Outputs	6
Number of Pins	24
Output Current	450mA
Packaging	Tape & Reel (TR)
Quiescent Current	4mA
Radiation Hardening	No
RoHS	Compliant
Thickness	750µm
Topology	Boost
Width	4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

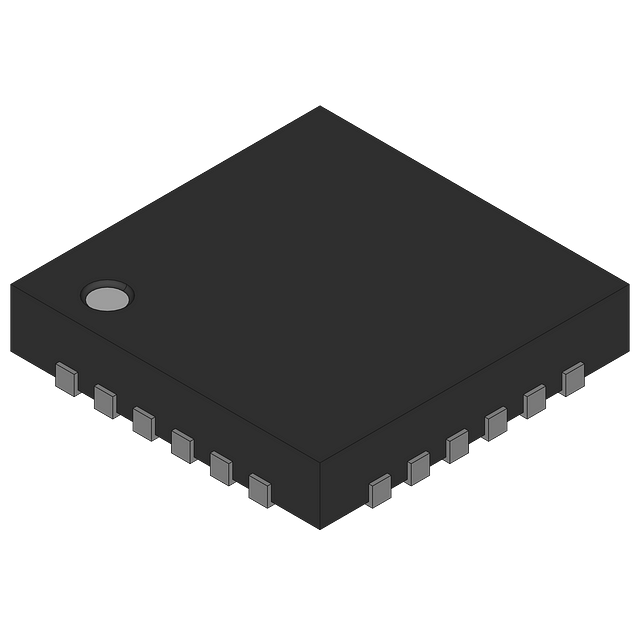

Texas Instruments LP8545SQE/NOPB | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

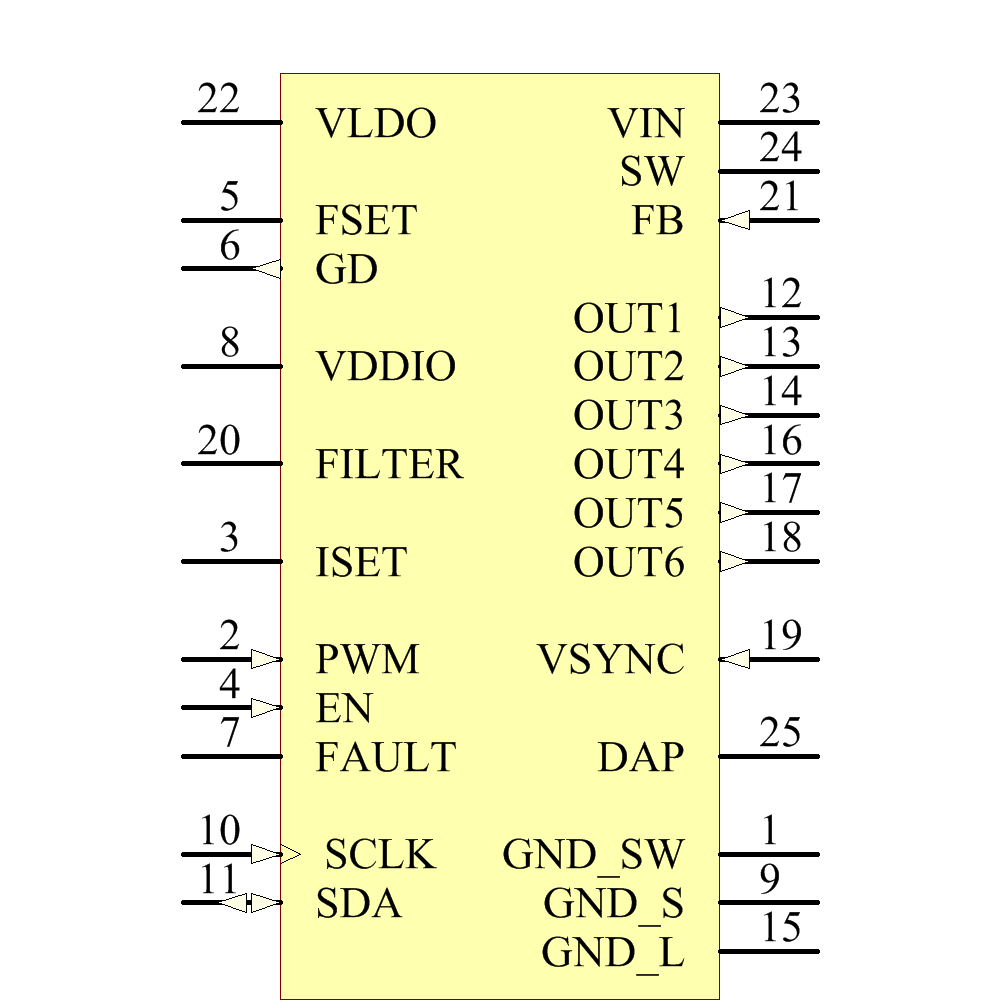

LP8545SQE/NOPB Symbol - Texas Instruments

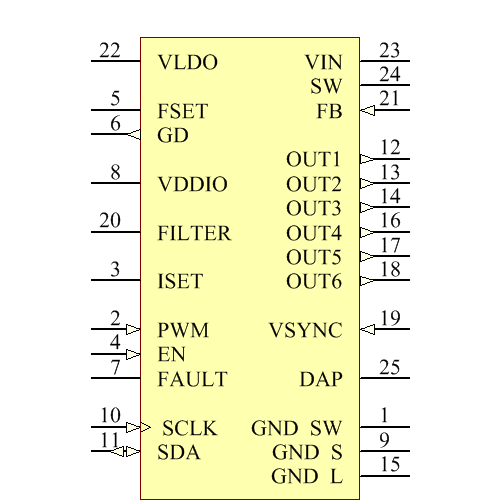

LP8545SQE/NOPB Symbol - Texas Instruments

LP8545SQE/NOPB Symbol - Texas Instruments

LP8545SQE/NOPB Symbol - Texas Instruments

‹ ›

Footprint

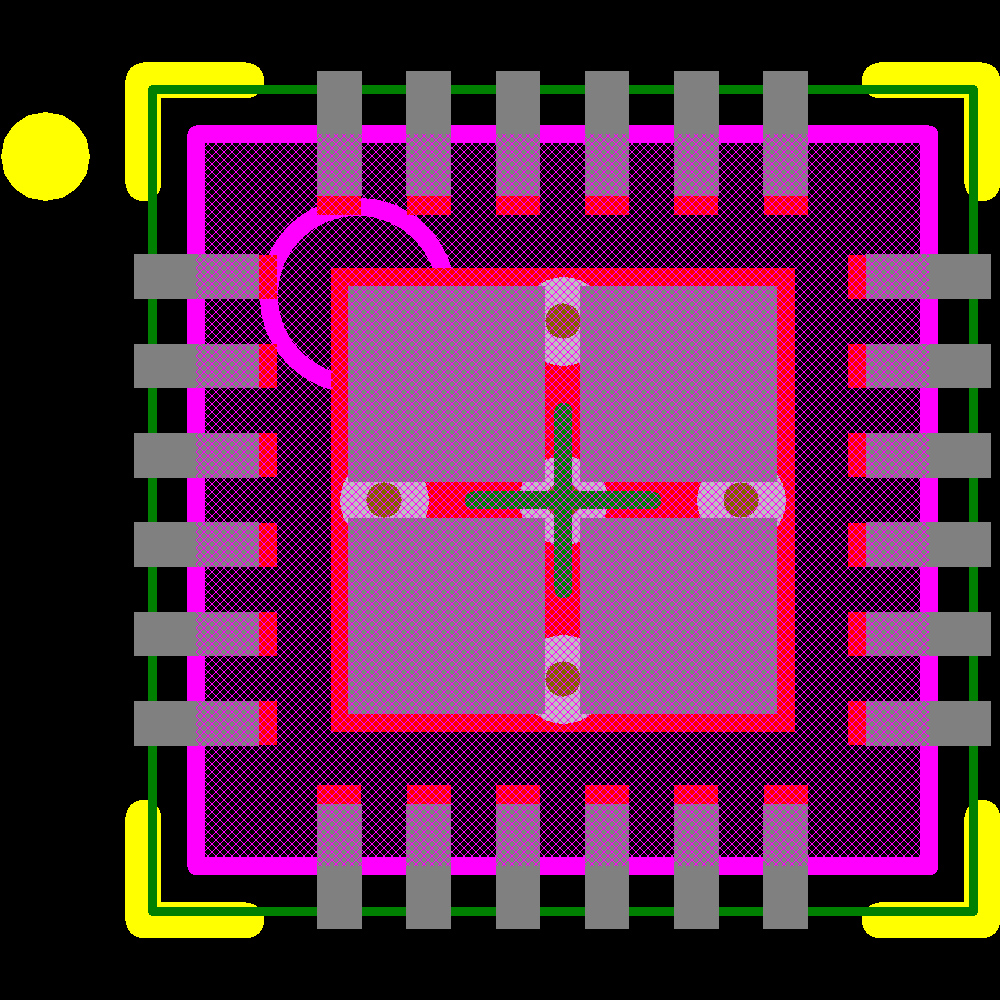

LP8545SQE/NOPB Footprint - Texas Instruments
