LP8545SQX/NOPB - Texas Instruments
Six channel high-efficiency LED backlight driver for notebooks with flexible ext/int FET control 24-WQFN -30 to 85
Technical Details
| Height | 800µm |
| Lead Free | Lead Free |
| Length | 4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Number of Channels | 6 |
| Number of Outputs | 6 |
| Number of Pins | 24 |
| Operating Supply Voltage | 22V |
| Packaging | Tape & Reel |
| Quiescent Current | 4mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 750µm |
| Topology | Boost |
| Width | 4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

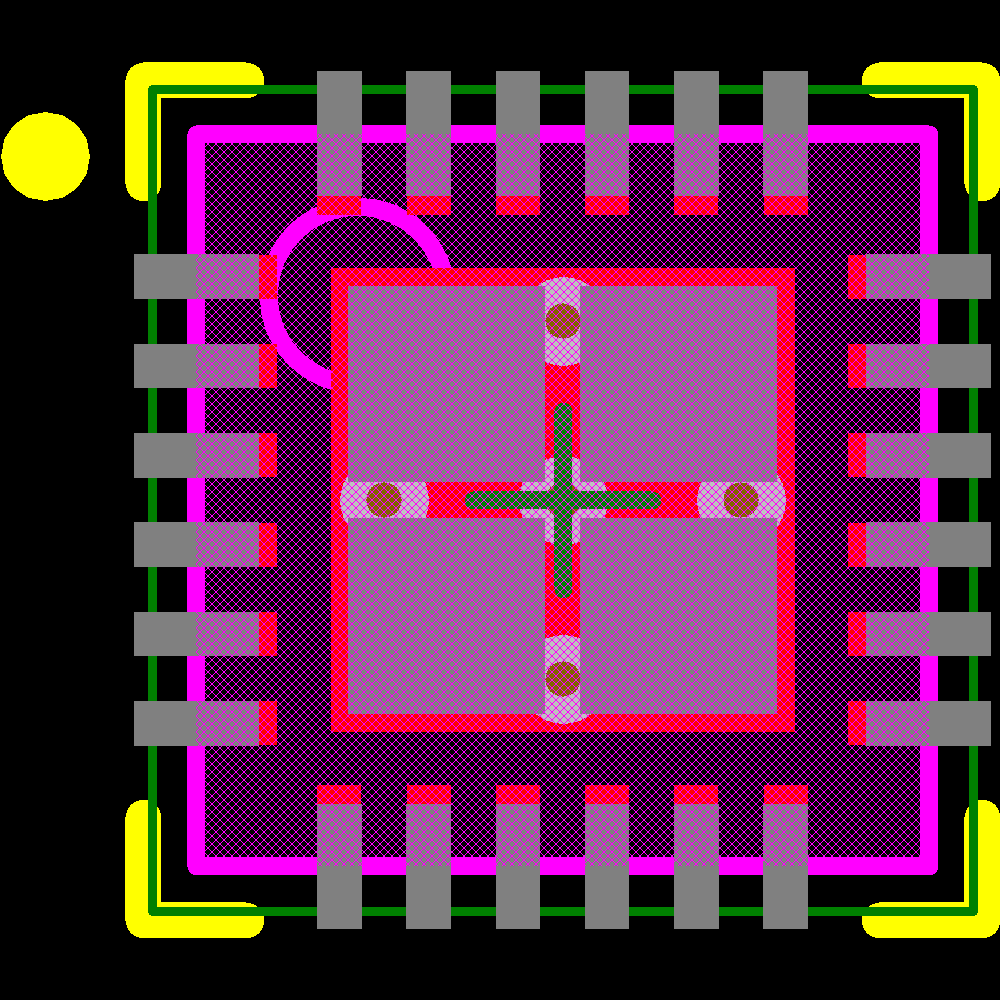

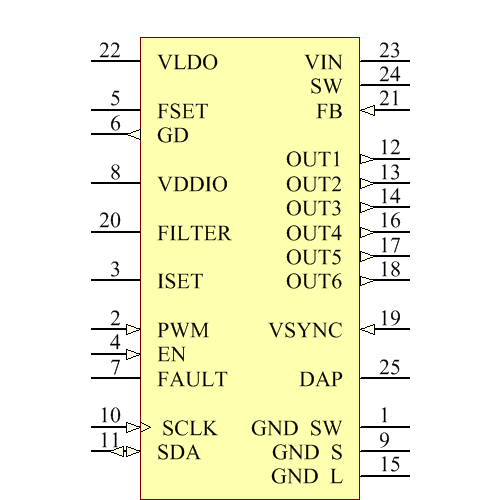

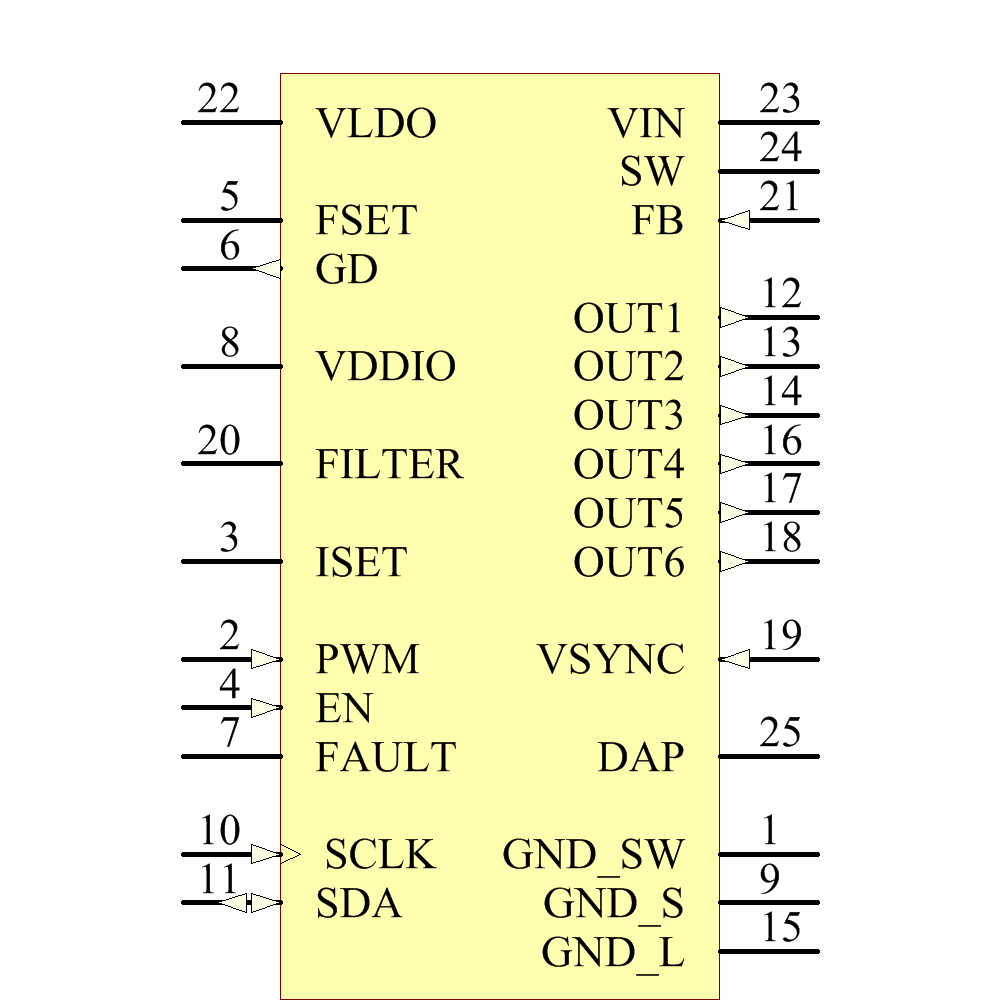

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 1.501 | |||||||
| Arrow Electronics |
US: 0
|
$ | 1.467 | |||||||
| Texas Instruments |
US: 18221
|
$ | 2.125 | 2.125 | 2.125 | 1.862 | 1.052 | 1.052 | ||
