LP8860AQVFPRQ1 - Texas Instruments
Automotive low-EMI high-performance 4-channel LED driver 32-HLQFP -40 to 125
Technical Details
| Ambient Temperature Range High | 125°C |
| Dimming | PWM |
| Frequency | 2.2MHz |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 5.5V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 150mA |
| Max Output Voltage | 40V |
| Max Supply Current | 15mA |
| Max Supply Voltage | 48V |
| Min Input Voltage | 3V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 16V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 3.3V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Pins | 32 |
| Output Current | 600mA |
| Output Current per Channel | 150mA |
| Output Voltage | 48V |
| Packaging | Digi-Reel® |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Switching Frequency | 2.2MHz |
| Thickness | 1.4mm |
| Topology | Boost |
| Weight | 178.601996mg |
| Width | 7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

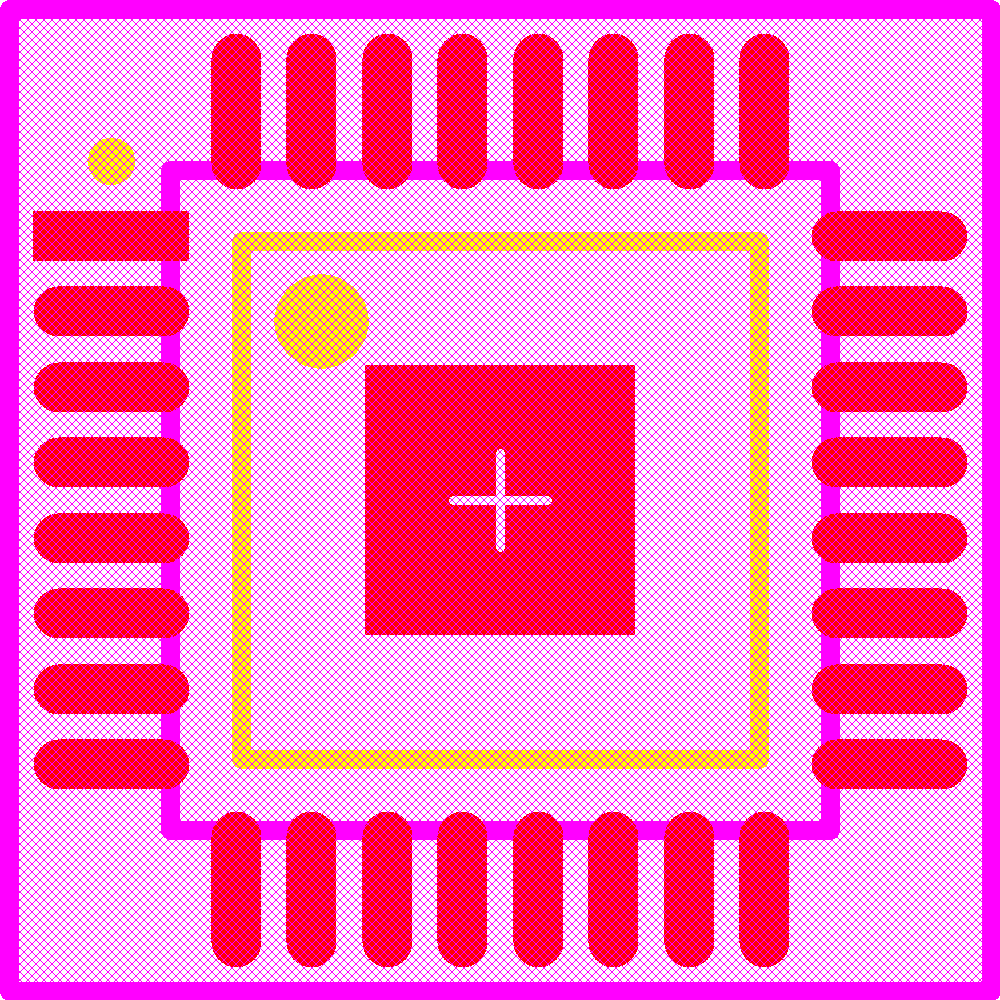

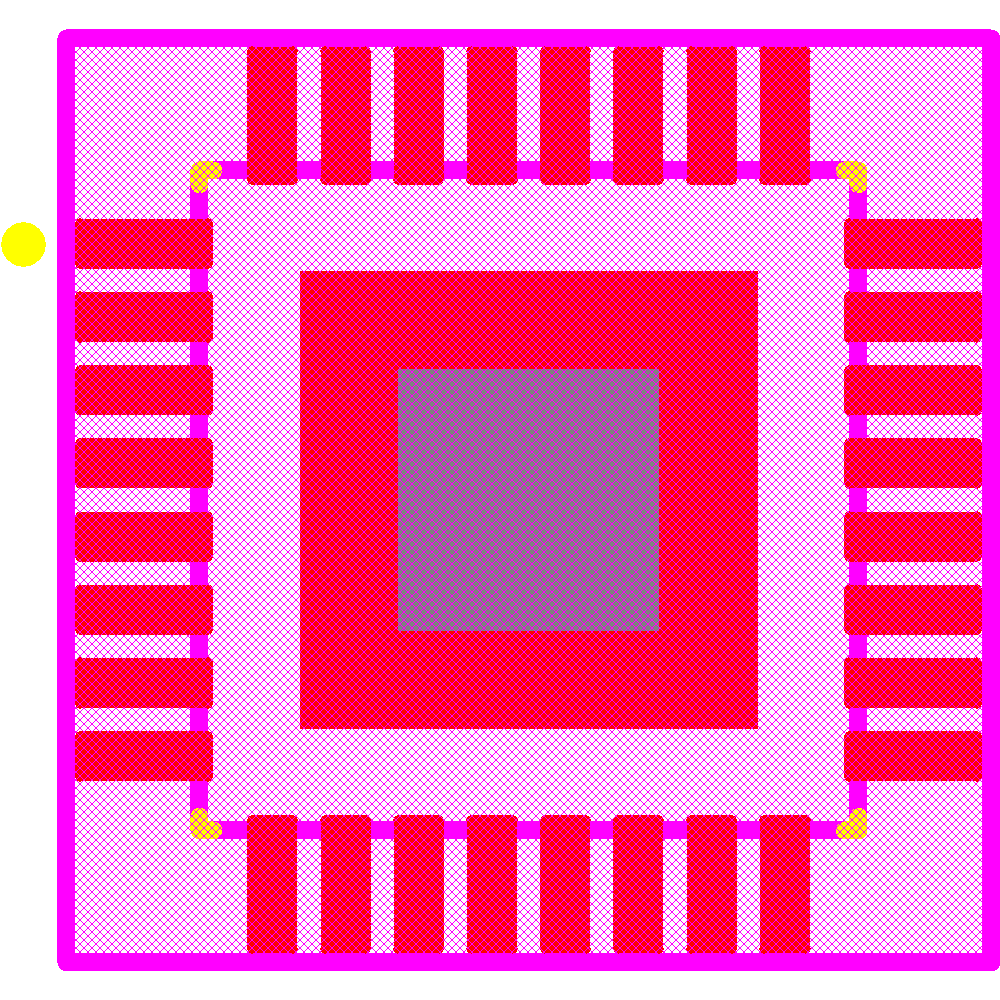

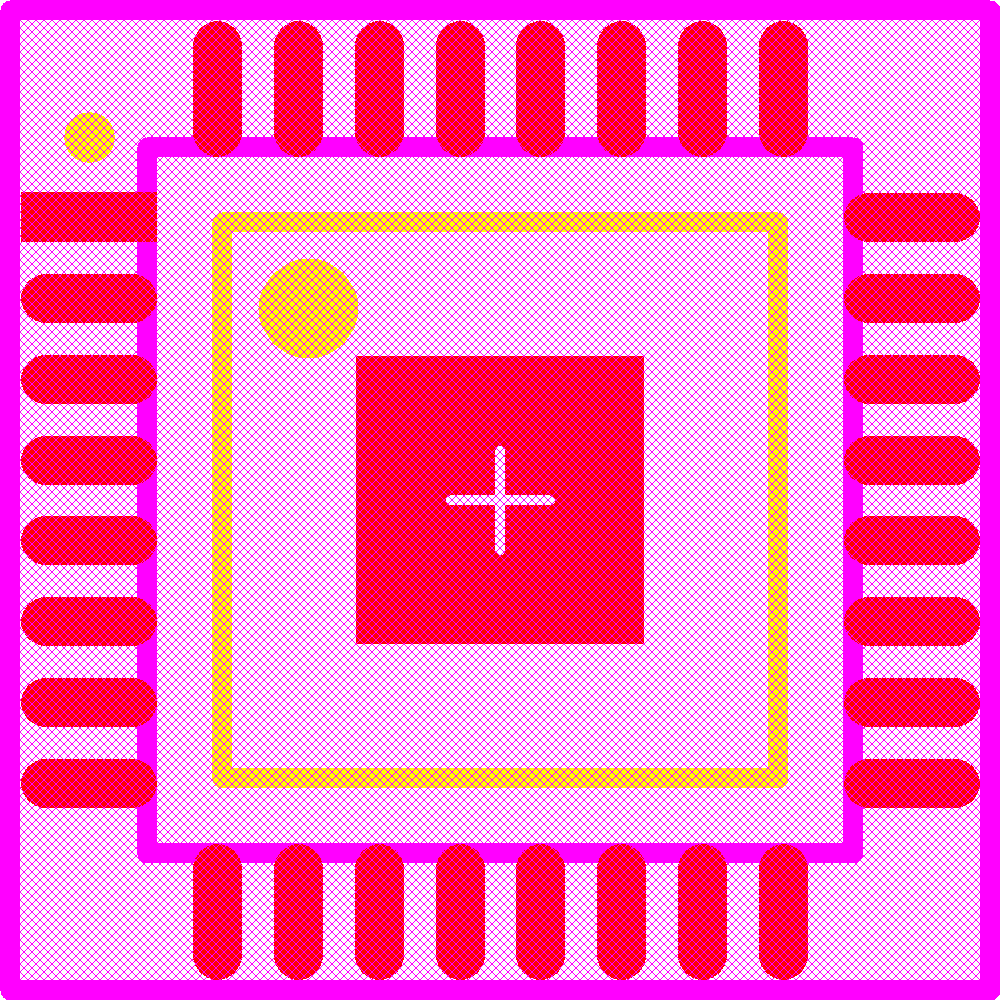

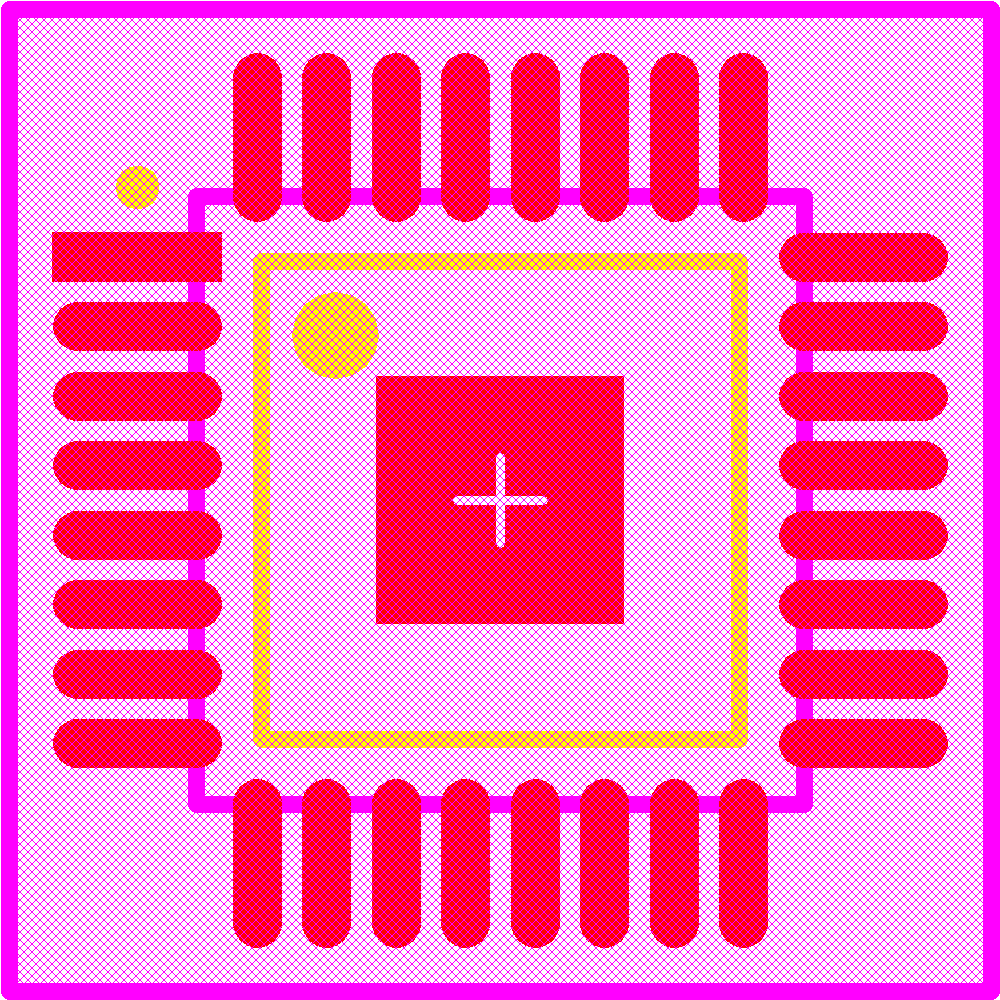

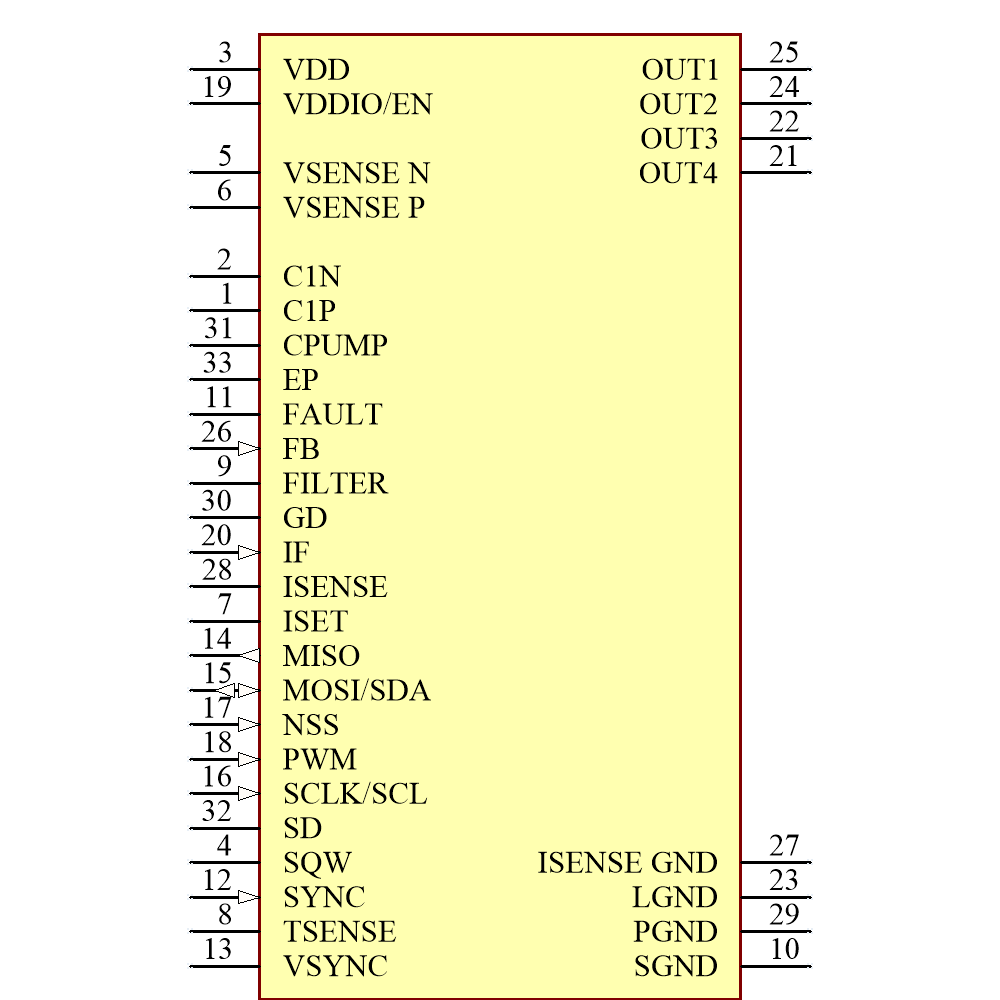

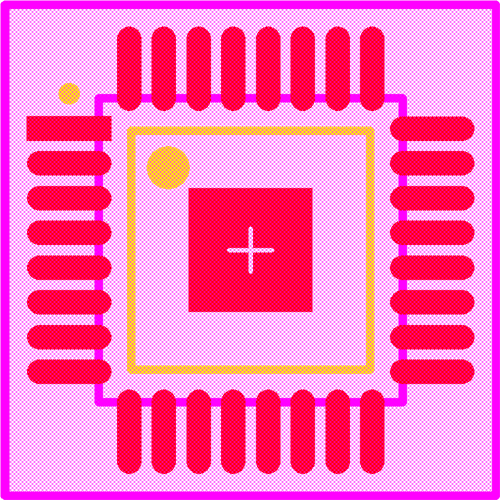

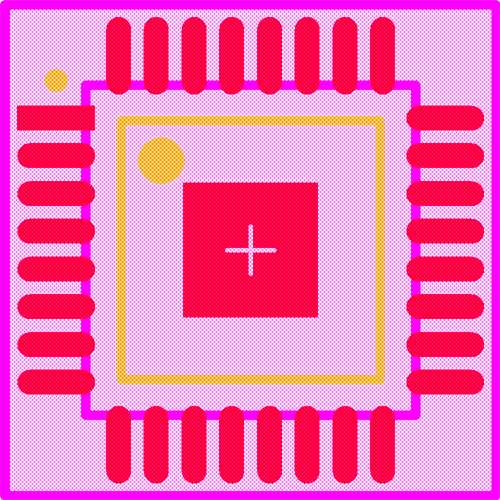

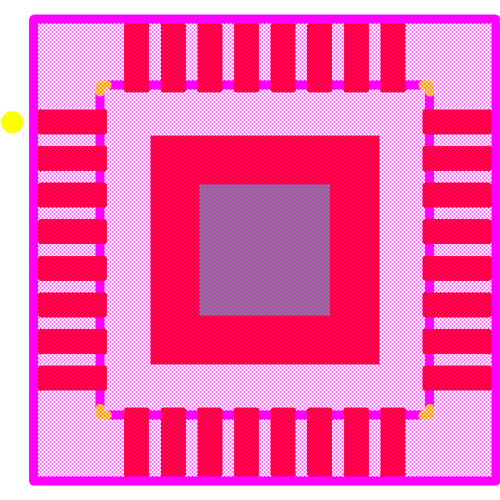

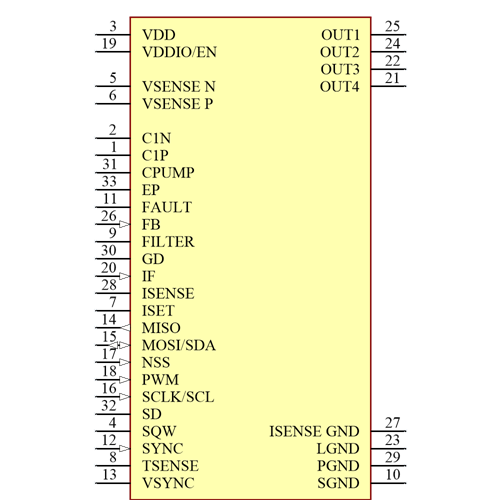

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| onsemi | Production |
