LT1054CDWRG4 - Texas Instruments
Switched Capacitor Regulator, 0.1A, 100kHz Switching Freq-Max, BIPolar, PDSO16
Technical Details
| Case/Package | SOIC |
| Height | 2.65mm |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Logic Function | Inverting |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 15V |
| Max Operating Temperature | 85°C |
| Max Output Current | 100mA |
| Max Supply Voltage | 15V |
| Min Input Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.5V |
| Number of Outputs | 1 |
| Number of Pins | 16 |
| Output Current | 100mA |
| Output Type | Adjustable, Fixed |
| Output Voltage | -5V |
| Packaging | Tape & Reel (TR) |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 25kHz |
| Synchronous Rectifier | No |
| Thickness | 2.35mm |
| Topology | Buck-Boost, Charge Pump |
| Weight | 420.395078mg |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

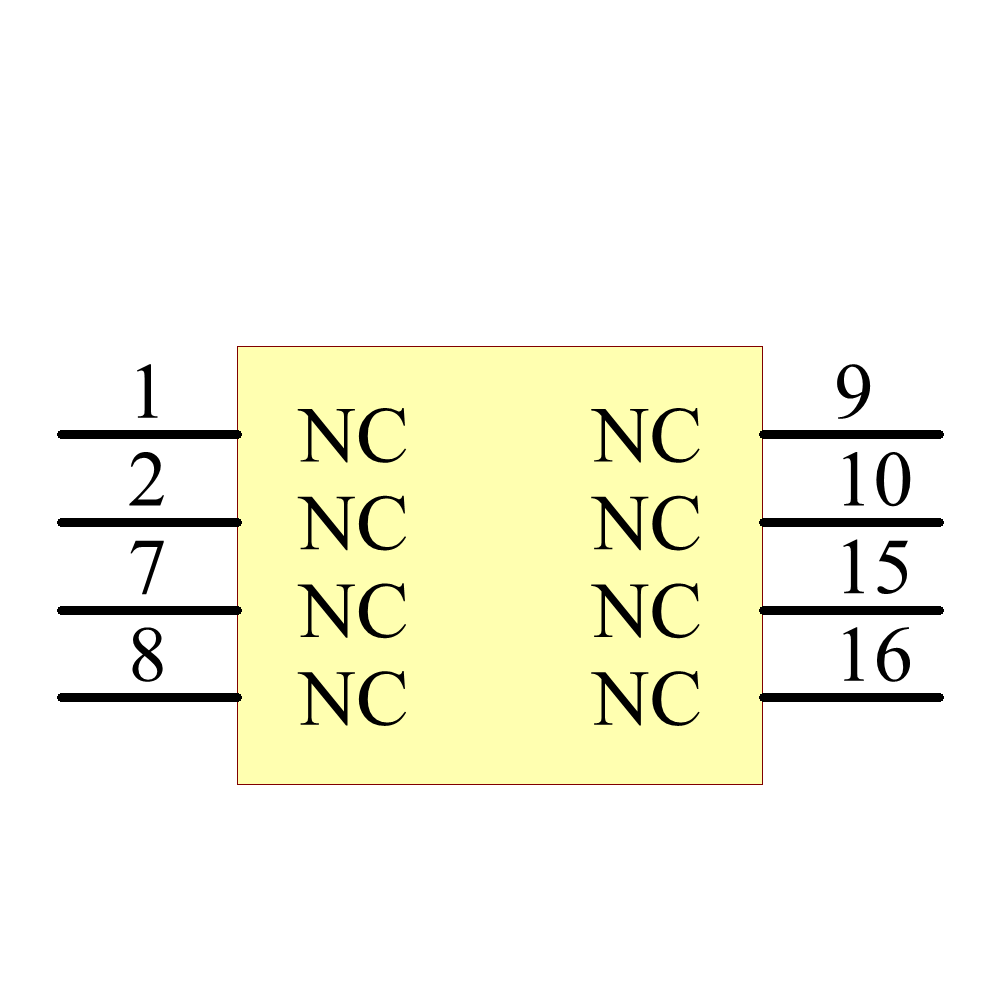

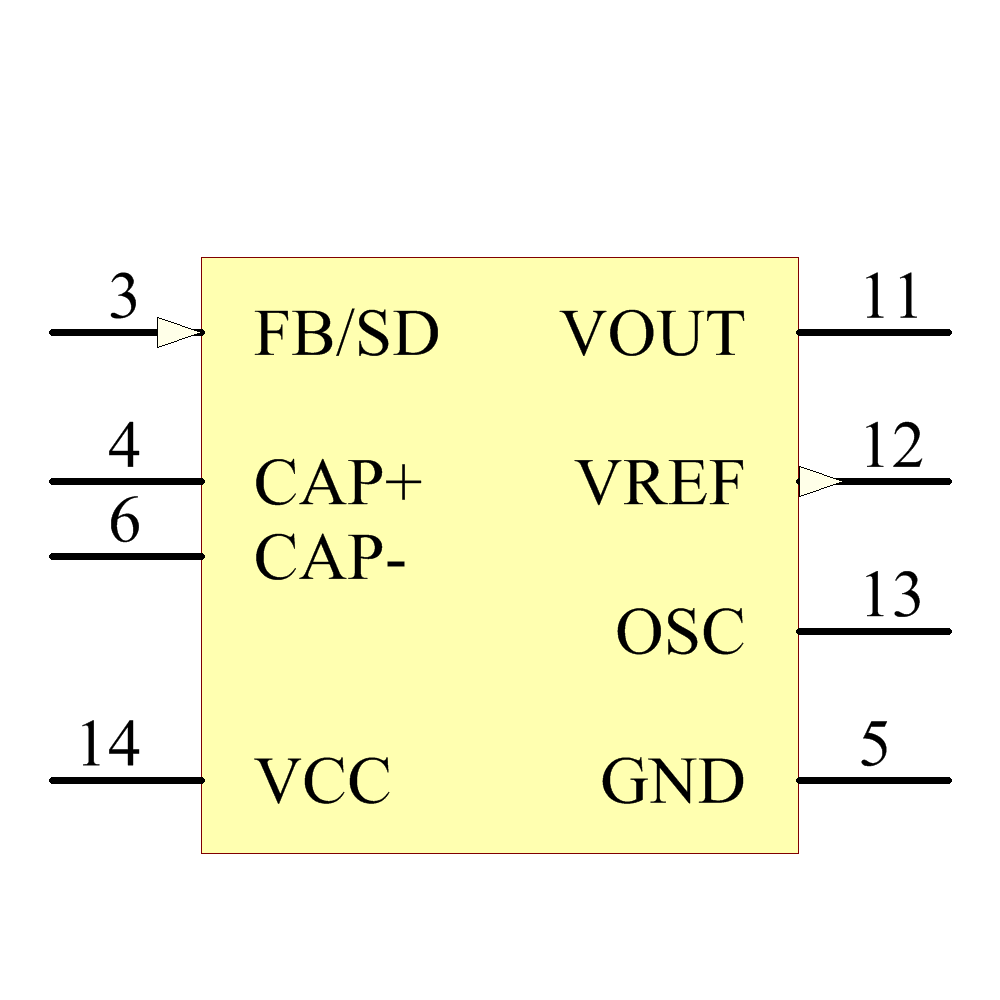

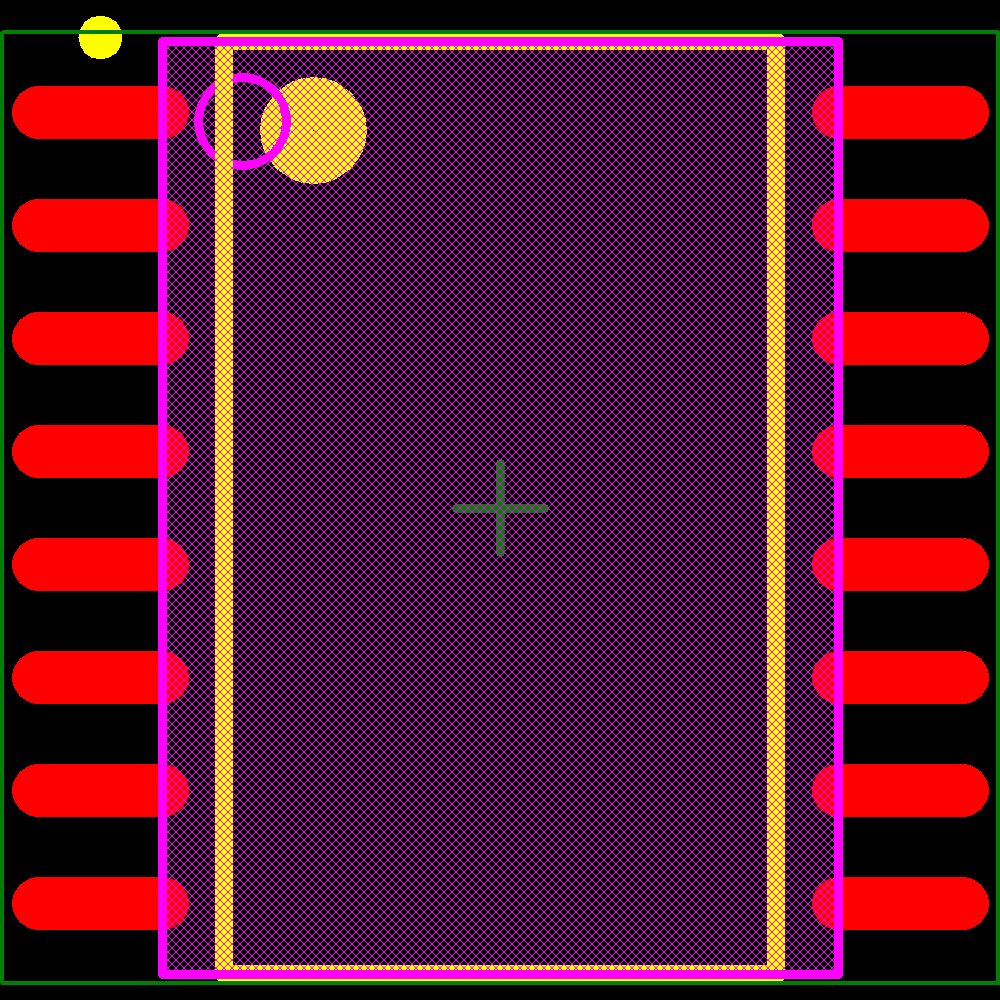

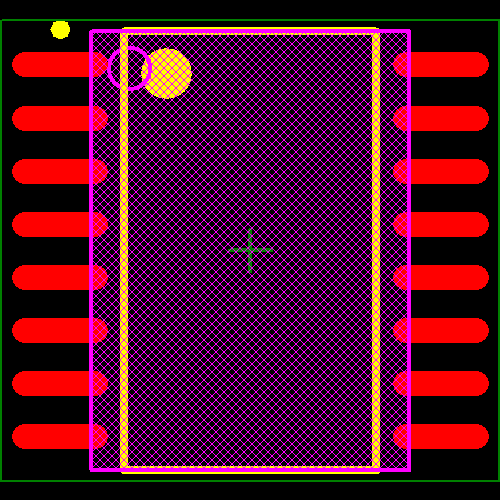

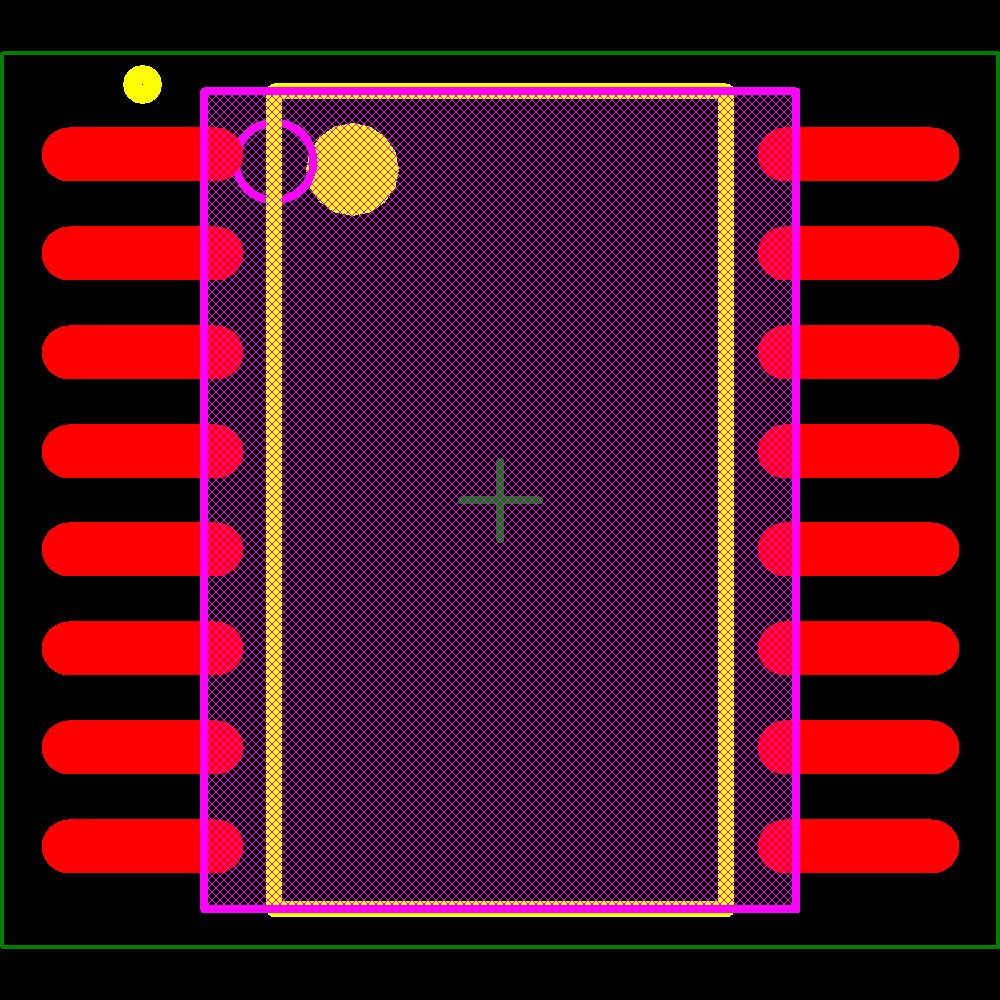

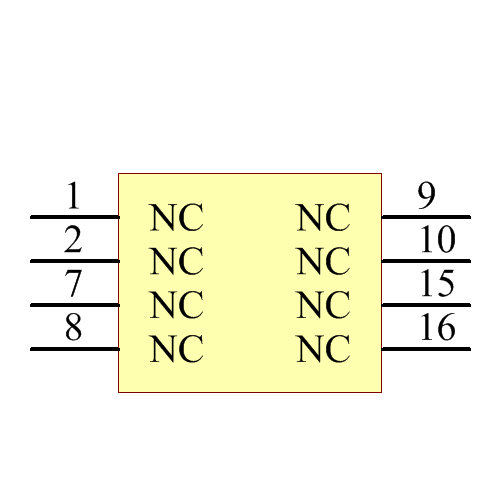

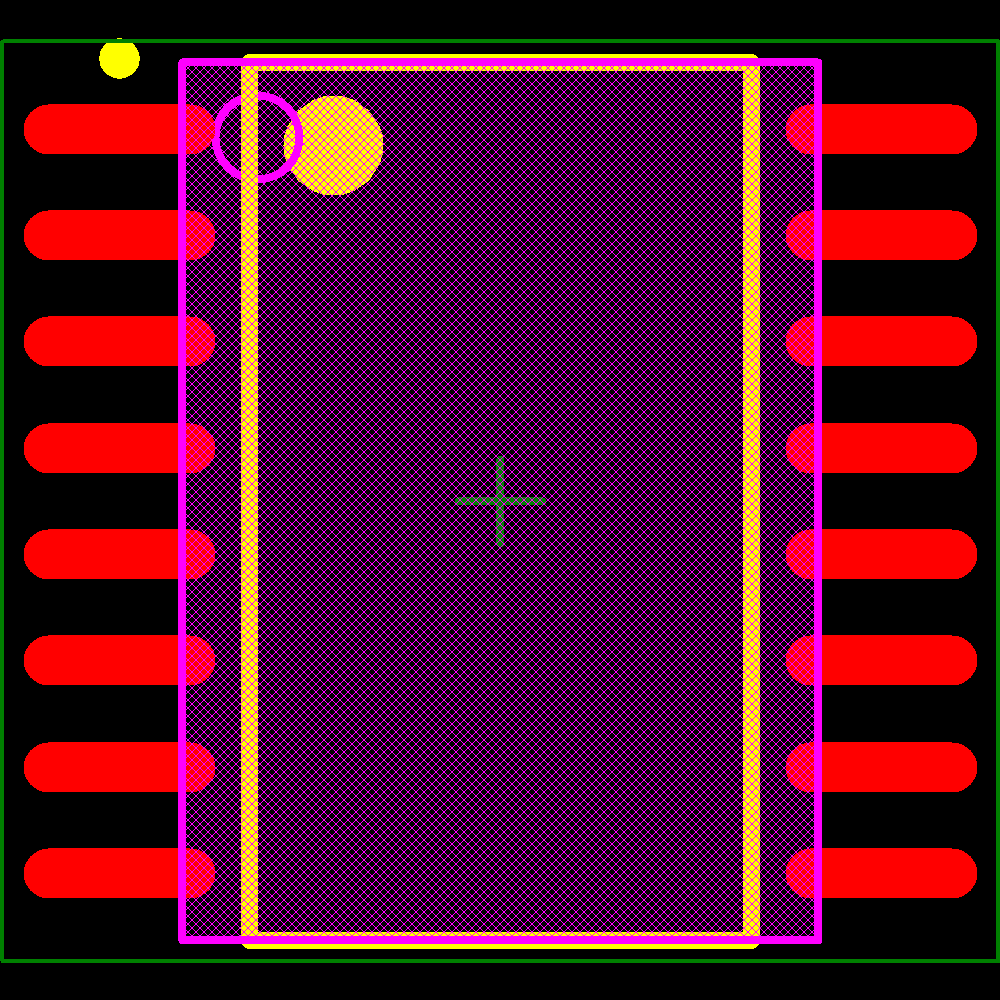

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Analog Devices | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices / Linear Technology | Obsolete |
