LT1054CPE4 - Texas Instruments
Switched Capacitor Regulator 35 Khz Switching Freq-max PDIP8
Technical Details
| Case/Package | PDIP |
| Height | 5.08mm |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Lifecycle Status | Production |
| Logic Function | Inverting |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 15V |
| Max Operating Temperature | 85°C |
| Max Output Current | 100mA |
| Max Supply Voltage | 15V |
| Min Input Voltage | 3.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3.5V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | -5V |
| Packaging | Cut Tape |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Switching Frequency | 25kHz |
| Synchronous Rectifier | No |
| Thickness | 3.9mm |
| Weight | 440.409842mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

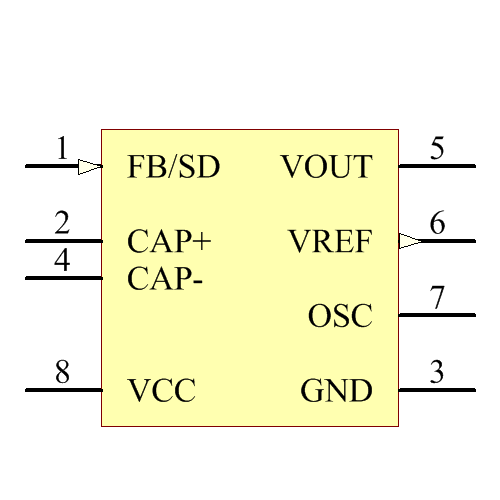

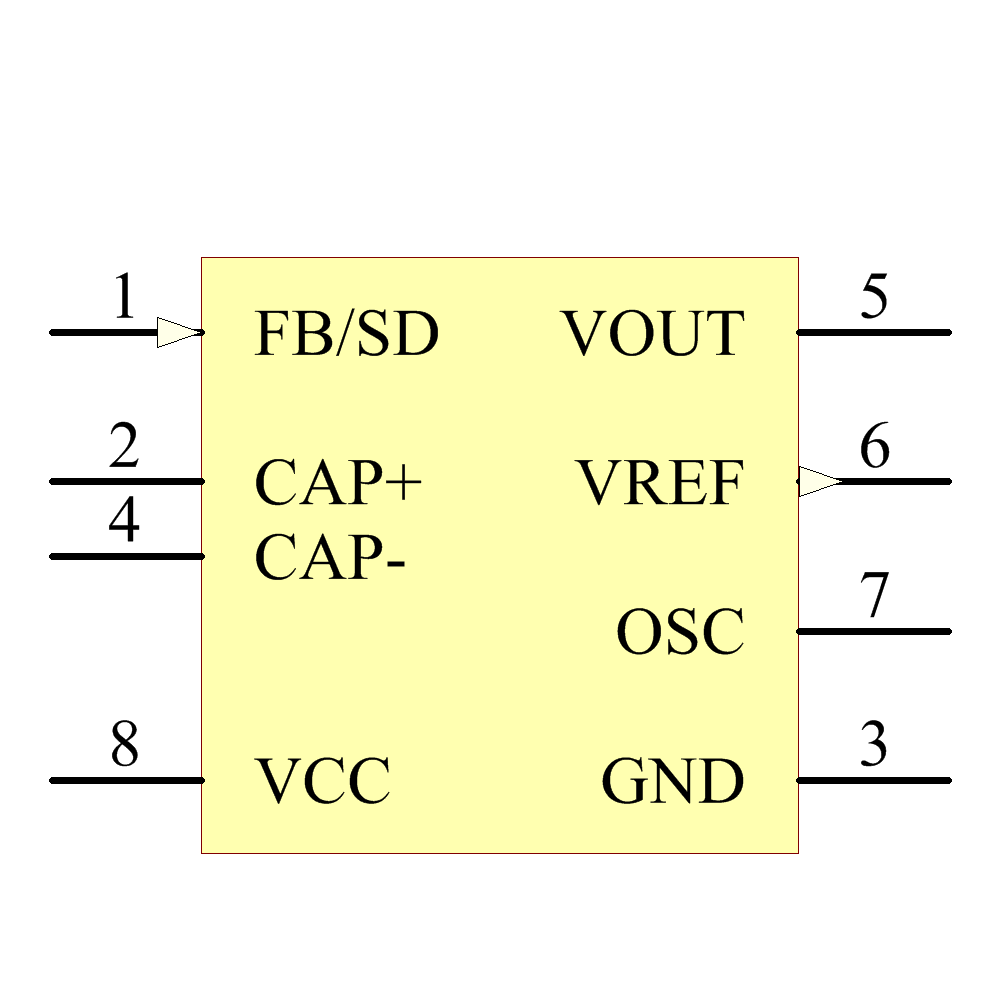

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Analog Devices | Production | ||
| Texas Instruments | Production | ||
| Analog Devices / Linear Technology | Unknown | ||
| Analog Devices | EOL | ||
| Analog Devices | Unknown | ||
| Texas Instruments | Production | ||
| Analog Devices / Linear Technology | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 502
|
$ | 5.70 | 4.08 | 3.46 | 3.20 | 1.96 | 1.96 | ||
| DigiKey |
DE: 0
|
$ | 2.3737 | 2.3737 | ||||||
