MC34063ADE4 - Texas Instruments
1.5-A boost, buck, inverting switching regulator, operation from 0°C to 70°C 8-SOIC 0 to 70
Technical Details
| Case/Package | SOIC |
| Frequency | 100kHz |
| Height | 1.75mm |
| Input Current | 4mA |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 40V |
| Max Operating Temperature | 70°C |
| Max Output Current | 750mA |
| Max Output Voltage | 40V |
| Min Input Voltage | 3V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 1.55V |
| Nominal Input Voltage | 40V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Packaging | Cut Tape |
| Quiescent Current | 4mA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Frequency | 100kHz |
| Synchronous Rectifier | No |
| Thickness | 1.58mm |
| Topology | Boost, Buck, Flyback, SEPIC |
| Weight | 72.603129mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

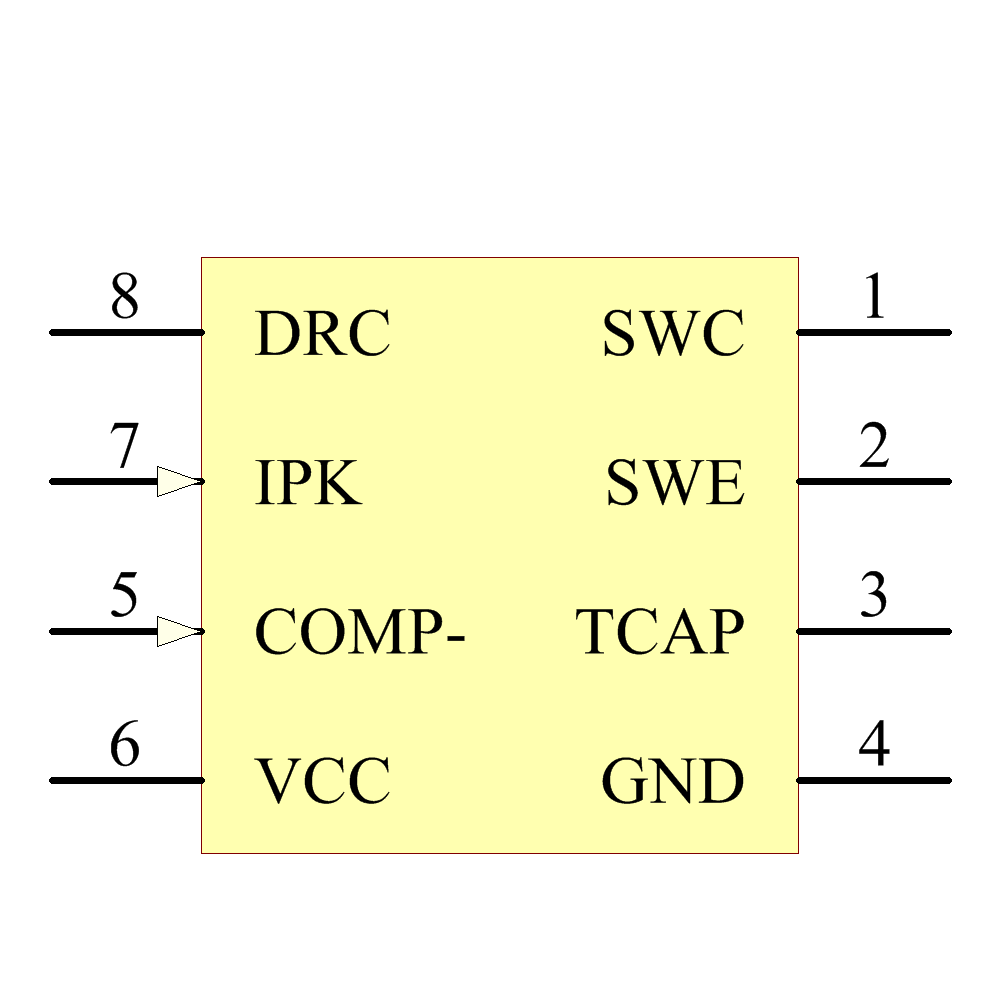

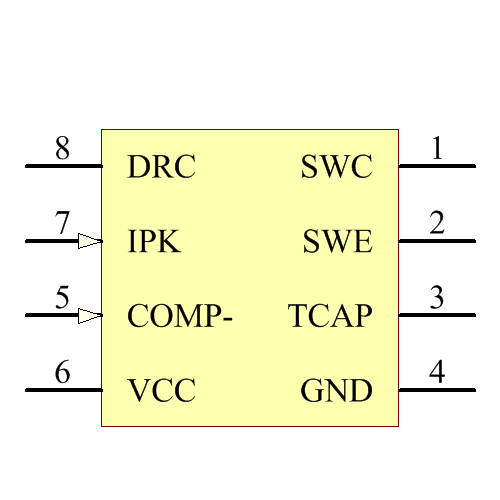

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| STMicroelectronics | Obsolete | ||
| STMicroelectronics | Obsolete | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 8256
|
$ | 3.02 | 1.97 | 1.81 | 1.54 | 0.865 | 0.865 | ||
