MSP430F1111AIPW - Texas Instruments
16-bit Ultra-Low-Power Microcontroller, 2kB Flash, 128B AM, Comparator 20-TSSOP -40 to 85
Technical Details
| Access Time | 8µs |
| Case/Package | TSSOP |
| Contact Plating | Gold |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 8MHz |
| Height | 0m |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 8MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 14 |
| Number of I/Os | 12 |
| Number of Pins | 20 |
| Number of Programmable I/O | 14 |
| Number of PWM Channels | 3 |
| Number of Timers/Counters | 1 |
| Number of UART Channels | 0 |
| Oscillator Type | Internal |
| Peripherals | LVD, POR, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS | Compliant |
| Thickness | 1mm |
| Watchdog Timer | Yes |
| Weight | 76.997305mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

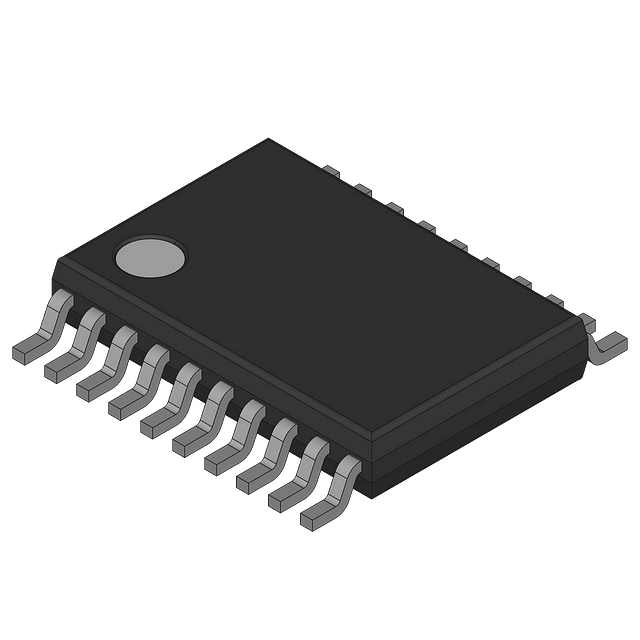

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
