MSP430F2121TPW - Texas Instruments
16 MHz MCU with 4KB Flash, 256B SRAM, timer, comparator 20-TSSOP -40 to 105
Technical Details
| Case/Package | TSSOP |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Density | 32kb |
| Frequency | 16MHz |
| Height | 0m |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 16MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 4kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 16 |
| Number of I/Os | 16 |
| Number of Pins | 20 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 1 |
| Number of UART Channels | 0 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Watchdog Timer | Yes |
| Weight | 76.997305mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

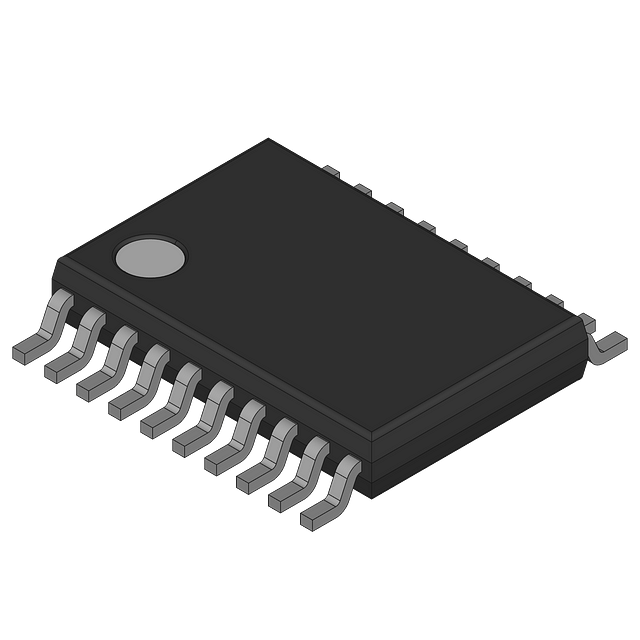

Images
