MSP430F5340IRGZR - Texas Instruments
Mcu, 16Bit, 25Mhz, Vqfn-48 Rohs Compliant: Yes |TEXAS INSTRUMENTS MSP430F5340IRGZR
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | VQFN |
| Core Architecture | CPUXV2 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Height | 1mm |
| Interface | I2C, IrDA, SPI, UART |
| Lead Free | Lead Free |
| Length | 7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 25MHz |
| Max Junction Temperature (Tj) | 85°C |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 9 |
| Number of GPIO | 31 |
| Number of I2C Channels | 2 |
| Number of I/Os | 38 |
| Number of Pins | 48 |
| Number of Programmable I/O | 38 |
| Number of PWM Channels | 4 |
| Number of SPI Channels | 4 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Packaging | Digi-Reel® |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 6kB |
| RoHS | Compliant |
| Schedule B | 8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000 |
| Thickness | 900µm |
| Watchdog Timer | Yes |
| Width | 7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

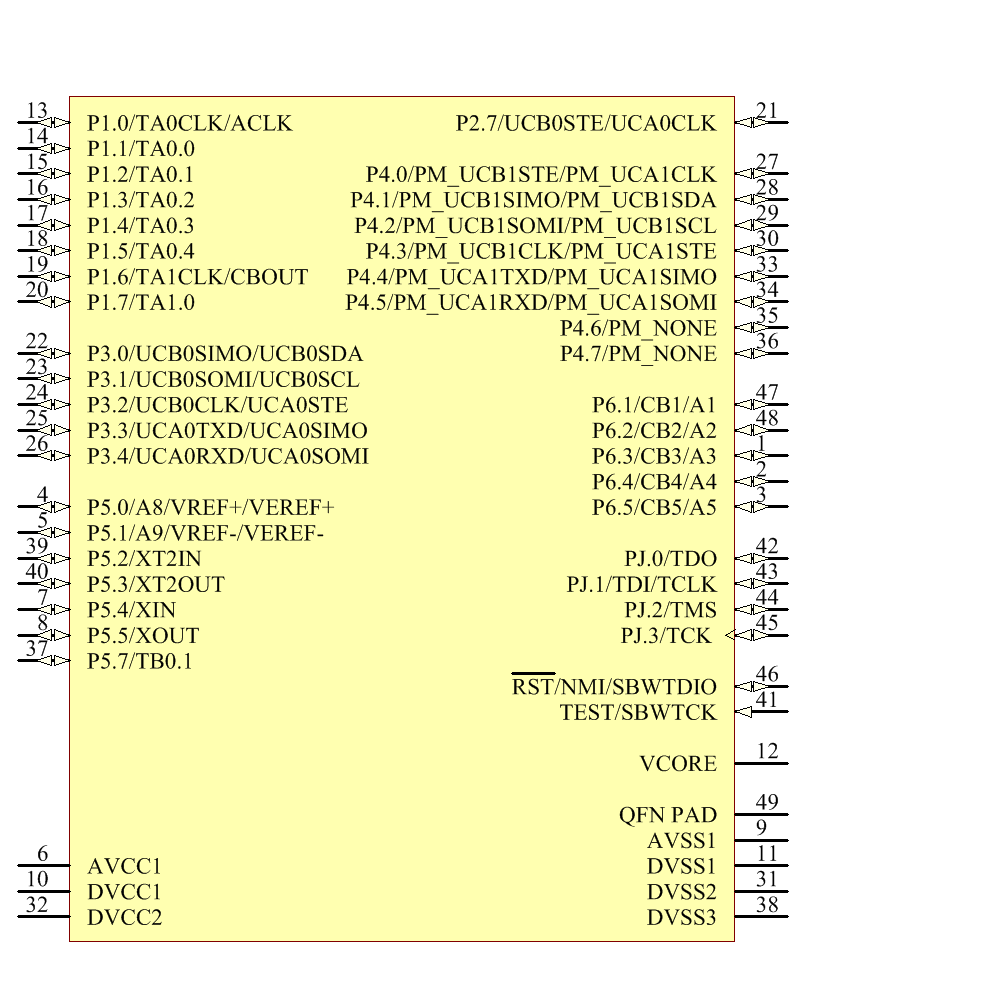

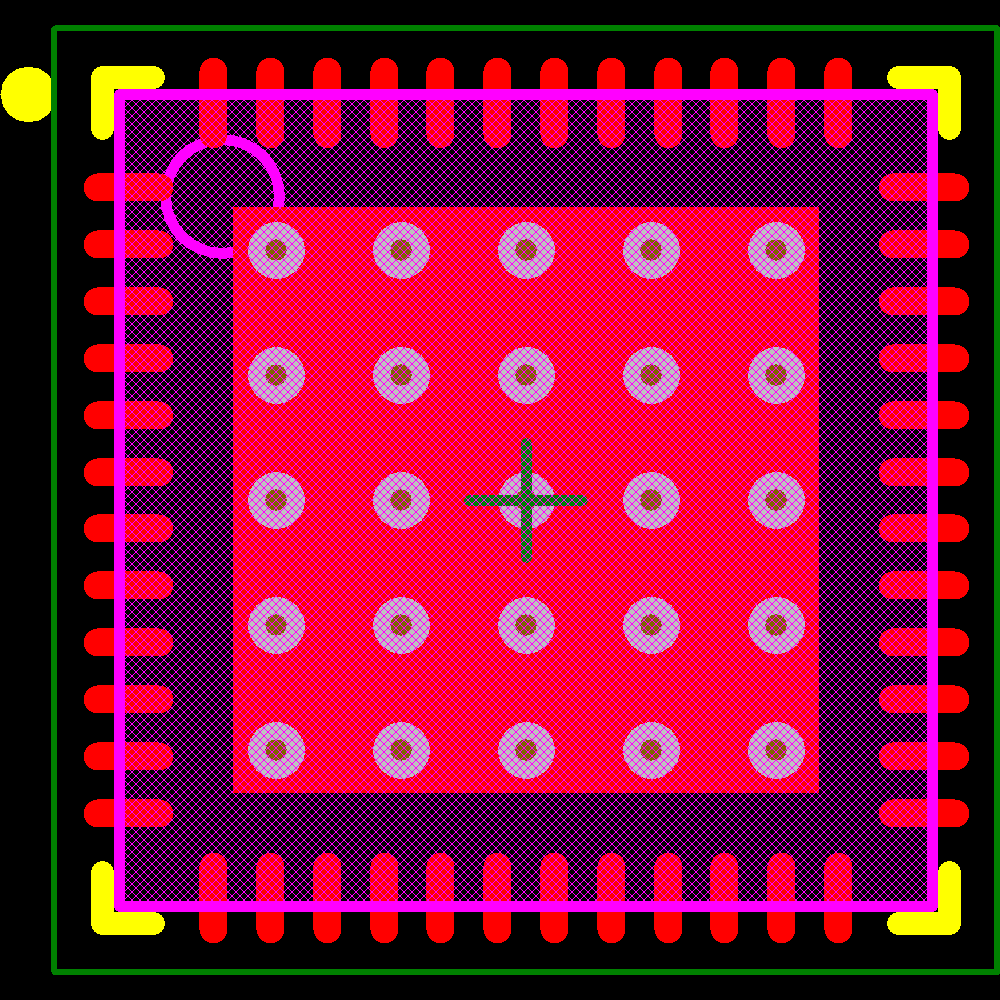

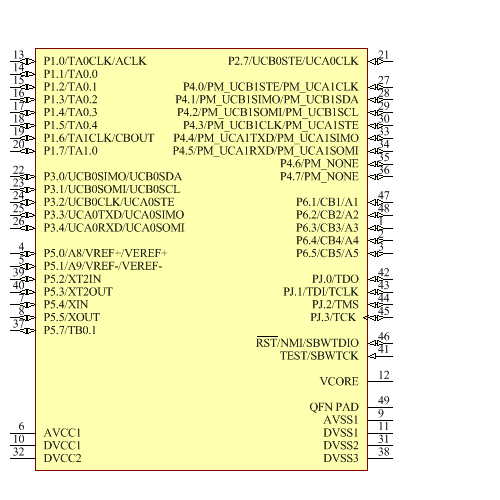

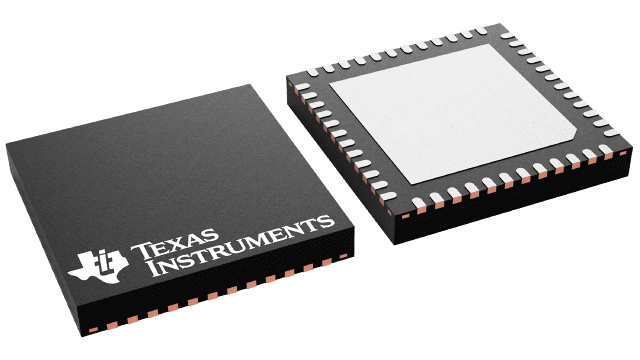

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
