MSP430F5505IRGZT - Texas Instruments
MCU 16-bit MSP430 RISC 16KB Flash 2.5V/3.3V 48-Pin VQFN EP T/R
Technical Details
| Case/Package | VQFN |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Height | 1mm |
| Interface | I2C, IrDA, LIN, SCI, SPI, UART, USART, USB |
| Lead Free | Lead Free |
| Length | 7mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16kB |
| Memory Type | FLASH |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 8 |
| Number of ADC Channels | 8 |
| Number of GPIO | 31 |
| Number of I/Os | 31 |
| Number of Pins | 48 |
| Number of Programmable I/O | 31 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tape & Reel (TR) |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 8kB |
| RoHS | Compliant |
| Thickness | 900µm |
| Watchdog Timer | Yes |
| Width | 7mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

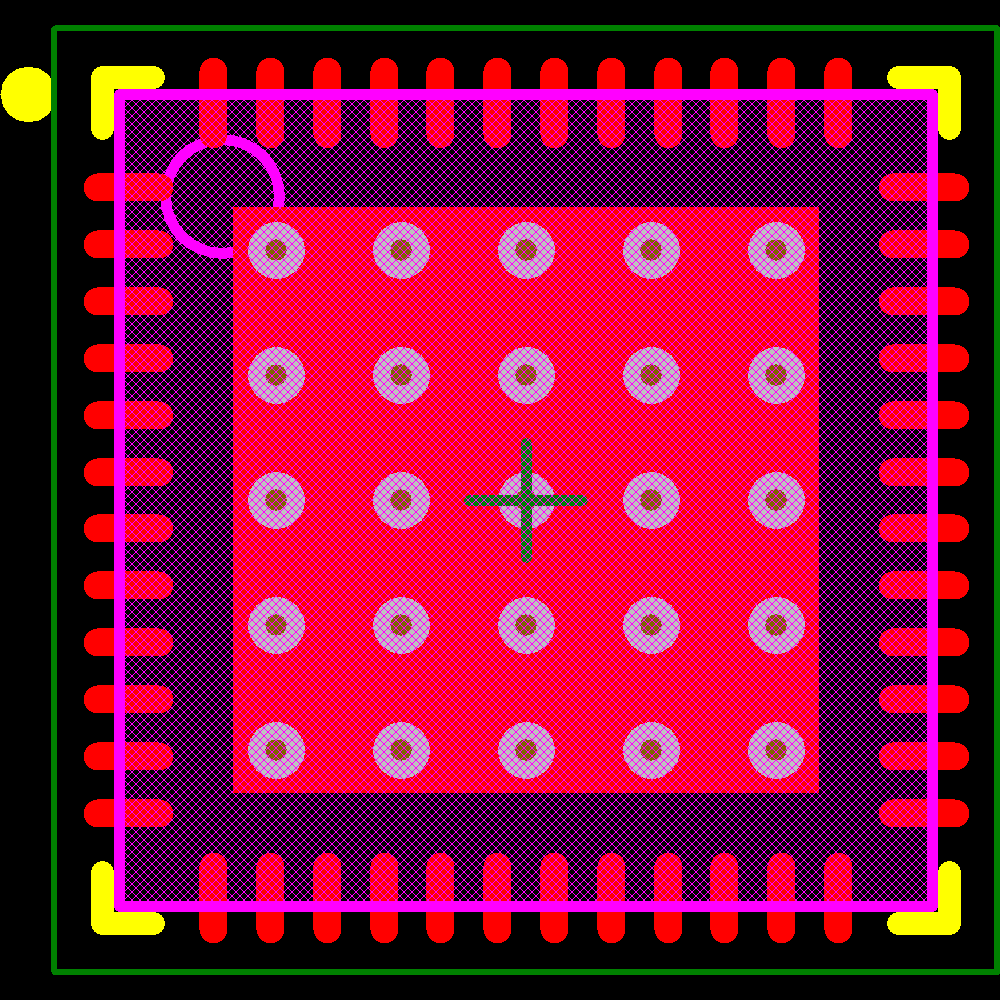

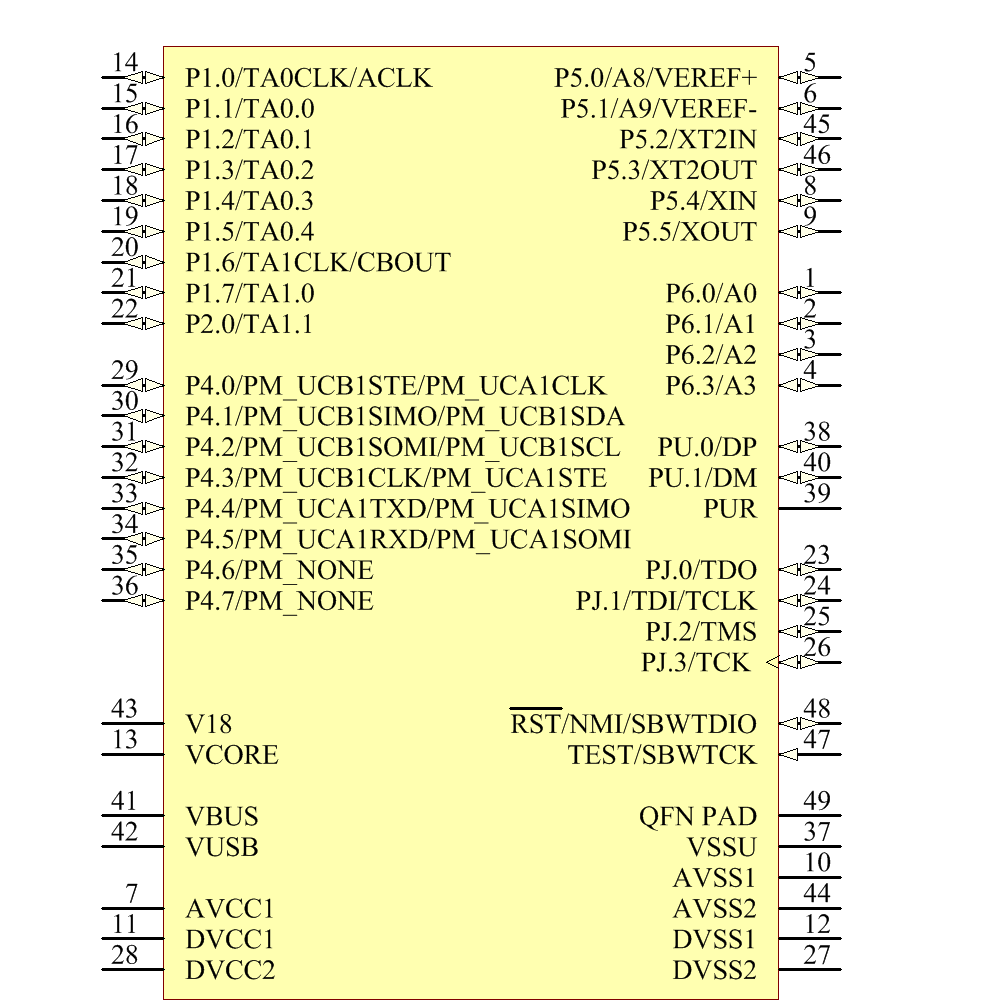

Images
Texas Instruments
