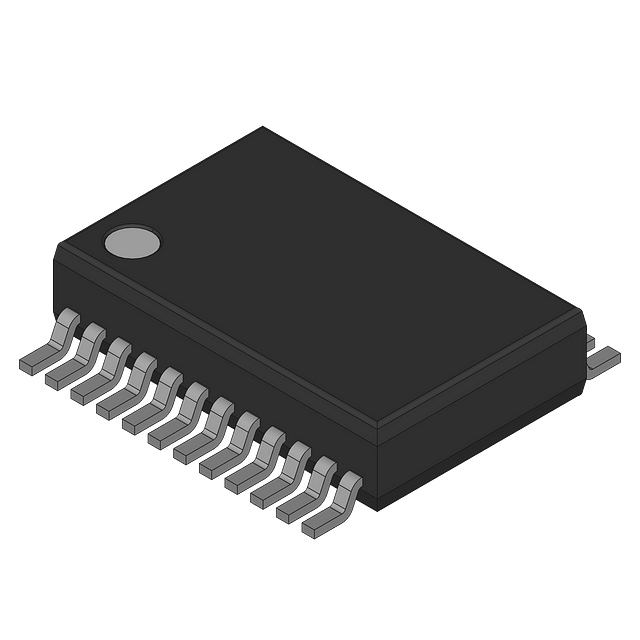

PCA9535DB - Texas Instruments
16-bit 2.3- to 5.5-V I2C/SMBus I/O expander with interrupt & config registers 24-SSOP -40 to 85
Technical Details
| Case/Package | SSOP |
| Frequency | 400kHz |
| Height | 2mm |
| Interface | I2C, SMBus, Serial |
| Lead Free | Lead Free |
| Length | 8.2mm |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Outputs | 2 |
| Number of Pins | 24 |
| Operating Supply Voltage | 5.5V |
| Output Current | 25mA |
| RoHS | Compliant |
| Thickness | 1.95mm |
| Weight | 172.39345mg |
| Width | 5.3mm |
