PCA9535DGVR - Texas Instruments
IC XPND 400KHZ I2C SMBUS 24TVSOP "I/O Expander 16 I2C, SMBus 400 kHz 24-TVSOP"
Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | TFSOP |
| Frequency | 400kHz |
| Height | 1.2mm |
| Interface | I2C, SMBus |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Number of Outputs | 2 |
| Number of Pins | 24 |
| Operating Supply Voltage | 5.5V |
| Output Current | 25mA |
| Packaging | Digi-Reel® |
| RoHS | Compliant |
| Thickness | 1.05mm |
| Weight | 60.894776mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed

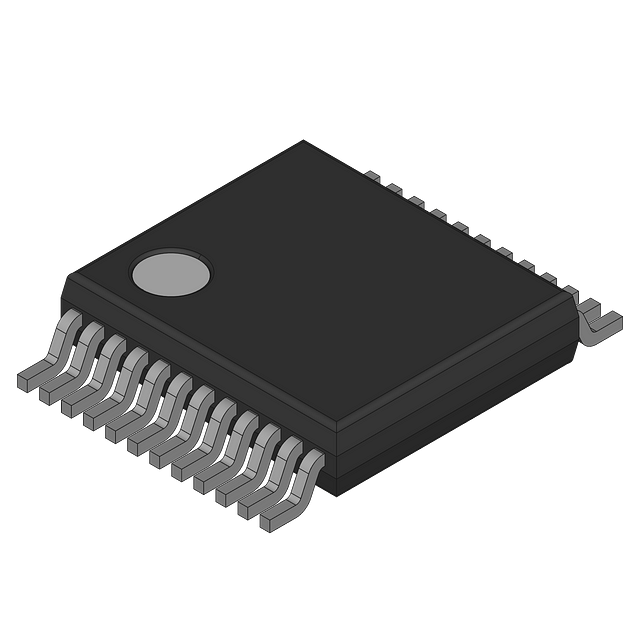

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete |
