Integrated Circuits (ICs)  >  Interface ICs  >  I/O Expanders

Texas Instruments - PCA9539DW

PCA9539DW - Texas Instruments

IC XPNDR 400KHZ I2C SMBUS 24SOIC "I/O Expander 16 I2C, SMBus 400 kHz 24-SOIC"

 Datasheets

Technical Details

Case/Package SOIC
Frequency 400kHz
Height 2.65mm
Lead Free Lead Free
Length 15.4mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Frequency 400kHz
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Number of I/Os 16
Number of Outputs 2
Number of Pins 24
Operating Supply Voltage 5.5V
Output Current 25mA
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Thickness 2.35mm
Weight 624.398247mg
Width 7.5mm

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No

Images

Texas Instruments PCA9539DW | Texas Instruments

Texas Instruments

Datasheets

 Arrow Electronics
 Mouser
 DigiKey

Lifecycle Status Indicator

   Production

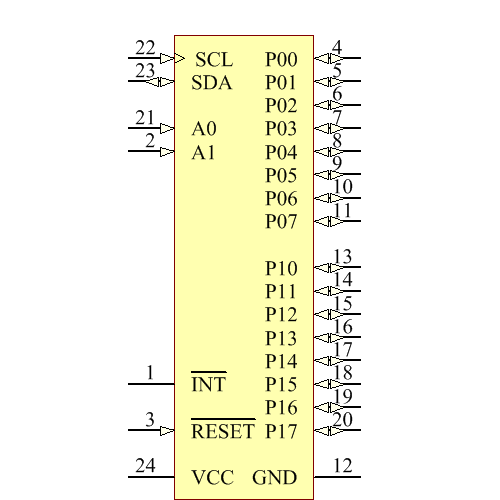

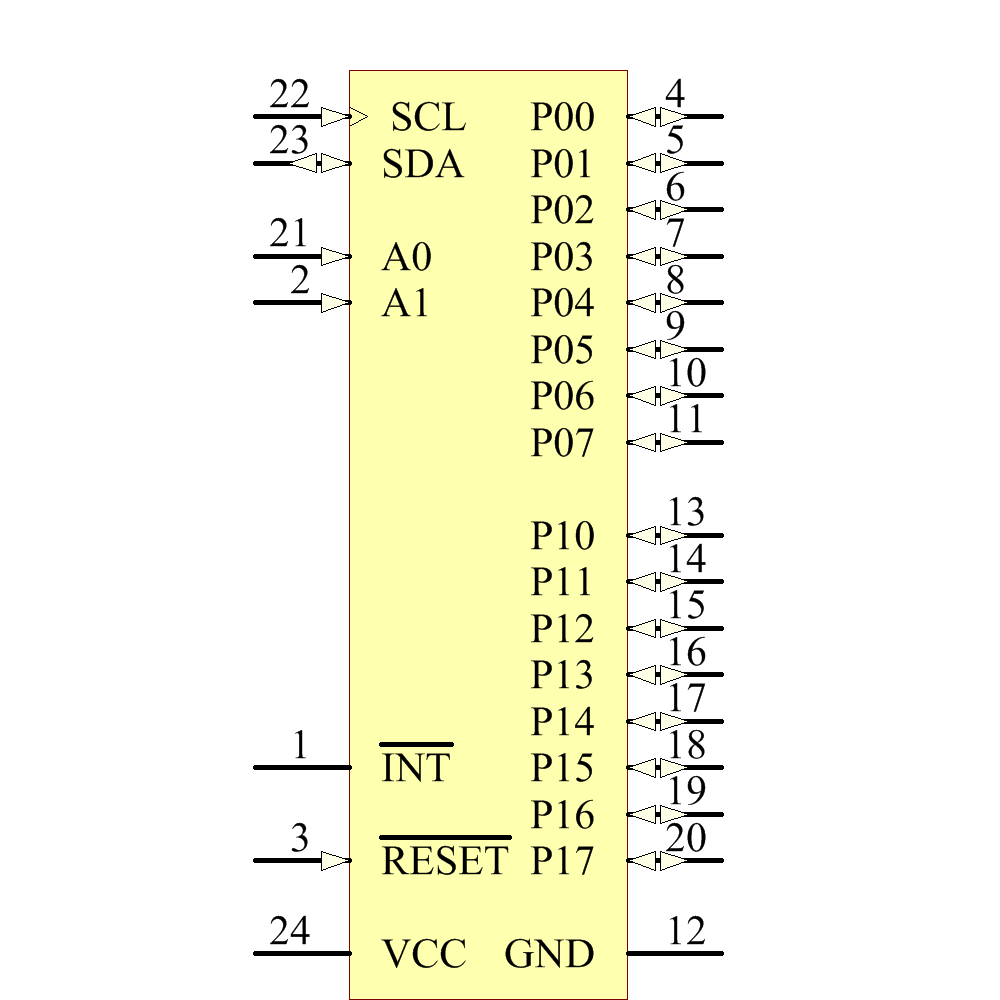

Symbol

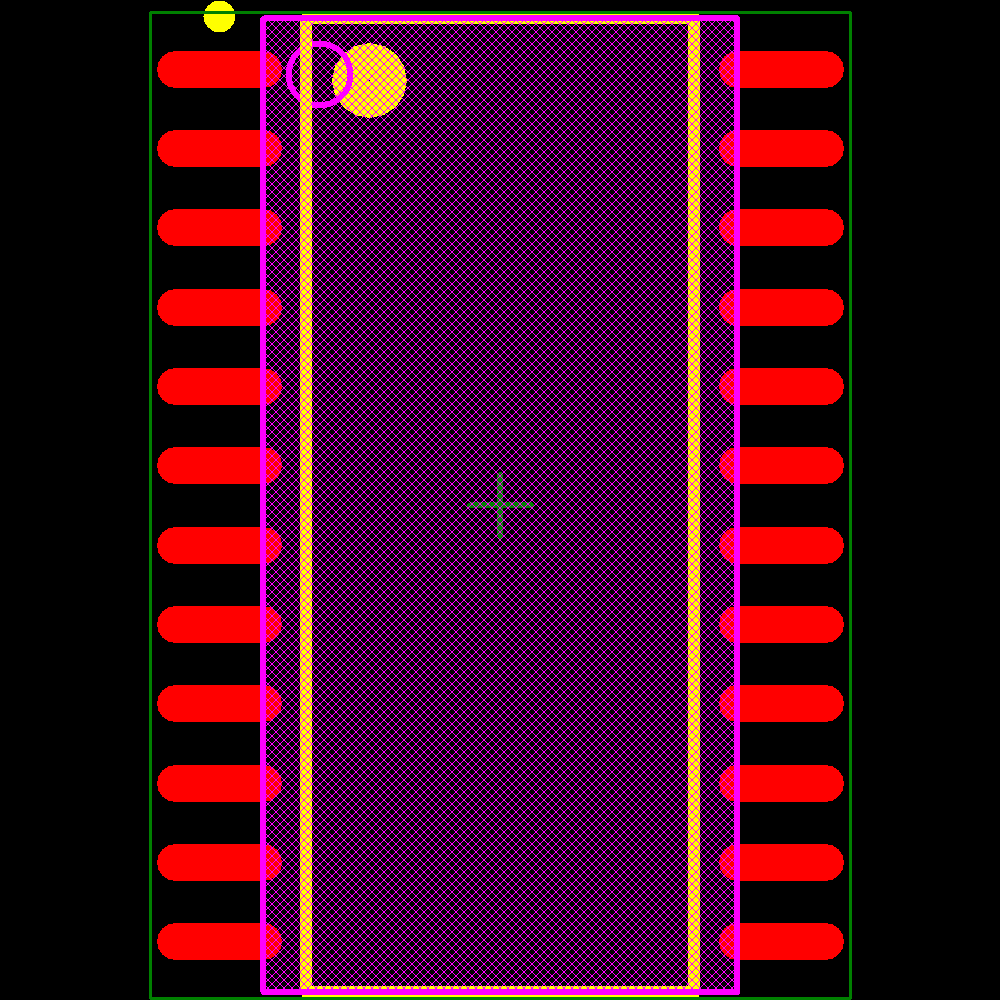

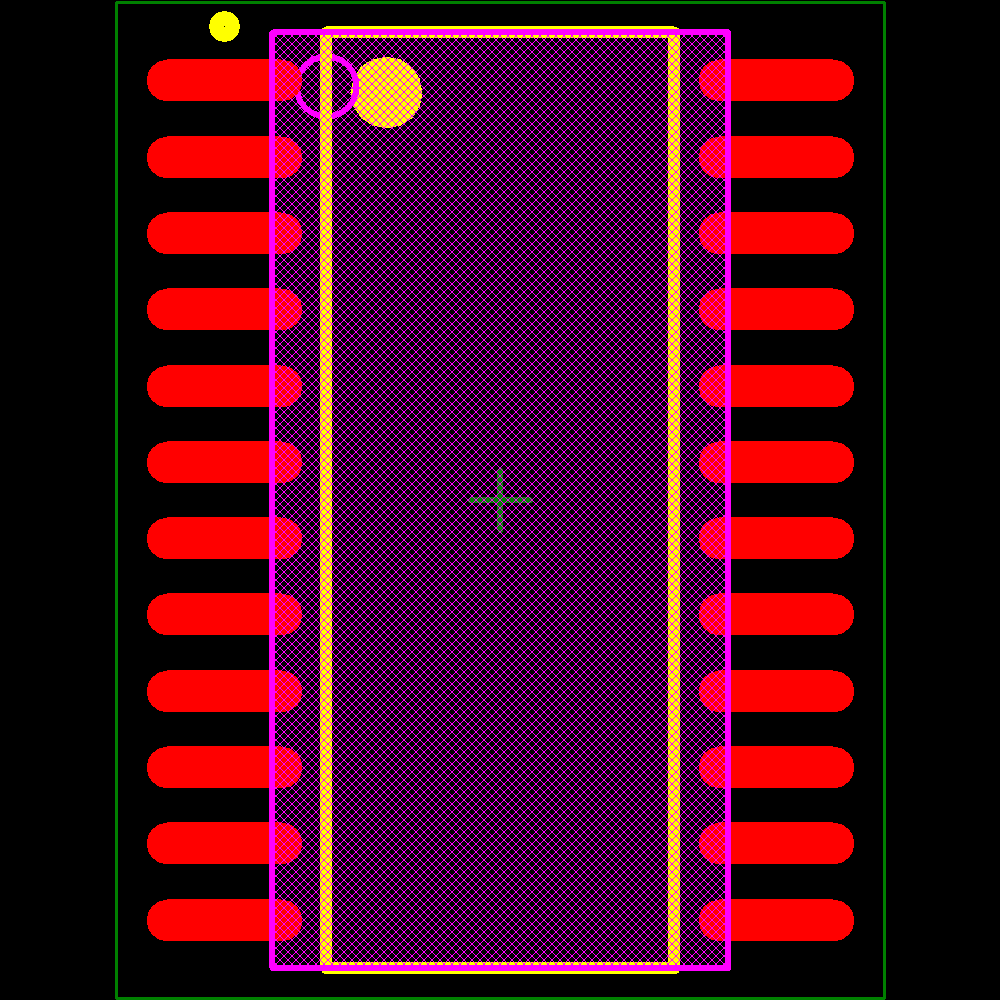

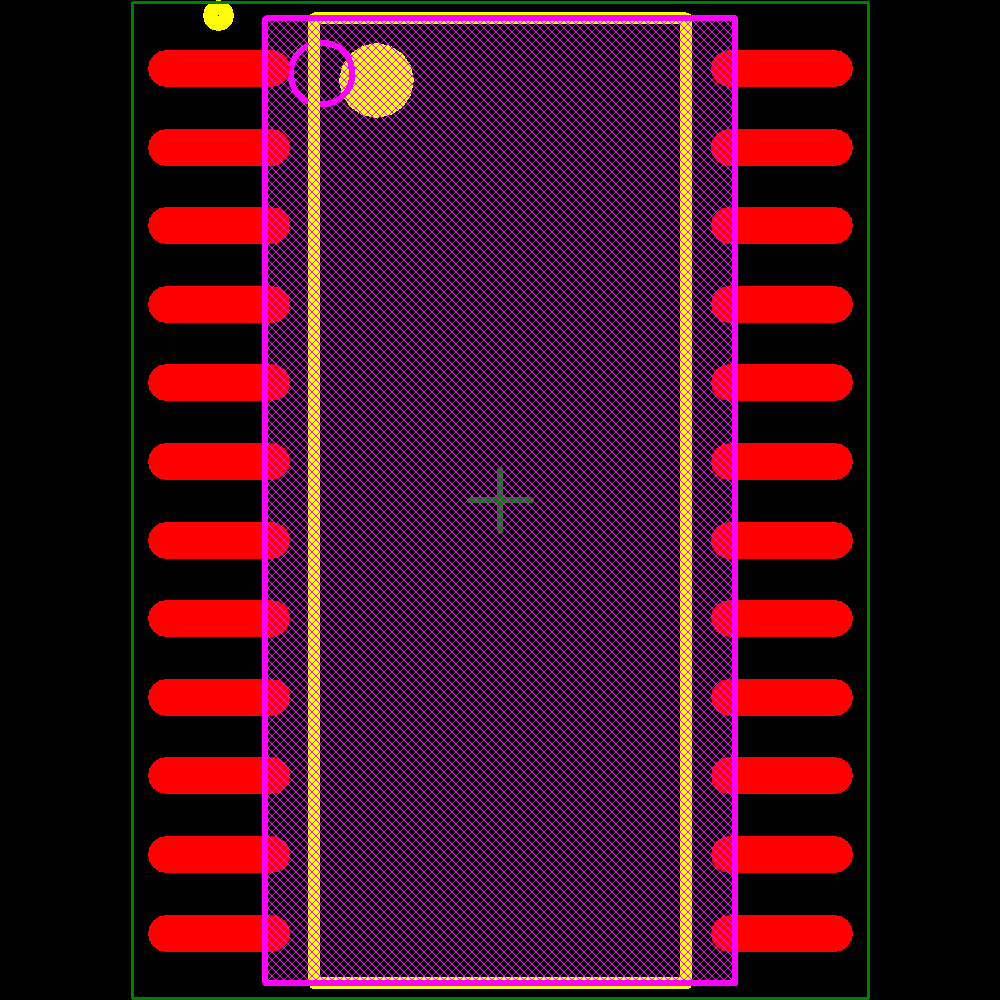

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
NXP Semiconductors
PCA9539D-T
Obsolete
Texas Instruments
PCA9539DWT
Unknown
NXP Semiconductors
PCA9539D,118
Obsolete
NXP Semiconductors
PCA9539D,112
Obsolete
Texas Instruments
PCA9539DWRG4
Unknown
NXP Semiconductors
PCA9539D
Obsolete
Texas Instruments
PCA9539DWG4
Unknown
Texas Instruments
PCA9539DWR
Production
Texas Instruments
PCA9535DGVRG4
Unknown
onsemi
CAT9555HT6I-G
Production

See more alternatives See less alternatives
