PCA9539PWR - Texas Instruments

IC XPND 400KHZ I2C SMBUS 24TSSOP "I/O Expander 16 I2C, SMBus 400 kHz 24-TSSOP"

Technical Details

Case/Package	TSSOP
Frequency	400kHz
Height	1.2mm
Lead Free	Lead Free
Length	7.8mm
Lifecycle Status	NRND
Manufacturer Lifecycle Status	NRND
Max Frequency	400kHz
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.3V
Number of I/Os	16
Number of Outputs	2
Number of Pins	24
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	1mm
Weight	89.499445mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

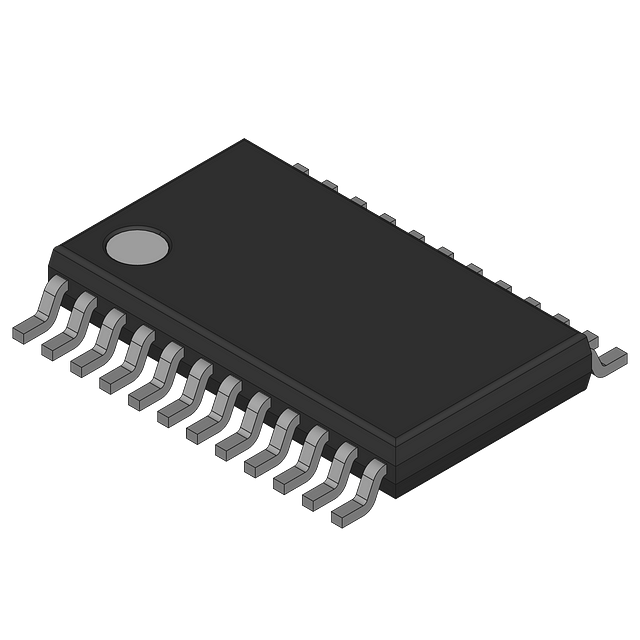

Texas Instruments PCA9539PWR | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

NRND

Symbol

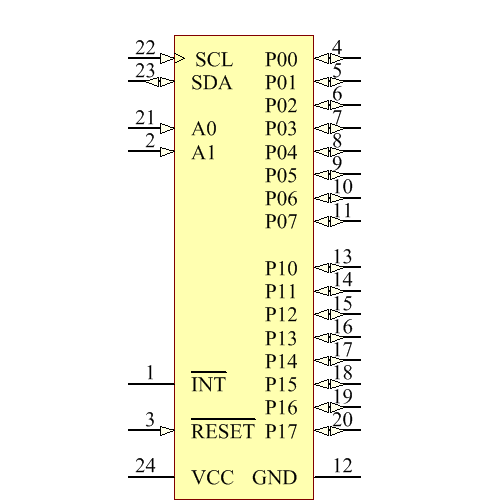

PCA9539PWR Symbol - Texas Instruments

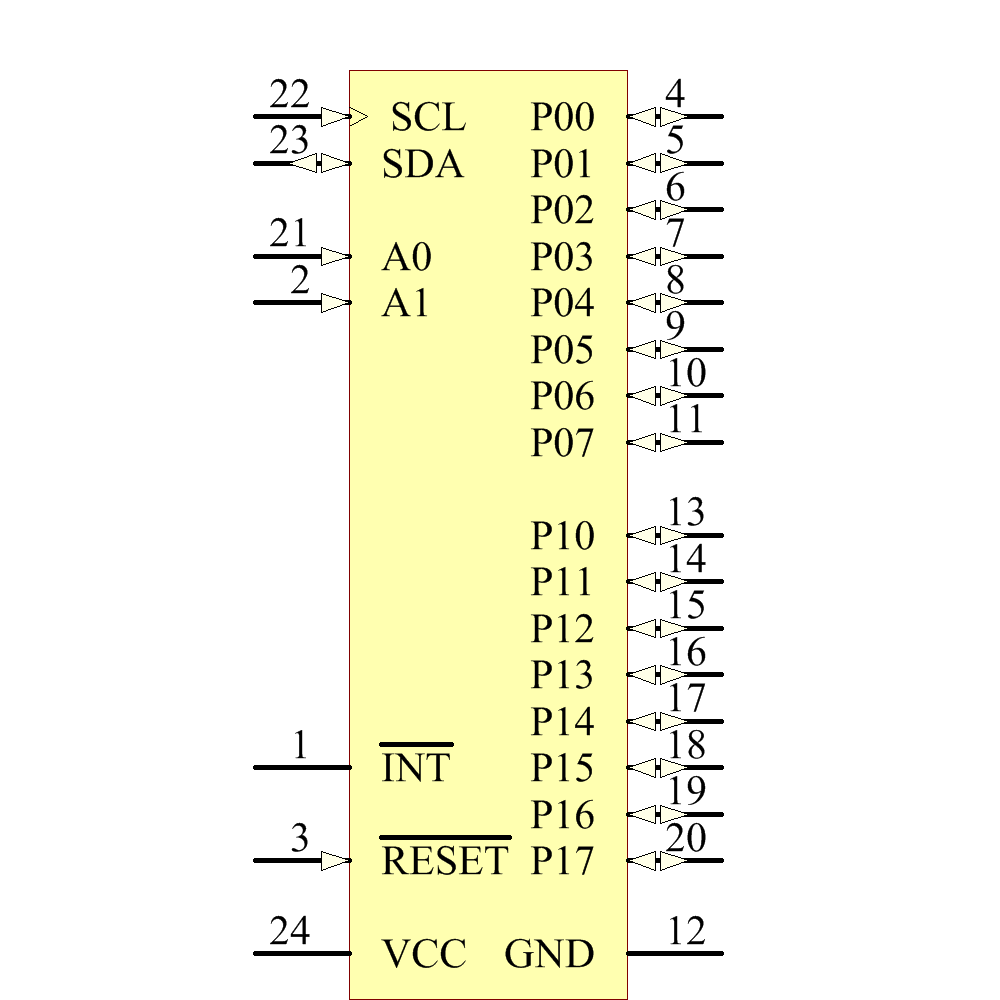

PCA9539PWR Symbol - Texas Instruments

PCA9539PWR Symbol - Texas Instruments

PCA9539PWR Symbol - Texas Instruments

‹ ›

Footprint

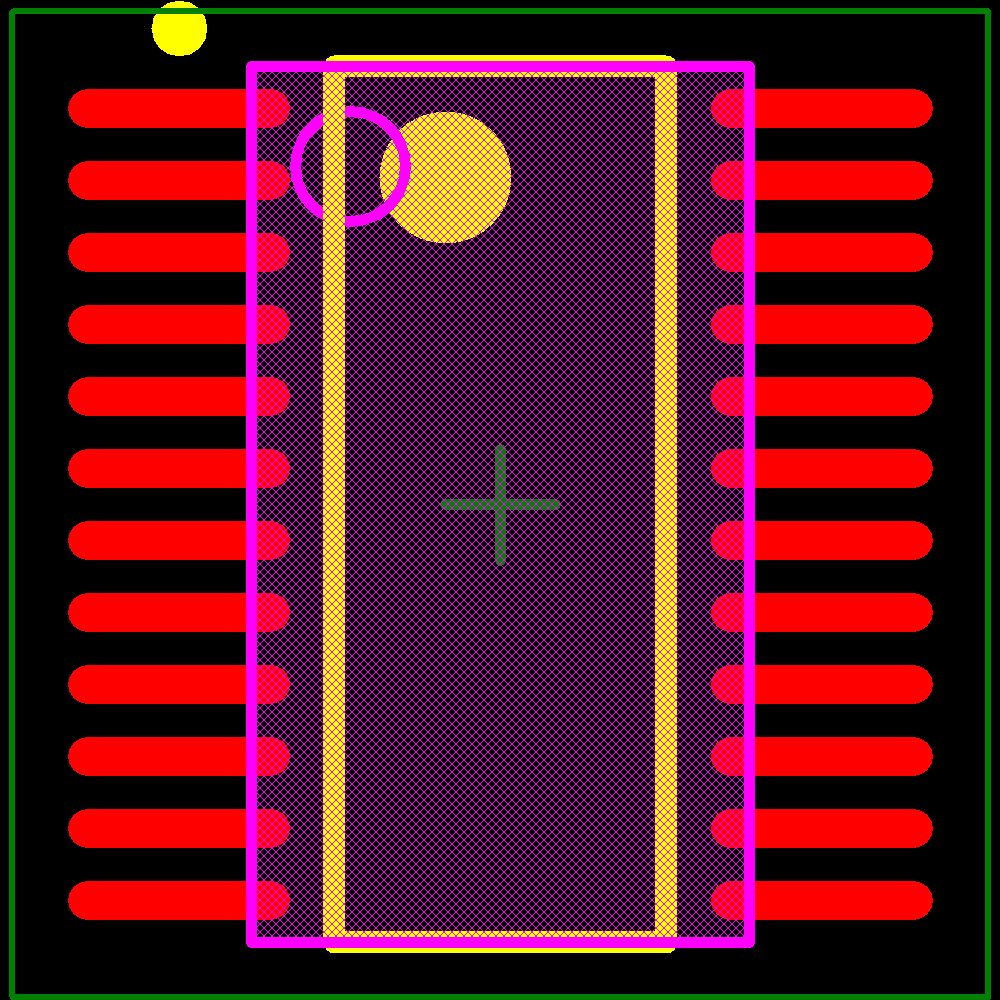

PCA9539PWR Footprint - Texas Instruments

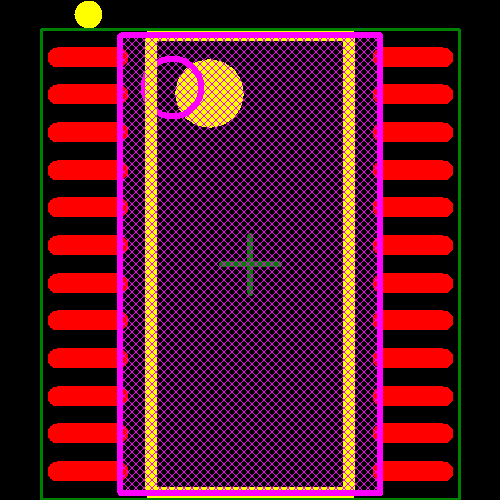

PCA9539PWR Footprint - Texas Instruments

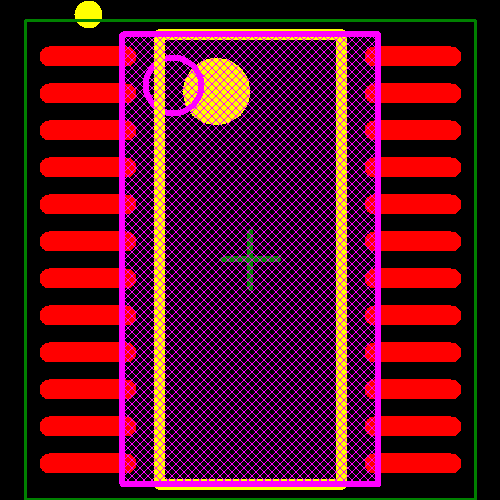

PCA9539PWR Footprint - Texas Instruments

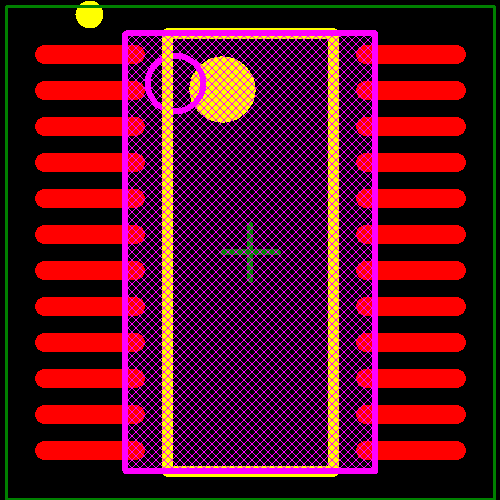

PCA9539PWR Footprint - Texas Instruments
