PCA9555DW - Texas Instruments

IC XPNDR 400KHZ I2C SMBUS 24SOIC "I/O Expander 16 I2C, SMBus 400 kHz 24-SOIC"

Technical Details

Case/Package	SOIC
Frequency	400kHz
Height	2.65mm
Lead Free	Lead Free
Length	15.4mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Frequency	400kHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Channels	16
Number of I/Os	16
Number of Outputs	2
Number of Pins	24
Operating Supply Voltage	5.5V
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Thickness	2.35mm
Weight	624.398247mg
Width	7.5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Texas Instruments PCA9555DW | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

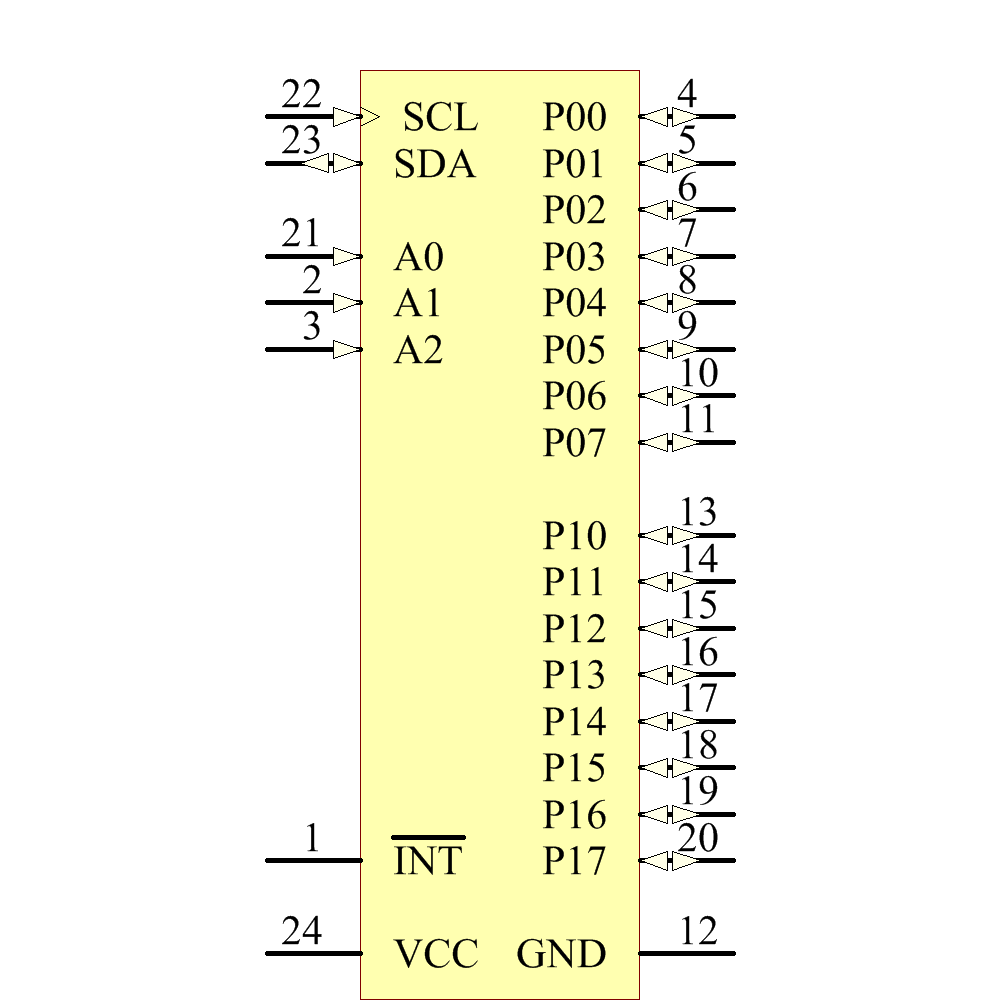

PCA9555DW Symbol - Texas Instruments

PCA9555DW Symbol - Texas Instruments

PCA9555DW Symbol - Texas Instruments

PCA9555DW Symbol - Texas Instruments

‹ ›

Footprint

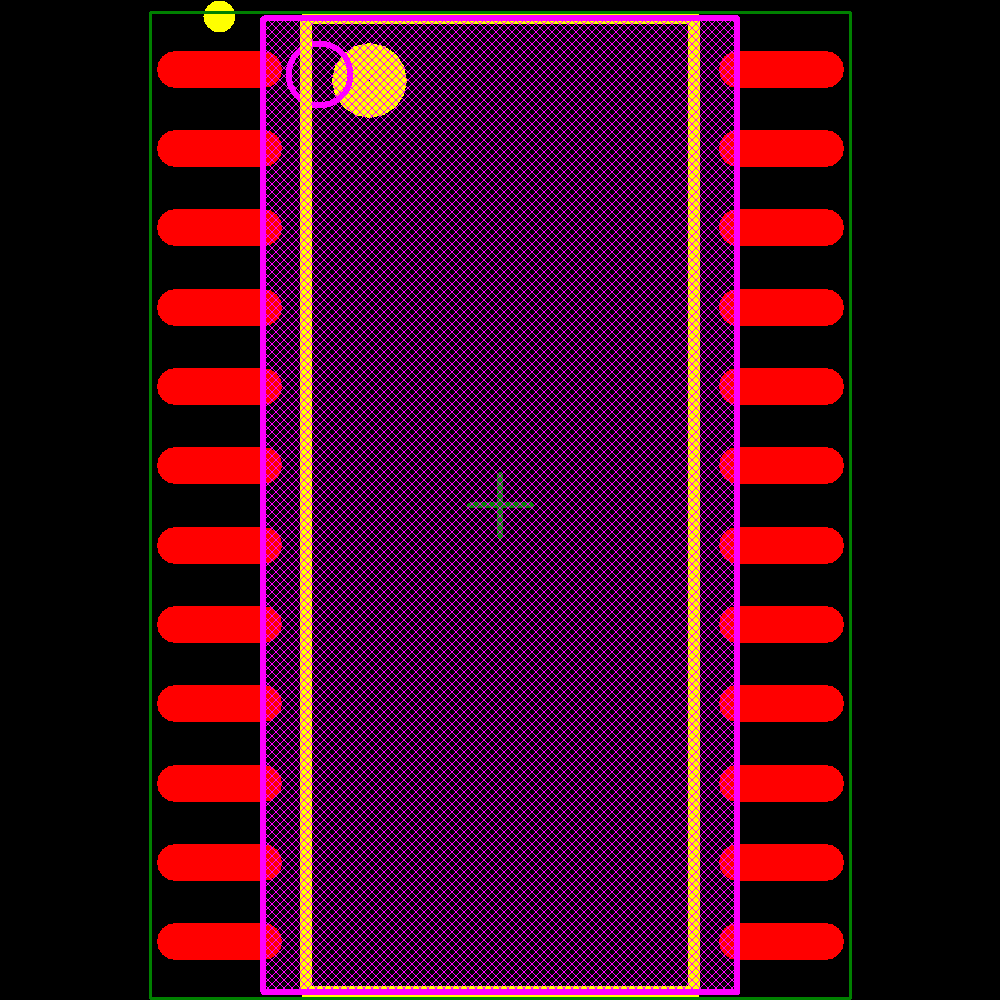

PCA9555DW Footprint - Texas Instruments

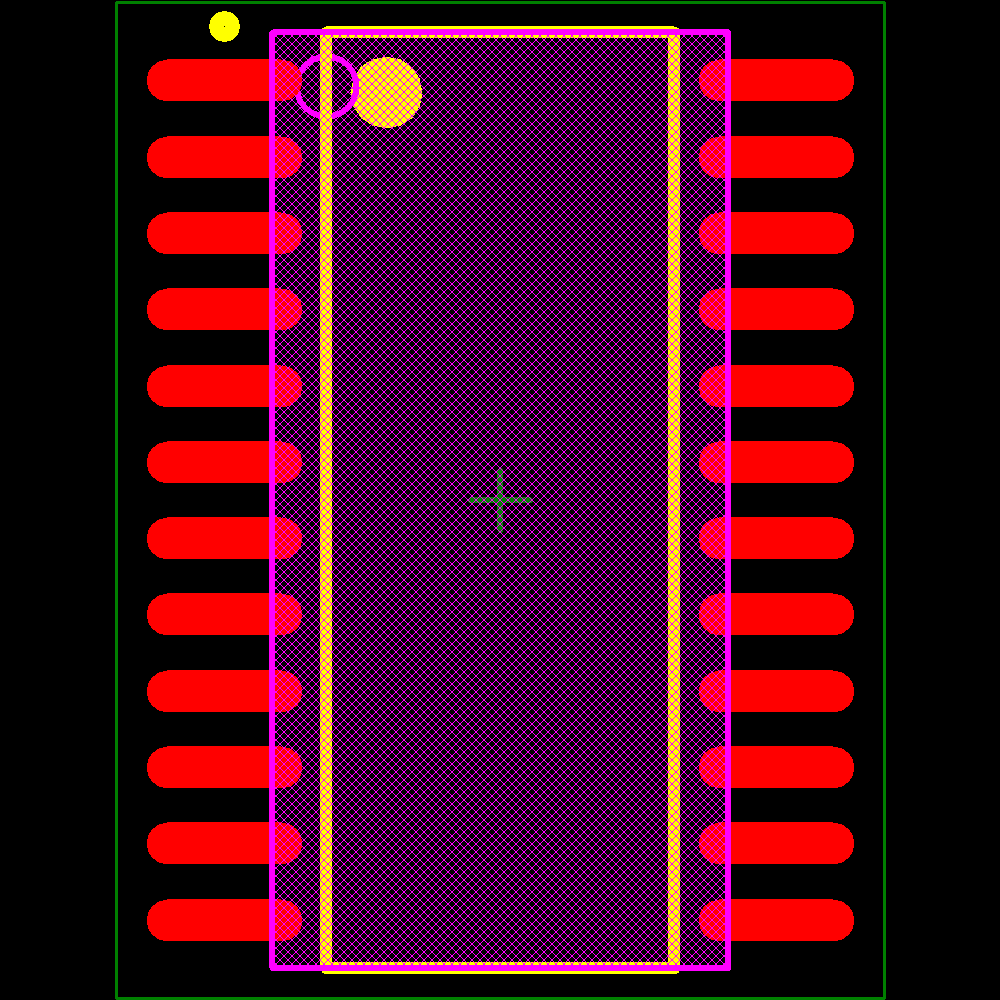

PCA9555DW Footprint - Texas Instruments

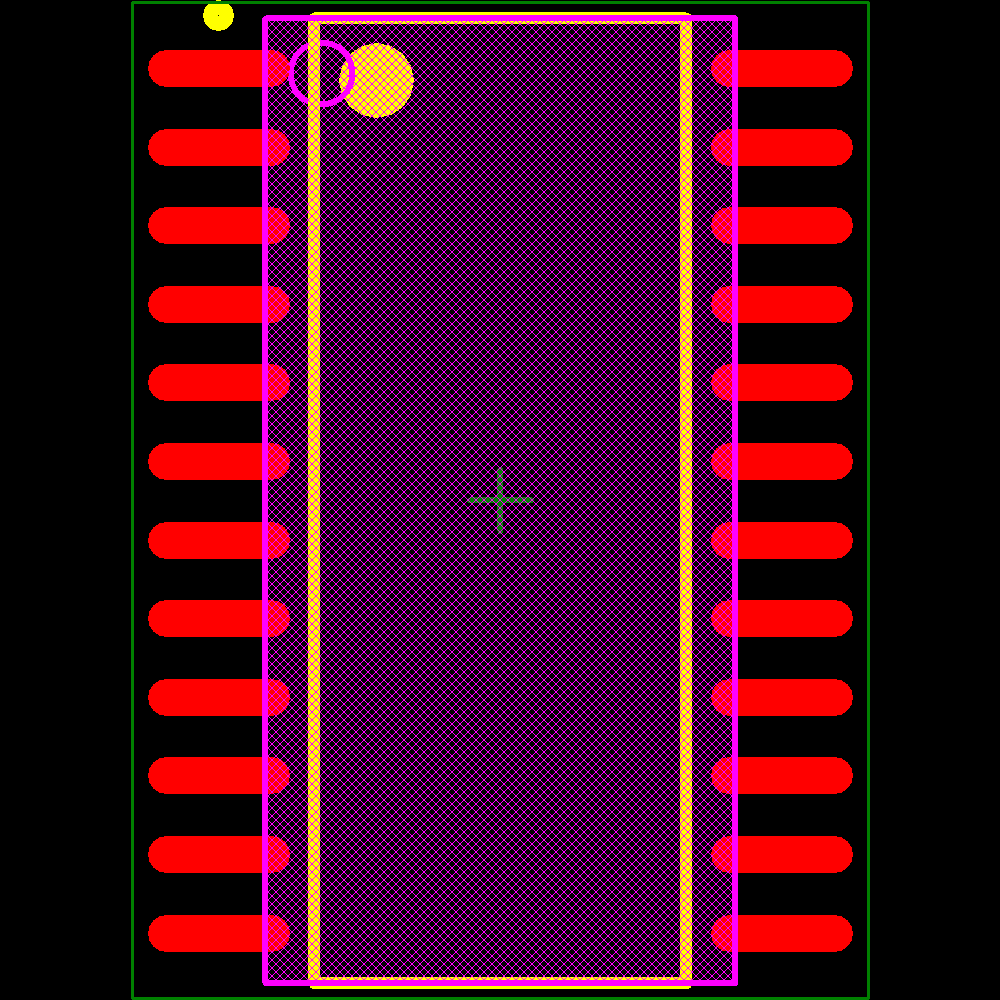

PCA9555DW Footprint - Texas Instruments

PCA9555DW Footprint - Texas Instruments

PCA9555DW Footprint - Texas Instruments
