PCA9555DWR - Texas Instruments

TEXAS INSTRUMENTS PCA9555DWRI/O Expander, 16bit, 400 kHz, I2C, SMBus, 2.3 V, 5.5 V, SOIC

Technical Details

Case/Package	SOIC
Contact Plating	Gold
Frequency	400kHz
Height	2.65mm
Lead Free	Lead Free
Length	15.4mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	ACTIVE
Max Frequency	400kHz
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.3V
Number of Channels	16
Number of I/Os	16
Number of Outputs	2
Number of Pins	24
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000
Thickness	2.35mm
Weight	624.398247mg
Width	7.5mm

Compliance

RoHS : Unconfirmed

REACH SVHC : No

Images

Texas Instruments PCA9555DWR | Texas Instruments

Texas Instruments

Datasheets

Arrow Electronics

Lifecycle Status Indicator

Production

Symbol

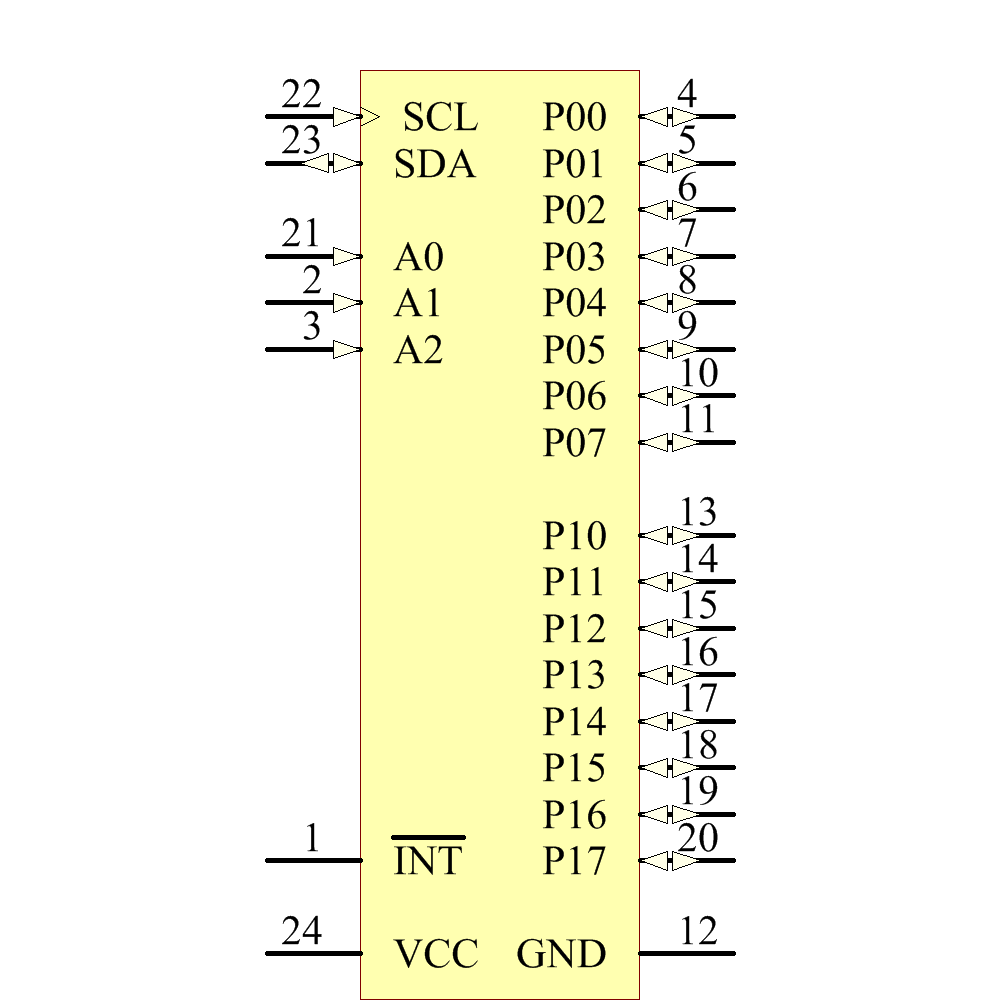

PCA9555DWR Symbol - Texas Instruments

PCA9555DWR Symbol - Texas Instruments

PCA9555DWR Symbol - Texas Instruments

PCA9555DWR Symbol - Texas Instruments

‹ ›

Footprint

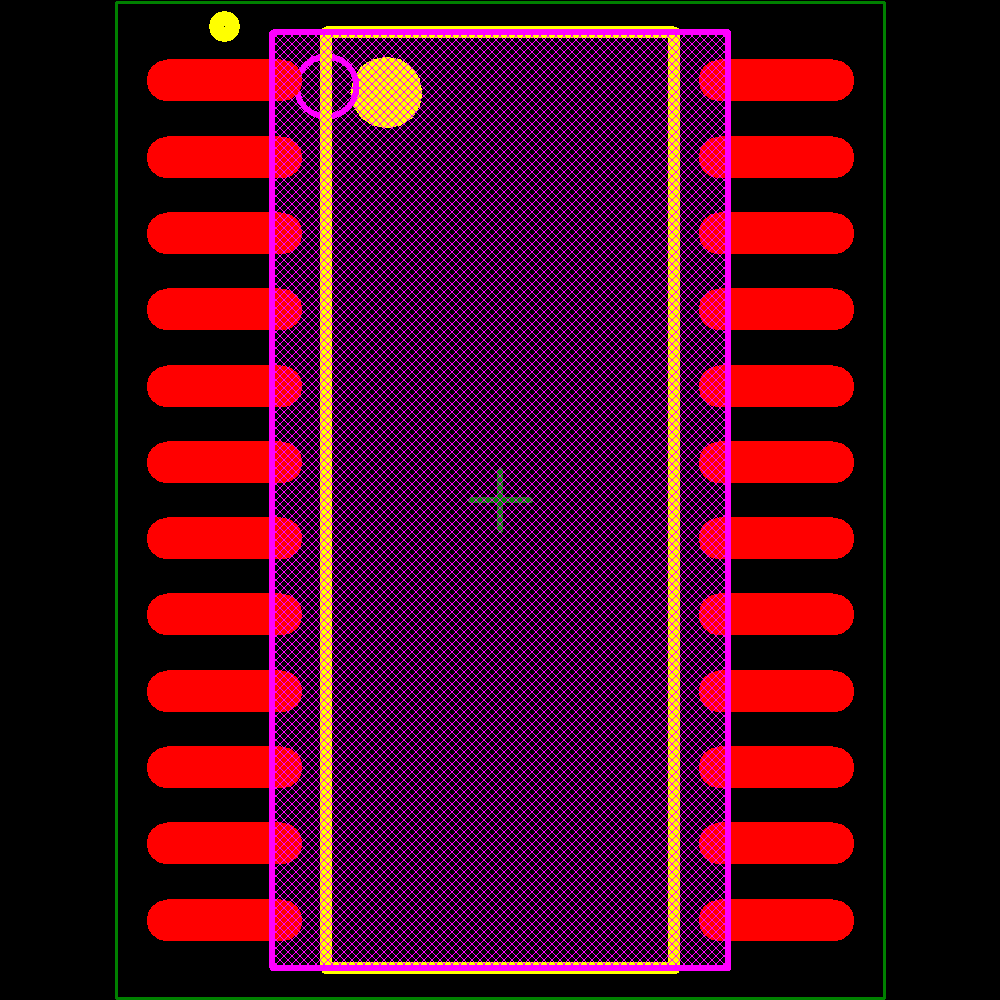

PCA9555DWR Footprint - Texas Instruments

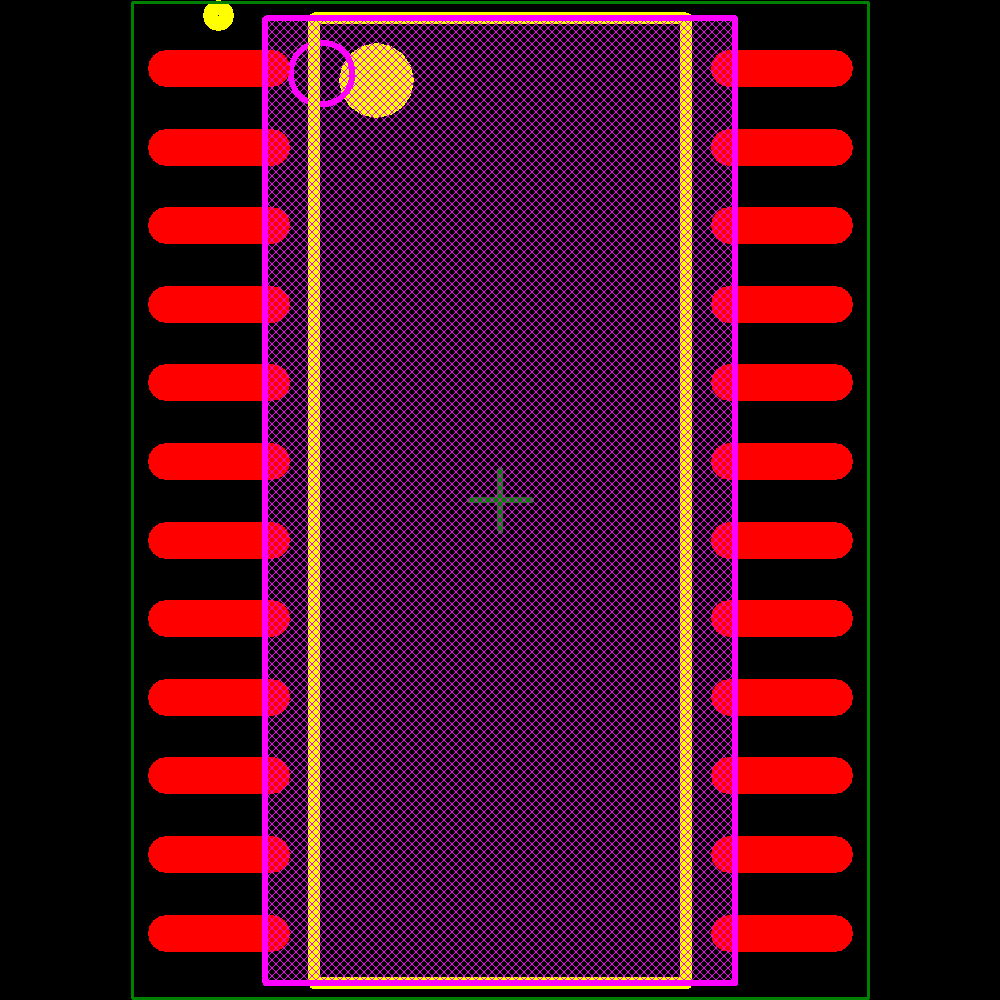

PCA9555DWR Footprint - Texas Instruments

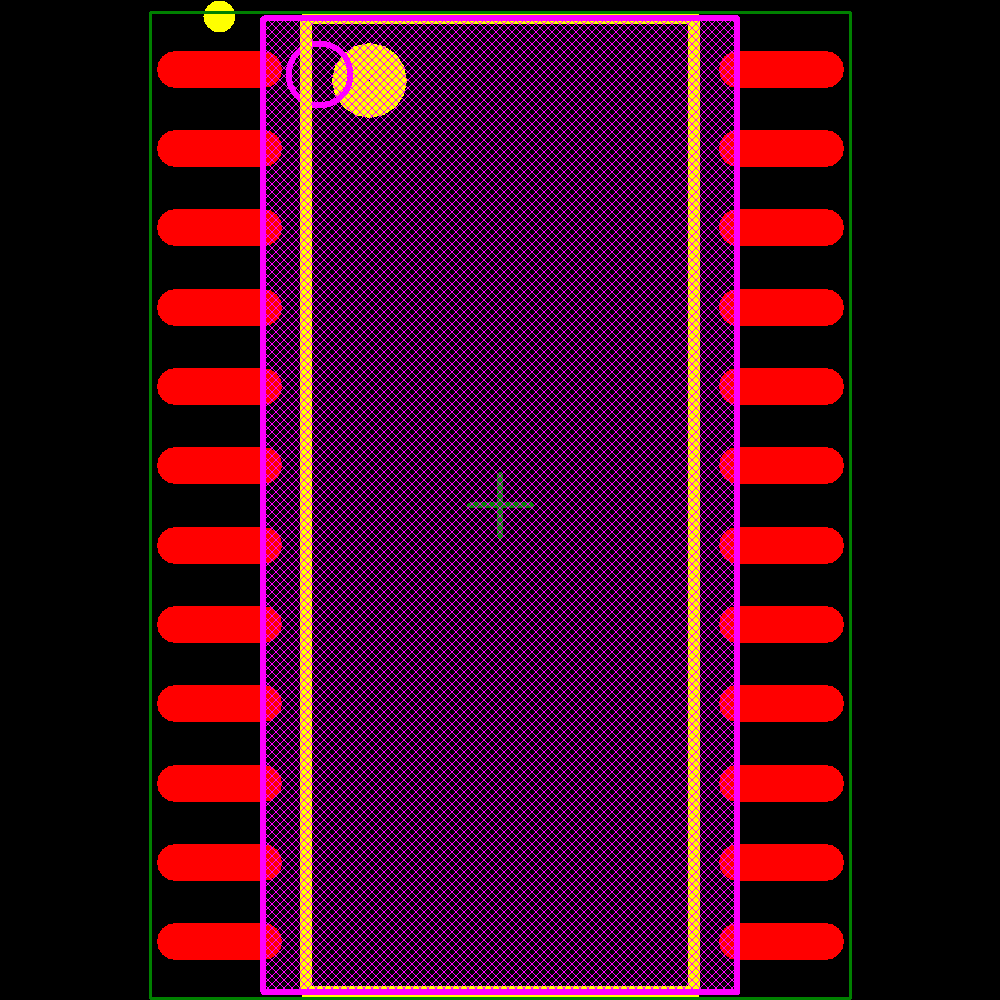

PCA9555DWR Footprint - Texas Instruments
