PCA9555DWRG4 - Texas Instruments
IC XPNDR 400KHZ I2C SMBUS 24SOIC "I/O Expander 16 I2C, SMBus 400 kHz 24-SOIC"
Technical Details
| Case/Package | SOIC |
| Frequency | 400kHz |
| Height | 2.65mm |
| Lead Free | Lead Free |
| Length | 15.4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of I/Os | 16 |
| Number of Outputs | 2 |
| Number of Pins | 24 |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant |
| Thickness | 2.35mm |
| Weight | 624.398247mg |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed

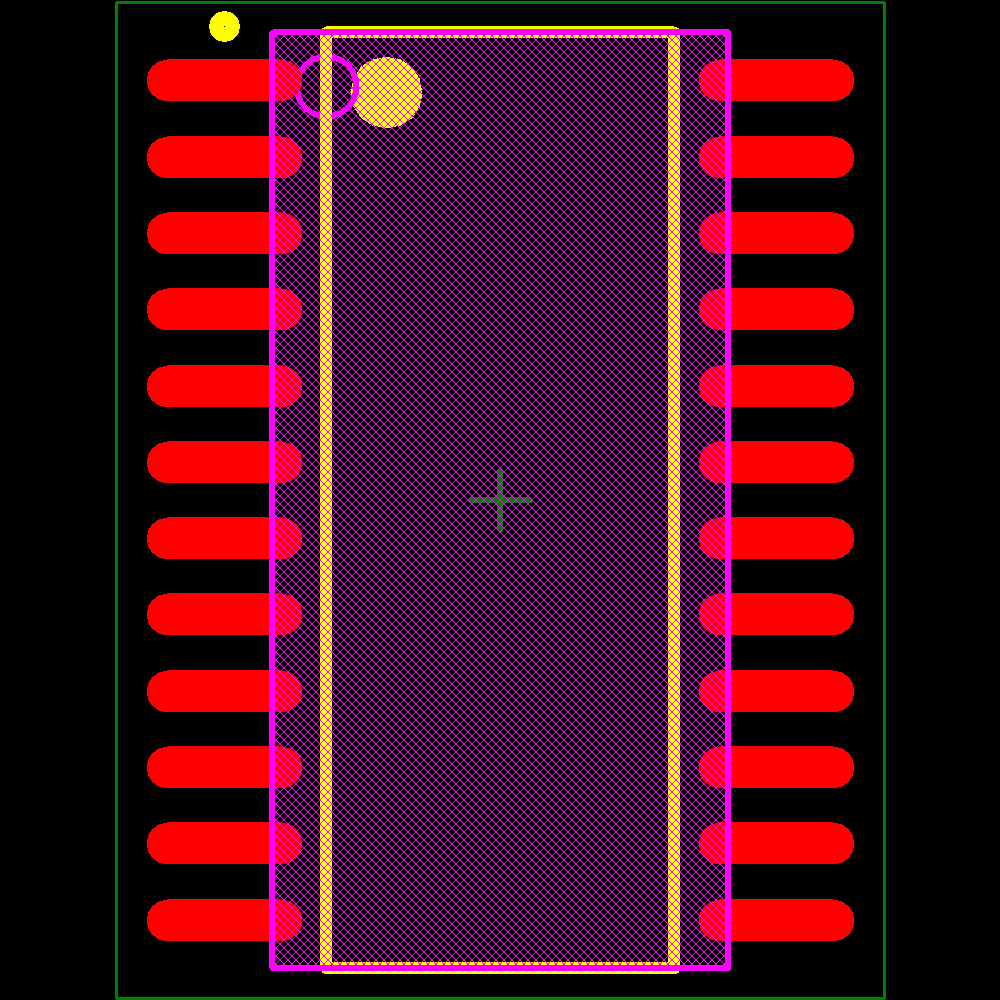

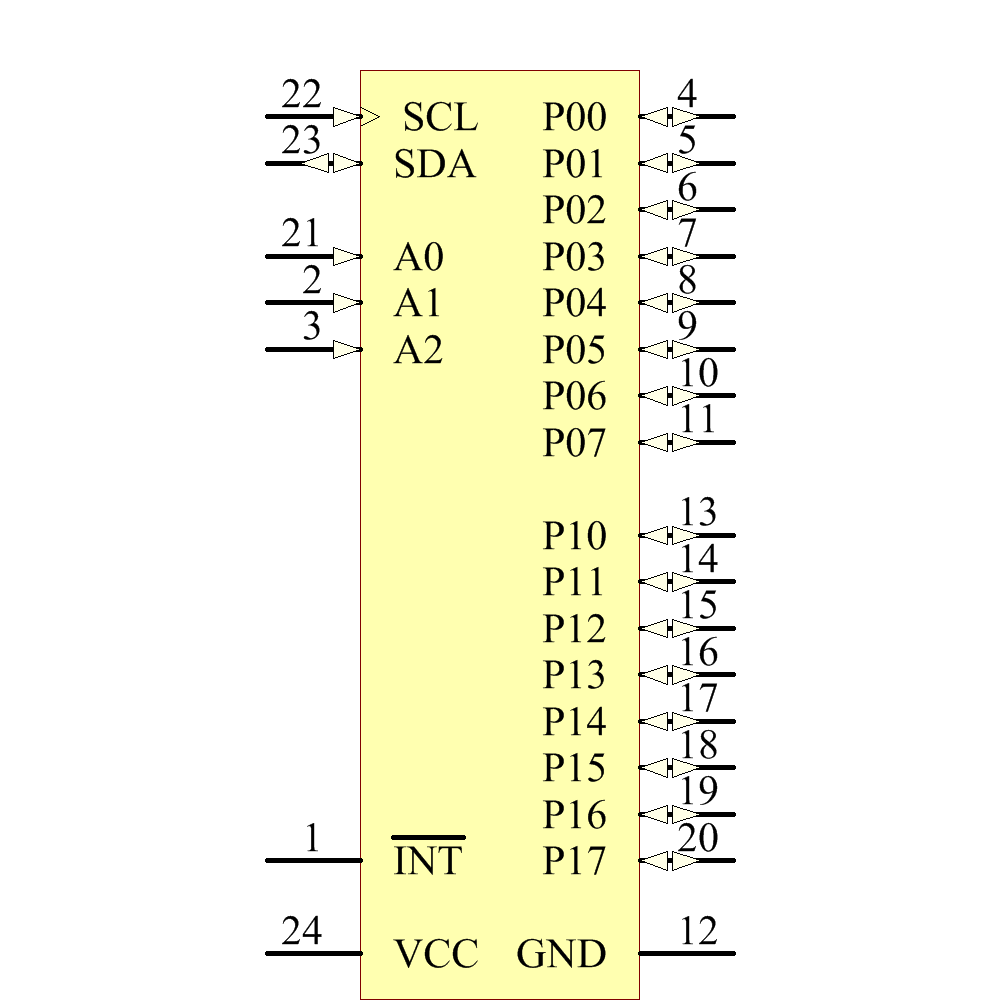

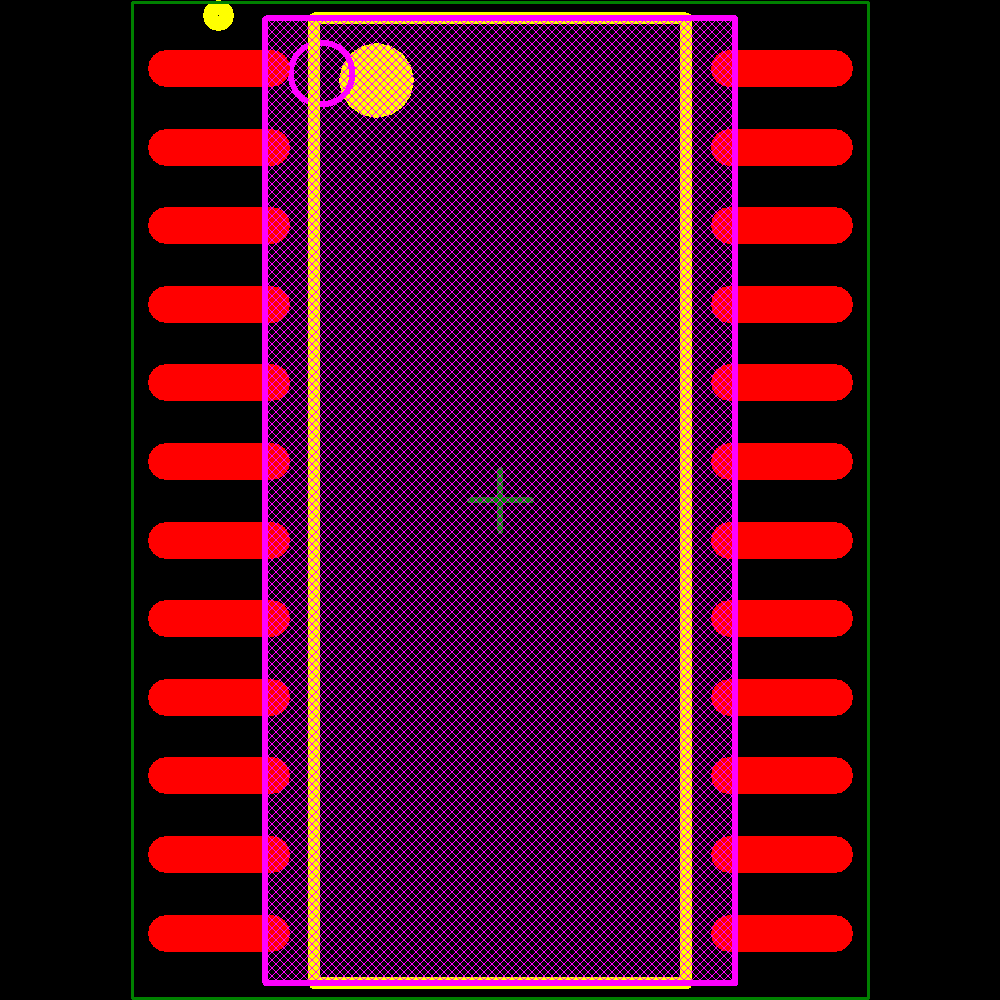

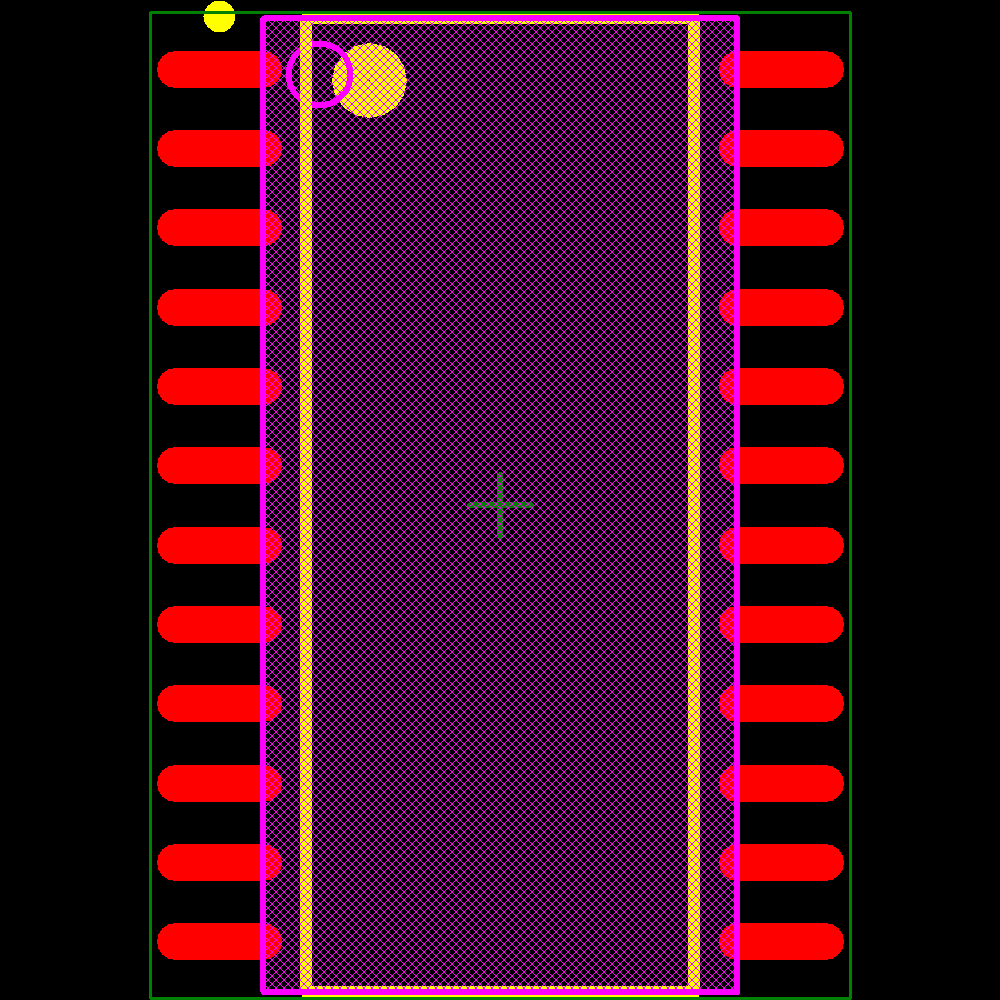

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | EOL | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| NXP Semiconductors | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown |
