PCA9555PW - Texas Instruments

IC I/O EXPANDER I2C 16B 24TSSOP / I2C/SMBus Interface 100kHz/400kHz 5.5V 24-Pin TSSOP Tube

Technical Details

Case/Package	TSSOP
Frequency	400kHz
Height	1.2mm
Lead Free	Lead Free
Length	7.8mm
Lifecycle Status	Obsolete
Manufacturer Lifecycle Status	OBSOLETE
Max Frequency	400kHz
Max Operating Temperature	85°C
Max Supply Voltage	5.5V
Min Operating Temperature	-40°C
Min Supply Voltage	2.3V
Number of I/Os	16
Number of Outputs	2
Number of Pins	24
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Schedule B	8542390000
Thickness	1mm
Weight	89.499445mg
Width	4.4mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

Datasheets

Component Stockers USA

Lifecycle Status Indicator

Obsolete

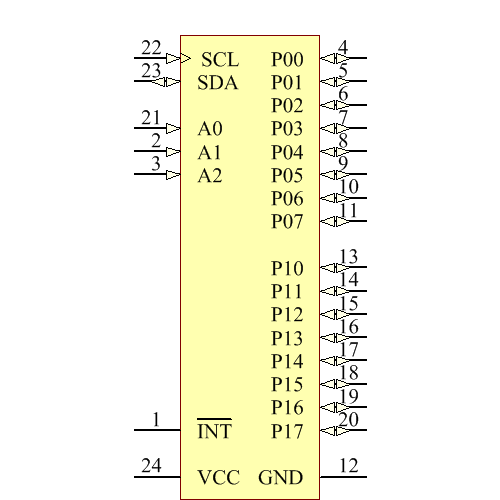

Symbol

PCA9555PW Symbol - Texas Instruments

PCA9555PW Symbol - Texas Instruments

PCA9555PW Symbol - Texas Instruments

PCA9555PW Symbol - Texas Instruments

‹ ›

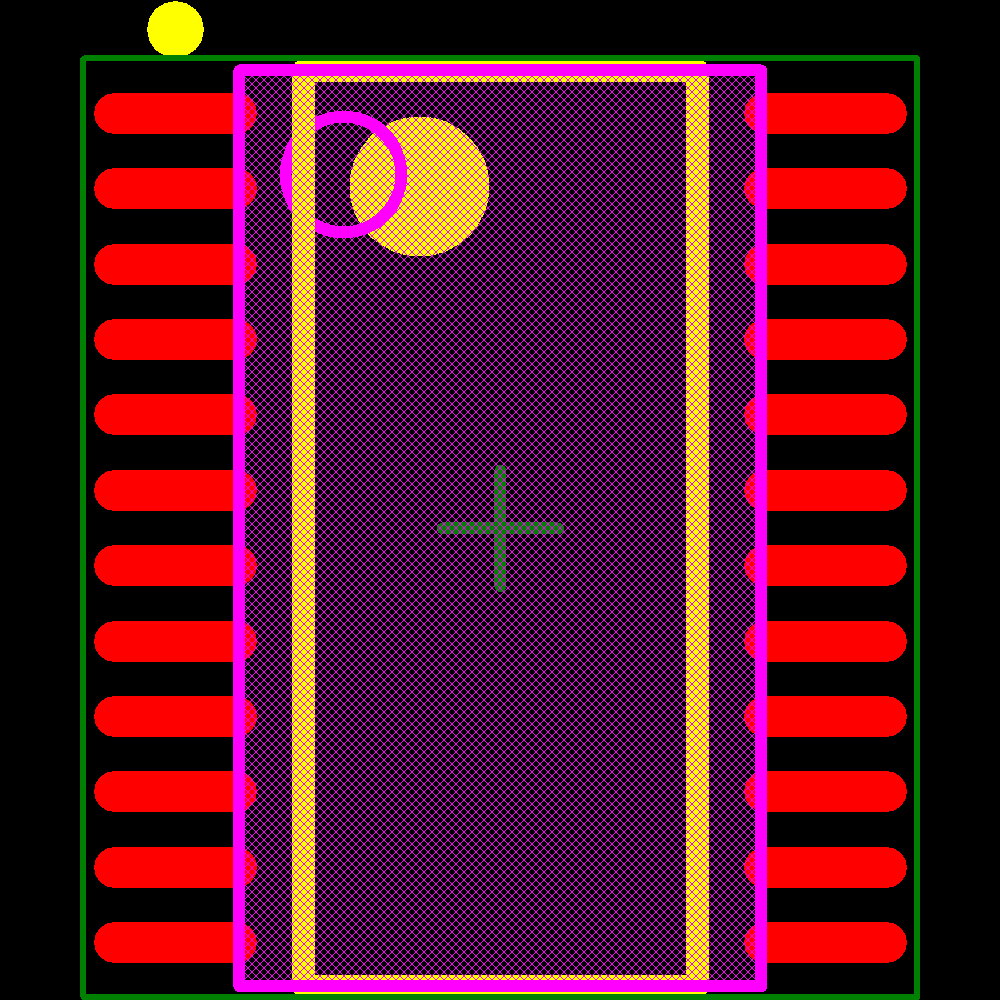

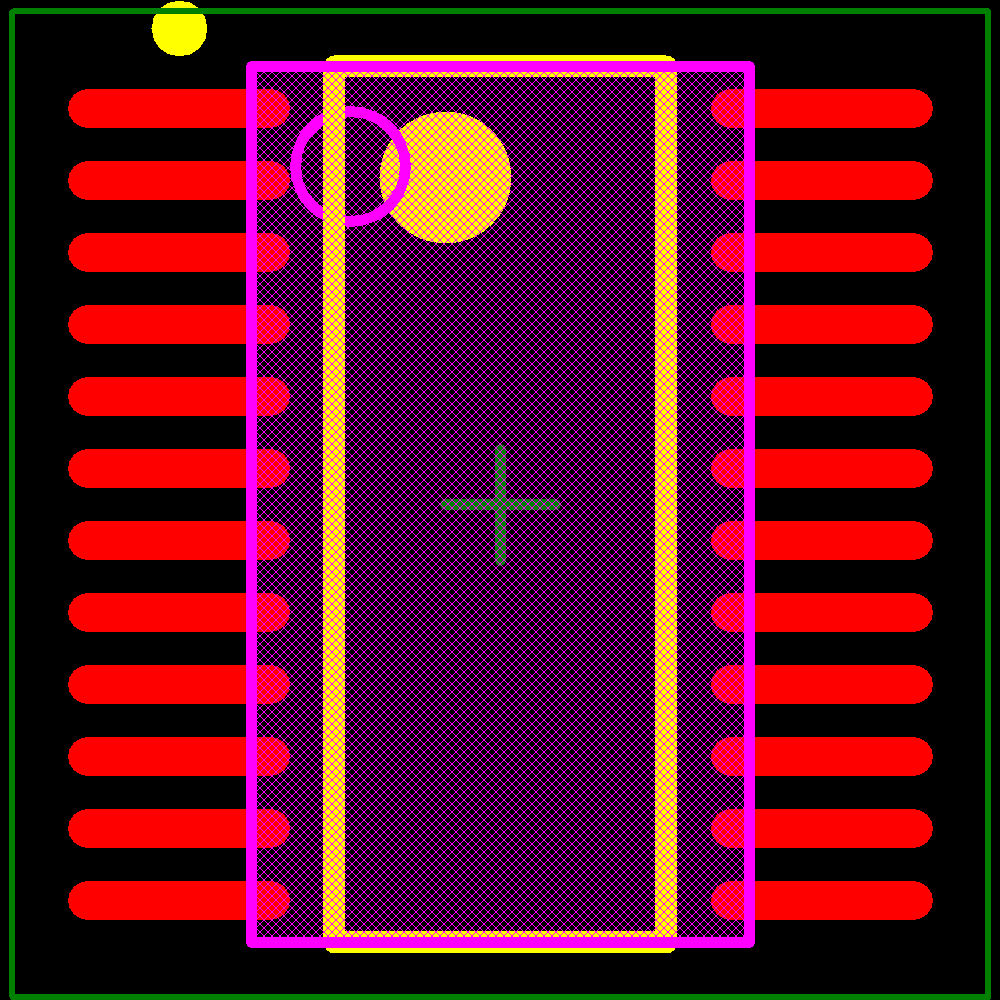

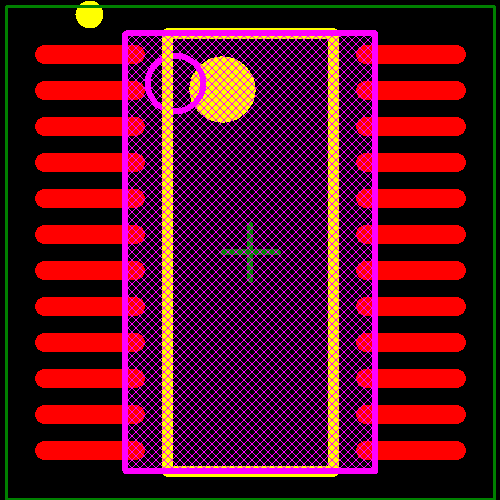

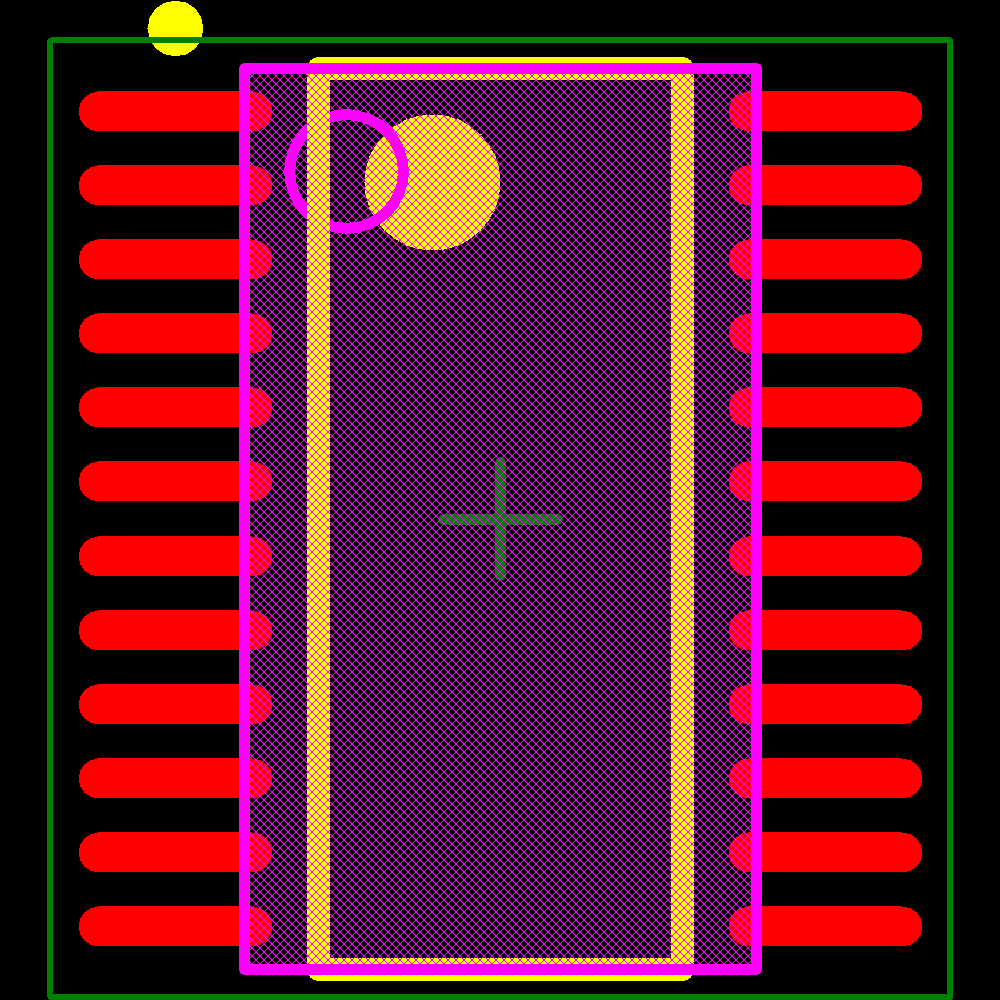

Footprint
