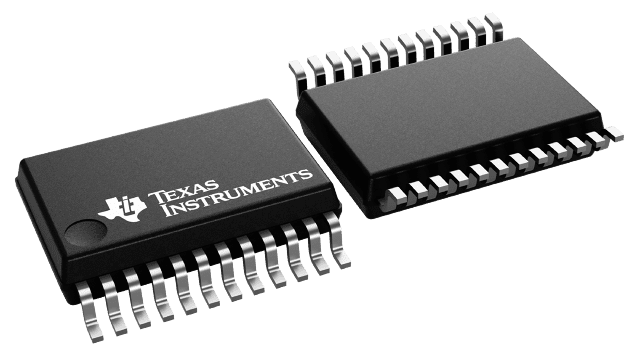

PCF8575CDWE4 - Texas Instruments
16-bit 4.5- to 5.5-V I2C/SMBus I/O expander with interrupt 24-SOIC -40 to 85
Technical Details
| Case/Package | SOIC |
| Frequency | 400kHz |
| Height | 2.65mm |
| Interface | SMBus |
| Lead Free | Lead Free |
| Length | 15.4mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Nominal Supply Current | 10µA |
| Number of Bits | 16 |
| Number of Channels | 2 |
| Number of I/Os | 16 |
| Number of Outputs | 16 |
| Number of Pins | 24 |
| REACH SVHC | No |
| RoHS | Compliant |
| Thickness | 2.35mm |
| Weight | 624.398247mg |
| Width | 7.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Production | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete |
