PCF8575DBQRG4 - Texas Instruments
16-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt 24-SSOP -40 to 85
Technical Details
| Case/Package | SSOP |
| Frequency | 400kHz |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of I/Os | 16 |
| Number of Outputs | 16 |
| Number of Pins | 24 |
| Operating Supply Voltage | 5.5V |
| Output Voltage | 500mV |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant |
| Thickness | 1.5mm |
| Weight | 129.500622mg |
| Width | 3.9mm |
Compliance
RoHS : Unconfirmed

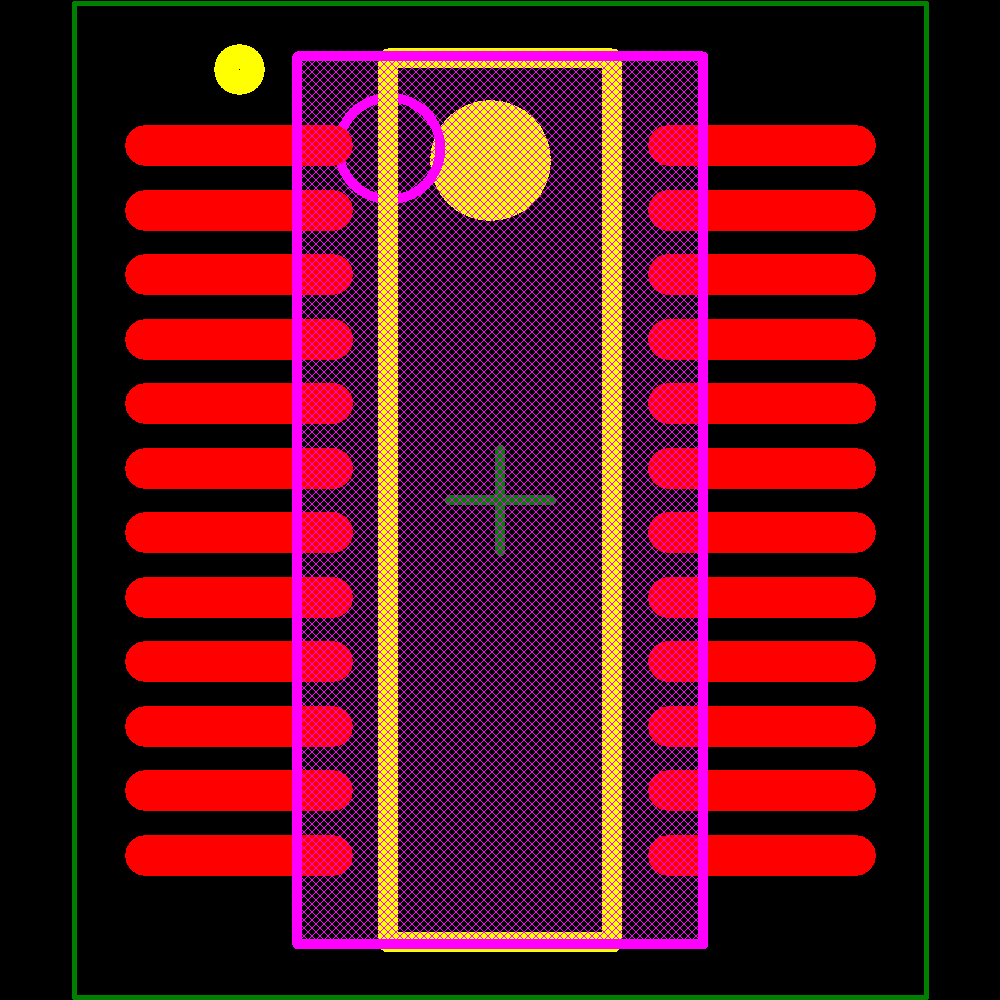

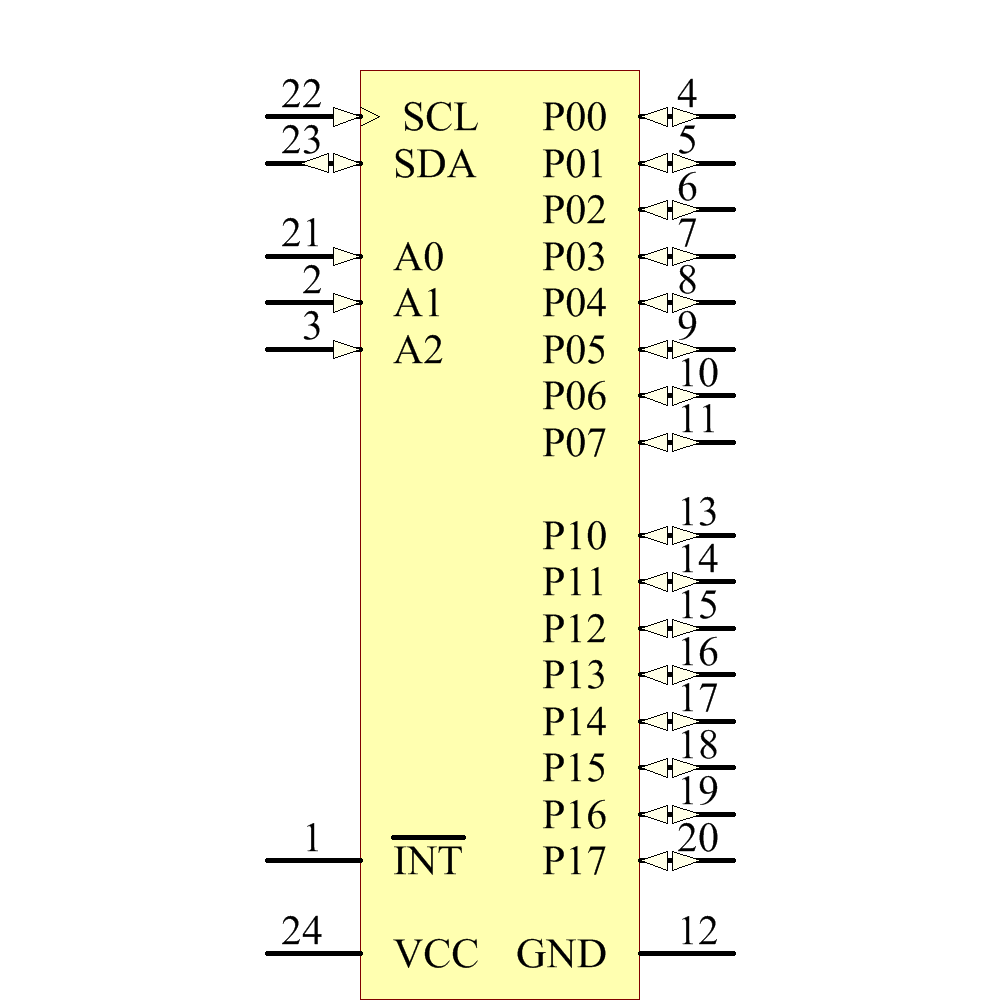

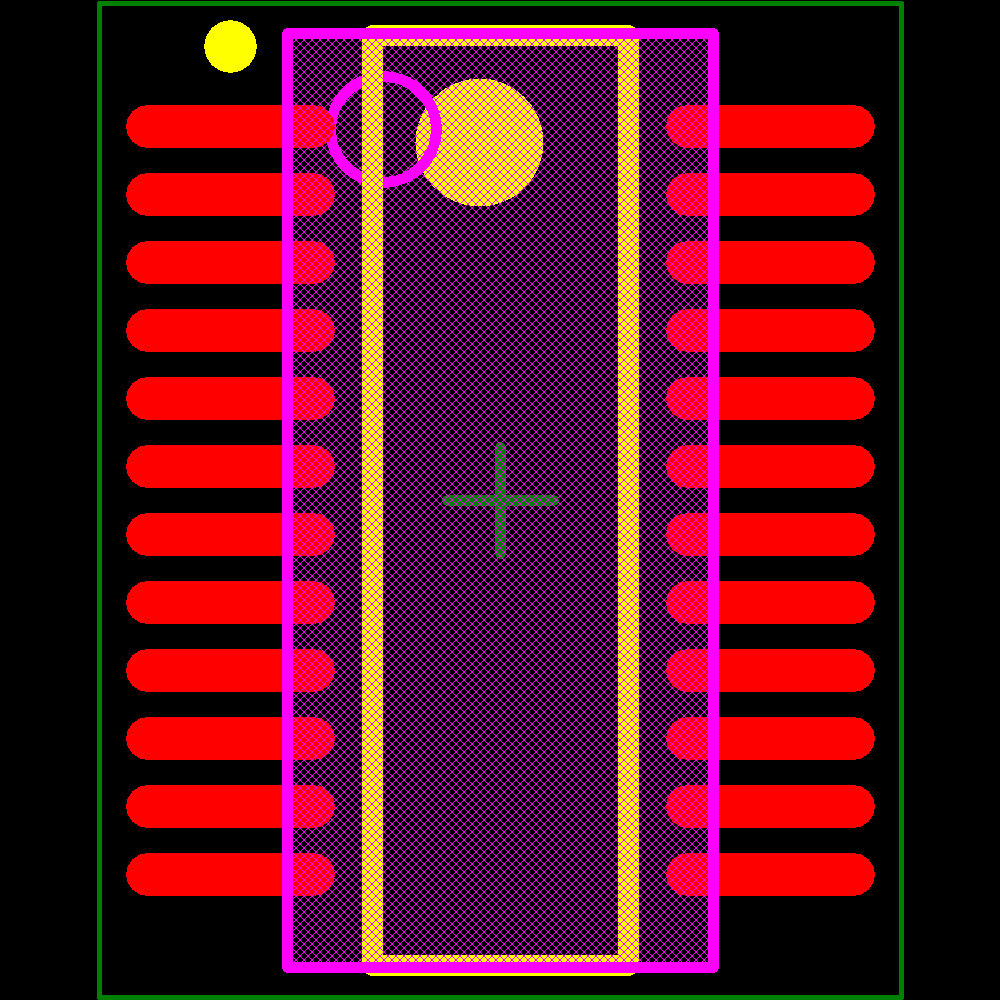

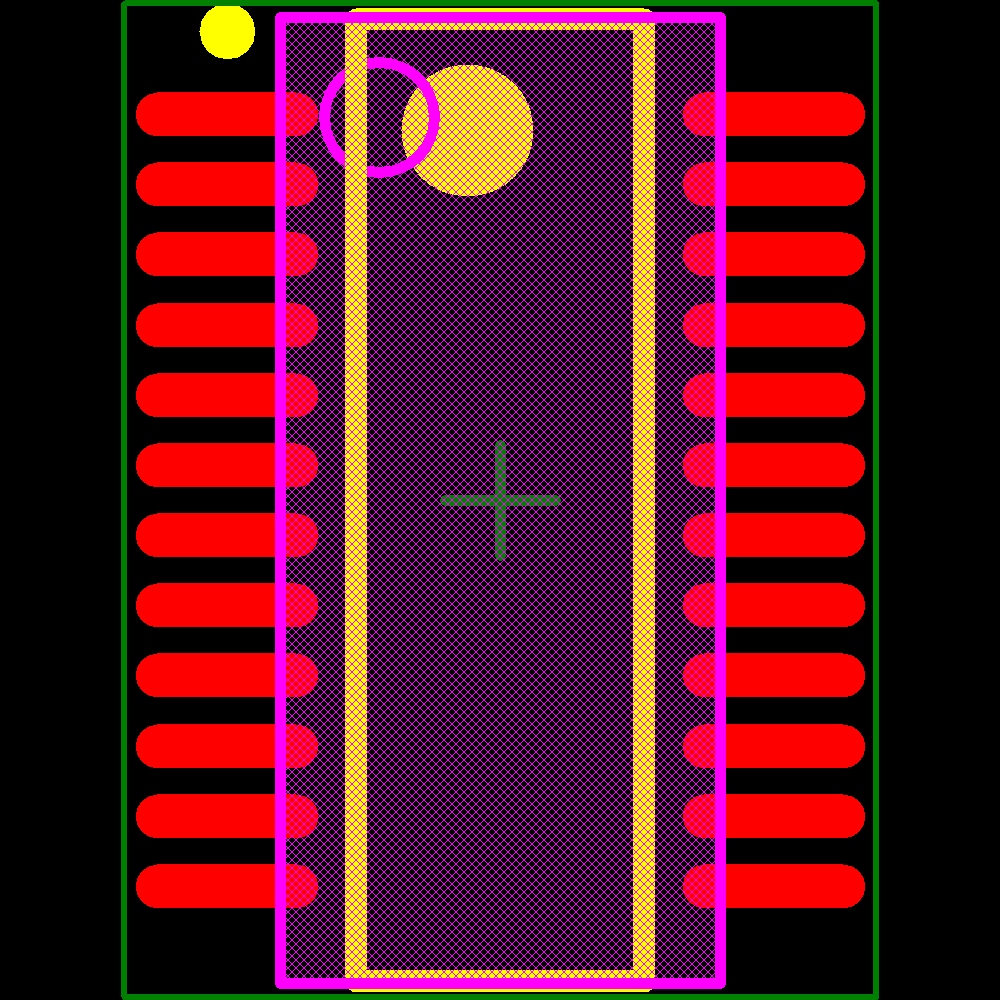

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production |
