REF3140AIDBZRG4 - Texas Instruments
IC VREF SERIES 0.2% SOT23-3 Series Voltage Reference IC Fixed 4.096V V ±0.2% 10 mA SOT-23-3
Technical Details
| Case/Package | SOT-23 |
| Height | 1.22mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 7V |
| Max Operating Temperature | 125°C |
| Max Output Current | 10mA |
| Max Output Voltage | 4.096V |
| Max Supply Current | 100mA |
| Min Input Voltage | 4.146V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 4.096V |
| Nominal Supply Current | 100µA |
| Number of Pins | 3 |
| Operating Supply Current | 135µA |
| Output Current | 10mA |
| Output Type | Fixed |
| Output Voltage | 4.096V |
| Quiescent Current | 100µA |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Reference Type | Series |
| Reference Voltage | 4.096V |
| RoHS | Compliant |
| Thickness | 1mm |
| Tolerance | 0.2% |
| Width | 1.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Unknown

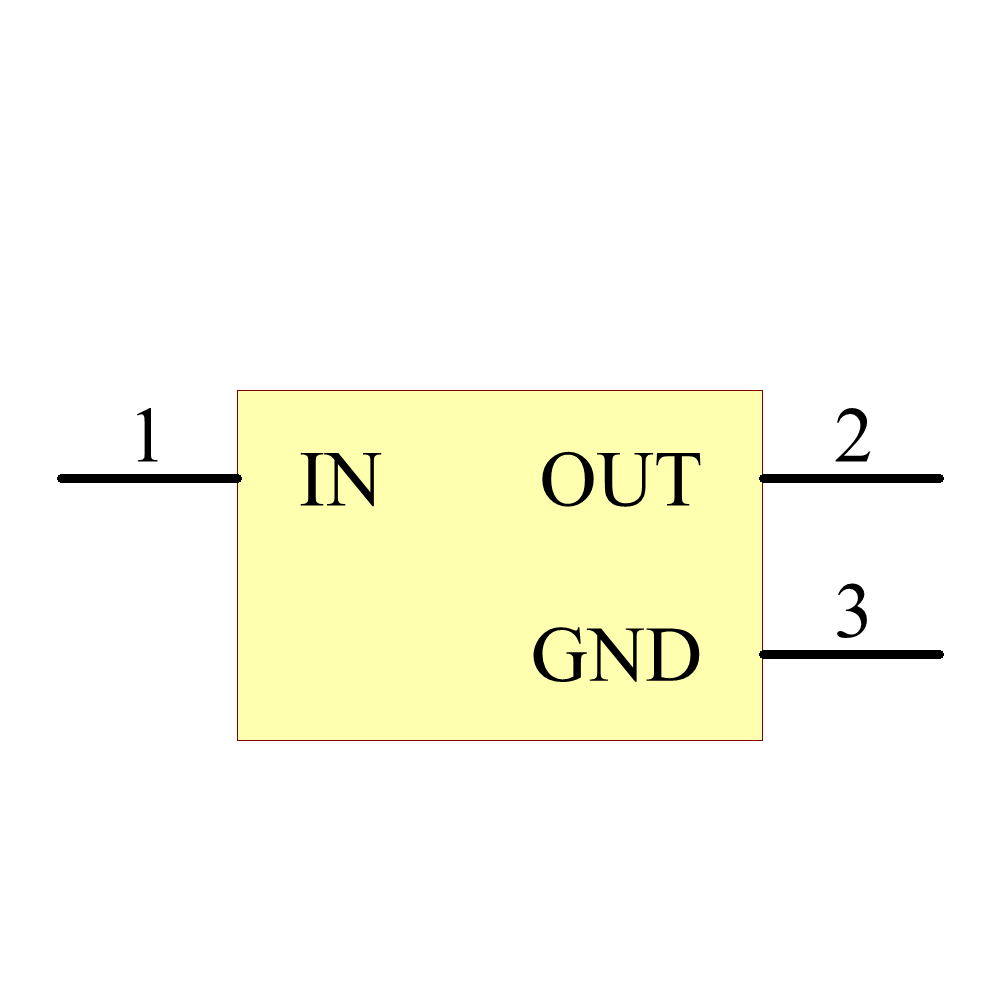

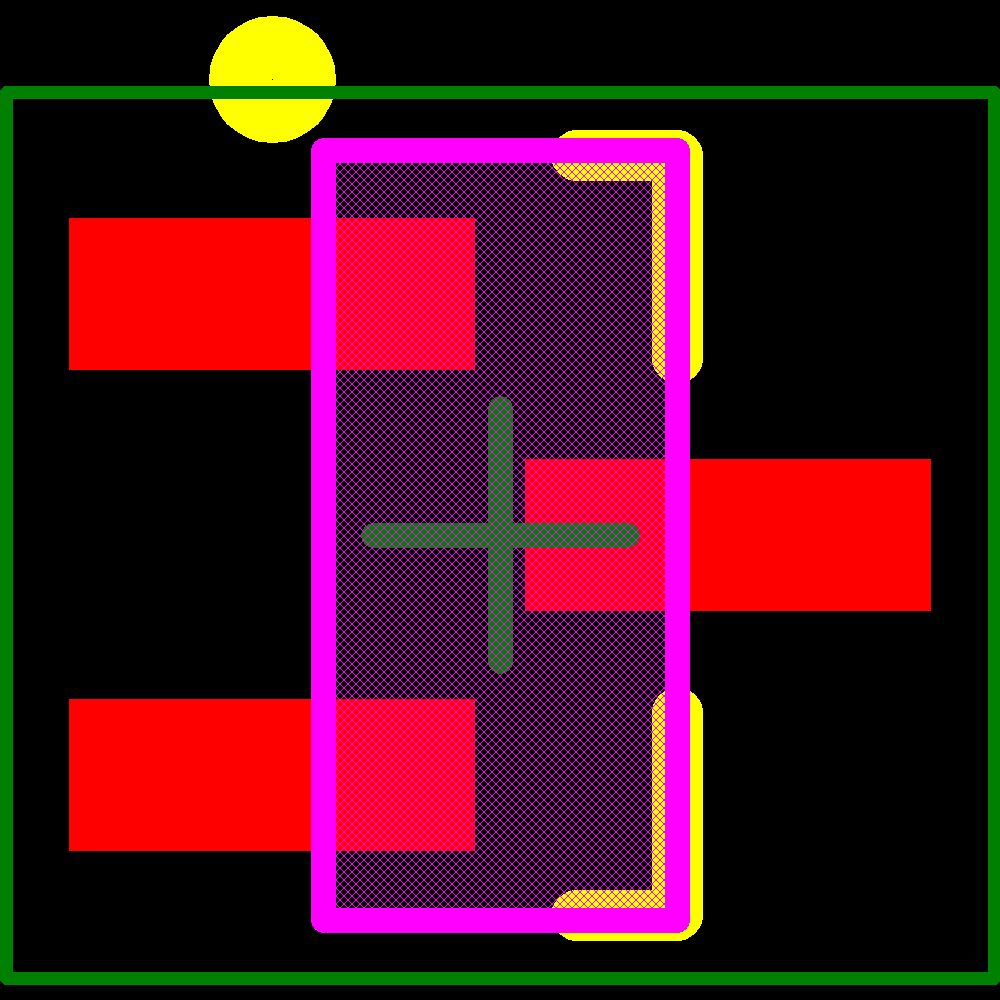

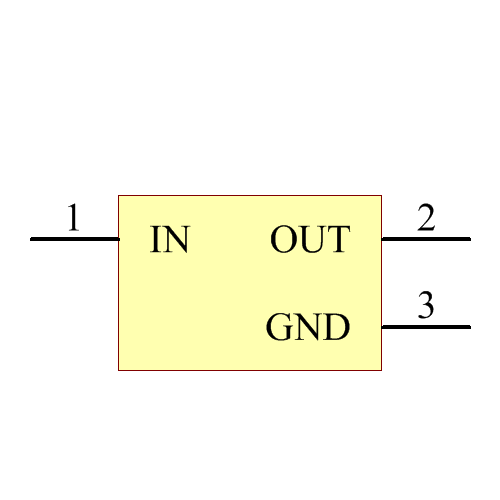

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Analog Devices | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Analog Devices | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Mouser |
US: 5864
|
$ | 3.62 | 2.45 | 2.27 | 1.97 | 1.35 | 1.23 | ||
