REG102GA-2.5G4 - Texas Instruments
250mA, Low-Noise, Low-Dropout Linear Voltage Regulator 6-SOT-223
Technical Details
| Accuracy | 1.5% |
| Case/Package | SOT-223 |
| Dropout Voltage | 150mV |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 12V |
| Max Operating Temperature | 85°C |
| Max Output Current | 250mA |
| Max Output Voltage | 2.5V |
| Min Current Limit | 340mA |
| Min Input Voltage | 1.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 2.5V |
| Output Voltage Accuracy | 1.5% |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 400µA |
| Radiation Hardening | No |
| Reference Voltage | 1.26V |
| RoHS | Compliant |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

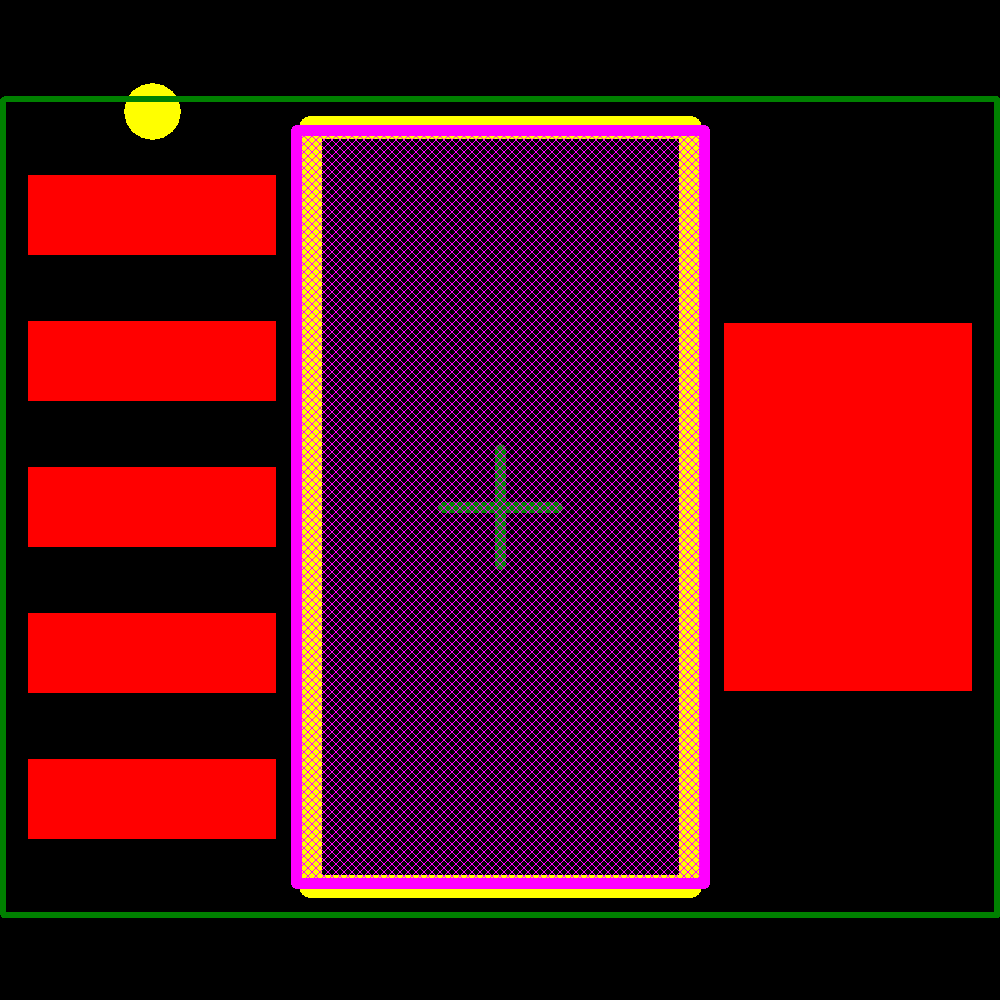

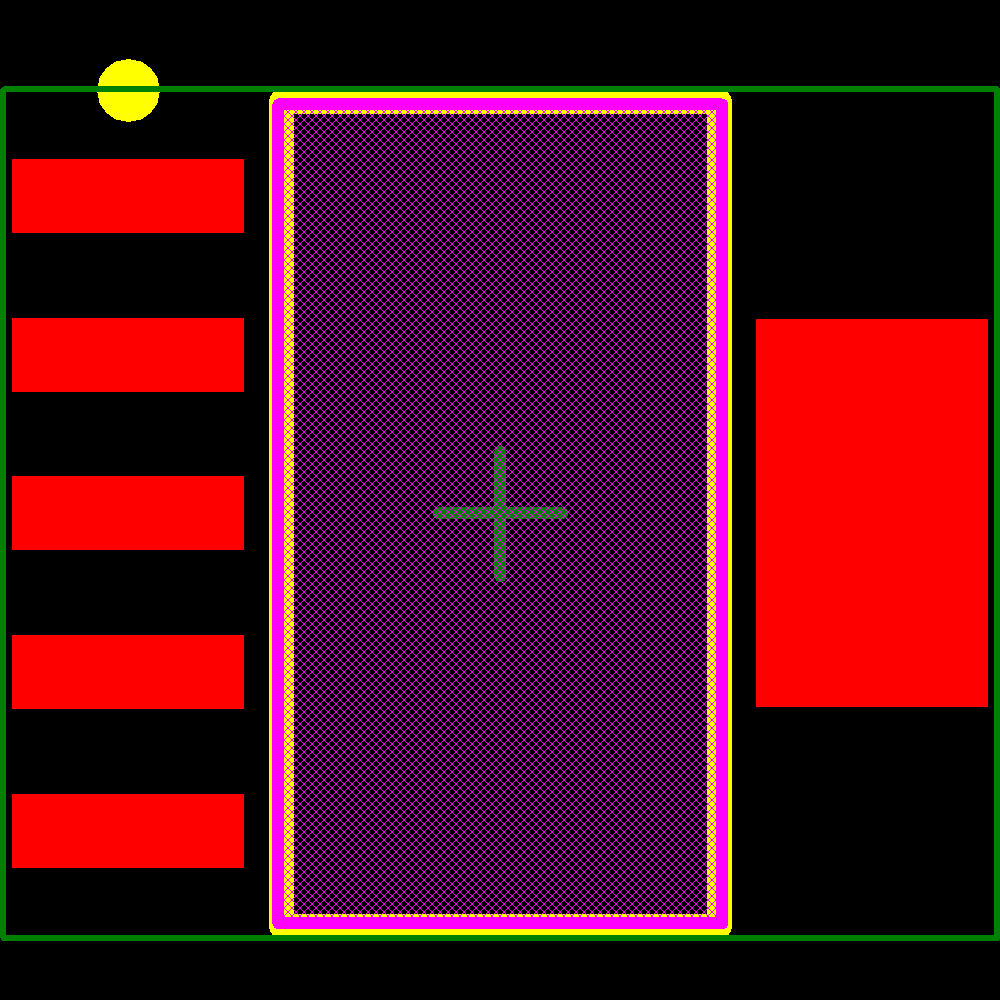

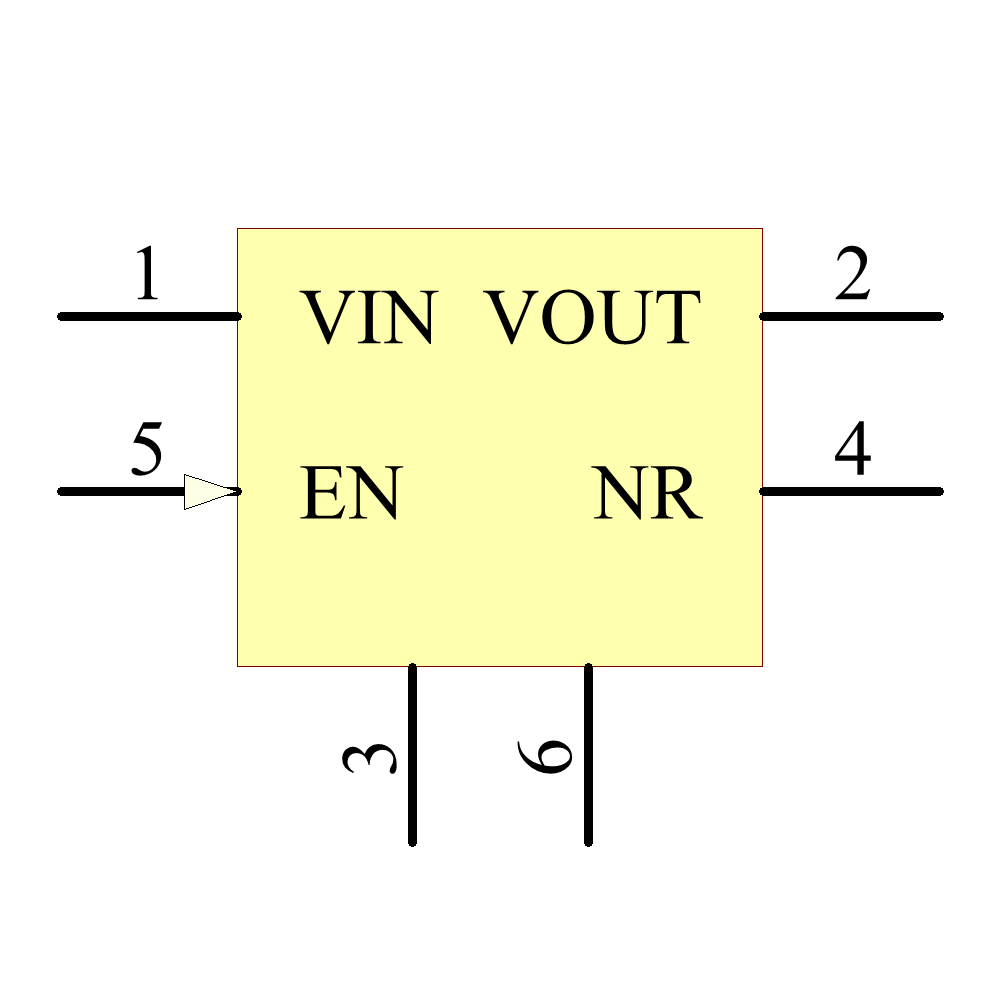

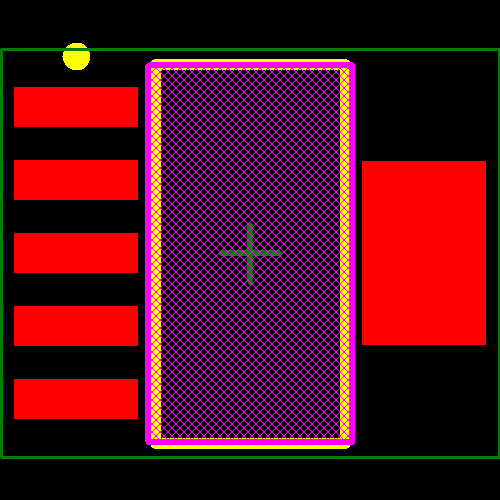

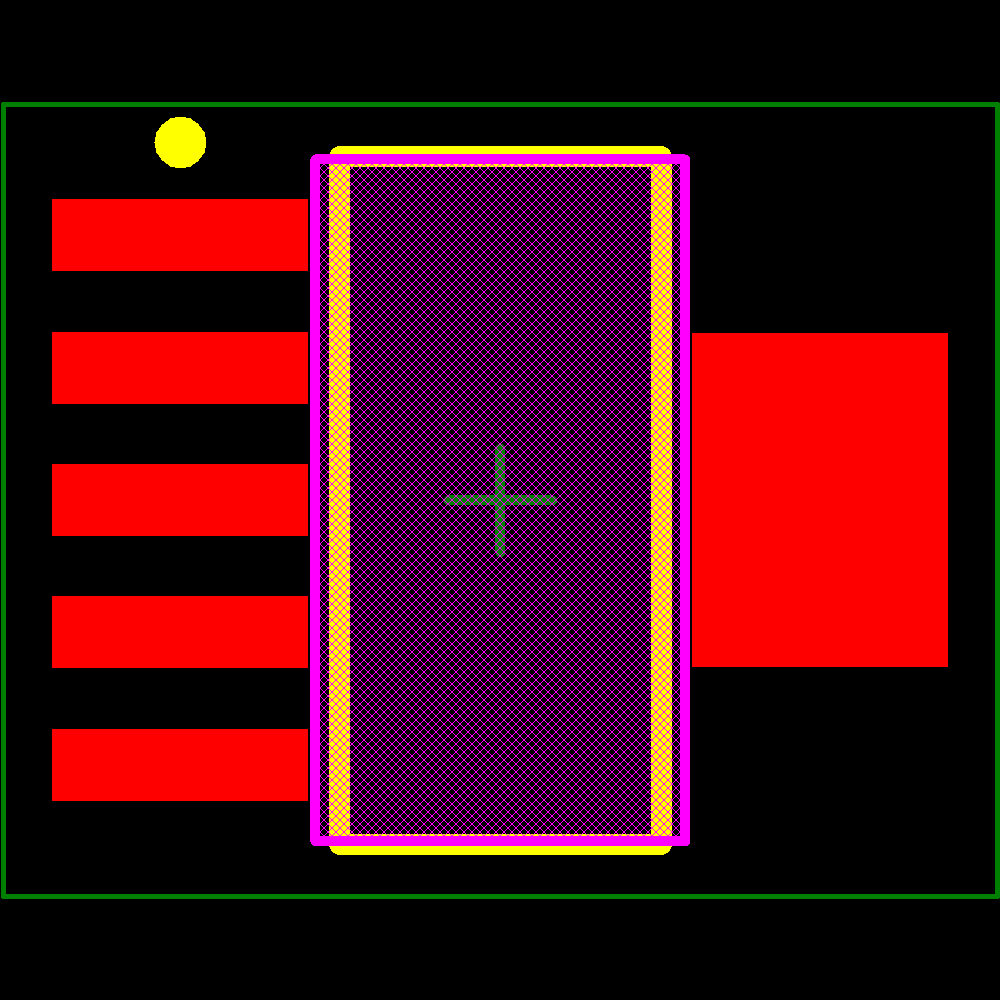

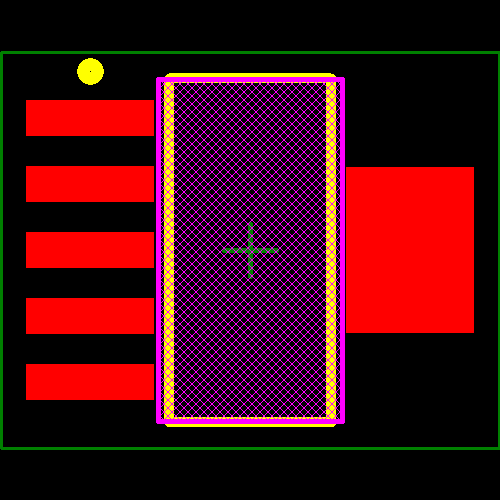

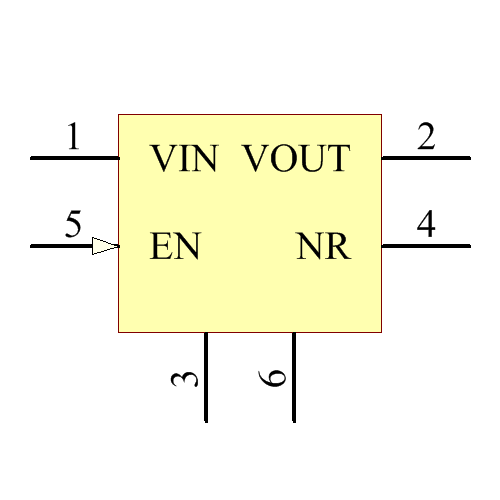

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Microchip | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Production |
