REG102GA-5G4 - Texas Instruments
250mA, Low-Noise, Low-Dropout Linear Voltage Regulator 6-SOT-223 -40 to 85
Technical Details
| Accuracy | 1.5% |
| Case/Package | SOT-223 |
| Dropout Voltage | 150mV |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 12V |
| Max Operating Temperature | 85°C |
| Max Output Current | 250mA |
| Max Output Voltage | 5V |
| Min Current Limit | 340mA |
| Min Input Voltage | 1.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Number of Regulators | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 1.5% |
| Polarity | Positive |
| Quiescent Current | 400µA |
| Radiation Hardening | No |
| Reference Voltage | 1.26V |
| RoHS | Compliant |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

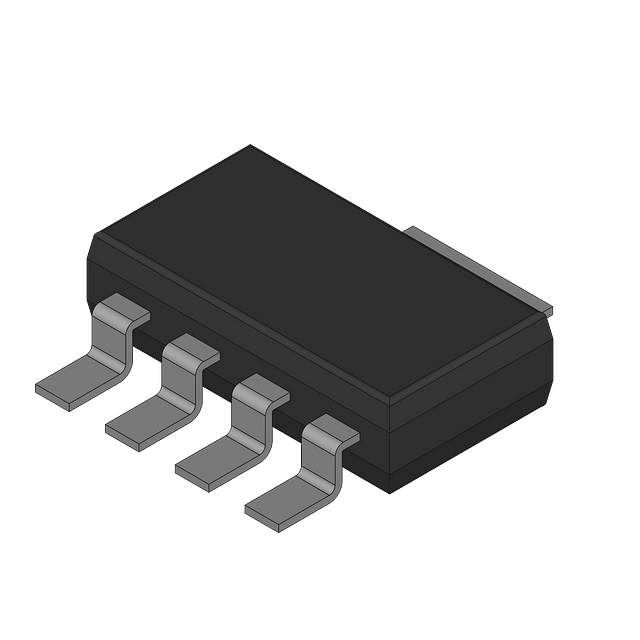

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Microchip | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Unknown | ||
| Microchip | Production | ||
| Microchip | Production | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 156
|
$ | 2.08 | 1.98 | 1.77 | 1.66 | ||||
| Verical |
US: 156
|
$ | 2.2125 | 2.075 | ||||||
