REG104GA-AG4 - Texas Instruments
1-A, 15-V, low-dropout voltage regulator with enable 6-SOT-223 -40 to 85
Technical Details
| Accuracy | 2% |
| Case/Package | SOT-223 |
| Dropout Voltage | 230mV |
| Height | 0m |
| Input Bias Current | 600µA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 15V |
| Max Operating Temperature | 85°C |
| Max Output Current | 1A |
| Max Output Voltage | 5.5V |
| Max Supply Voltage | 15V |
| Min Current Limit | 1.2A |
| Min Input Voltage | 2.1V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 1.3V |
| Min Supply Voltage | 2.1V |
| Number of Outputs | 1 |
| Number of Pins | 6 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Output Voltage Accuracy | 2% |
| Polarity | Positive |
| Quiescent Current | 600µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 1.295V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 1.6mm |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

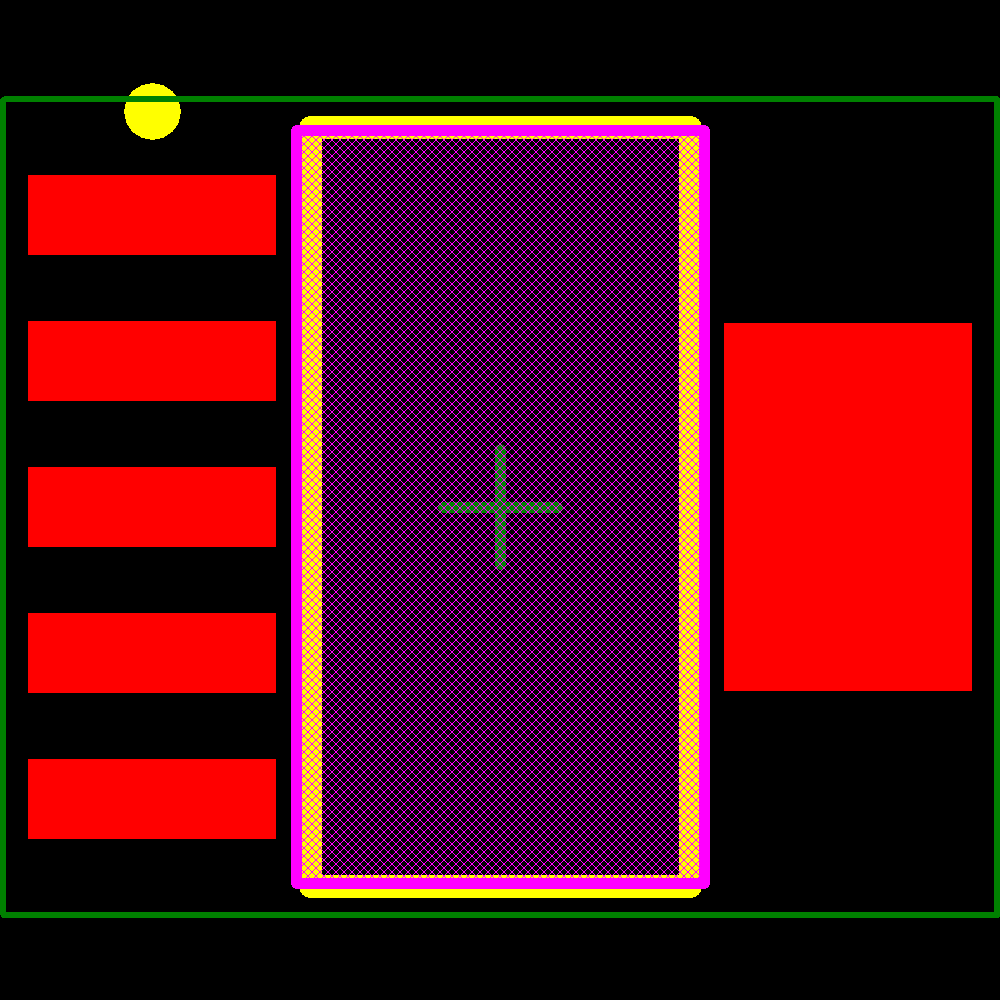

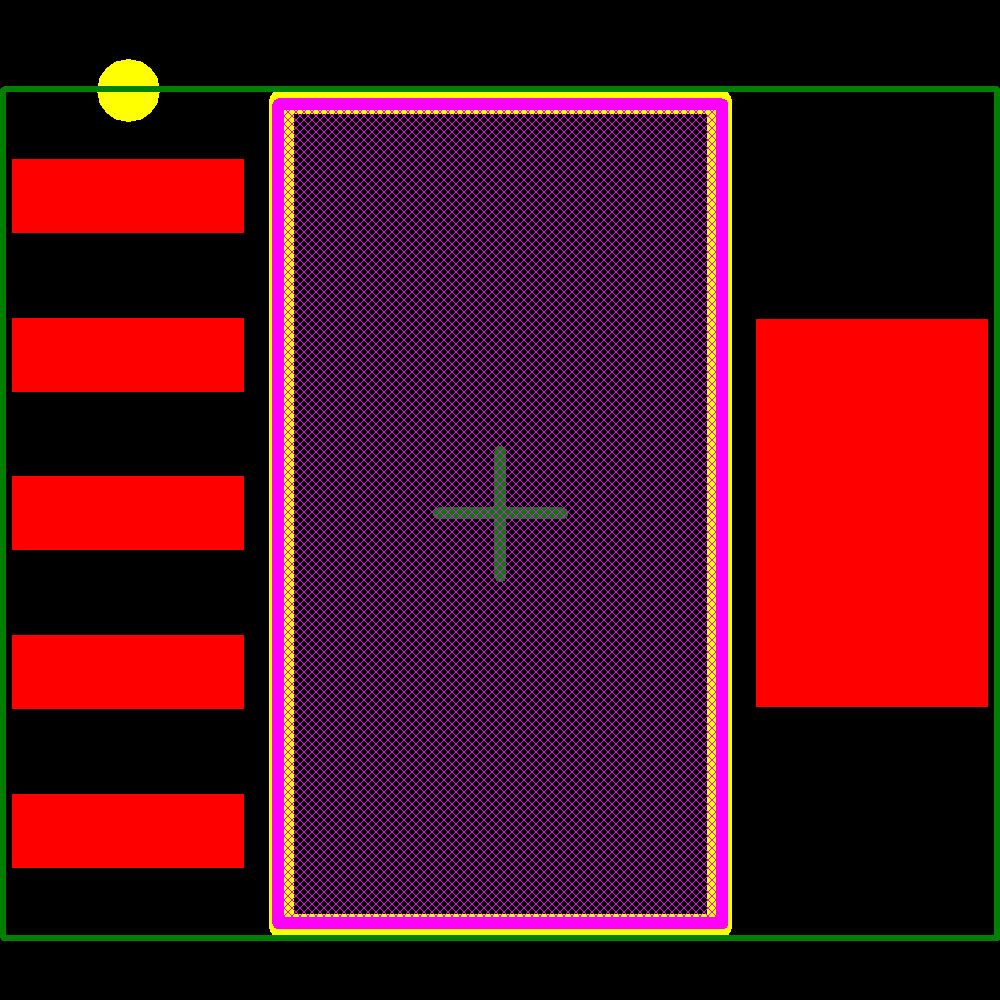

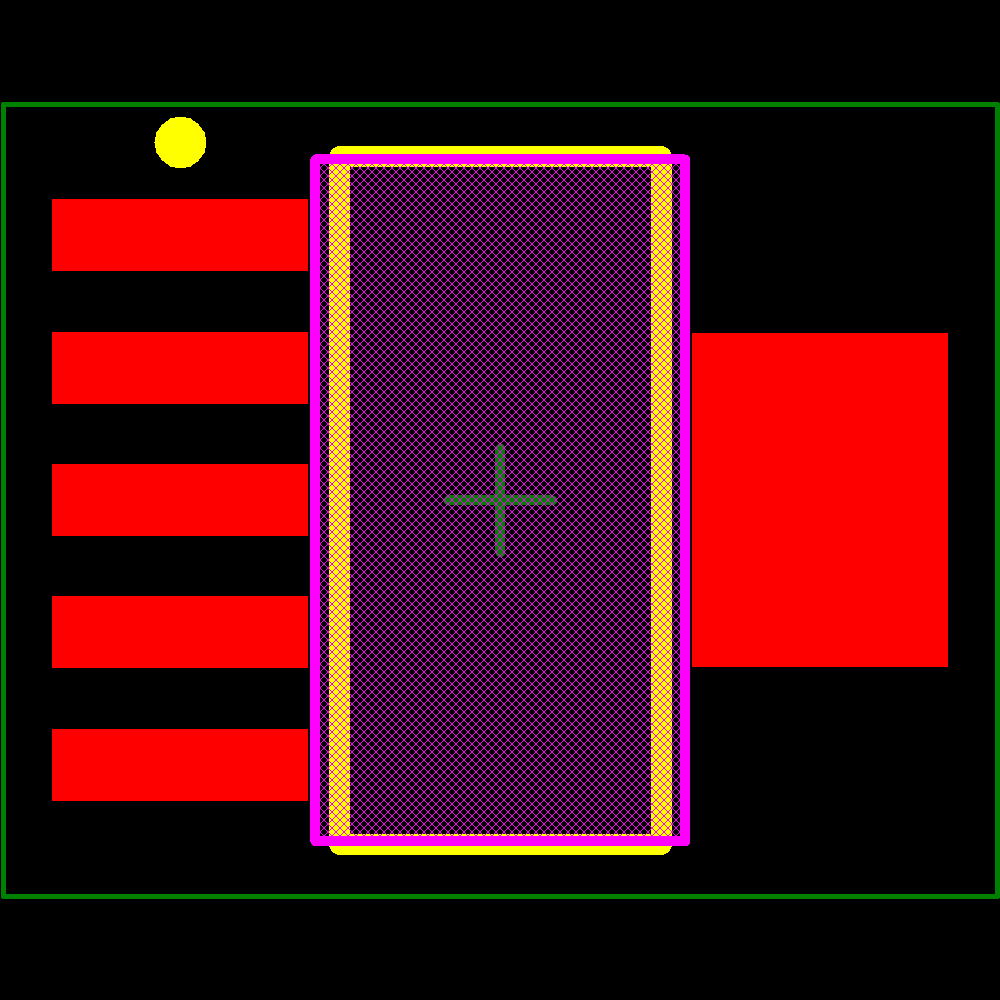

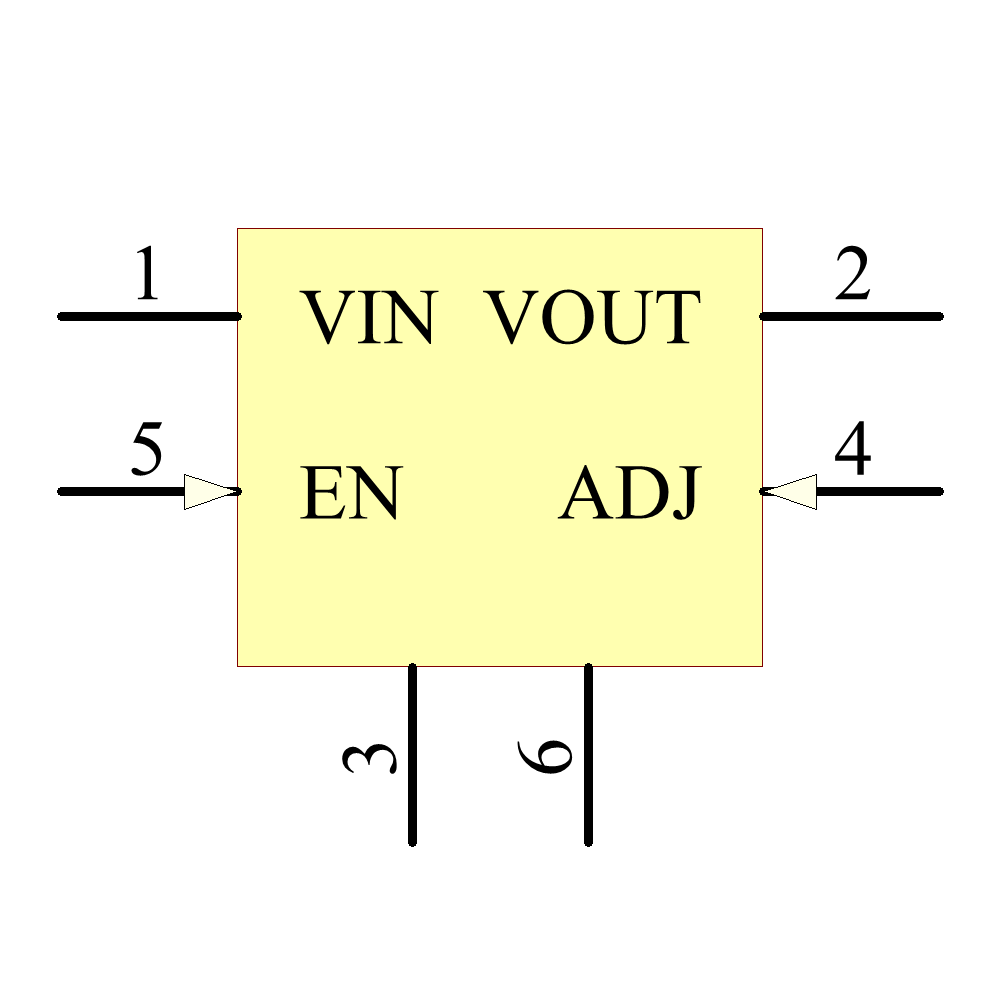

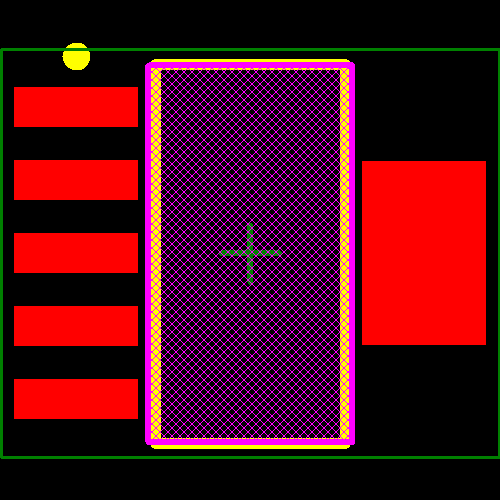

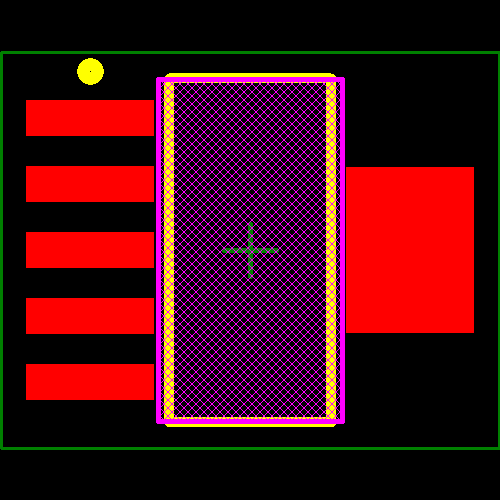

Images
