REG1117A-1.8G4 - Texas Instruments
1-A, 15-V, linear voltage regulator from -40°C to +125°C 4-SOT-223 -40 to 125
Technical Details
| Accuracy | 1% |
| Case/Package | SOT-223 |
| Dropout Voltage | 1.2V |
| Height | 1.8mm |
| Input Bias Current | 4mA |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 15V |
| Max Operating Temperature | 125°C |
| Max Output Current | 1A |
| Max Output Voltage | 1.8V |
| Min Current Limit | 1A |
| Min Input Voltage | 3.8V |
| Min Operating Temperature | 0°C |
| Min Output Voltage | 1.8V |
| Number of Outputs | 1 |
| Number of Pins | 4 |
| Number of Regulators | 1 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 1.8V |
| Polarity | Positive |
| Quiescent Current | 4mA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 1.6mm |
| Width | 3.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

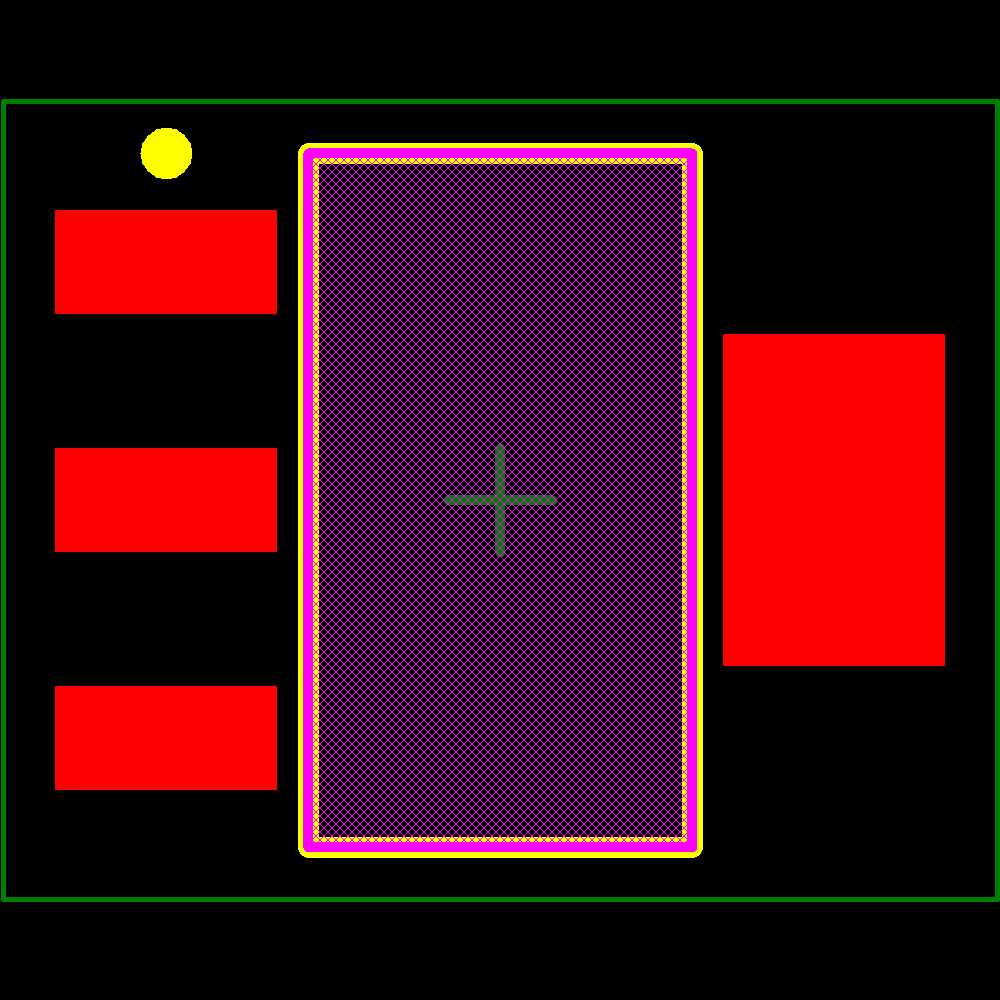

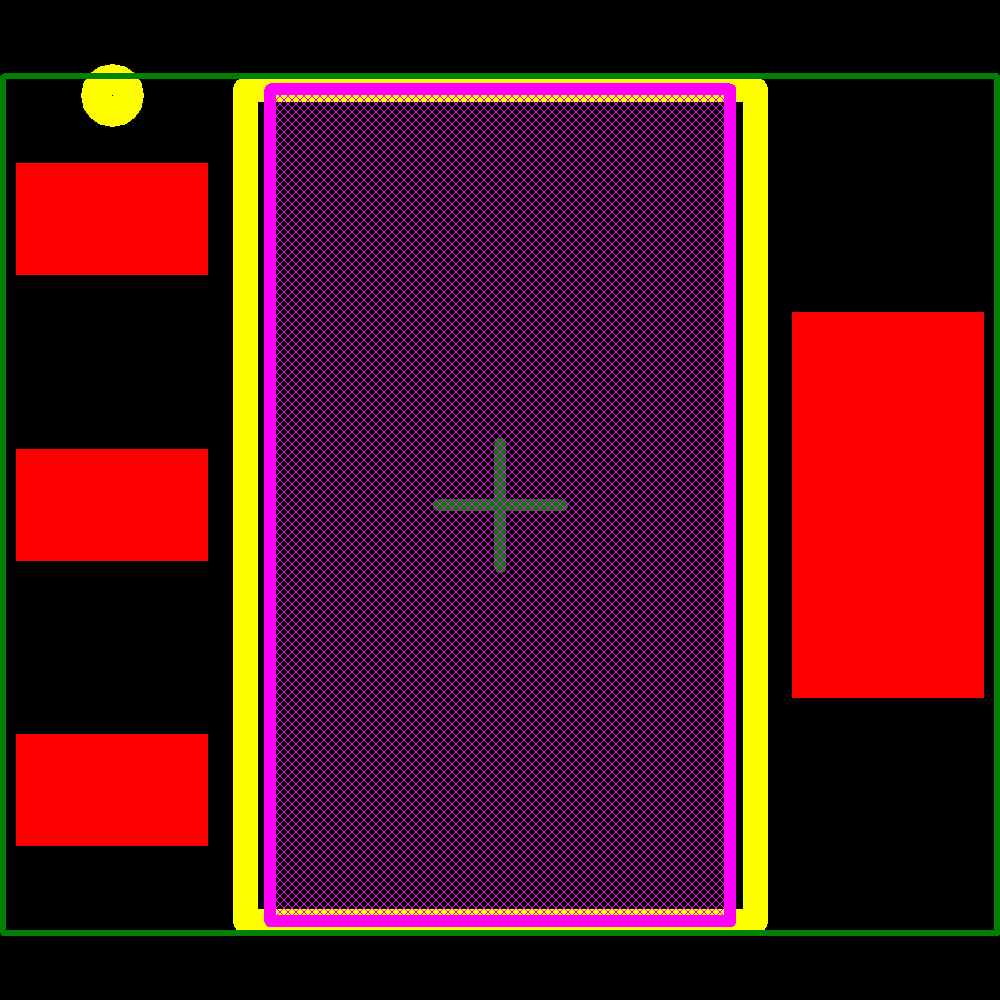

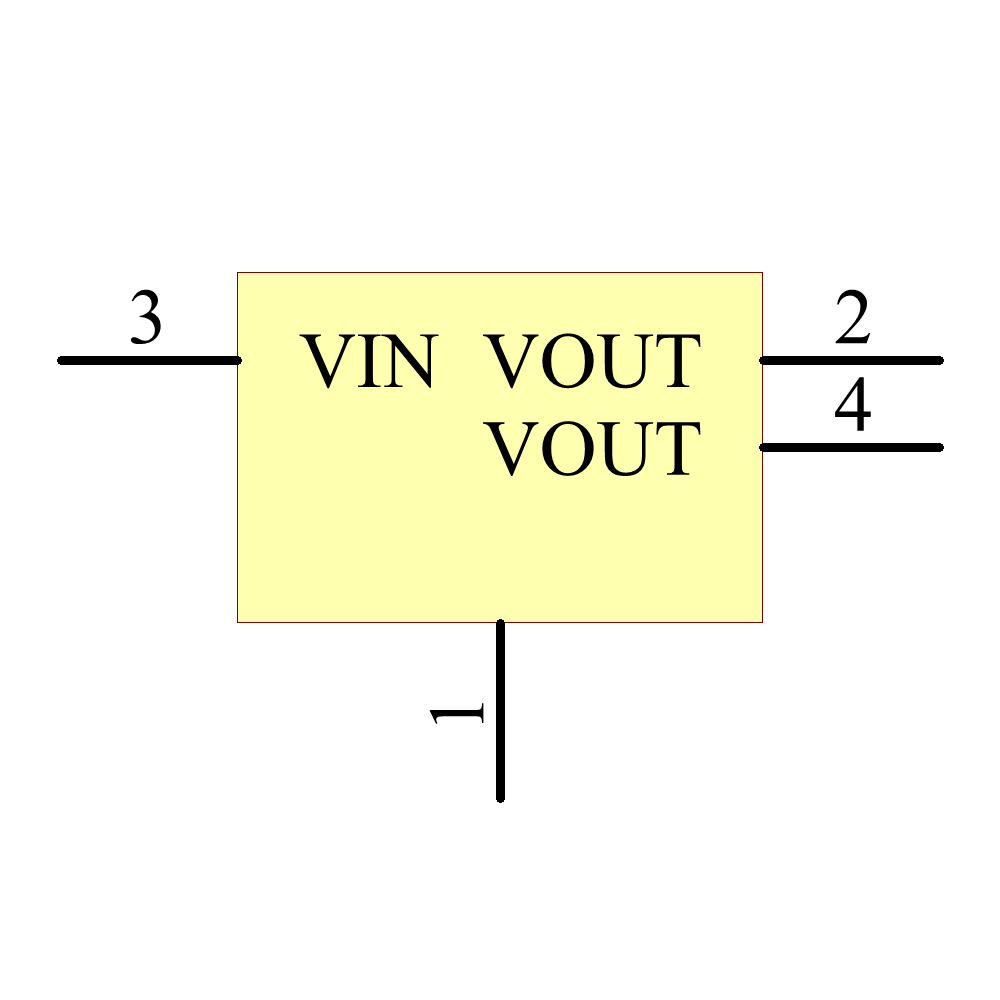

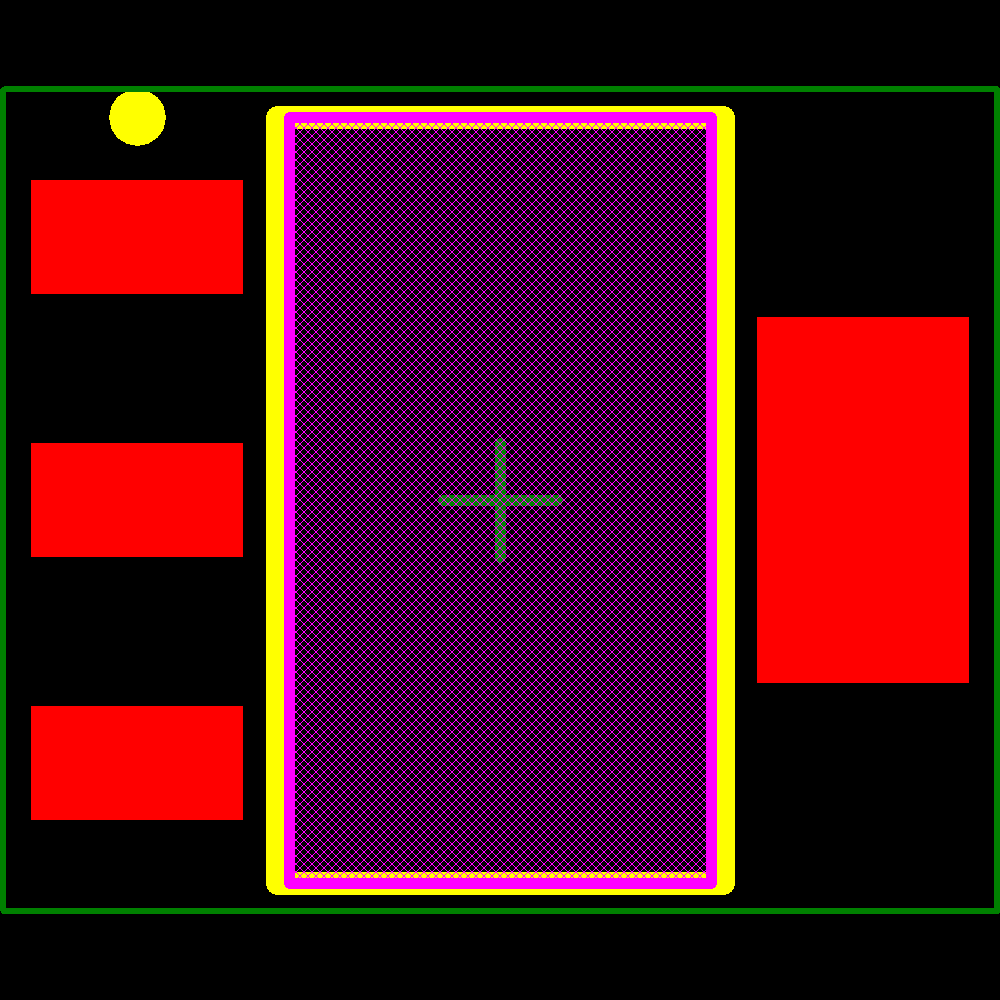

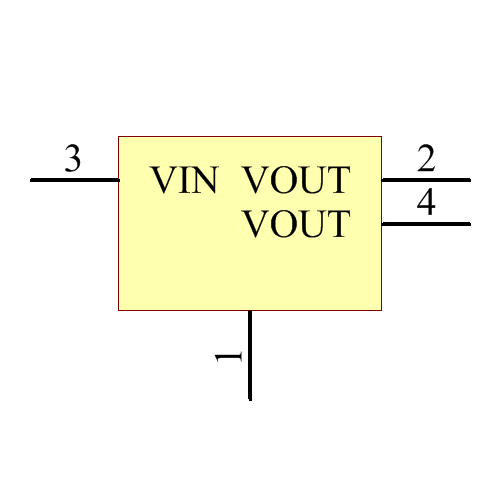

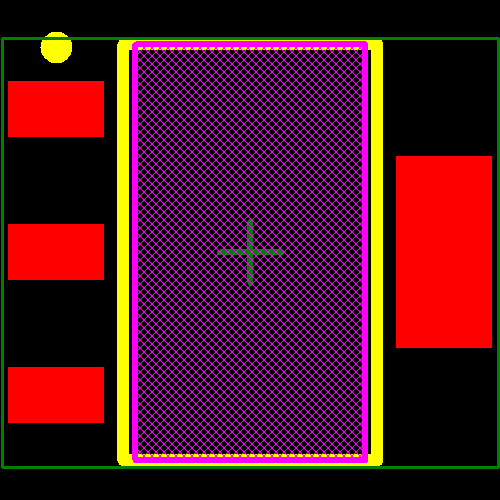

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Obsolete | ||
| onsemi | Obsolete | ||
| Diodes Inc. | Production | ||
| Diodes Inc. | Obsolete | ||
| Microchip | Production |
