REG113EA-5/2K5G4 - Texas Instruments
400-mA, 10-V, low-dropout voltage regulator with enable 8-VSSOP -40 to 85
Technical Details
| Accuracy | 1.5% |
| Case/Package | VSSOP |
| Dropout Voltage | 250mV |
| Height | 1.07mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Input Voltage | 10V |
| Max Operating Temperature | 85°C |
| Max Output Current | 400mA |
| Max Output Voltage | 5V |
| Min Input Voltage | 1.8V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 5V |
| Number of Outputs | 1 |
| Number of Pins | 8 |
| Output Current | 400mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Output Voltage Accuracy | 1.5% |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 400µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Thickness | 970µm |
| Width | 3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

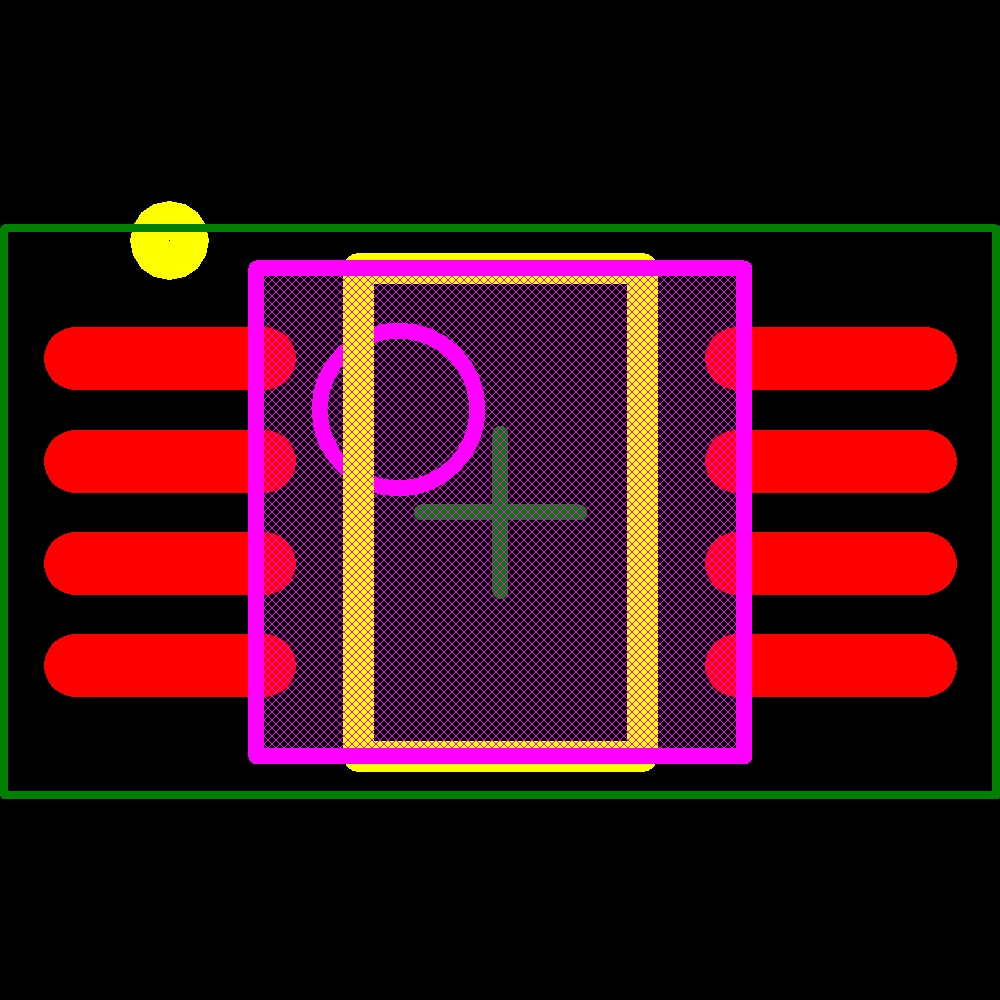

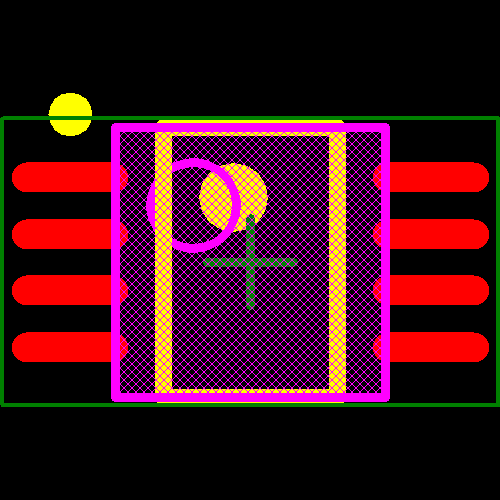

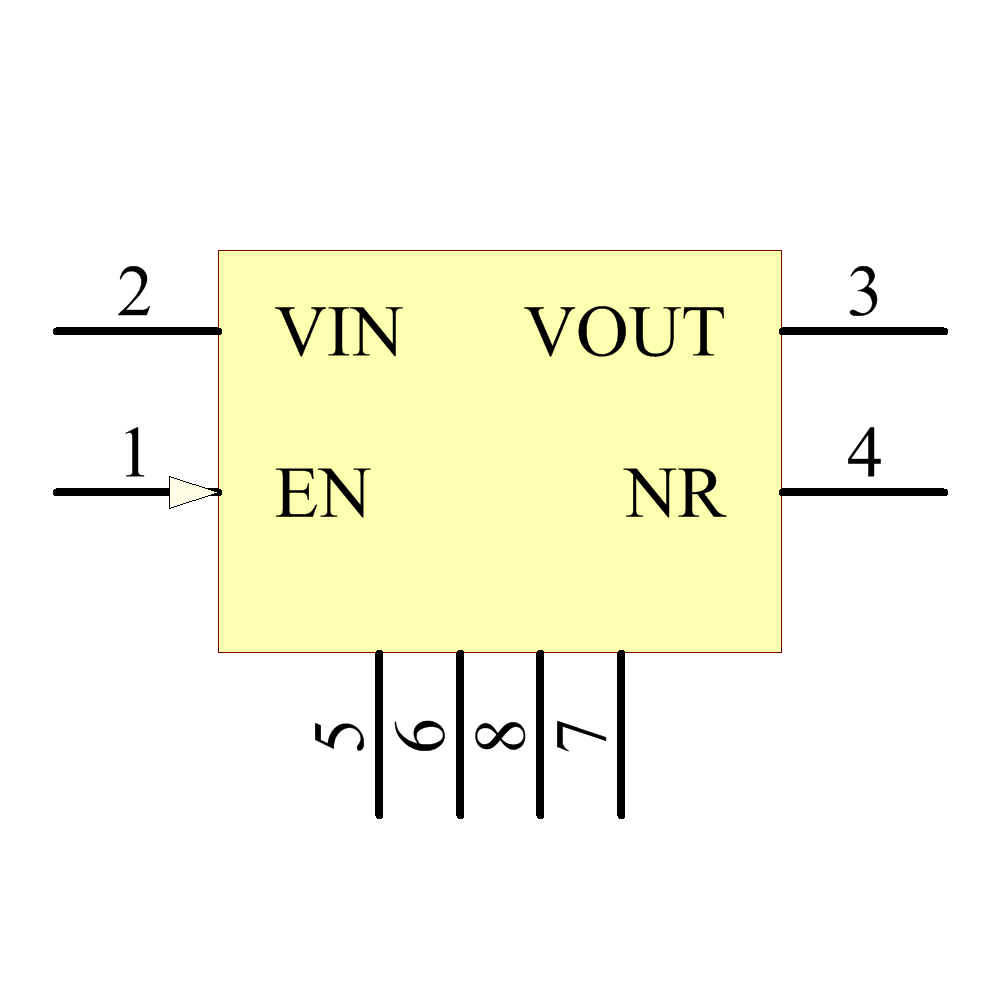

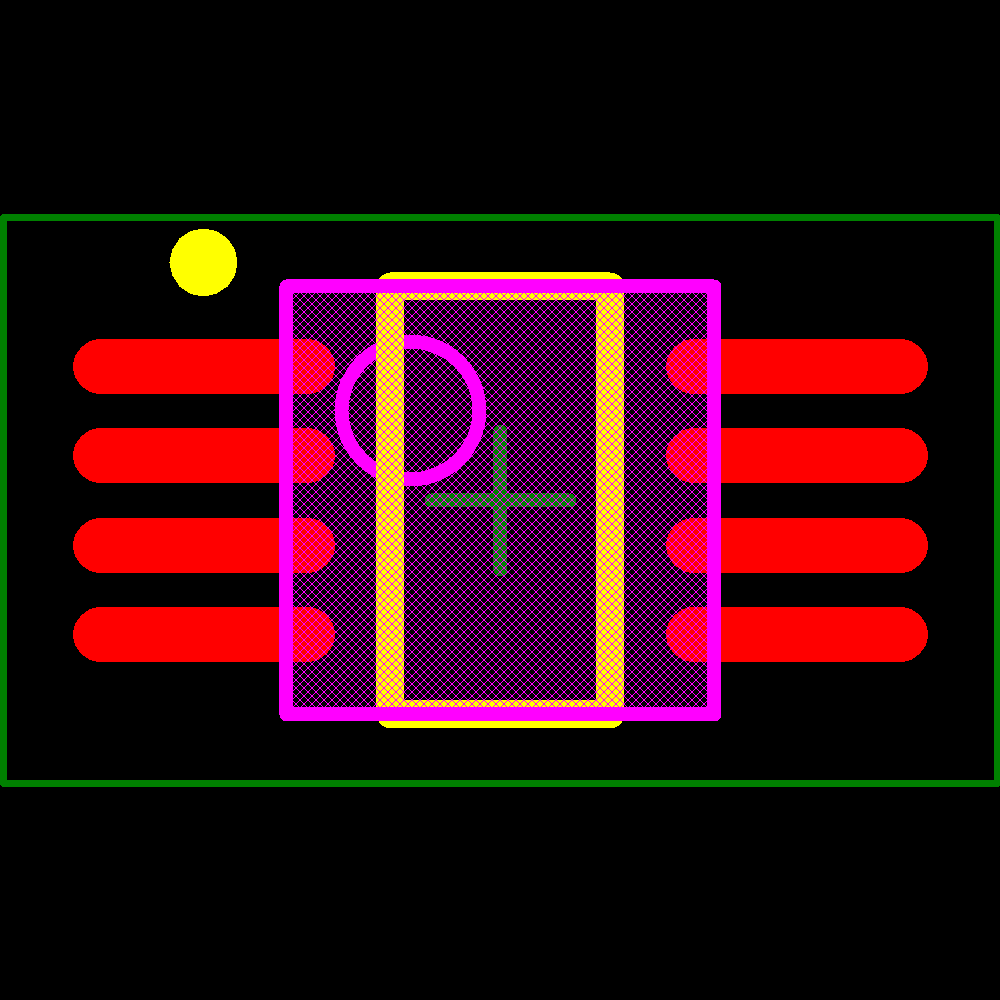

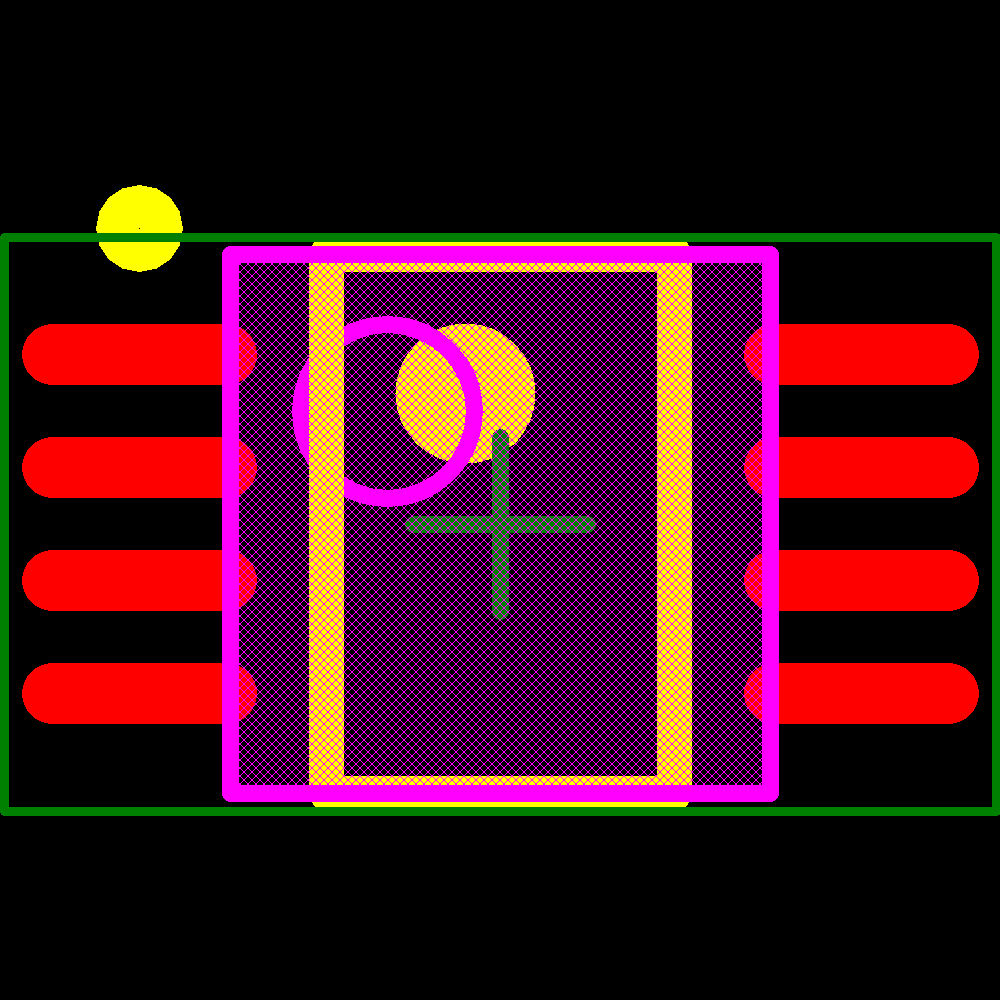

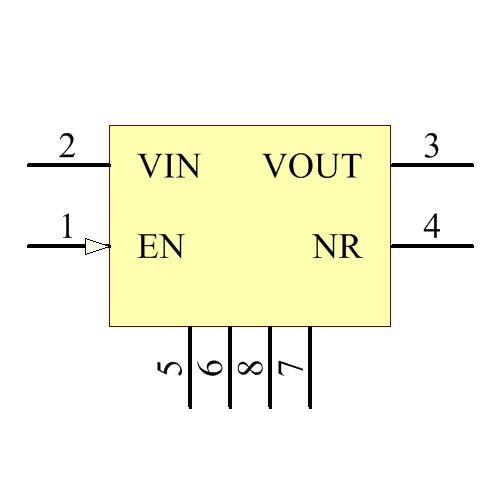

Images
