SM74104MAX/NOPB - Texas Instruments
1.8-A, 100-V half bridge gate driver with 8-V UVLO and adaptive delay 8-SOIC -40 to 125
Technical Details
| Case/Package | SOIC |
| Channel Type | Synchronous |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Output Current | 1.6A |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of Pins | 8 |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant |
| Thickness | 1.58mm |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed

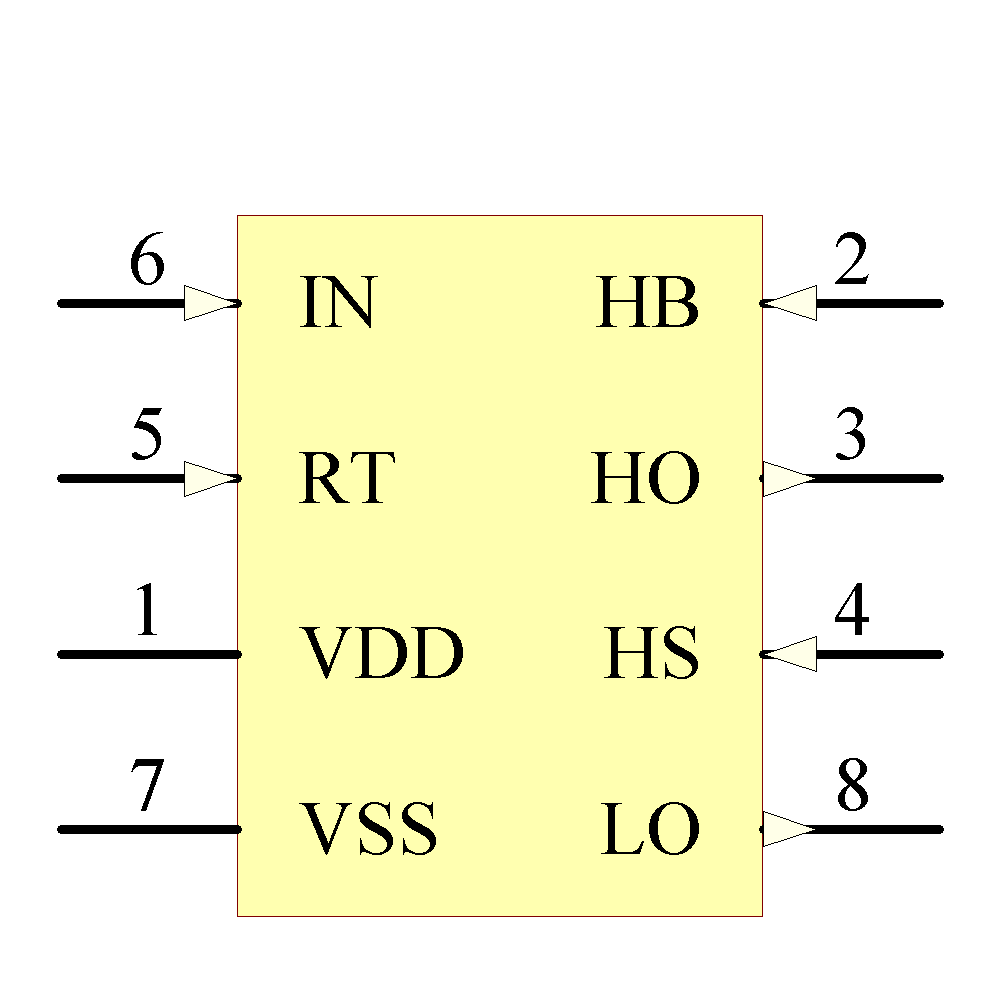

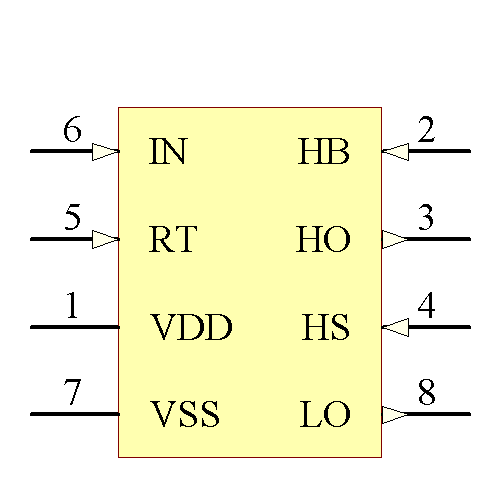

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| STMicroelectronics | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| STMicroelectronics | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 1.8144 | |||||||
| Texas Instruments |
US: 22237
|
$ | 2.586 | 2.586 | 2.586 | 2.266 | 1.28 | 1.28 | ||
