SN54LS165AJ - Texas Instruments
COMPLEMENTARY Contains Lead DUAL Through Hole shift register 125C 5.5V 25000000Hz 5.08mm
Technical Details
| Case/Package | CDIP |
| Contact Plating | Lead, Tin |
| Direction | Unidirectional |
| Height | 5.08mm |
| Lead Free | Contains Lead |
| Length | 19.56mm |
| Lifecycle Status | Production |
| Logic Function | Shift Register |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Elements | 1 |
| Number of Pins | 16 |
| Operating Supply Voltage | 5V |
| Output Type | TTL |
| Propagation Delay | 35ns |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 4.57mm |
| Turn-On Delay Time | 35ns |
| Width | 6.92mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

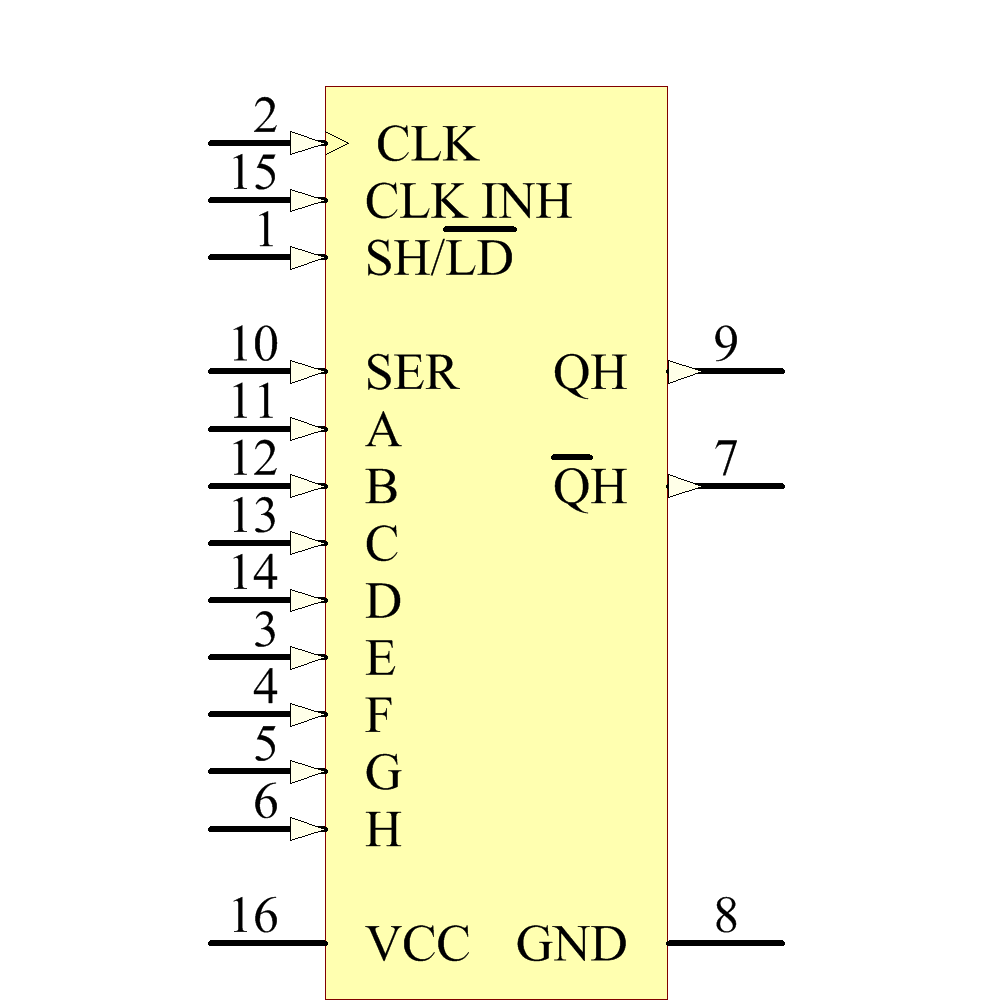

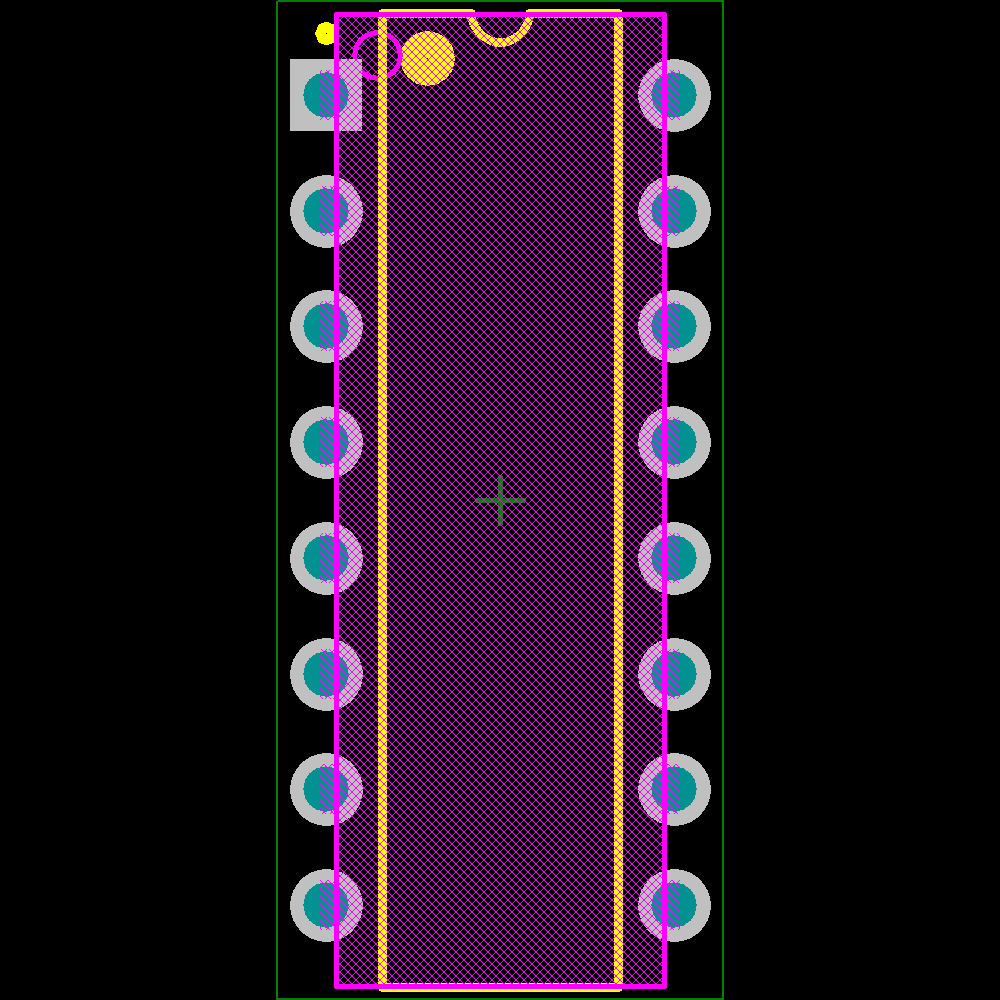

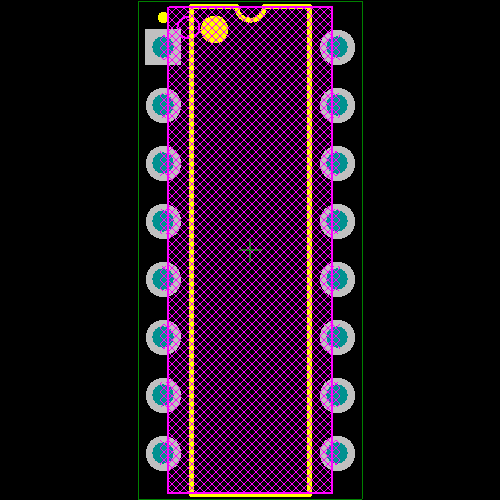

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| Texas Instruments | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Motorola | Obsolete | ||
| Motorola | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow Electronics |
US: 25
|
$ | 14.4564 | 14.4564 | 14.4564 | 14.4564 | ||||
| Texas Instruments |
US: 0
|
$ | 16.467 | 16.467 | 16.467 | 14.384 | 9.92 | 9.92 | ||
