Technical Details
| Ambient Temperature Range High | 105°C |
| Case/Package | PDIP |
| Contact Plating | Gold |
| Data Rate | 10Mbps |
| ESD Protection | No |
| Height | 5.08mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Lifecycle Status | Production |
| Logic Function | Transceiver |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 105°C |
| Max Supply Current | 70mA |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 70mA |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Simplex/Duplex | Half Duplex |
| Thickness | 3.9mm |
| Weight | 440.409842mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

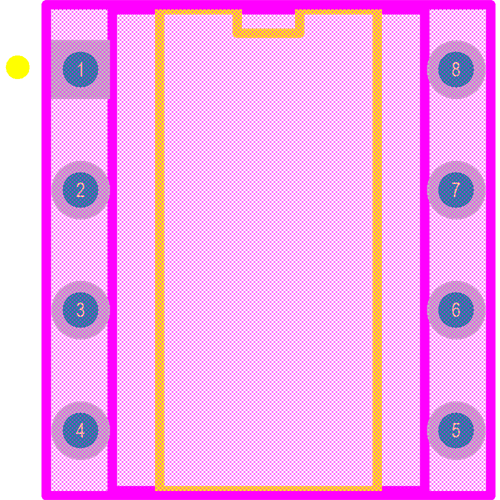

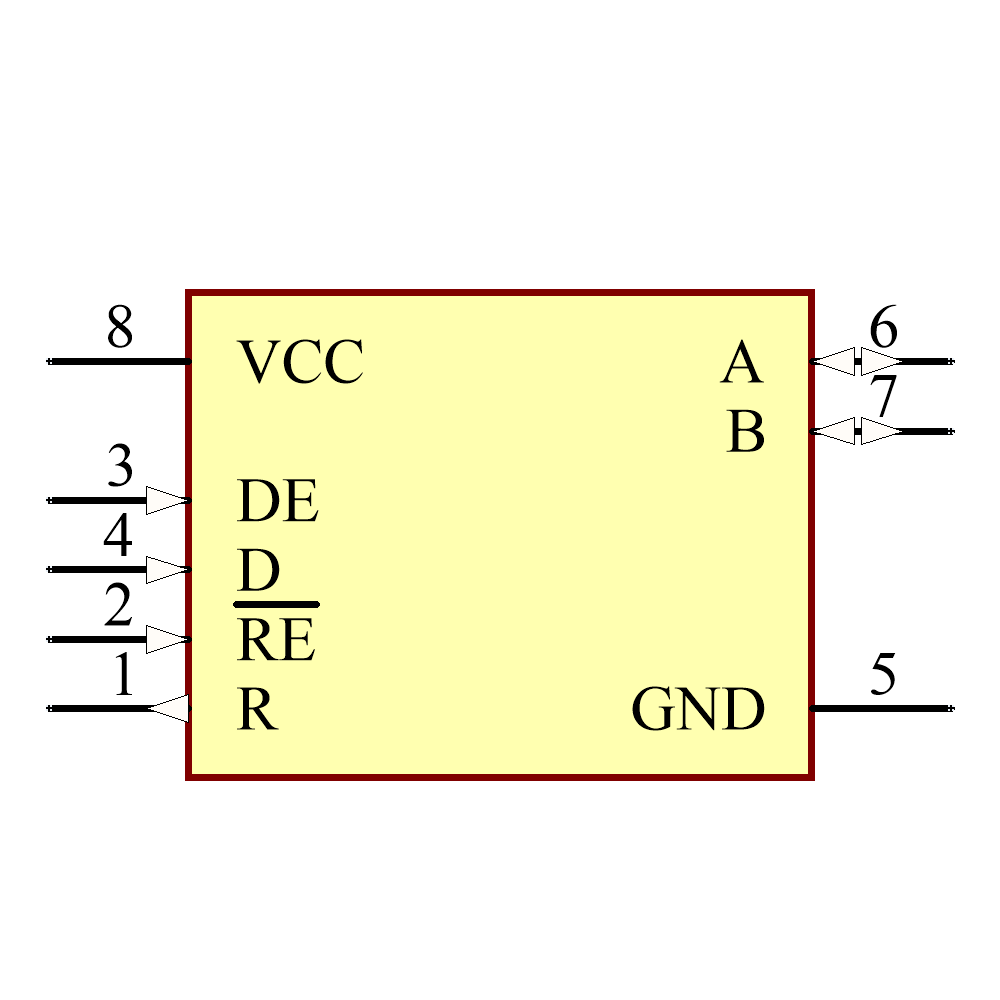

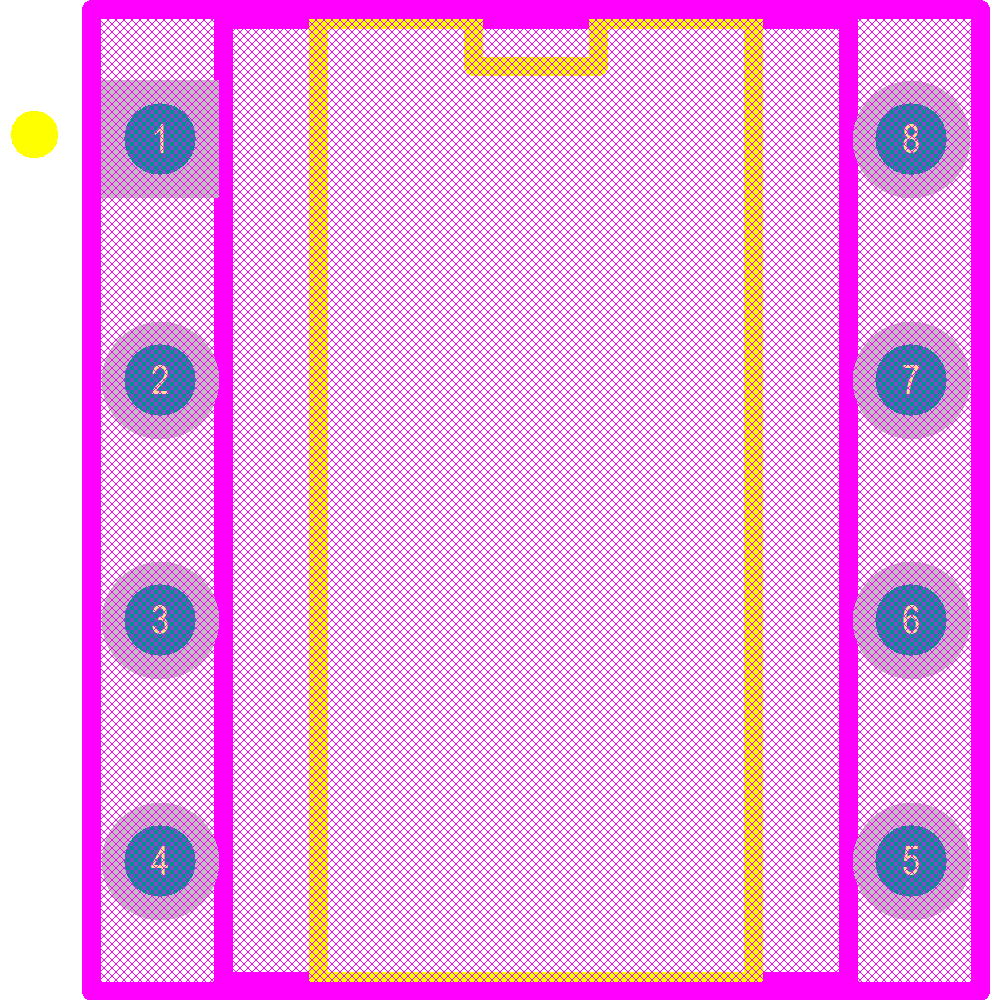

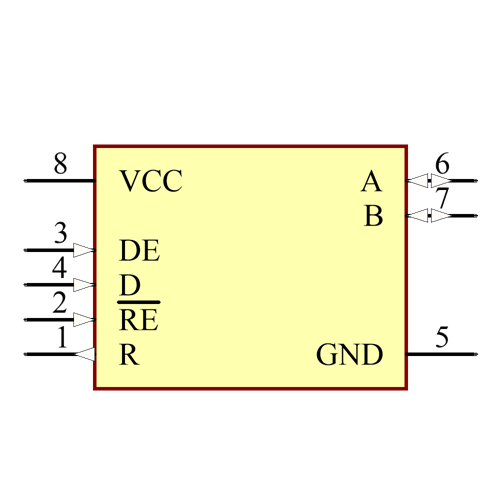

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Sipex | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
