SN65240P - Texas Instruments
Dual universal serial bus port transient suppressor 8-PDIP -40 to 85
Technical Details
| Breakdown Voltage | 7V |
| Capacitance | 35pF |
| Case/Package | PDIP |
| Clamping Voltage | 7V |
| Depth | 6.35mm |
| Element Configuration | Dual |
| Height | 5.08mm |
| Interface | USB |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Length | 9.81mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 60W |
| Max Surge Current | 3A |
| Min Breakdown Voltage | 7V |
| Min Operating Temperature | -40°C |
| Number of Channels | 4 |
| Number of Circuits | 1 |
| Number of Pins | 8 |
| Peak Pulse Power | 60W |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Through Hole |
| Thickness | 3.9mm |
| Weight | 440.409842mg |
| Width | 6.35mm |
| Working Voltage | 6V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images

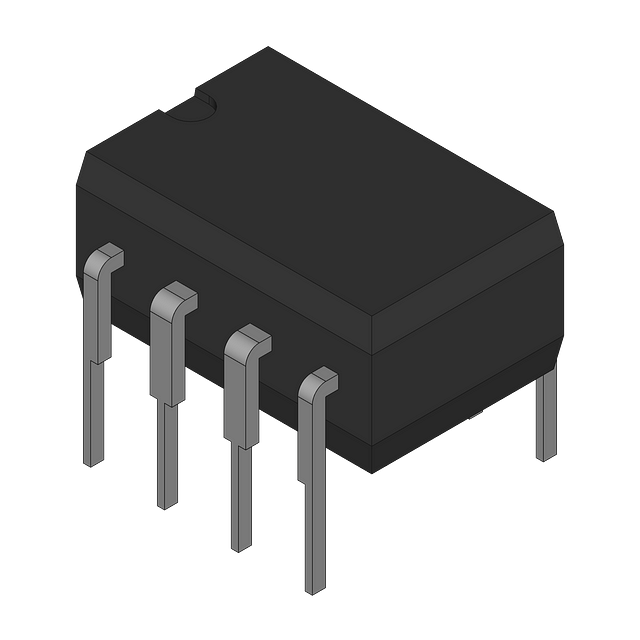

Rochester Electronics
