SN65HVD485EPE4 - Texas Instruments
IC TRANSCEIVER HALF 1/1 8DIP "1/1 Transceiver Half RS422, RS485 8-PDIP"
Technical Details
| Case/Package | PDIP |
| Data Rate | 10Mbps |
| Height | 5.08mm |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Lifecycle Status | Production |
| Logic Function | Transceiver |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Nominal Supply Current | 2mA |
| Number of Circuits | 64 |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| RoHS | Compliant |
| Simplex/Duplex | Half Duplex |
| Thickness | 3.9mm |
| Weight | 440.012948mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed

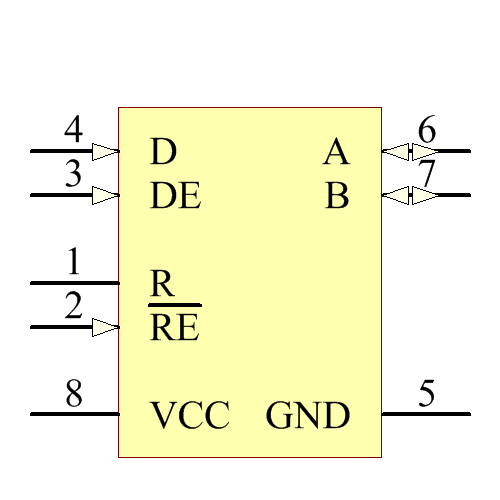

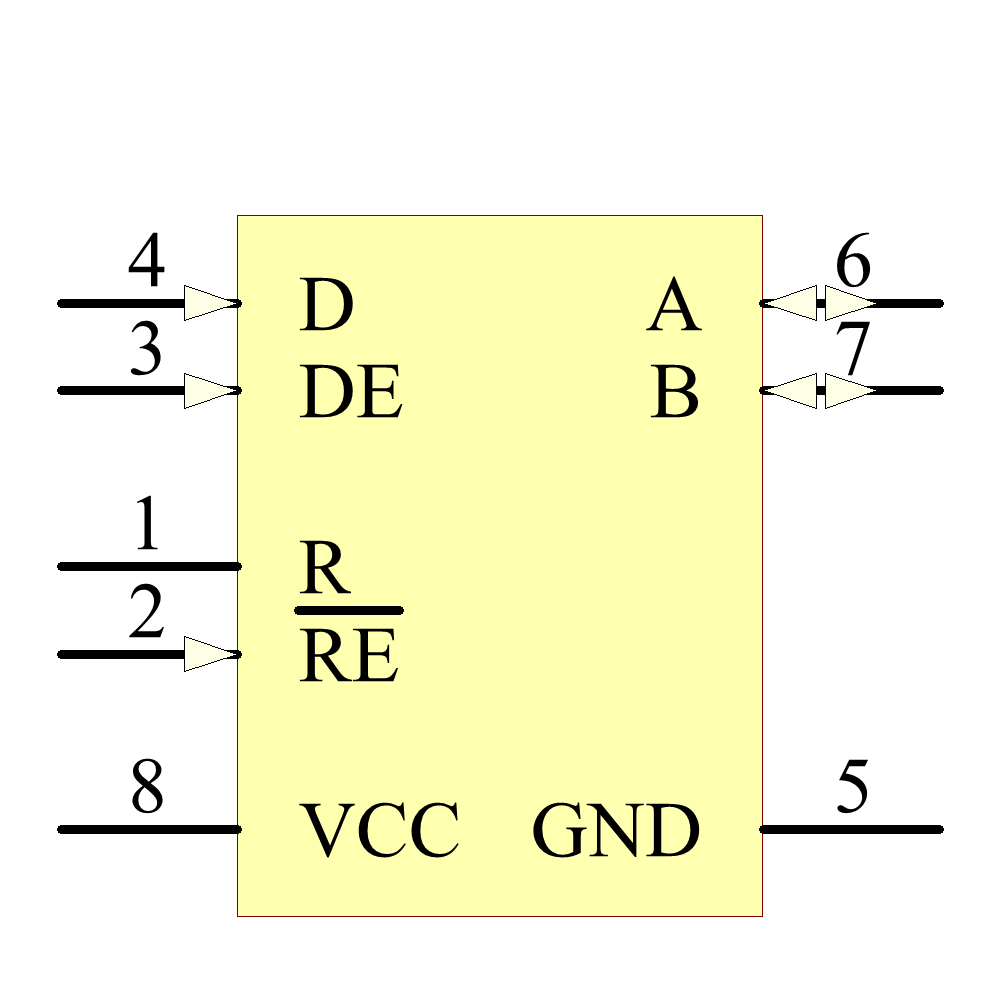

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Sipex | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey |
DE: 0
|
$ | 1.6337 | 1.6337 | ||||||
| Mouser |
US: 487
|
$ | 4.09 | 2.79 | 2.36 | 2.09 | 1.52 | 1.48 | ||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Worldway Electronics |
HK: 37837
|
$ | 0.3405 | 0.3405 | 0.33 | 0.3127 | 0.3127 | |||
| Fmall Co., Limited |
HK: 39960
|
$ | 1.1956 | 1.1956 | 1.1956 | 1.1185 | 1.0542 | 0.9642 | ||
