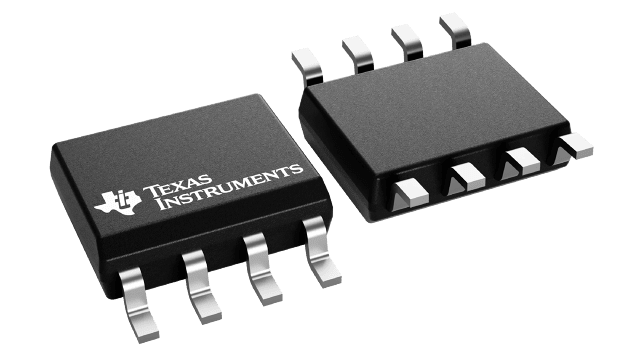

SN65HVD52D - Texas Instruments
High Output Full-Duplex S 485 Drivers and eceivers 8-SOIC -40 to 85
Technical Details
| Case/Package | SOIC |
| Data Rate | 1Mbps |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Logic Function | Receiver, Transceiver |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 85°C |
| Max Power Dissipation | 383mW |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 8mA |
| Number of Drivers | 1 |
| Number of Pins | 8 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 5V |
| Propagation Delay | 60ns |
| RoHS | Compliant |
| Simplex/Duplex | Full Duplex |
| Thickness | 1.58mm |
| Weight | 75.891673mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Renesas | Obsolete | ||
| Texas Instruments | Unknown | ||
| MaxLinear | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 25
|
$ | 3.00 | 2.85 | 2.55 | 2.40 | ||||
| Mouser |
US: 334
|
$ | 6.93 | 4.76 | 4.44 | 3.89 | 3.31 | 2.79 | ||
