SN74AC32NSR - Texas Instruments
4-ch, 2-input, 2-V to 6-V high-speed (7 ns) 24-mA drive strength OR gate 14-SOP -40 to 85
Technical Details

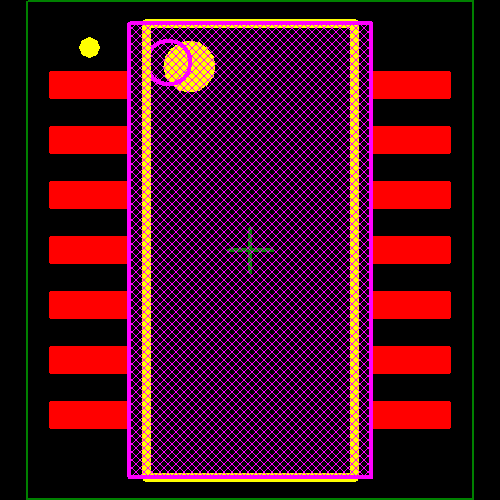

| Case/Package | SOP |
| Height | 2mm |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Lifecycle Status | Production |

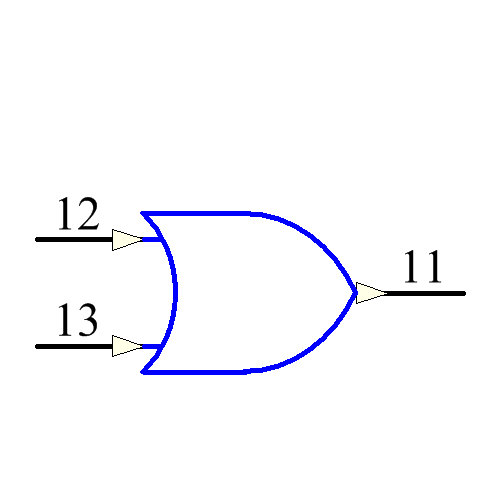

| Logic Function | OR |
| Low Level Output Current | 24mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Output Current | 24mA |
| Packaging | Tape & Reel (TR) |
| Propagation Delay | 7.5ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.95mm |
| Turn-On Delay Time | 8.5ns |
| Weight | 208.312296mg |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

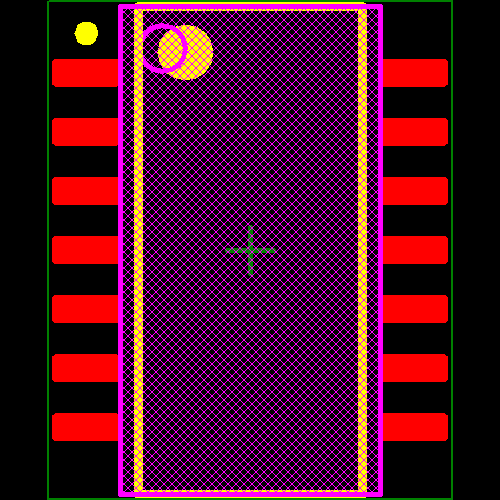

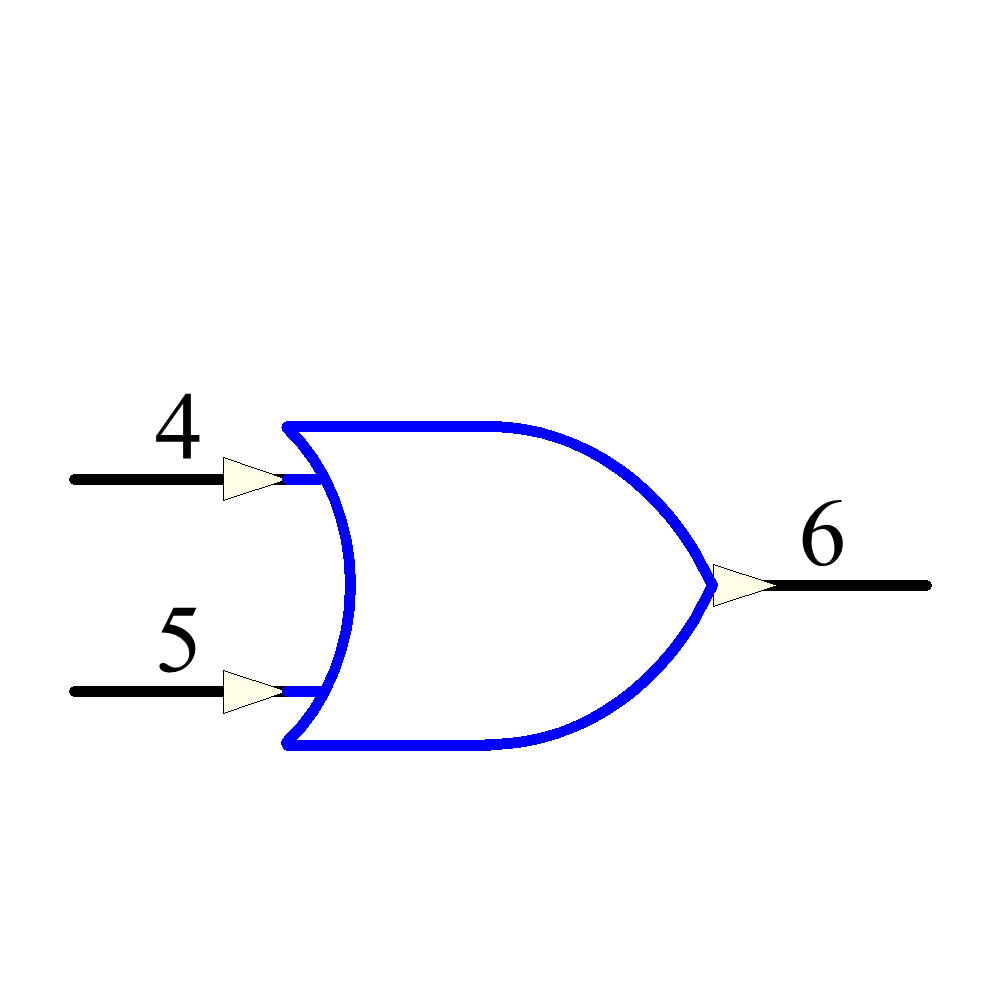

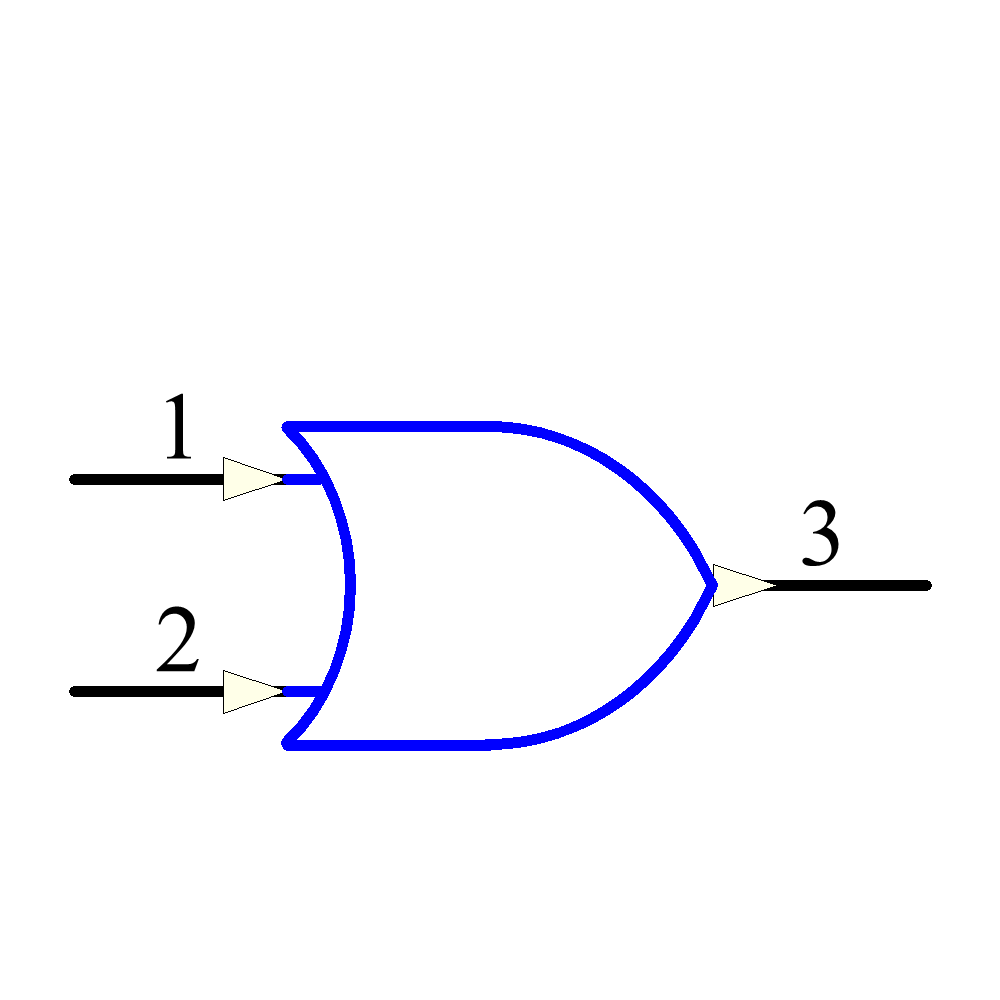

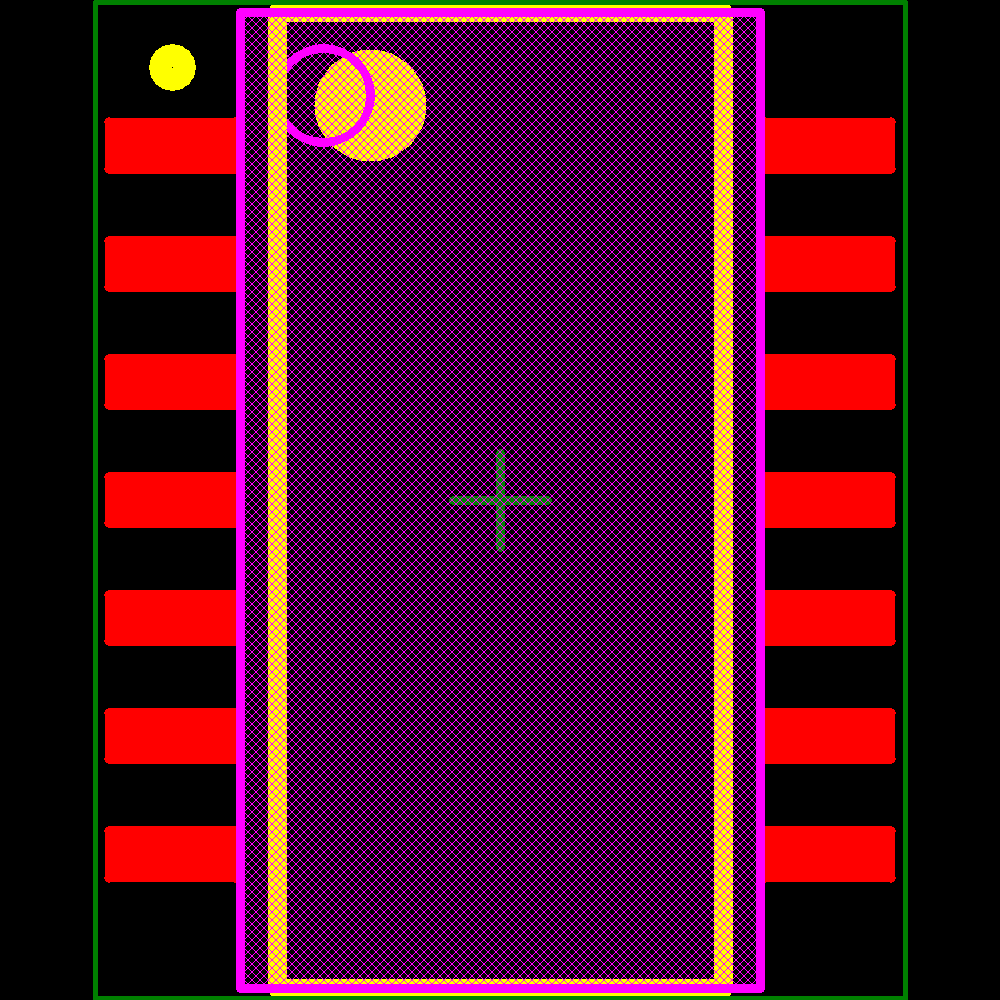

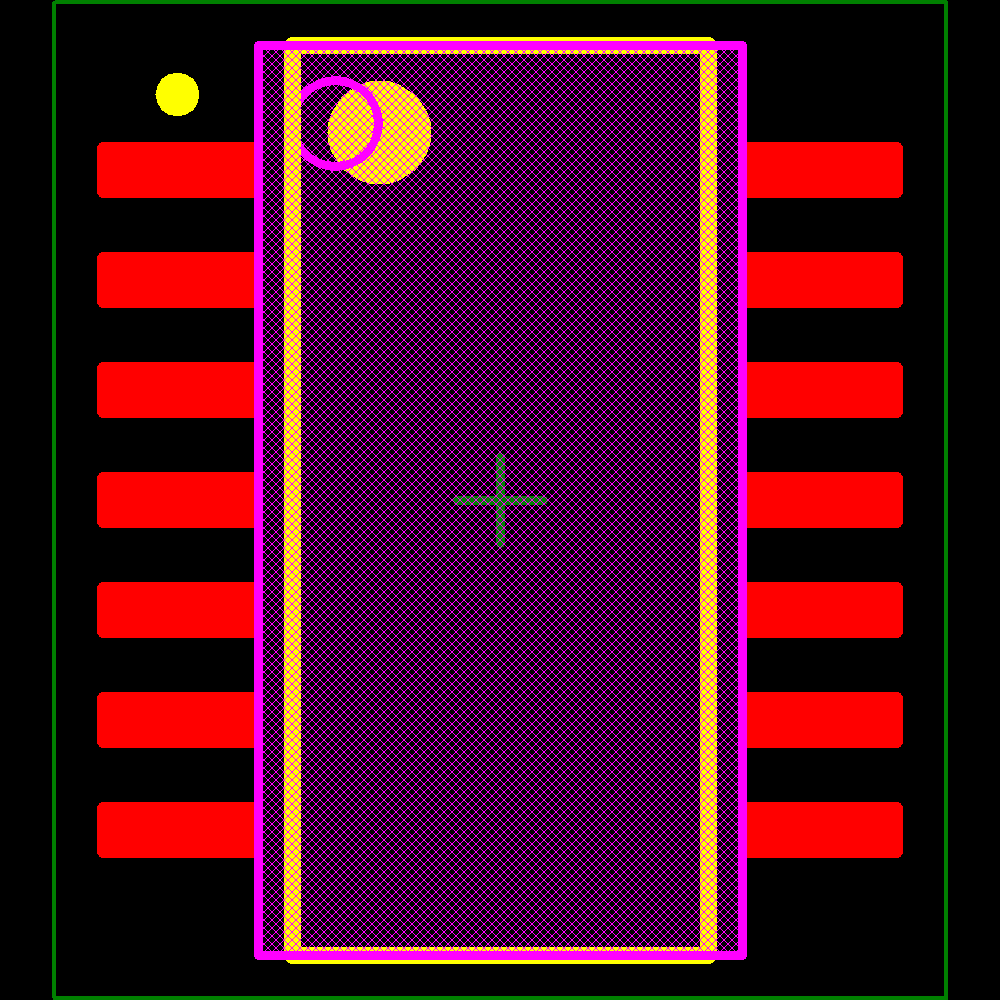

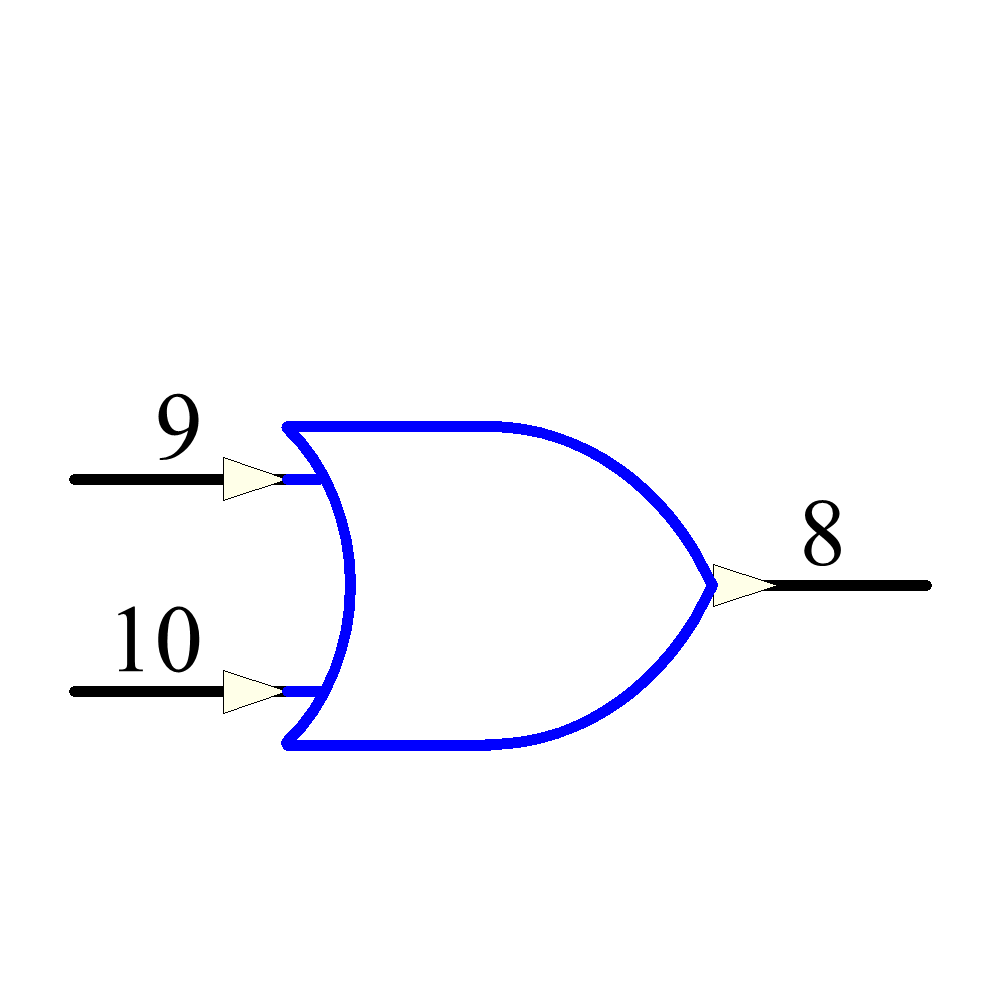

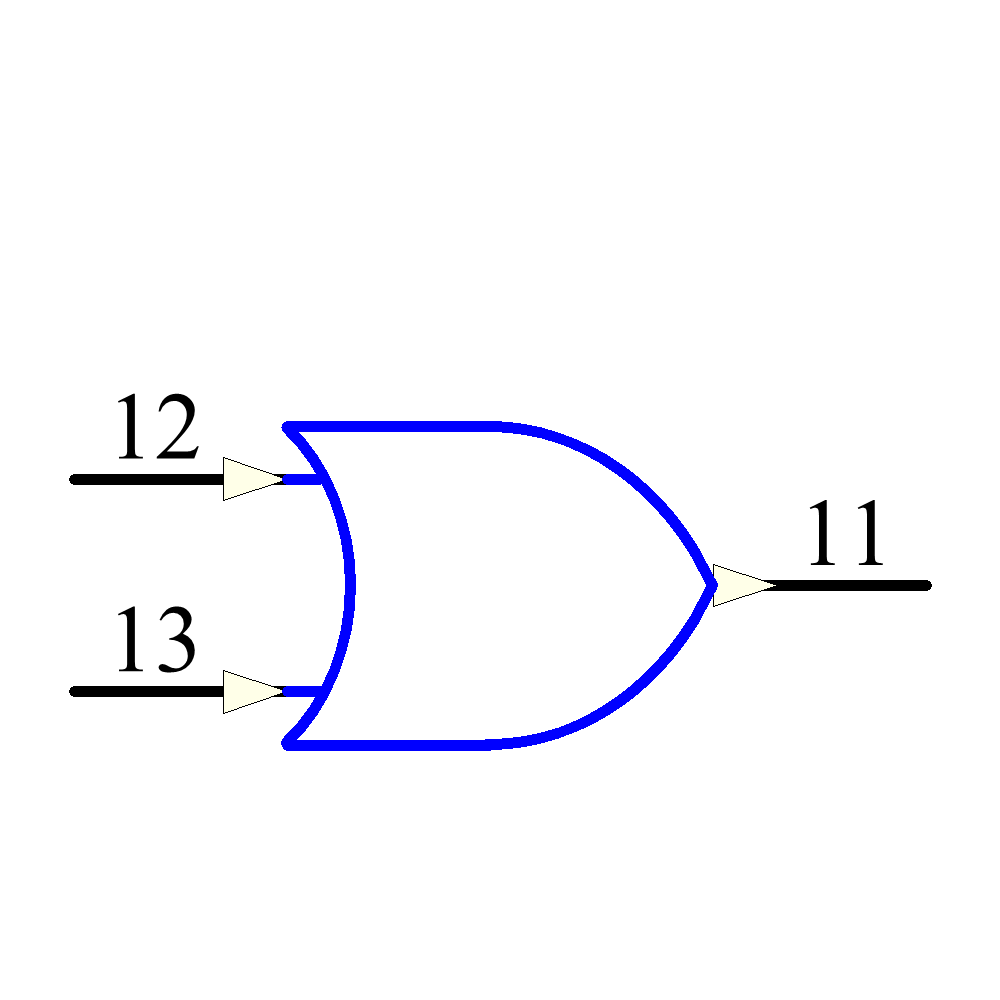

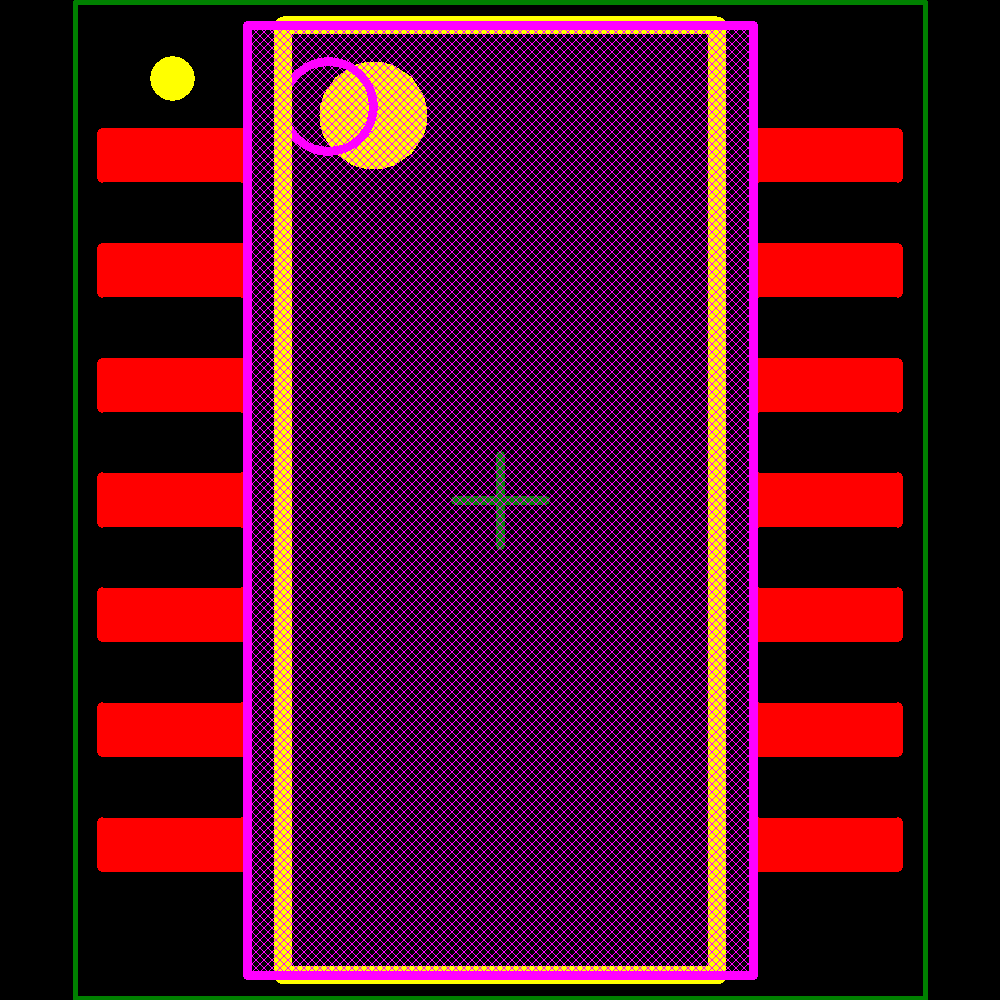

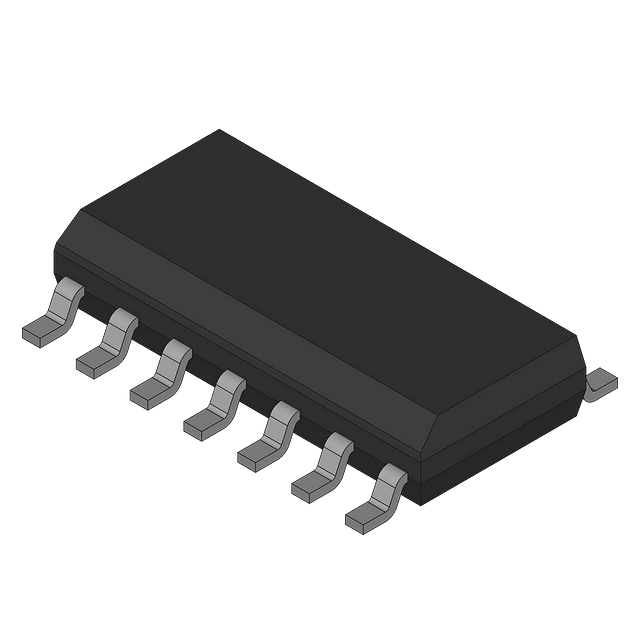

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Toshiba | Obsolete | ||
| Rochester Electronics | Obsolete | ||
| Rochester Electronics | Obsolete | ||
| Toshiba | EOL | ||
| Toshiba | EOL |
