SN74AC74NSR - Texas Instruments
Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset 14-SOP -40 to 85
Technical Details
| Case/Package | SOP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 160MHz |
| Height | 2mm |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 24mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 4 |
| Number of Output Lines | 2 |
| Number of Pins | 14 |
| Output Current | 24mA |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 14ns |
| RoHS | Compliant |
| Thickness | 1.95mm |
| Turn-On Delay Time | 6ns |
| Weight | 208.312296mg |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed

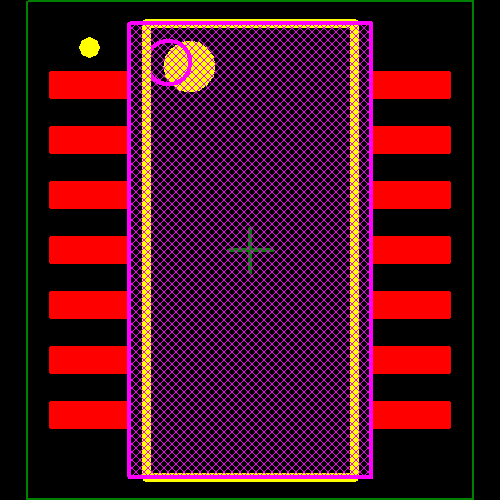

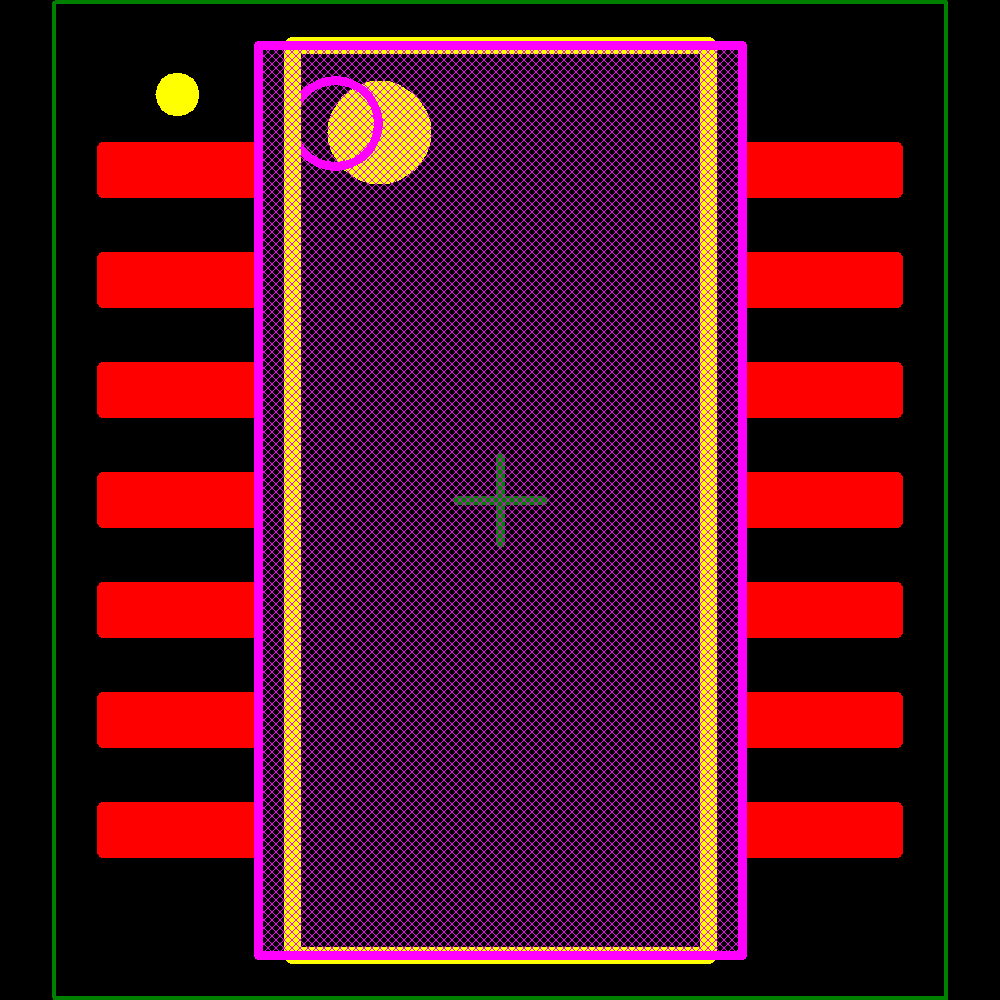

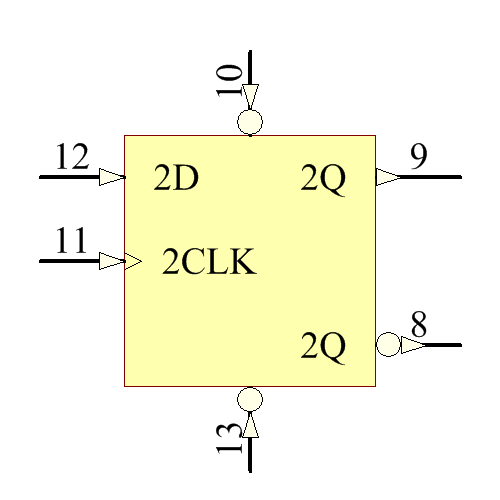

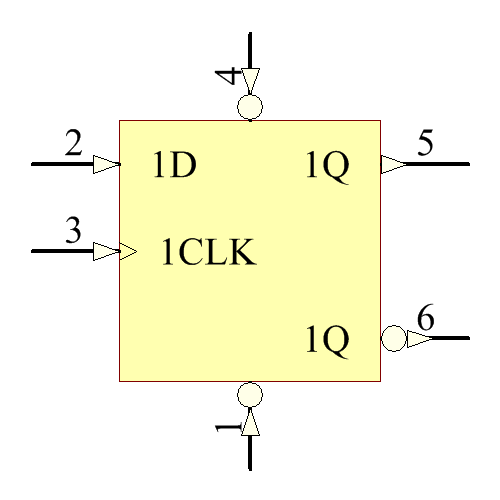

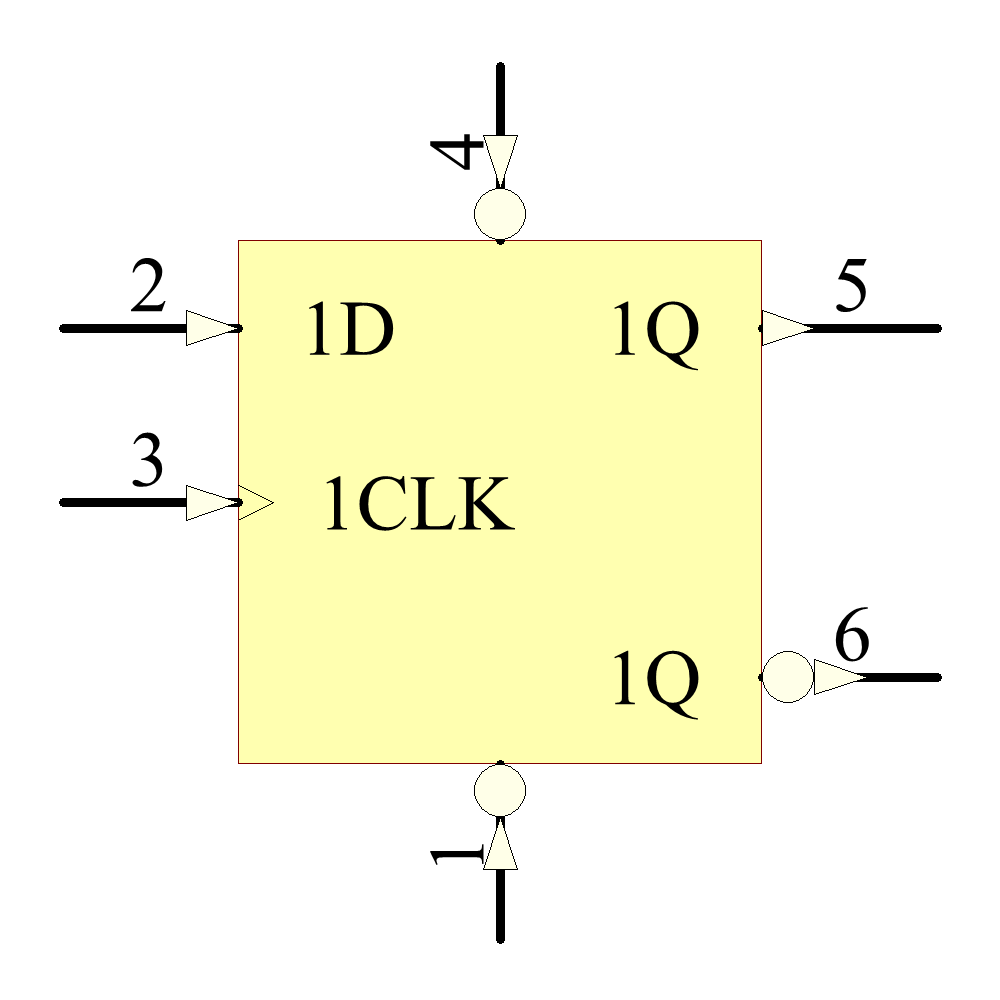

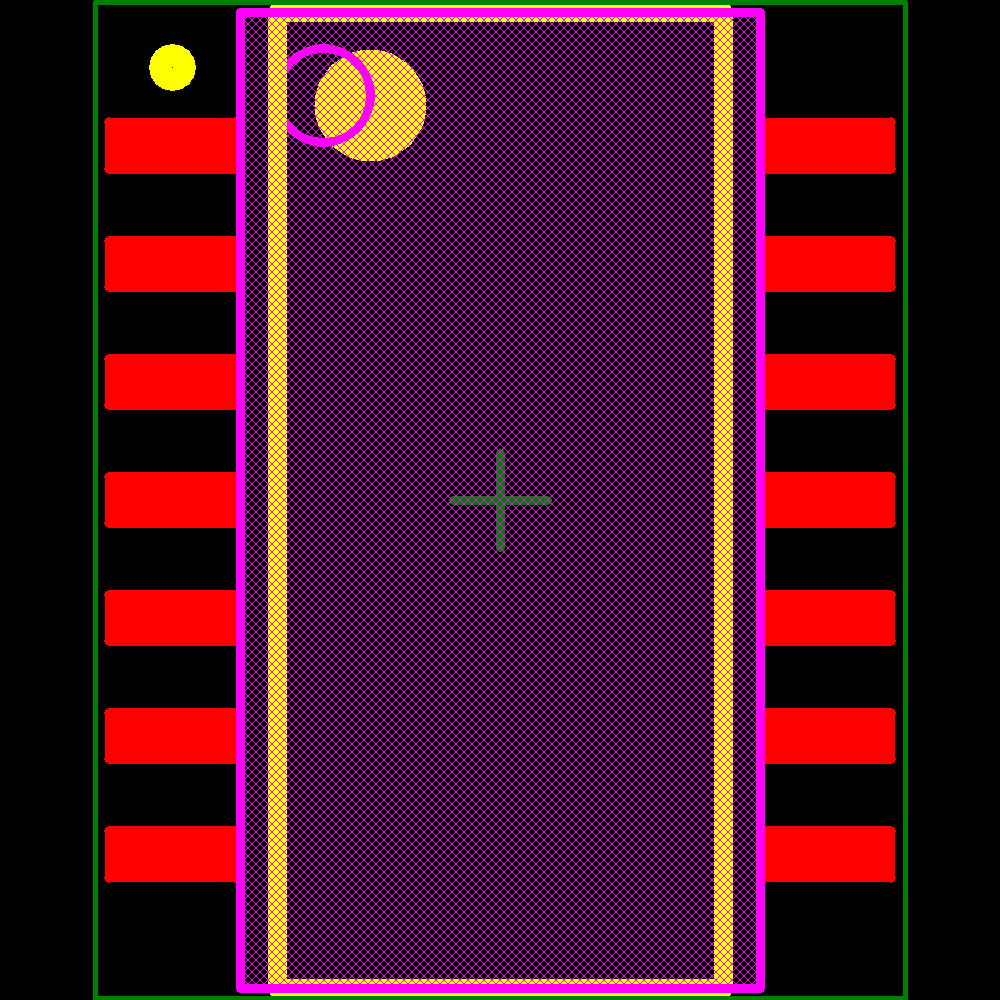

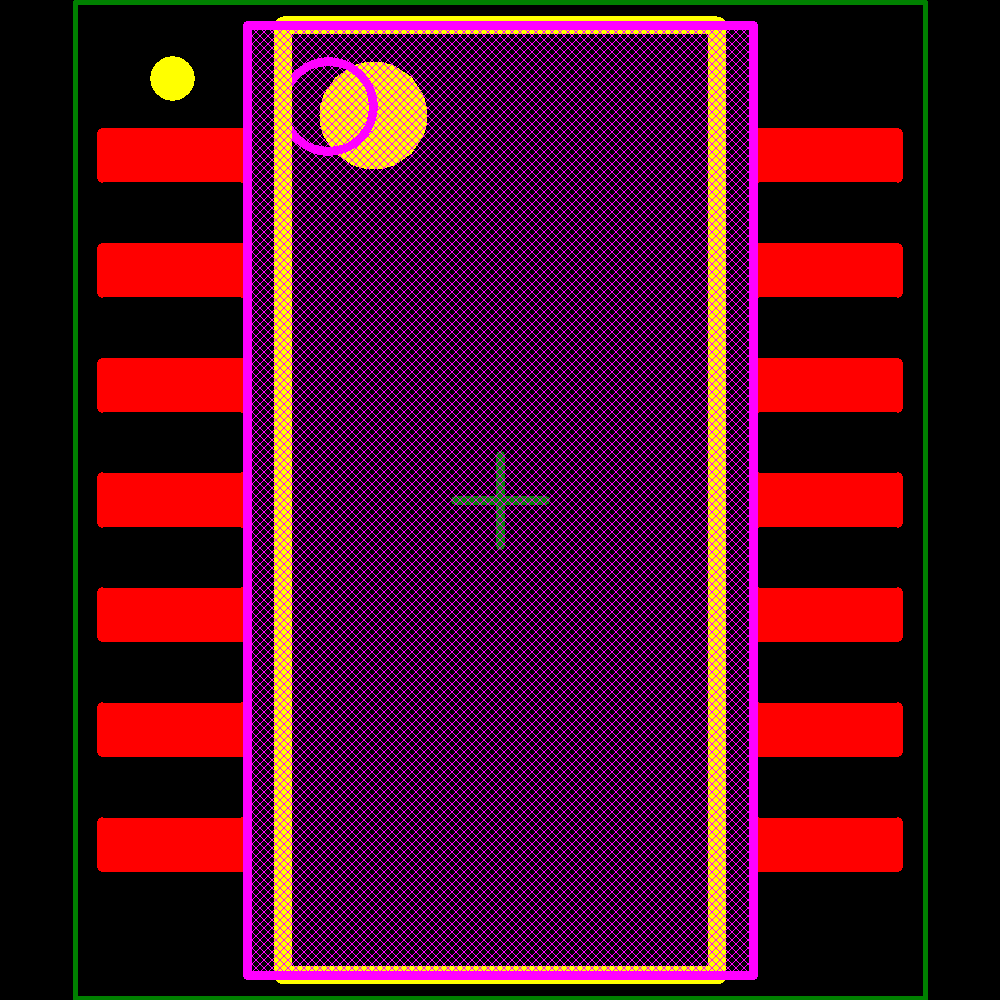

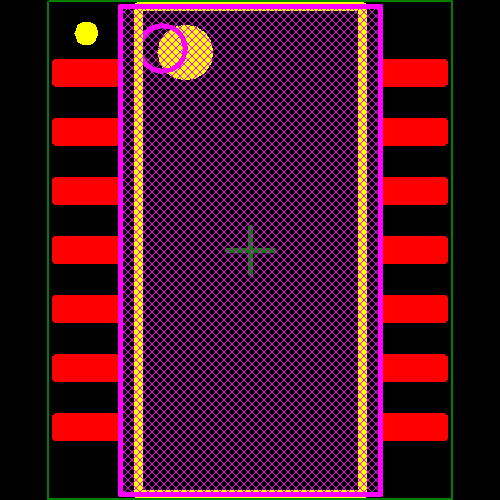

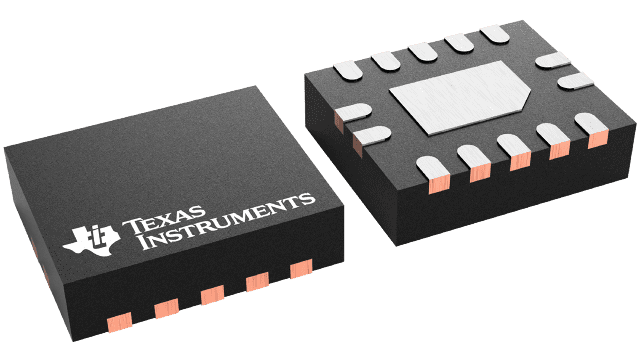

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Toshiba | Obsolete | ||
| Toshiba | Obsolete | ||
| Toshiba | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Toshiba | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Toshiba | Production | ||
| Toshiba | Production |
