SN74ACT7813-15DL - Texas Instruments
ACTIVE (Last Updated: 3days ago) 74ACT7813 Width Tube fifo memory 67MHz 400muA 0.635mm 15ns
Technical Details
| Access Time | 15ns |
| Bus Directional | Unidirectional |
| Case/Package | SSOP |
| Data Bus Width | 18b |
| Density | 1.1kb |
| Direction | Bidirectional |
| Element Configuration | Dual |
| Frequency | 67MHz |
| FWFT Support | No |
| Height | 2.79mm |
| Lead Free | Lead Free |
| Length | 18.41mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 67MHz |
| Max Operating Temperature | 70°C |
| Max Supply Current | 400µA |
| Max Supply Voltage | 5.5V |
| Memory Size | 144B |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 400µA |
| Number of Circuits | 2 |
| Number of Pins | 56 |
| Operating Supply Voltage | 5V |
| Programmable Flags Support | Yes |
| Radiation Hardening | No |
| Retransmit Capability | No |
| RoHS | Compliant |
| Sync/Async | Synchronous |
| Thickness | 2.59mm |
| Weight | 694.790113mg |
| Width | 7.49mm |
| Word Size | 18b |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

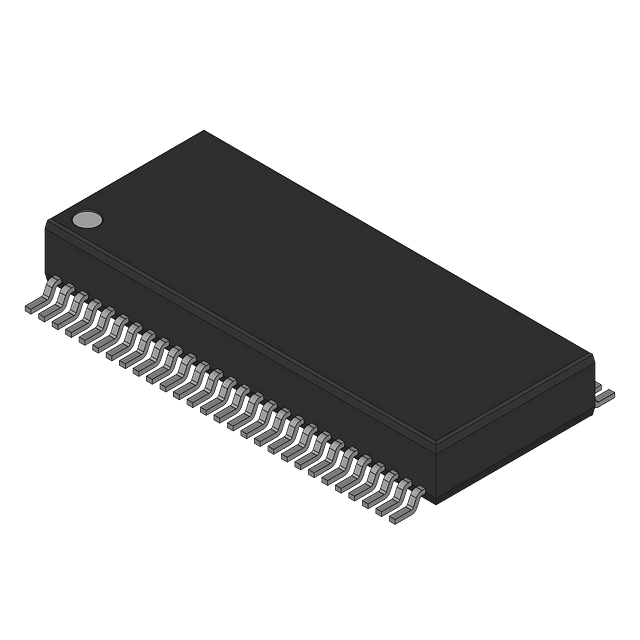

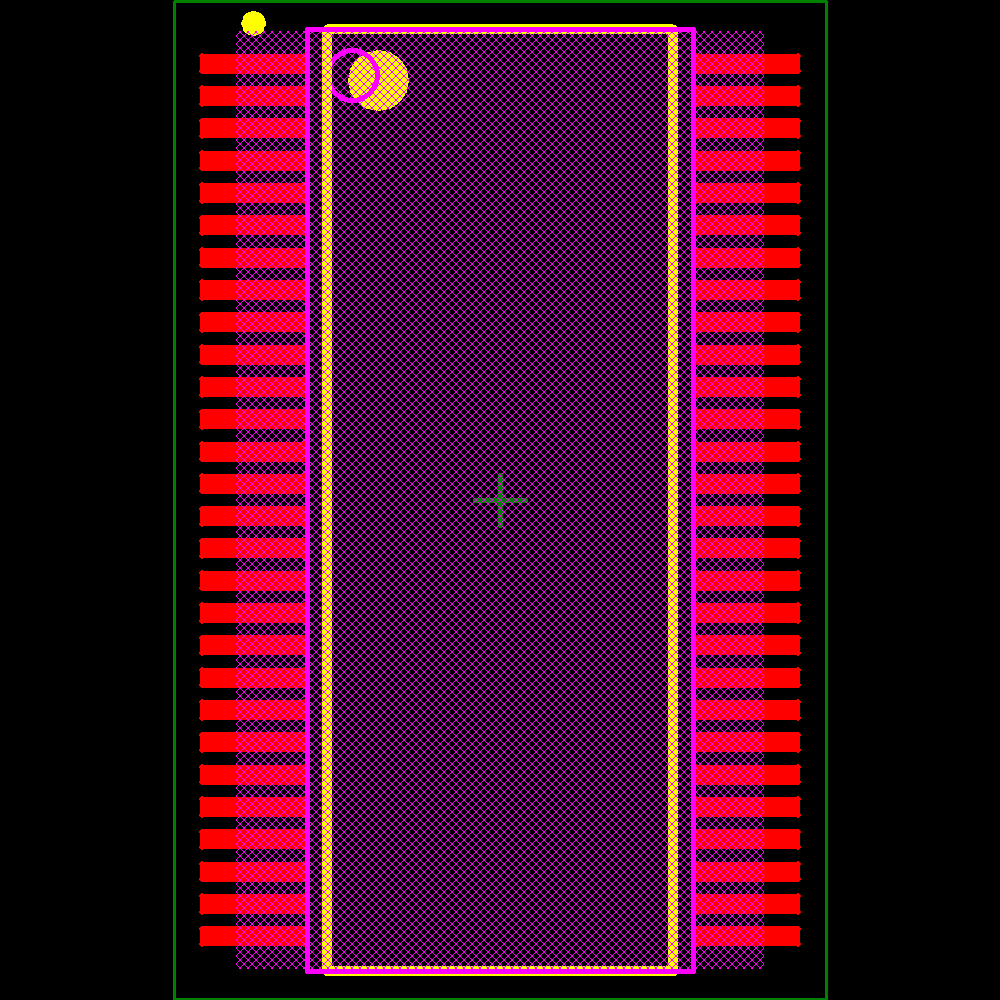

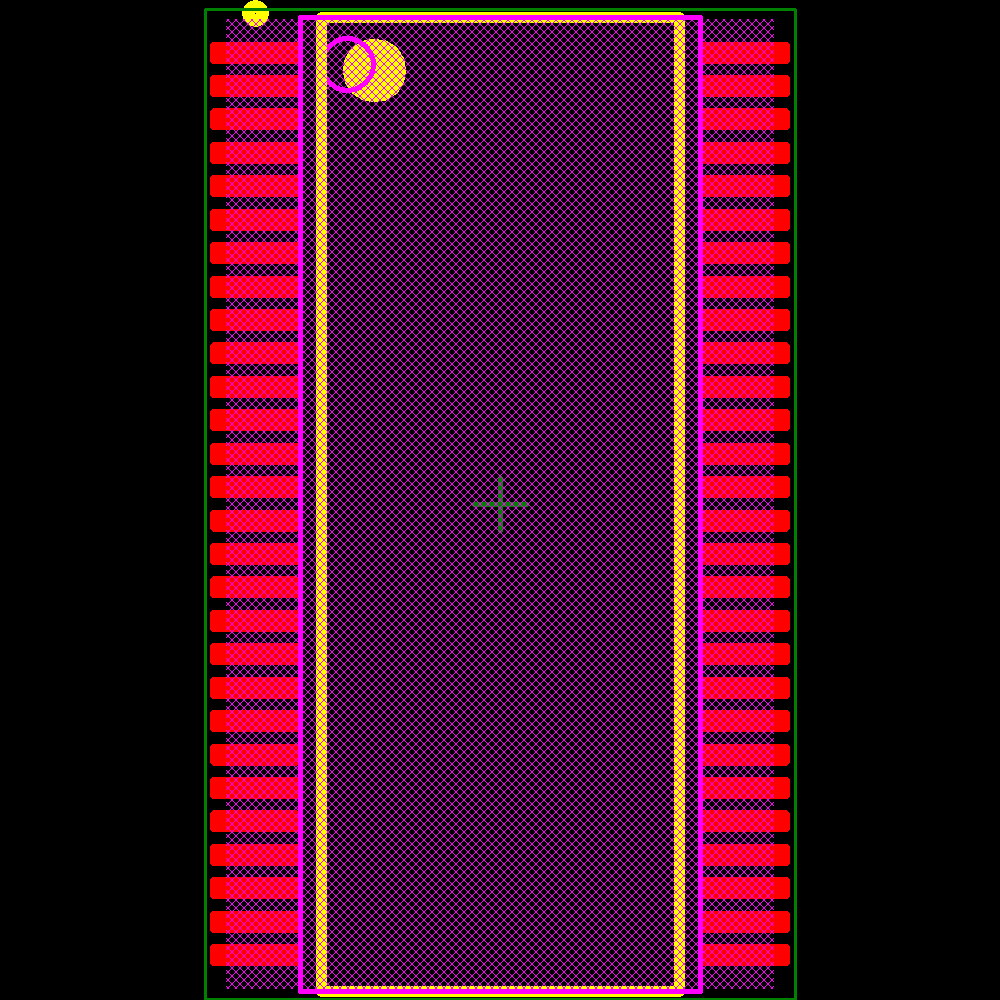

Images
