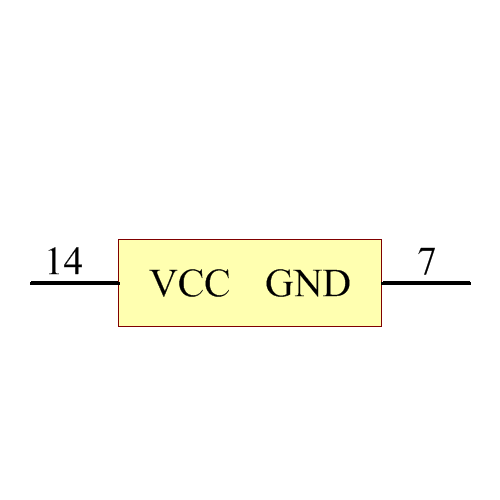

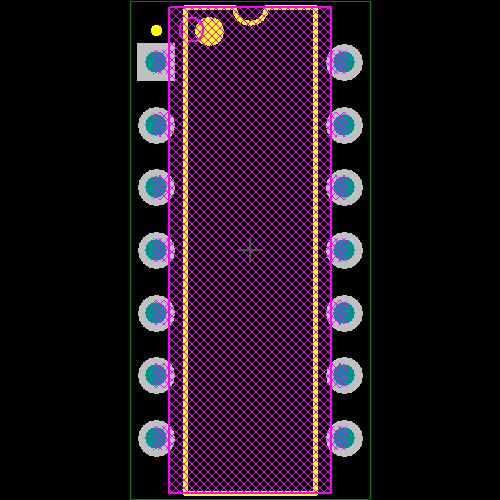

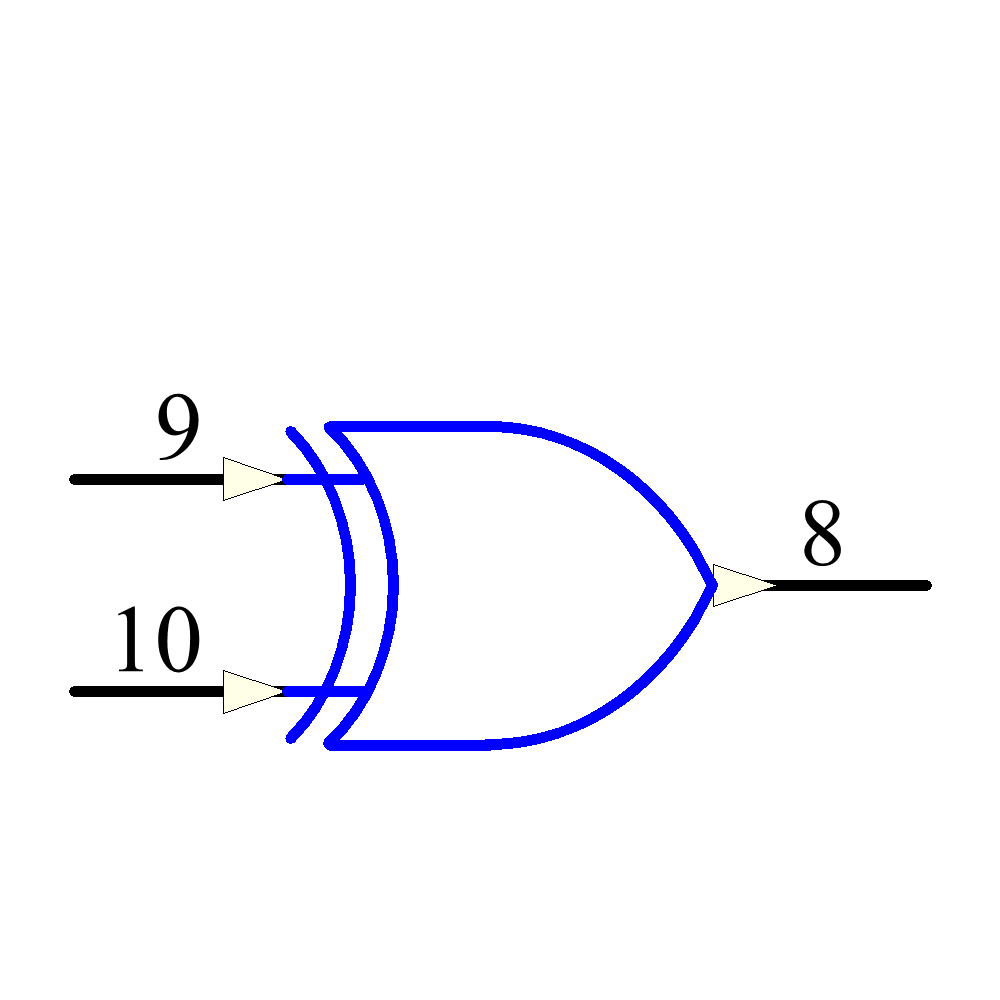

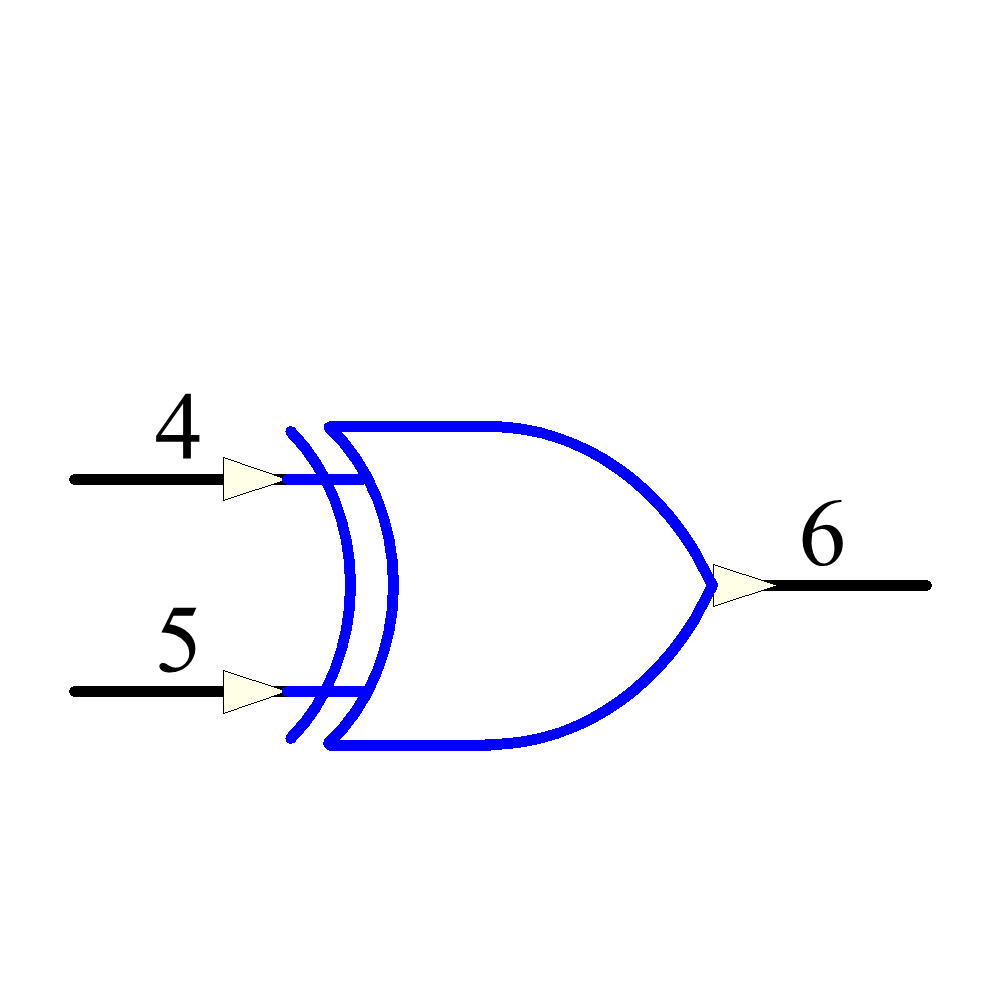

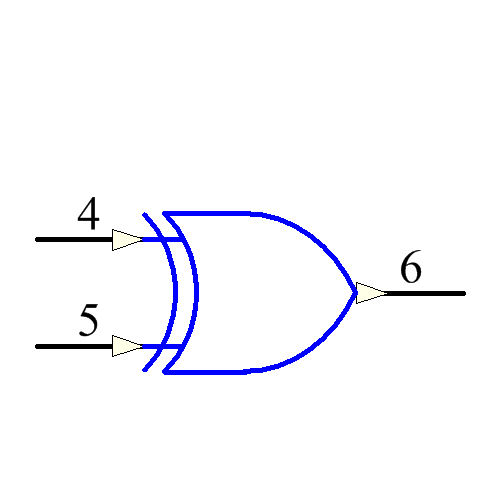

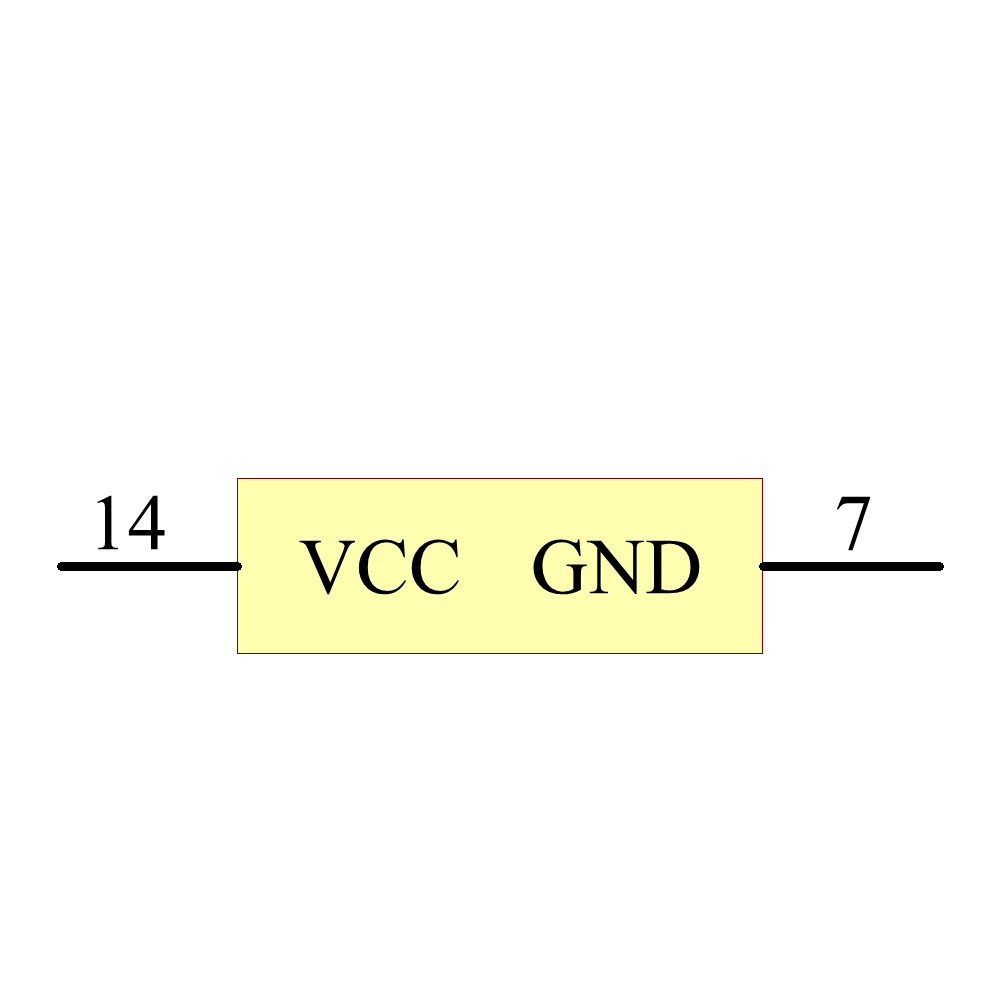

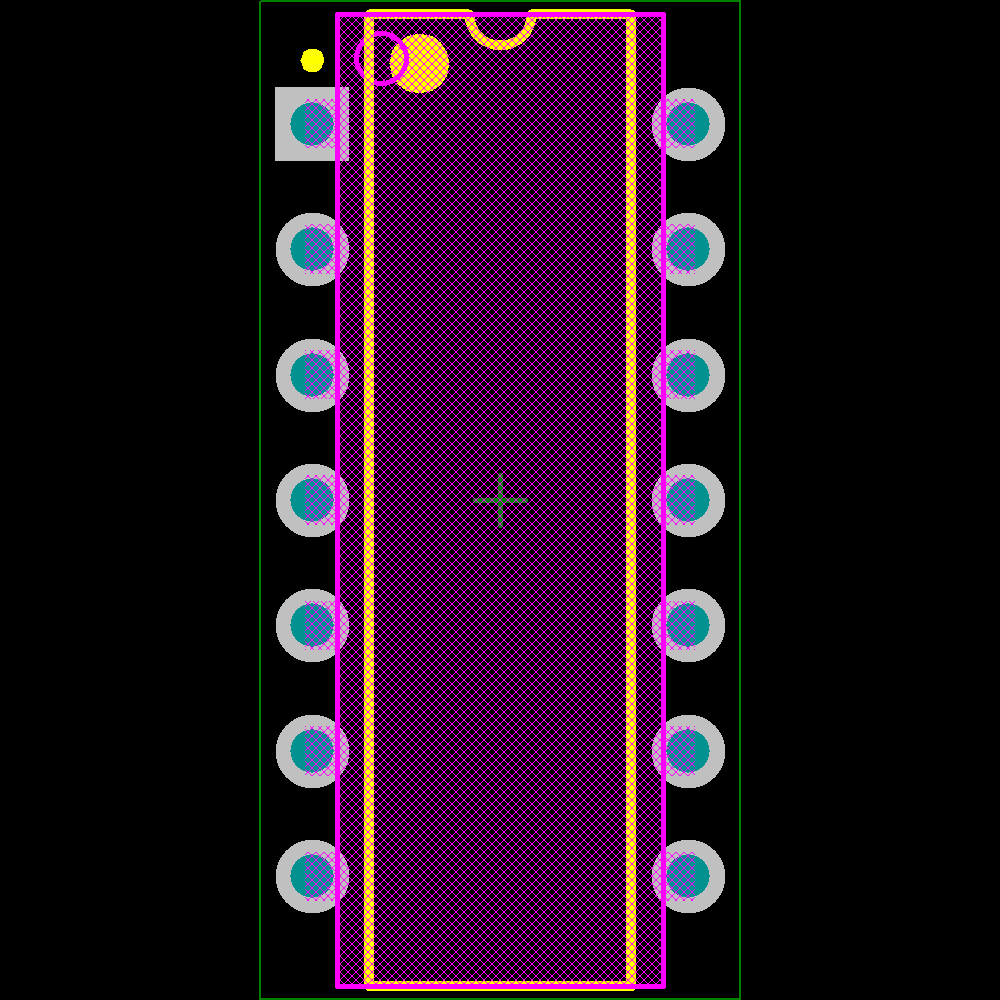

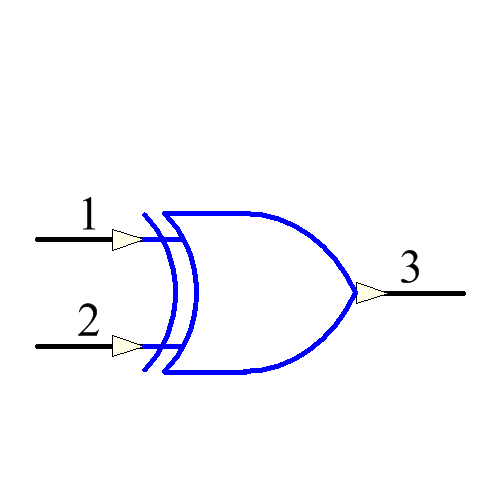

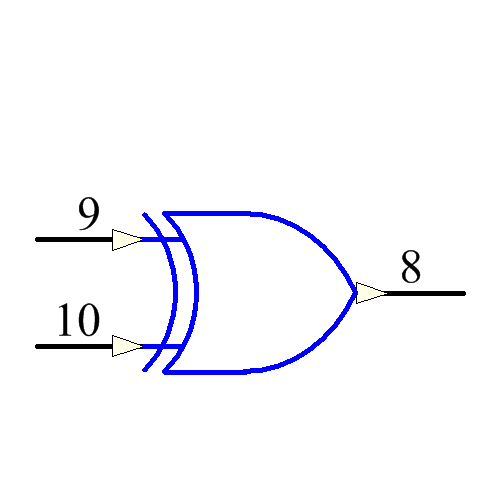

SN74AHCT86N - Texas Instruments
IC Gate Xor 4CH 2-INP 14DIP Xor (exclusive Or) IC 4 Channel 14-PDIP
Technical Details
| Case/Package | PDIP |
| Height | 5.08mm |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | XOR |
| Low Level Output Current | 8mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Output Current | 8mA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Current | 8mA |
| Propagation Delay | 10ns |
| Quiescent Current | 2µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schmitt Trigger Input | No |
| Termination | Through Hole |
| Thickness | 3.9mm |
| Turn-On Delay Time | 10ns |
| Weight | 927.99329mg |
| Width | 6.35mm |
