Technical Details
| Case/Package | SOIC |
| High Level Output Current | 20mA |
| Logic Function | OR, XOR |
| Low Level Output Current | 2mA |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Pins | 14 |
| Packaging | Tape & Reel (TR) |
| Propagation Delay | 7.5ns |
| RoHS | Compliant |
| Turn-On Delay Time | 7.5ns |
Compliance
RoHS : Unconfirmed

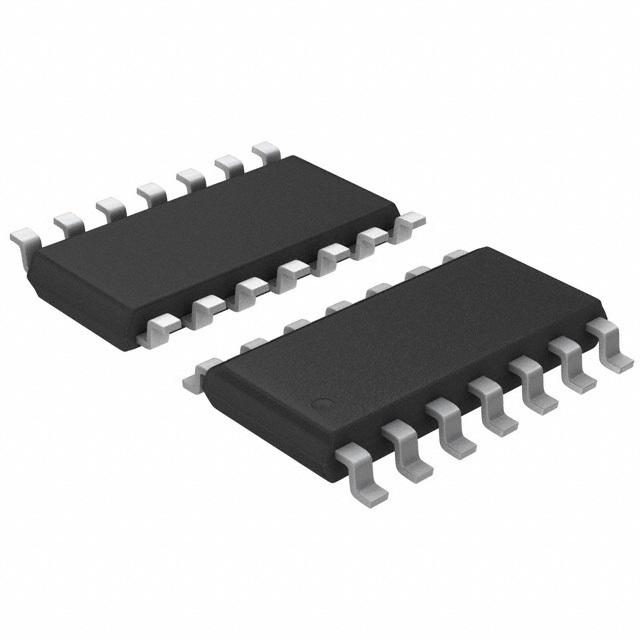

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| STMicroelectronics | Obsolete |
