SN74AUP1G06DBVT - Texas Instruments
Single 0.8-V to 3.6-V low power inverter with open-drain outputs 5-SOT-23 -40 to 85
Technical Details

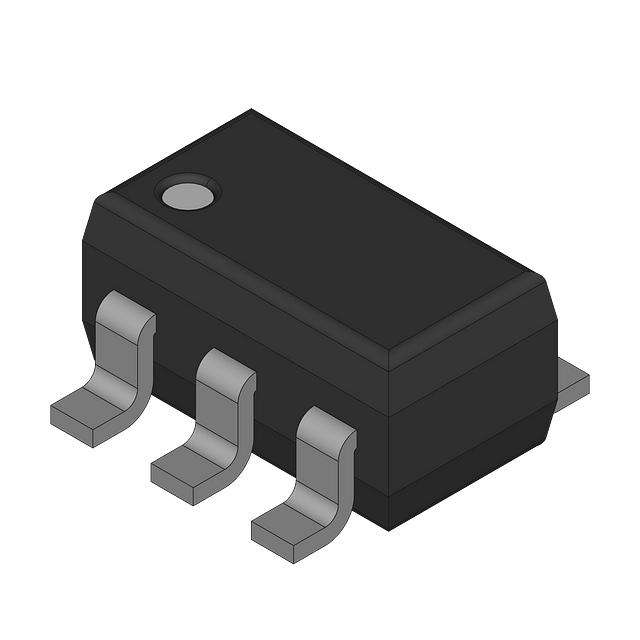

| Case/Package | SOT-23 |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |

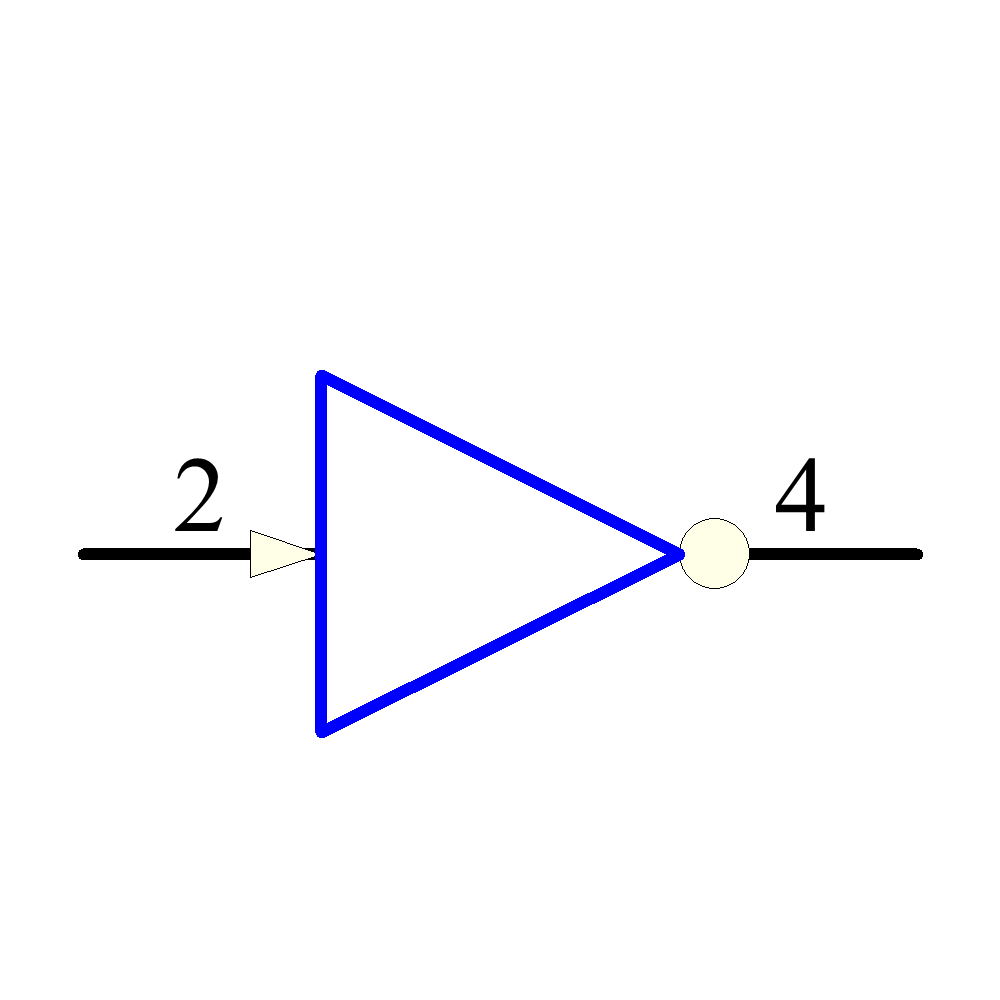

| Logic Function | Inverter |
| Low Level Output Current | 4mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Output Current | 4mA |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 4mA |
| Polarity | Inverting |
| Propagation Delay | 10.5ns |
| Quiescent Current | 500nA |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Thickness | 1.2mm |
| Turn-On Delay Time | 16ns |
| Width | 1.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No
