SN74F1056DR - Texas Instruments
IC ARRAY BUS-TERM 8BIT 16-SOIC Schottky Barrier Diode Bus-Termination Array IC 16-SOIC
Technical Details
| Case/Package | SOIC |
| Forward Current | 170mA |
| Forward Voltage | 1.2V |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Repetitive Reverse Voltage (Vrrm) | 7V |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Pins | 16 |
| Peak Reverse Current | 2µA |
| Radiation Hardening | No |
| Reverse Recovery Time | 7ns |
| RoHS | Compliant |
| Thickness | 1.58mm |
| Weight | 141.690917mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

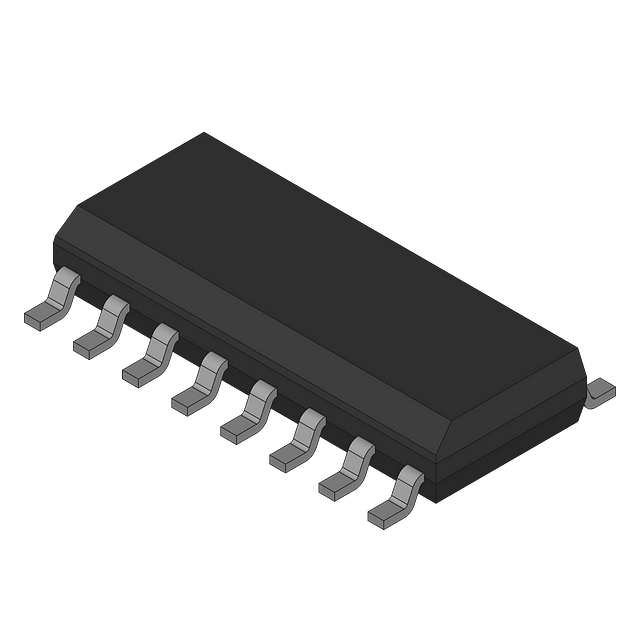

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Obsolete | ||
| onsemi | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| Protek Devices | Production |
