SN74F74DE4 - Texas Instruments
Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear And Preset 14-SOIC 0 to 70
Technical Details
| Case/Package | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| High Level Output Current | -1mA |
| Lead Free | Contains Lead |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 3 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Current | 20mA |
| Output Type | TTL |
| Polarity | Non-Inverting |
| Propagation Delay | 10.5ns |
| Radiation Hardening | No |
| RoHS | Compliant |
| Turn-On Delay Time | 3ns |
| Weight | 129.387224mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

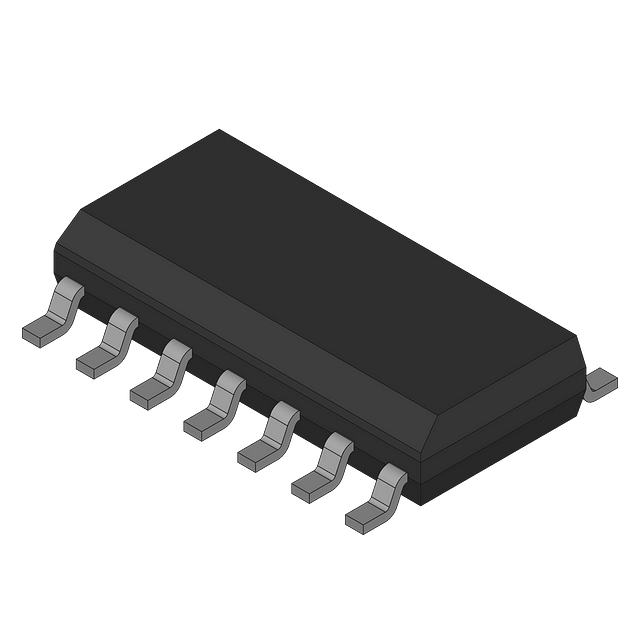

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| NXP Semiconductors | Obsolete | ||
| Fairchild Semiconductor | Obsolete | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| NXP Semiconductors | Obsolete | ||
| Texas Instruments | Unknown |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 150
|
$ | 0.7844 | 0.6511 | 0.5805 | |||||
Non-Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| VNN Services |
EU: 3102
|
$ | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | 0.23 | ||
| Digi-ic_SMART PIONEER |
HK: 5586
|
$ | ||||||||
| Fly-Wing Technology |
HK: 1915
|
$ | ||||||||
