SN74HC74QDRQ1 - Texas Instruments
Tape & Reel (TR) 74HC74 e4 Automotive AEC-Q100 74HC flip flop 8.65mm 2V 30ns @ 6V 50pF 60MHz
Technical Details
| Case/Package | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 60MHz |
| Height | 0m |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 5.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 4 |
| Number of Output Lines | 2 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Packaging | Digi-Reel® |
| Polarity | Non-Inverting |
| Propagation Delay | 175ns |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Thickness | 1.58mm |
| Turn-On Delay Time | 15ns |
| Weight | 122.413241mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed

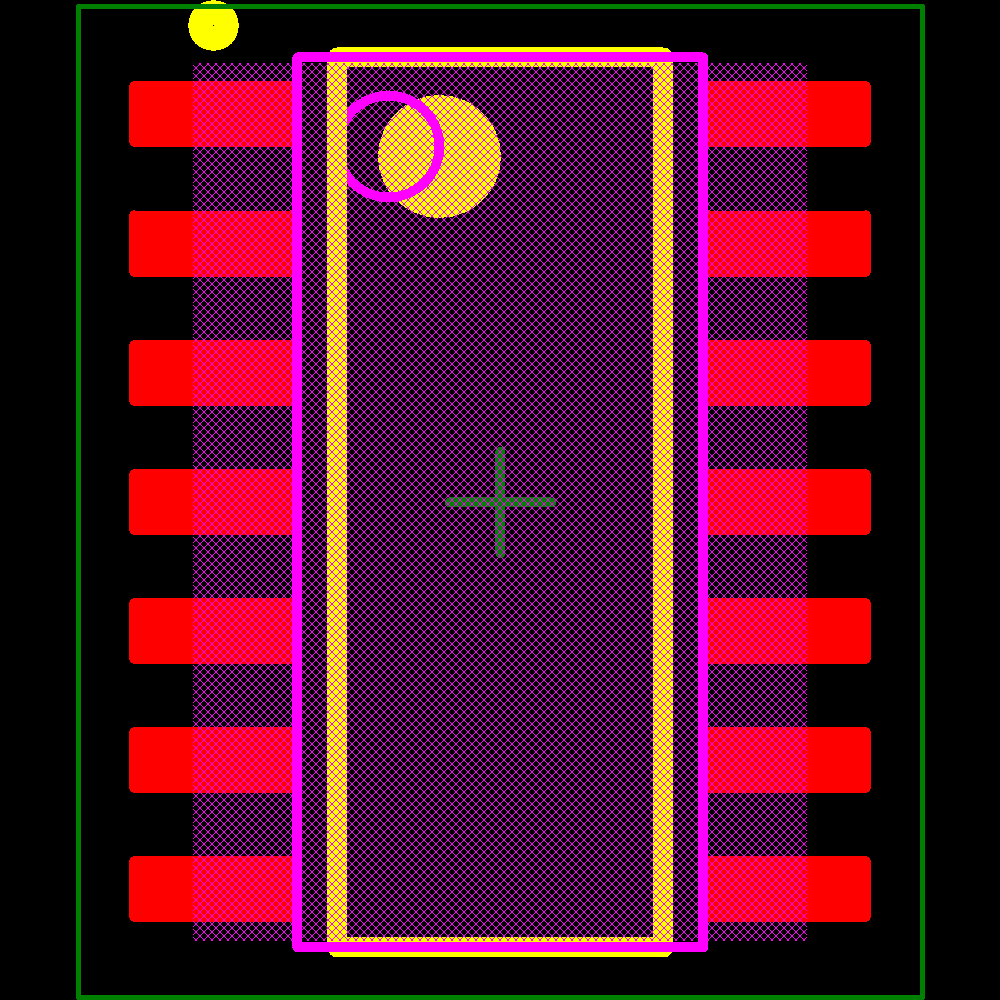

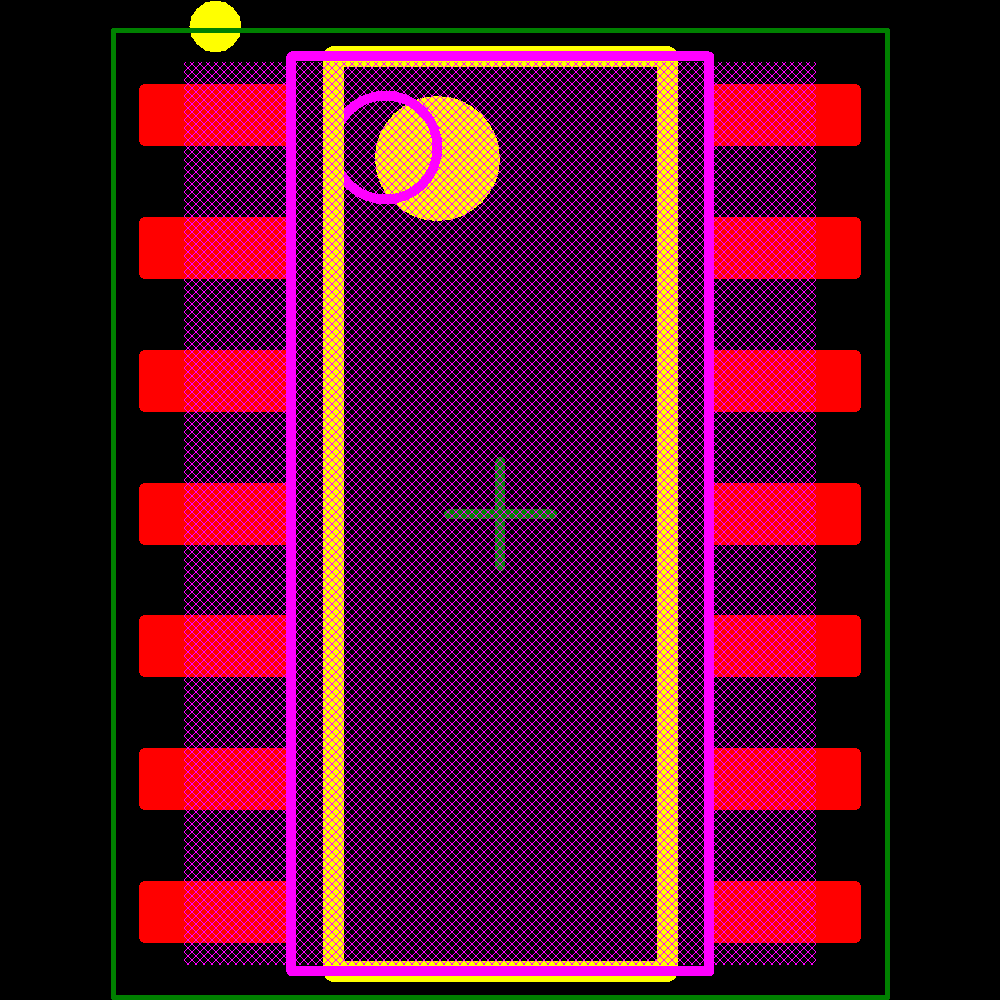

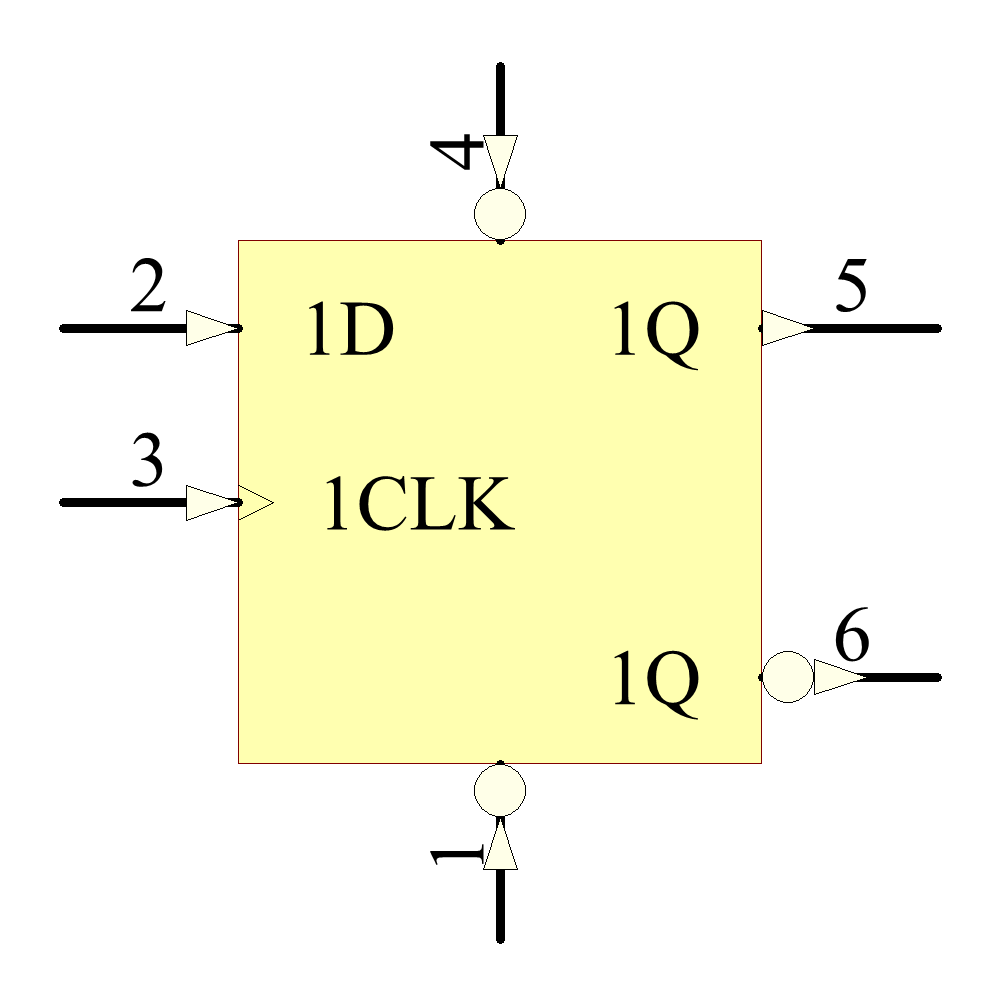

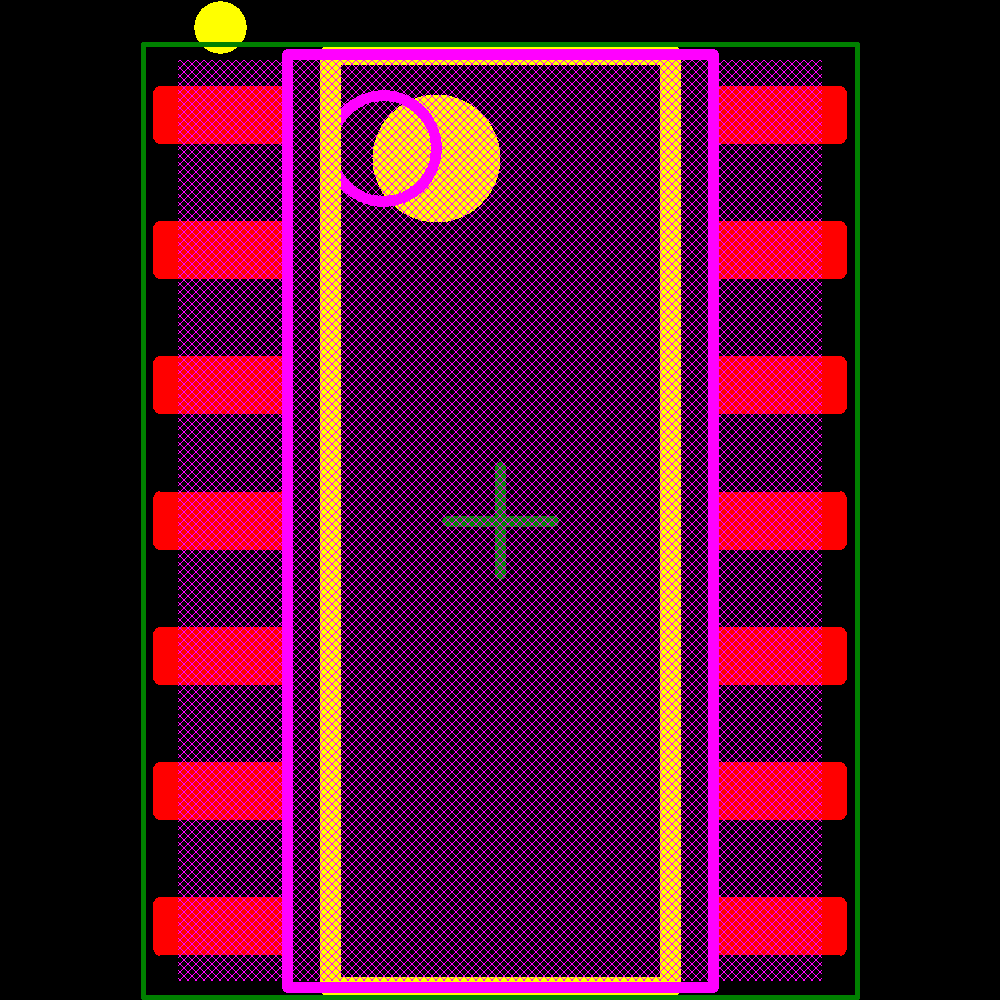

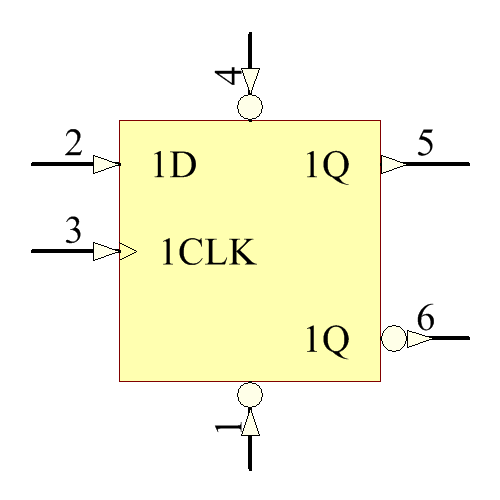

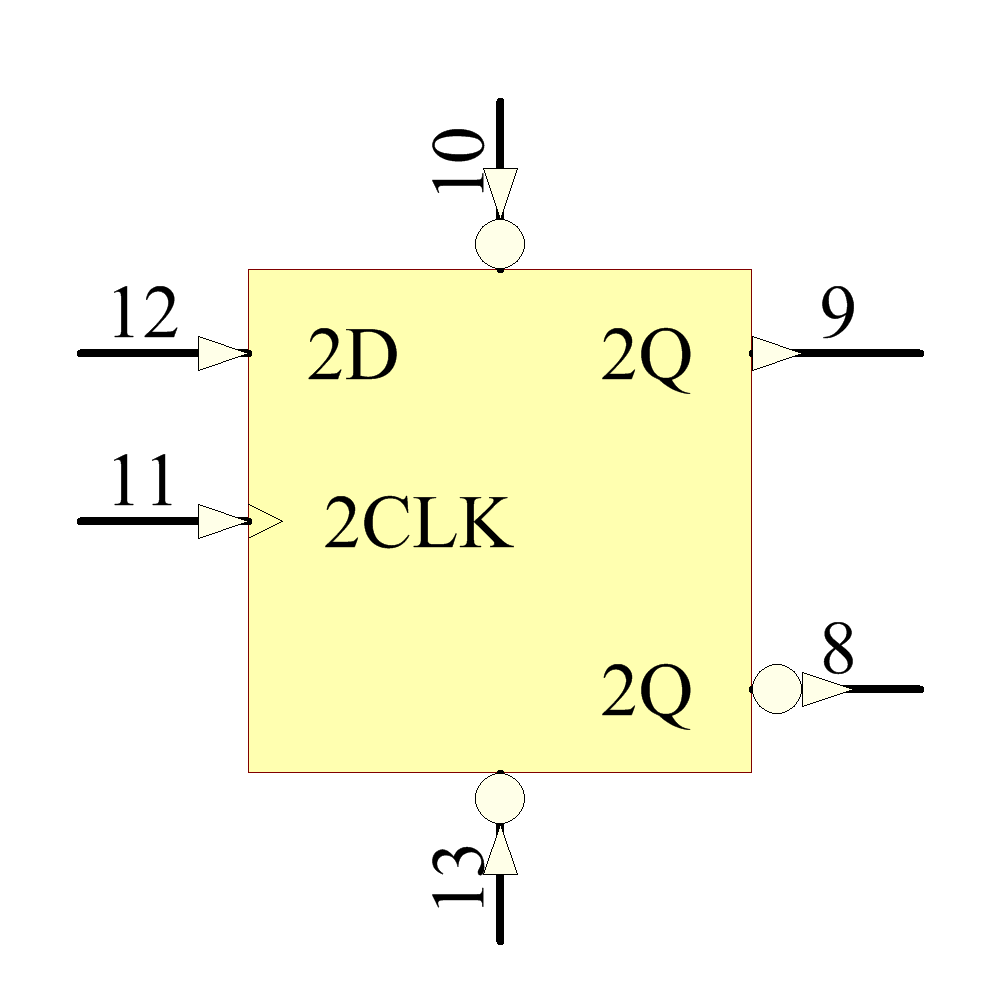

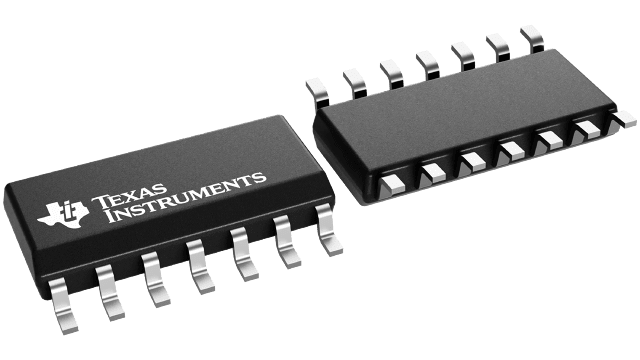

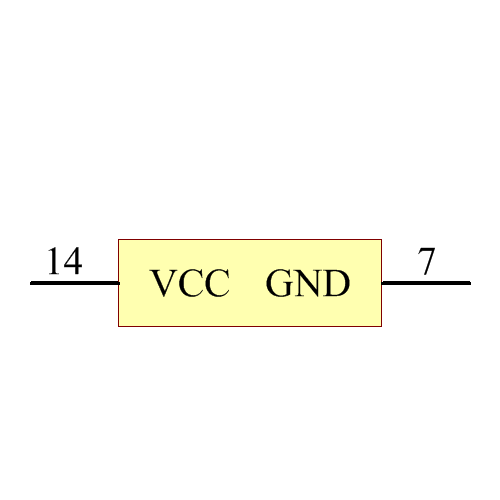

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| onsemi | Obsolete |
