SN74LS06DBR - Texas Instruments
Buffer Inverter 74LS06 EAR99 74LS logic gate circuit 20ns @ 5V 15pF 2mm - 40mA 2V
Technical Details
| Case/Package | SSOP |
| Contact Plating | Gold |
| Height | 2mm |
| High Level Output Current | -250µA |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Lifecycle Status | Production |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 40mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Channels | 6 |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Input Lines | 6 |
| Number of Inputs | 6 |
| Number of Output Lines | 6 |
| Number of Outputs | 6 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Packaging | Digi-Reel® |
| Polarity | Inverting |
| Propagation Delay | 20ns |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Thickness | 1.95mm |
| Turn-On Delay Time | 20ns |
| Width | 5.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

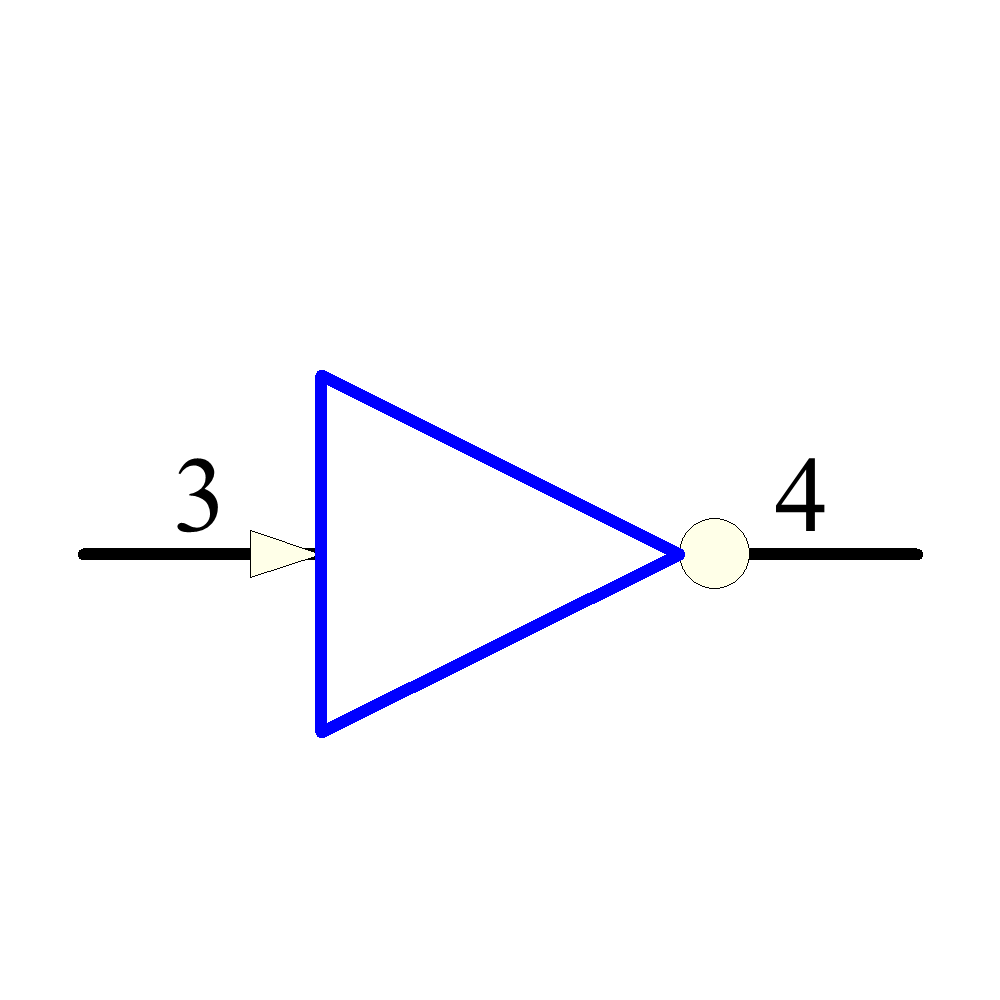

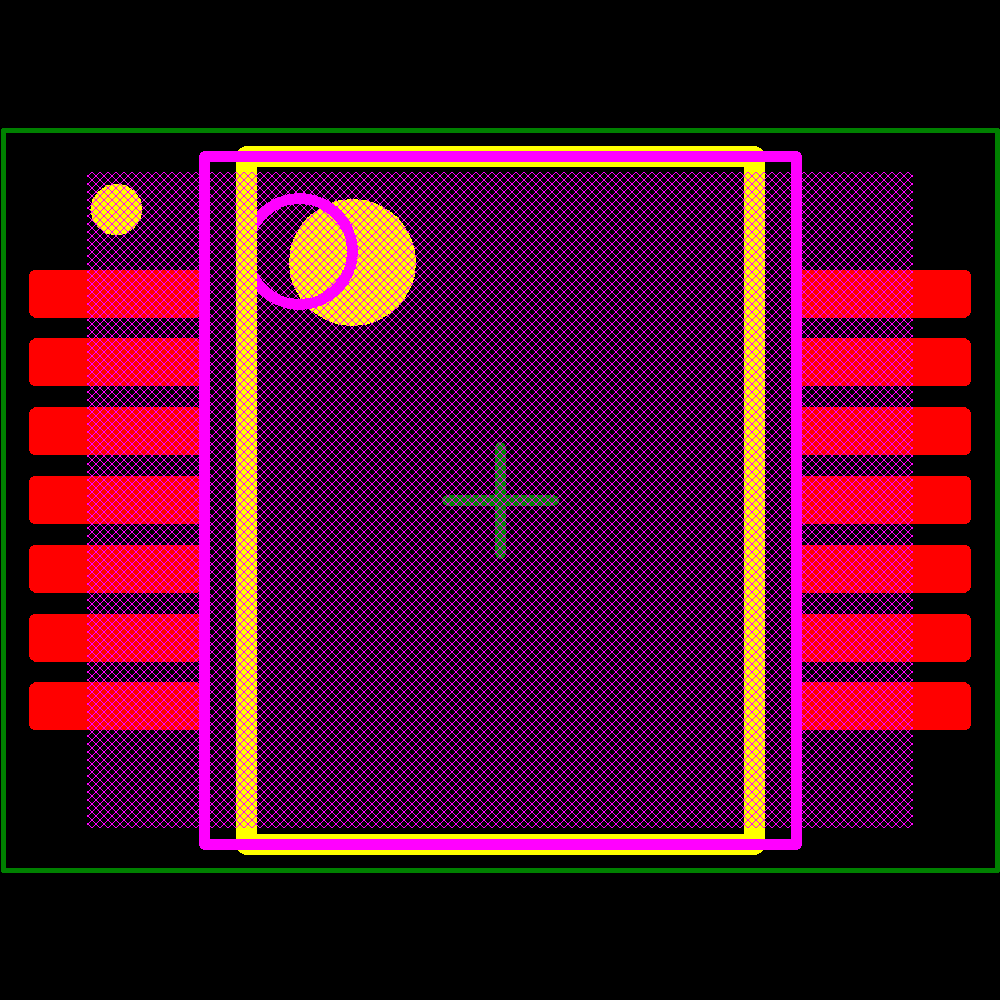

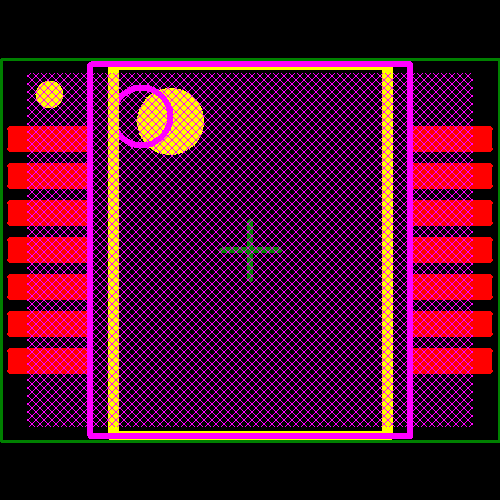

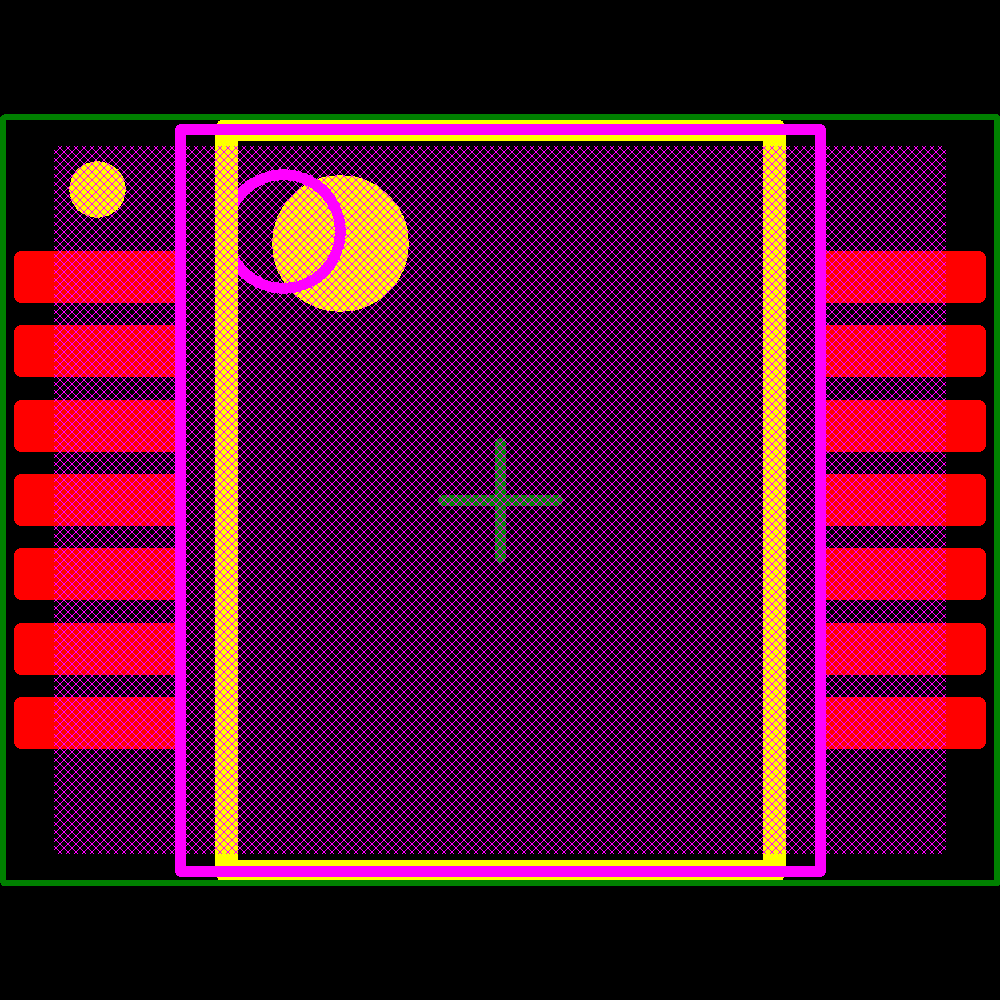

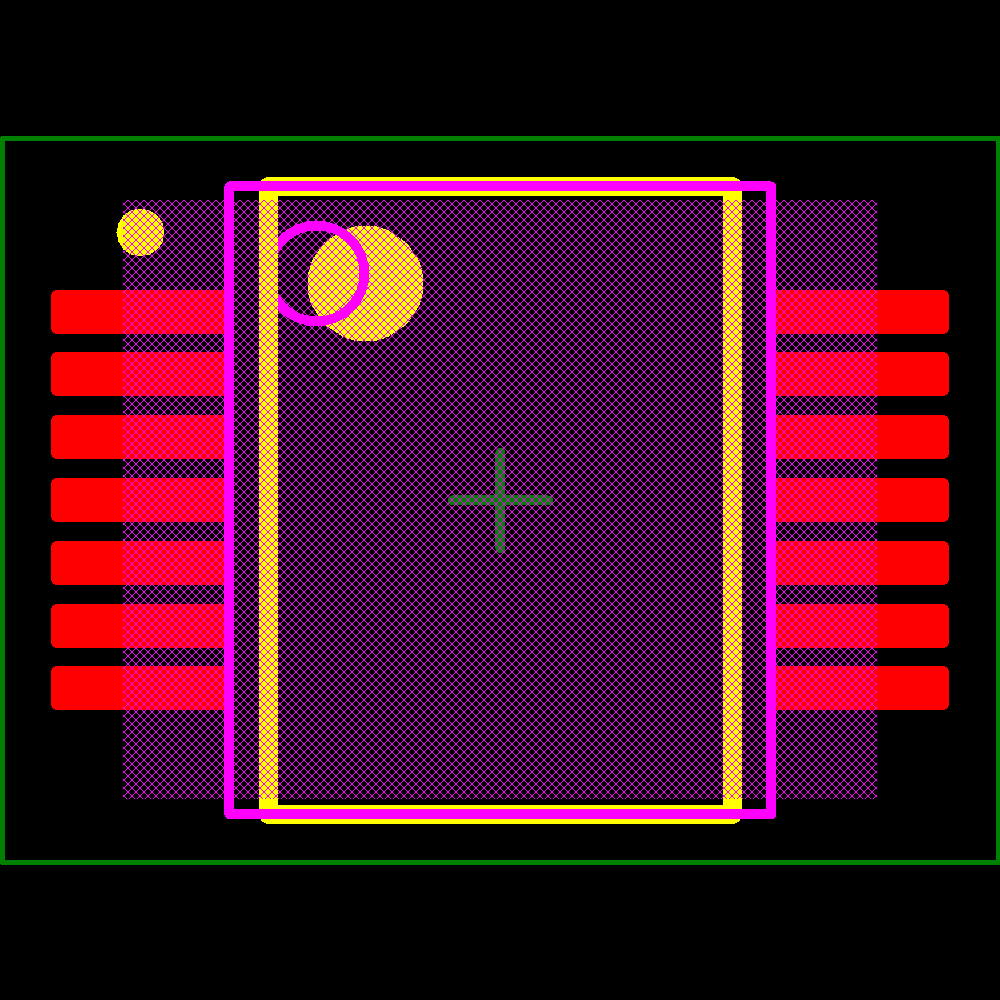

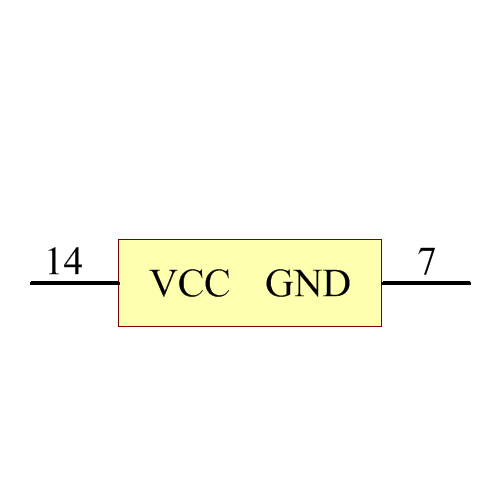

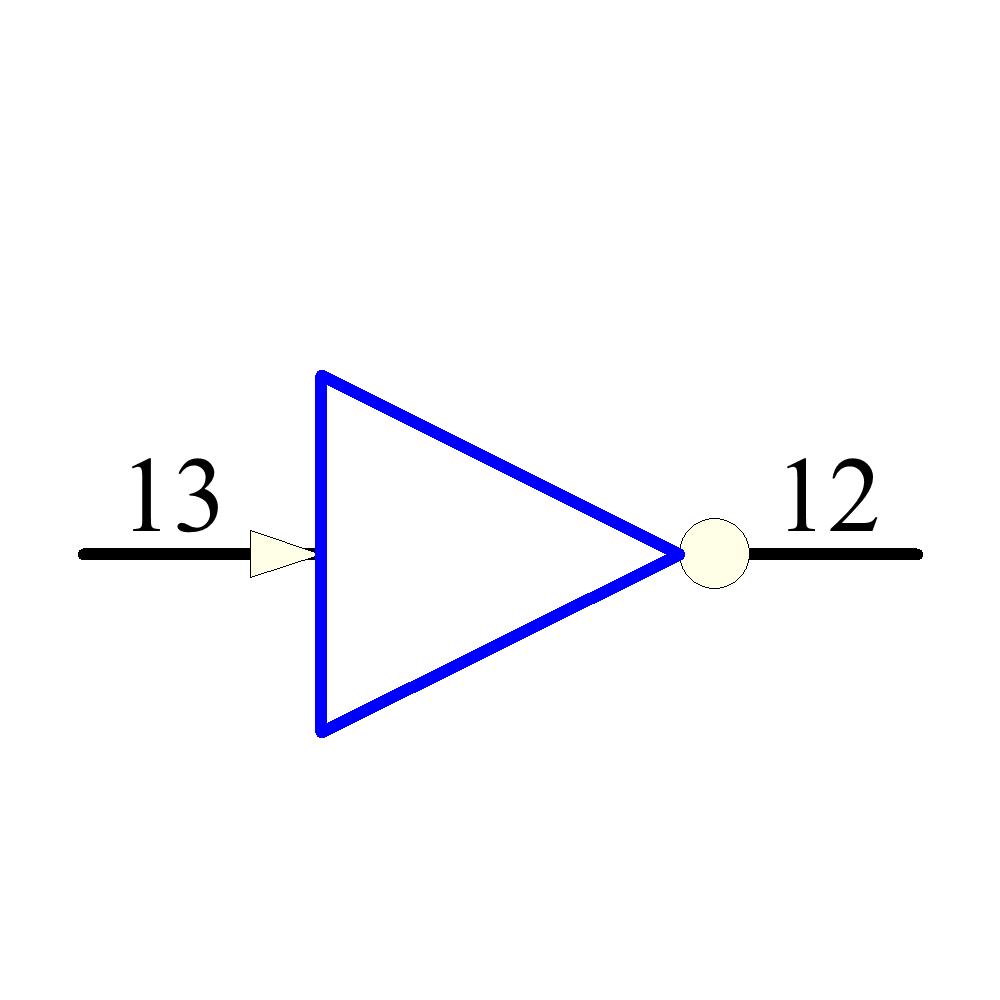

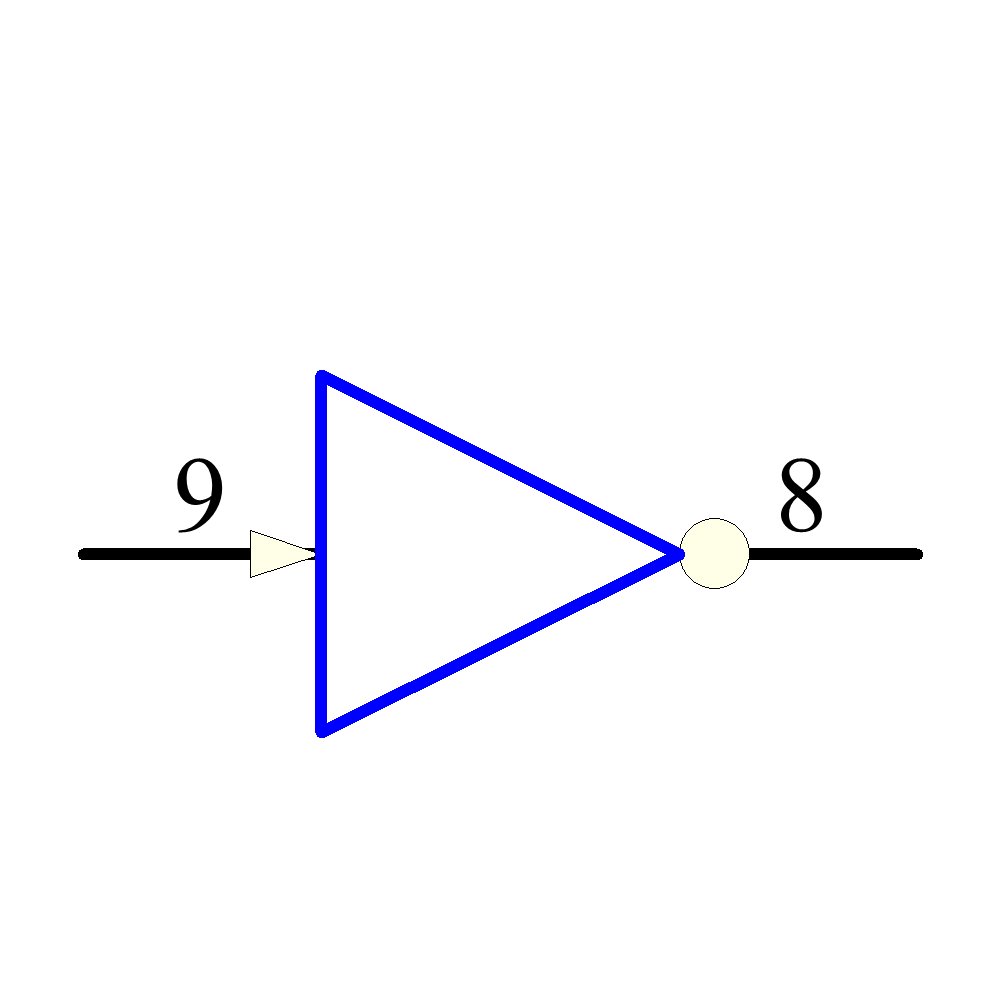

Images
