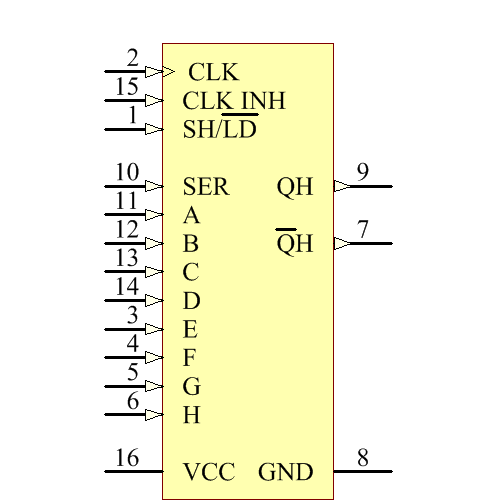

SN74LS165AN - Texas Instruments
IC PAR-LD 8BIT SHIFT REG 16-DIP Shift Shift Register 1 Element 8 Bit 16-PDIP
Technical Details
| Case/Package | PDIP |
| Contact Plating | Gold |
| Direction | Unidirectional |
| Frequency | 35MHz |
| Height | 5.08mm |
| Input Current | 100µA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | Shift Register |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 42mA |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 3 |
| Number of Elements | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 16 |
| Operating Supply Voltage | 5V |
| Propagation Delay | 25ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 3.9mm |
| Turn-On Delay Time | 35ns |
| Weight | 951.693491mg |
| Width | 6.35mm |
