SN74LS166AN - Texas Instruments

IC SERIAL-OUT SHIFTER 16-DIP Shift Shift Register 1 Element 8 Bit 16-PDIP

Technical Details

Case/Package	PDIP
Direction	Unidirectional
Frequency	35MHz
Height	5.08mm
Input Current	100µA
Lead Free	Lead Free
Length	19.3mm
Lifecycle Status	Production
Logic Function	Shift Register
Manufacturer Lifecycle Status	ACTIVE
Max Operating Temperature	70°C
Max Supply Voltage	5.25V
Min Operating Temperature	0°C
Min Supply Voltage	4.75V
Mount	Through Hole
Number of Bits	8
Number of Bits per Element	8
Number of Elements	1
Number of Output Lines	2
Number of Pins	16
Operating Supply Voltage	5V
Propagation Delay	30ns
Radiation Hardening	No
REACH SVHC	No
RoHS	Compliant
Thickness	3.9mm
Turn-On Delay Time	30ns
Weight	951.693491mg
Width	6.35mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : No

Images

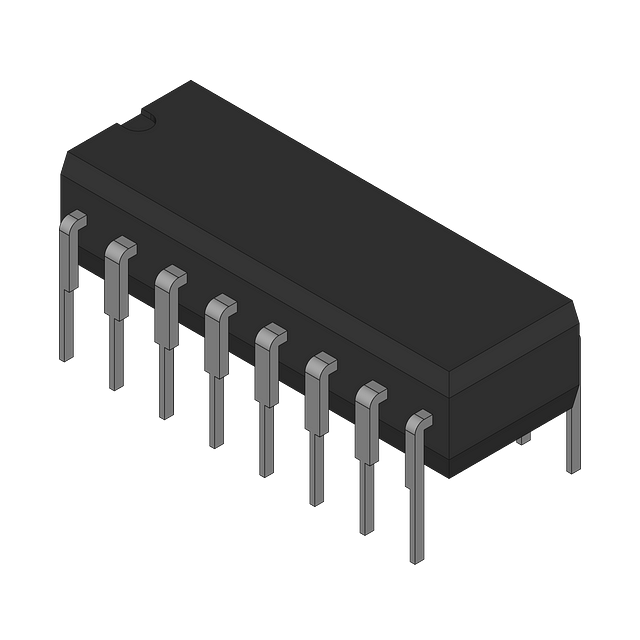

Texas Instruments SN74LS166AN | Rochester Electronics

Rochester Electronics

Datasheets

Rochester Electronics

Lifecycle Status Indicator

Production

Symbol

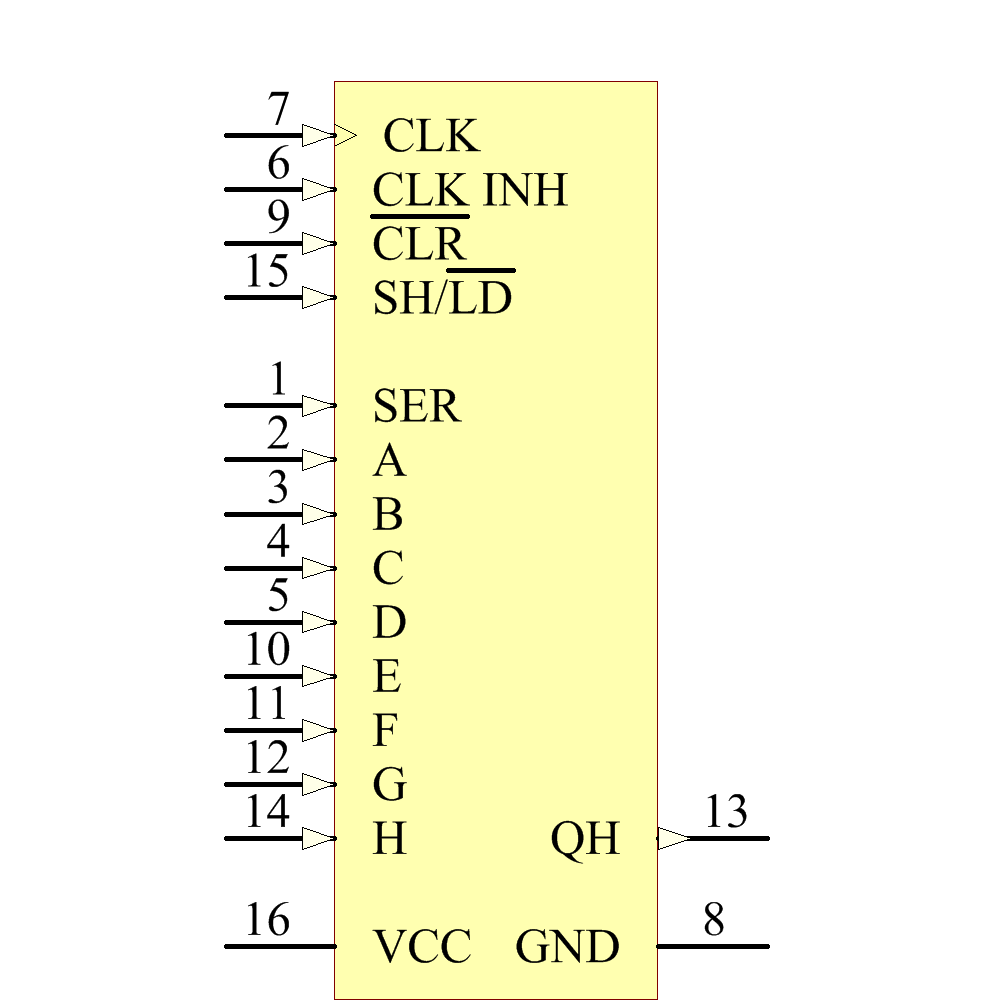

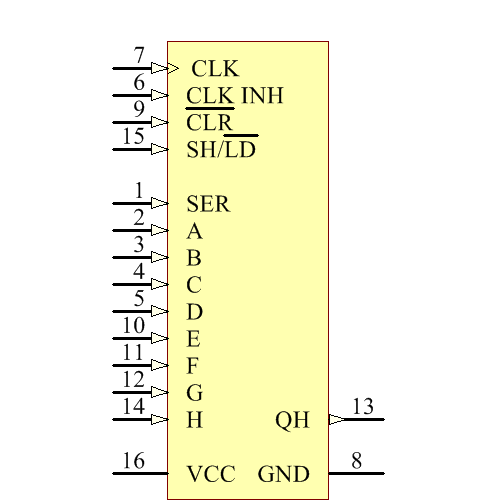

SN74LS166AN Symbol - Texas Instruments

SN74LS166AN Symbol - Texas Instruments

SN74LS166AN Symbol - Texas Instruments

SN74LS166AN Symbol - Texas Instruments

‹ ›

Footprint

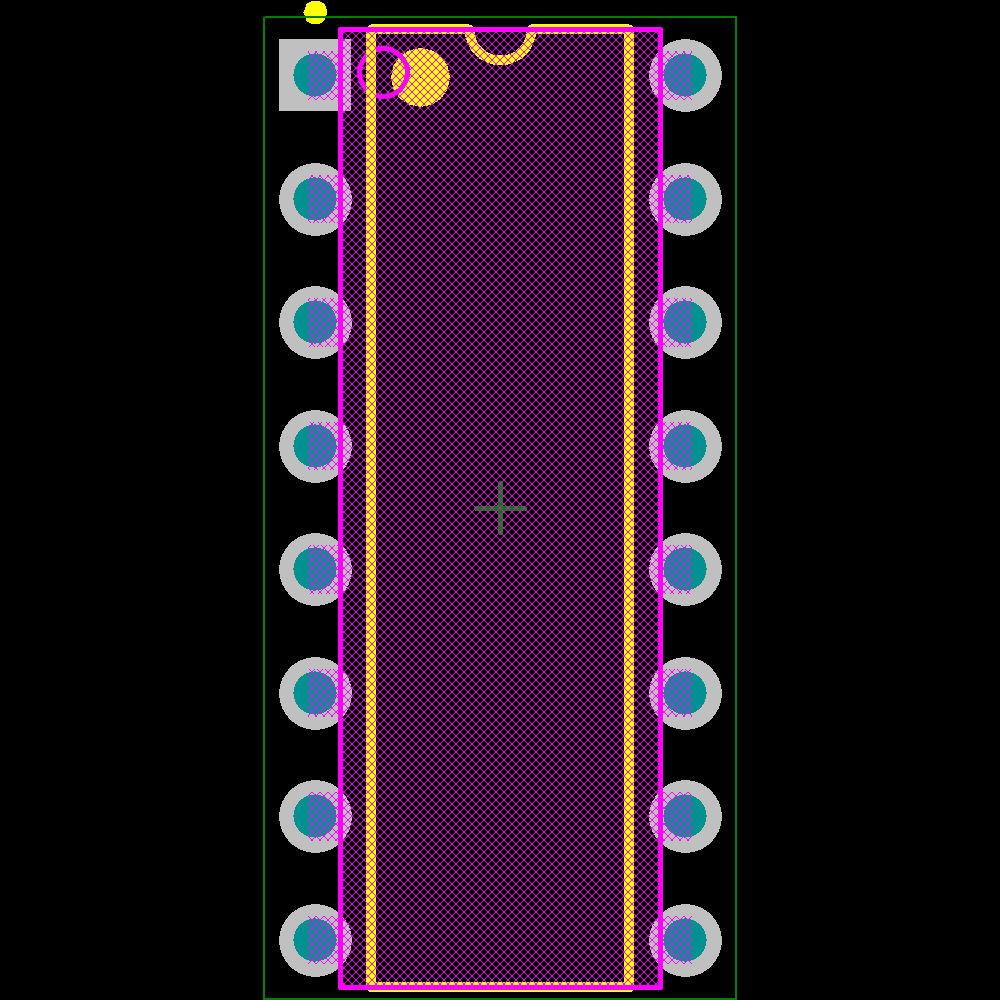

SN74LS166AN Footprint - Texas Instruments

SN74LS166AN Footprint - Texas Instruments

SN74LS166AN Footprint - Texas Instruments

SN74LS166AN Footprint - Texas Instruments

‹ ›
