SN74LS595N - Texas Instruments
IC 8BIT SHFT REG OUT LTCH 16DIP Shift Shift Register 1 Element 8 Bit 16-PDIP
Technical Details
| Case/Package | PDIP |
| Direction | Unidirectional |
| Frequency | 20MHz |
| Height | 5.08mm |
| Input Current | 65mA |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Lifecycle Status | Production |
| Logic Function | Shift Register |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Nominal Supply Current | 100µA |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 16 |
| Operating Supply Current | 100µA |
| Operating Supply Voltage | 5V |
| Propagation Delay | 38ns |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 3.9mm |
| Turn-On Delay Time | 38ns |
| Weight | 951.693491mg |
| Width | 6.35mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
Images

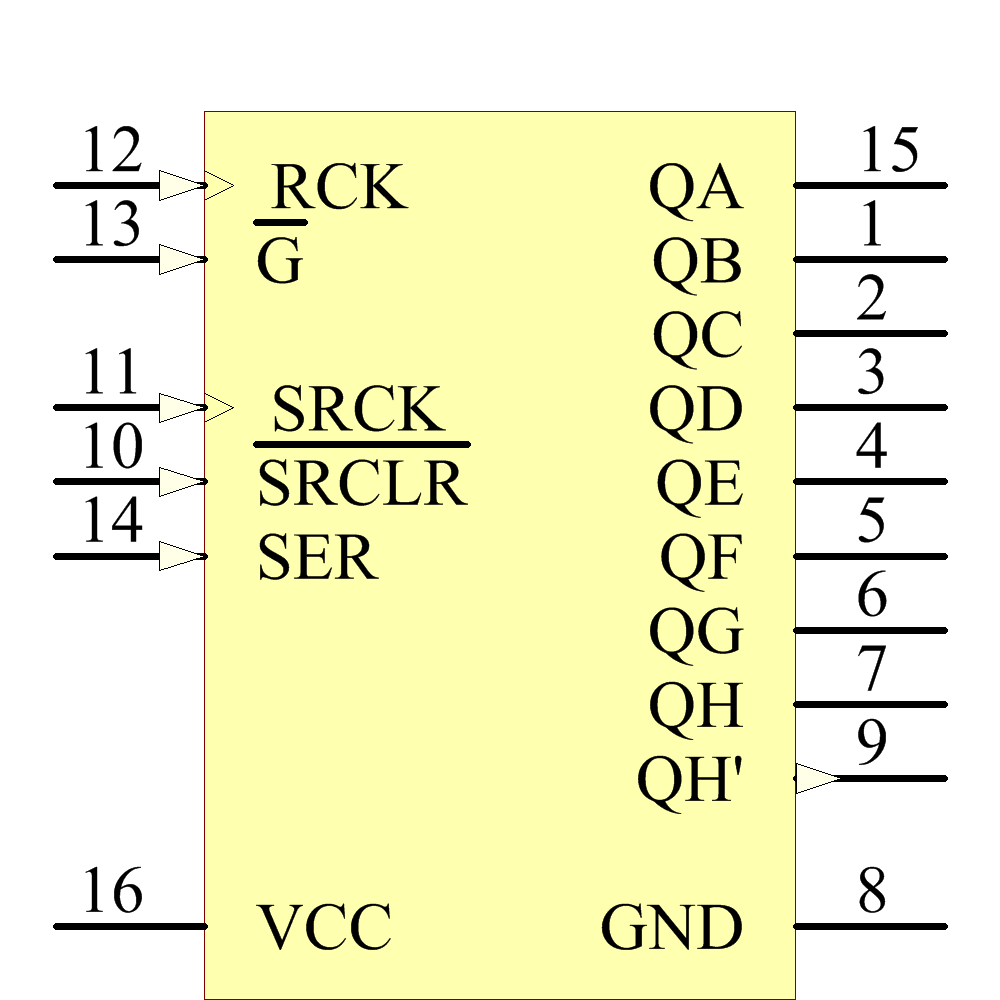

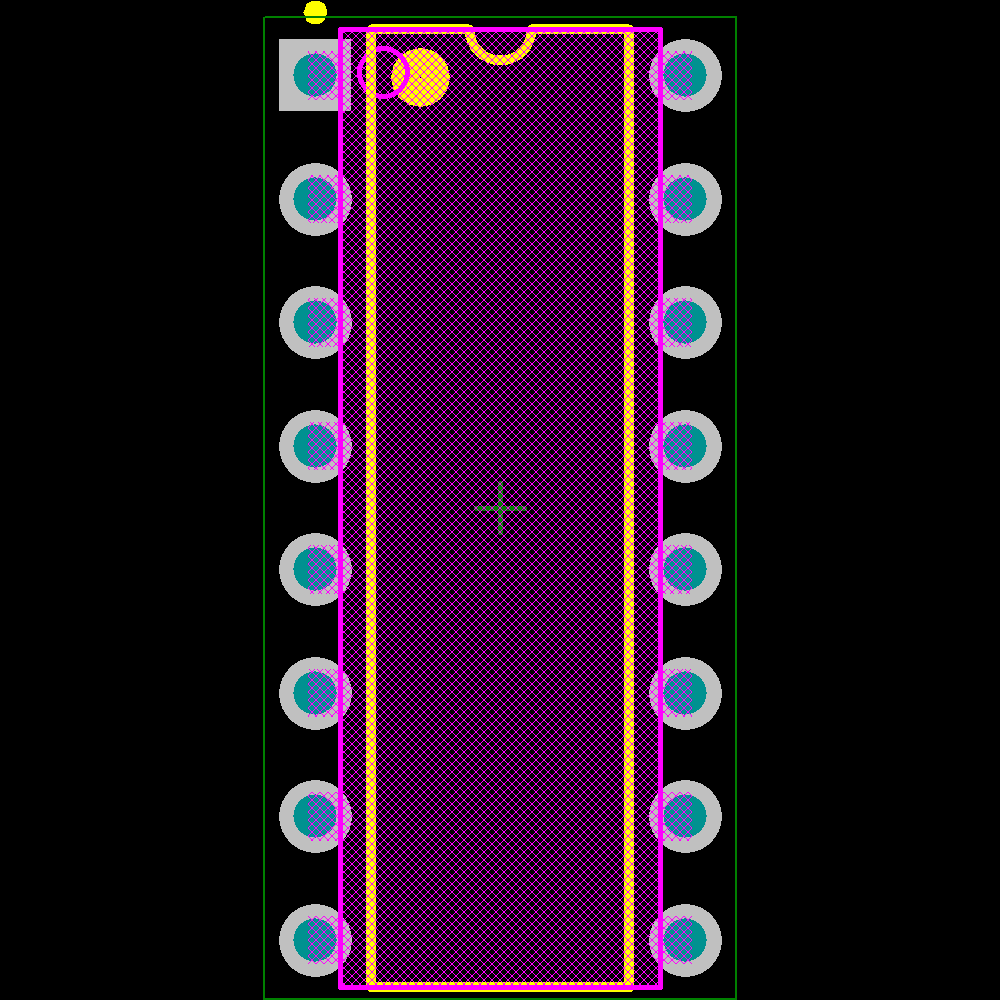

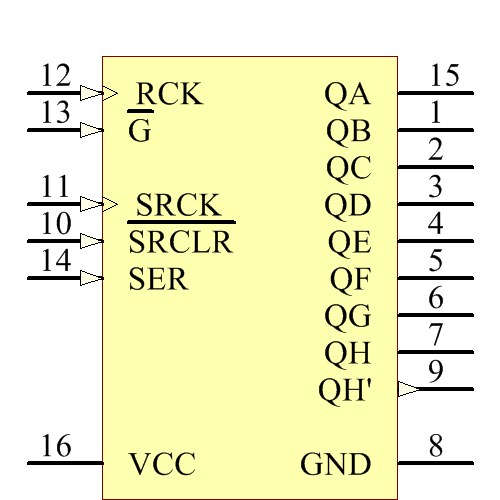

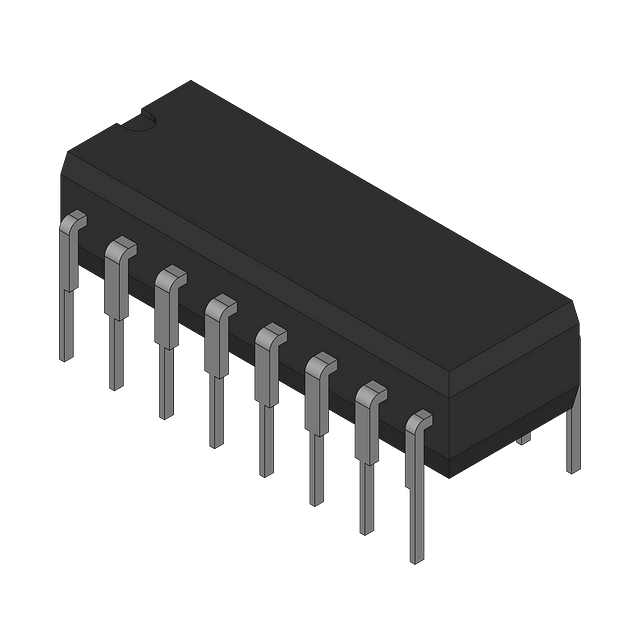

Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Fairchild Semiconductor | Obsolete | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown |
