SN74LV04APWR - Texas Instruments
74LV04 EAR99 74LV Cut Tape (CT) logic gate circuit 7.5ns @ 5V 50pF 1.2mm 12mA 12mA 1.5V
Technical Details
| Case/Package | TSSOP |
| Contact Plating | Gold |
| Height | 0m |
| High Level Output Current | -12mA |
| Lead Free | Lead Free |
| Length | 5mm |
| Lifecycle Status | Production |
| Logic Function | Inverter |
| Low Level Output Current | 12mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Channels | 6 |
| Number of Circuits | 6 |
| Number of Elements | 6 |
| Number of Gates | 6 |
| Number of Inputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Current | 12mA |
| Packaging | Tape & Reel |
| Propagation Delay | 7.5ns |
| Quiescent Current | 20µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Schmitt Trigger Input | No |
| Thickness | 1mm |
| Turn-On Delay Time | 8.5ns |
| Weight | 57.209338mg |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

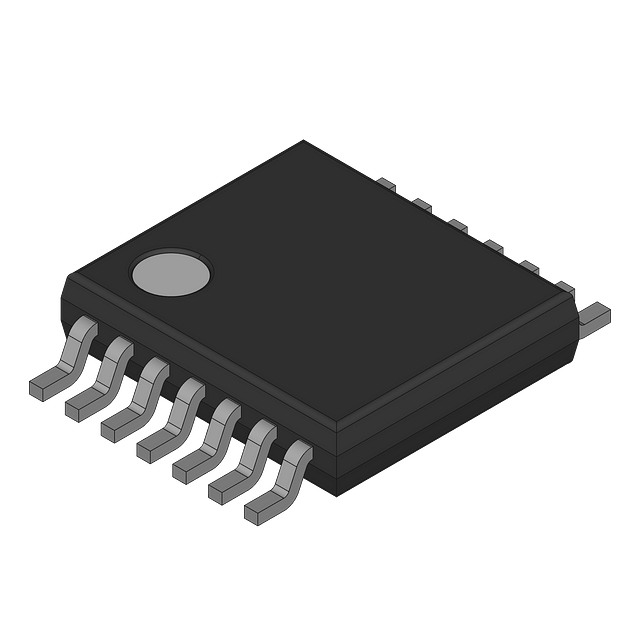

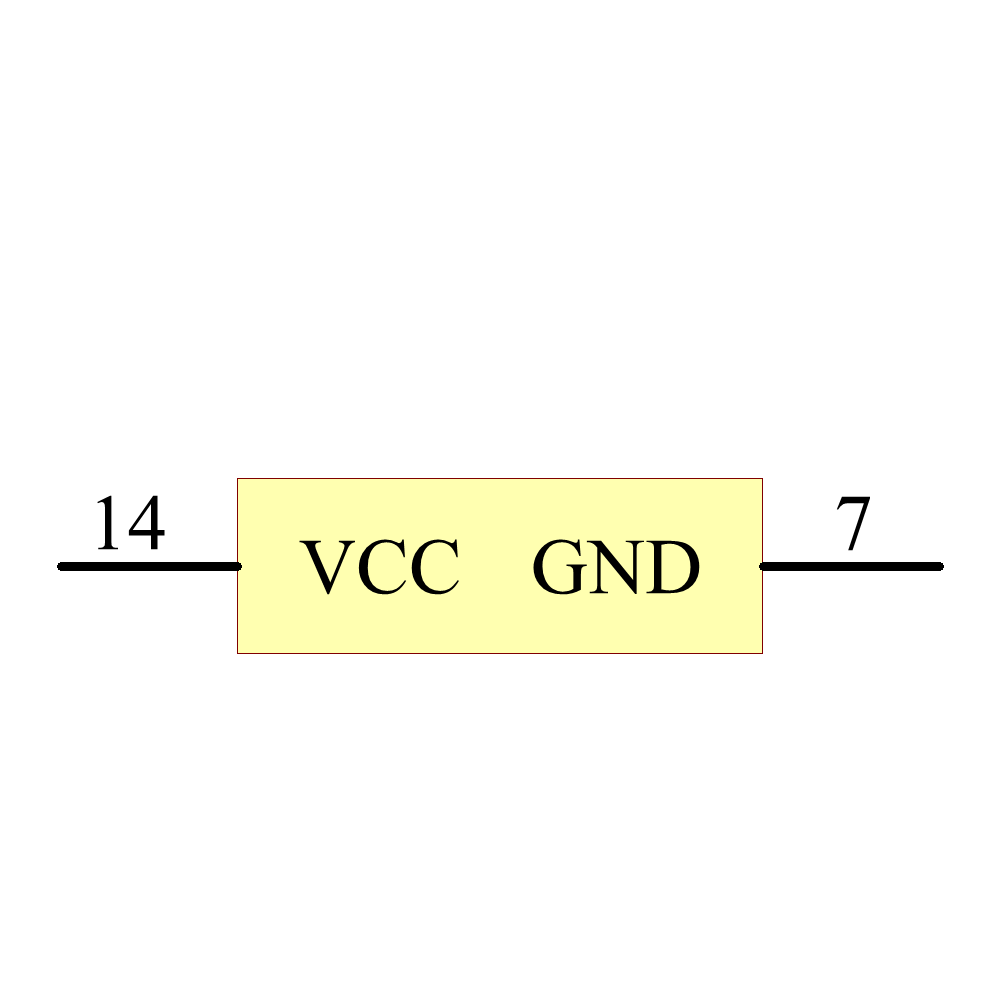

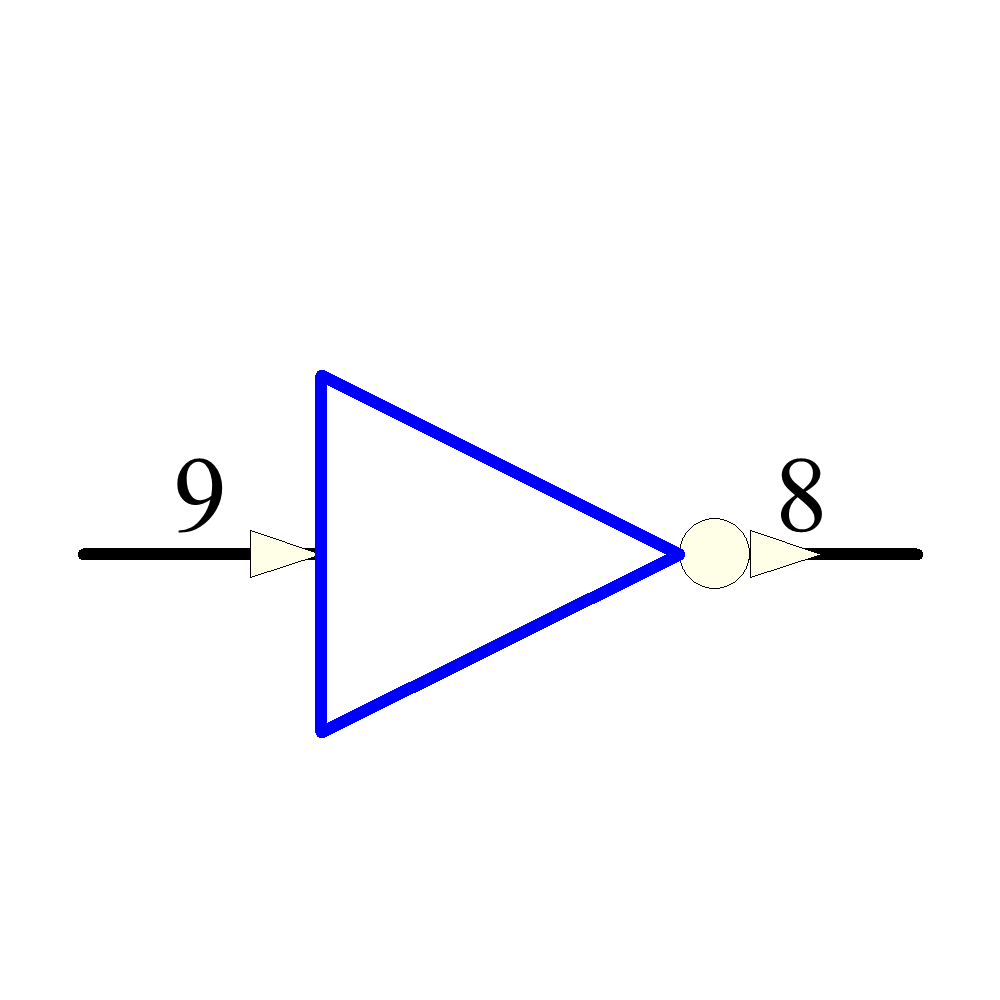

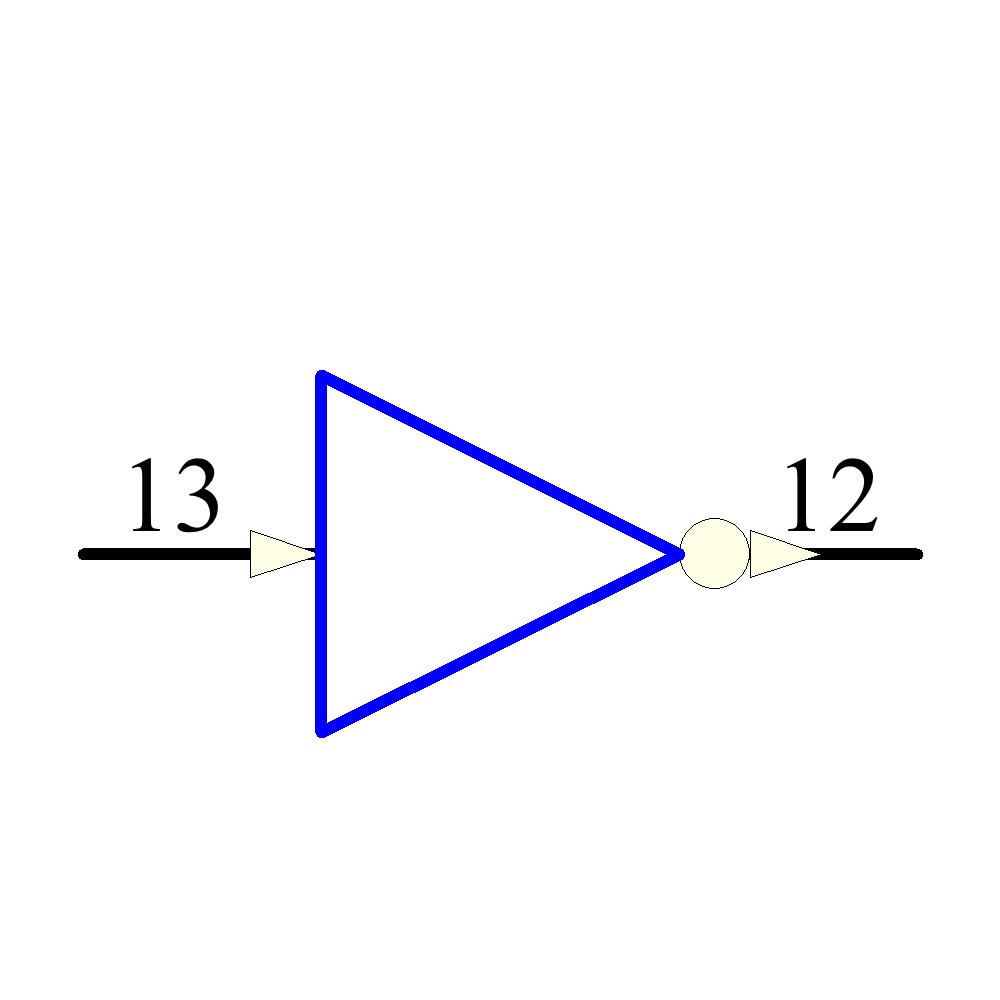

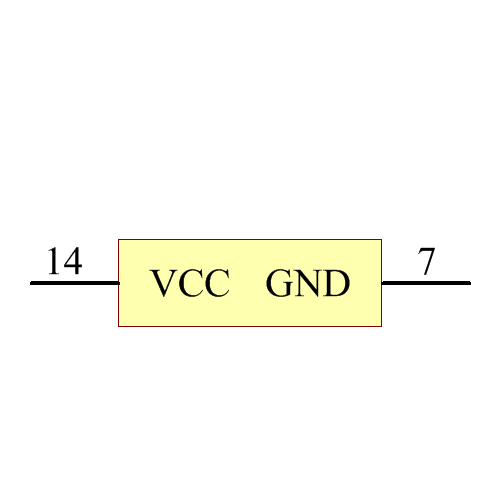

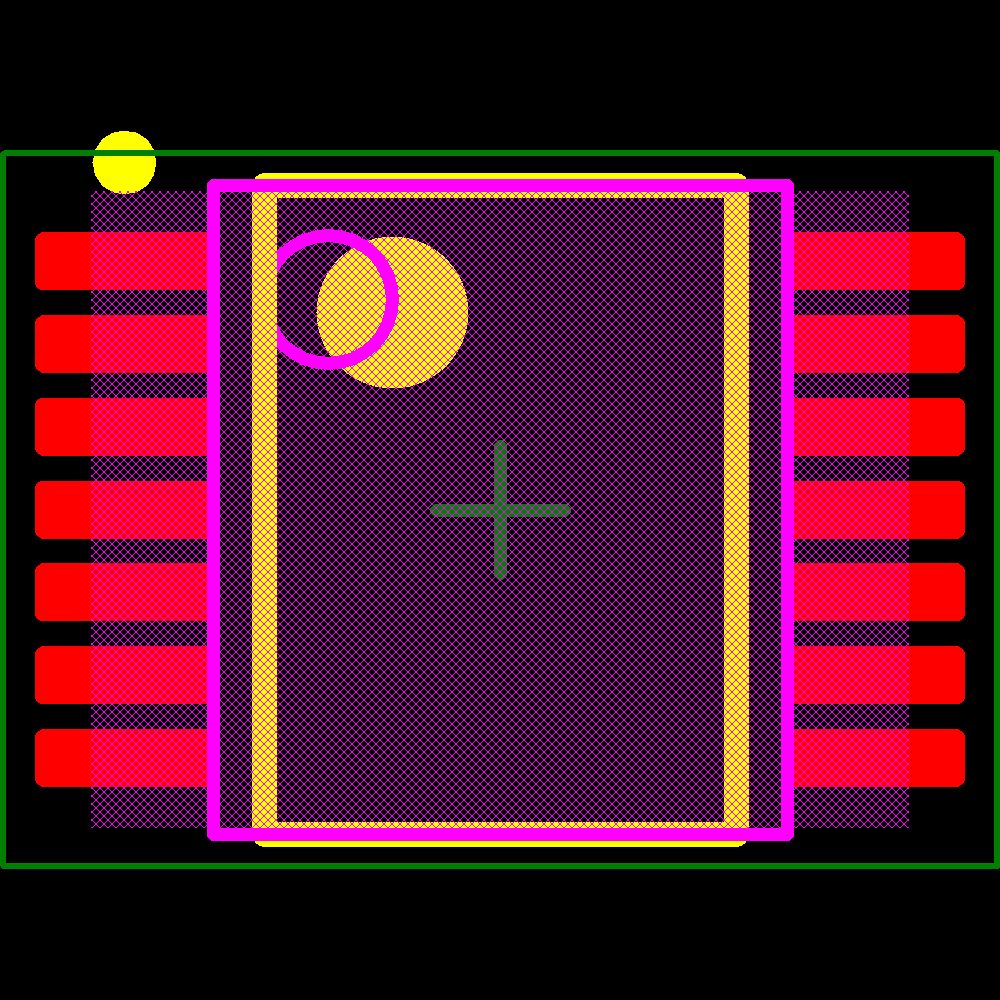

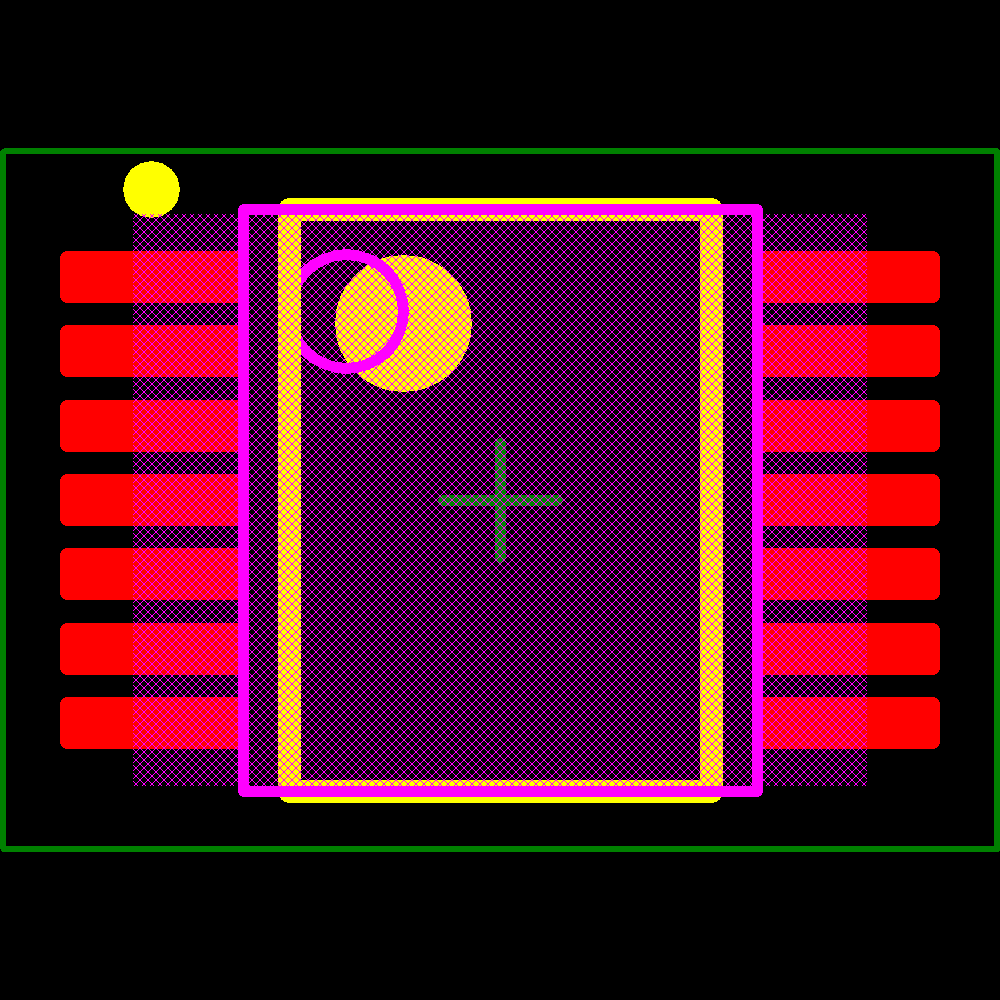

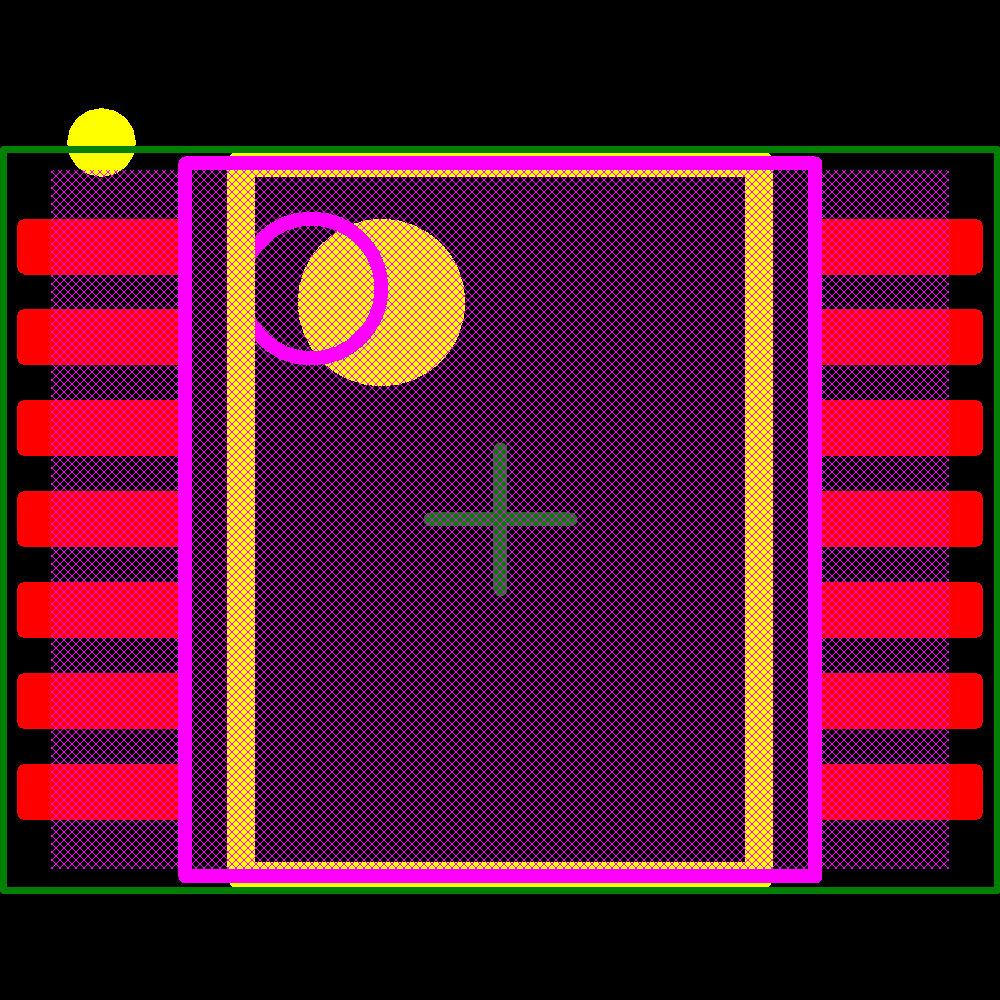

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production |
