SN74LV4053ADRG4 - Texas Instruments
5-V, 2: 1 (SPDT), 3-channel analog switch 16-SOIC -40 to 85
Technical Details
| Bandwidth | 50MHz |
| Case/Package | SOIC |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Lifecycle Status | Production |
| Logic Function | Demultiplexer, Multiplexer |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Nominal Supply Current | 20µA |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Inputs | 6 |
| Number of Outputs | 3 |
| Number of Pins | 16 |
| Operating Supply Current | 20µA |
| Propagation Delay | 16ns |
| Resistance | 75Ω |
| RoHS | Compliant |
| Supply Type | Single |
| Thickness | 1.58mm |
| Turn-Off Delay Time | 28ns |
| Turn-On Delay Time | 28ns |
| Weight | 141.690917mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed

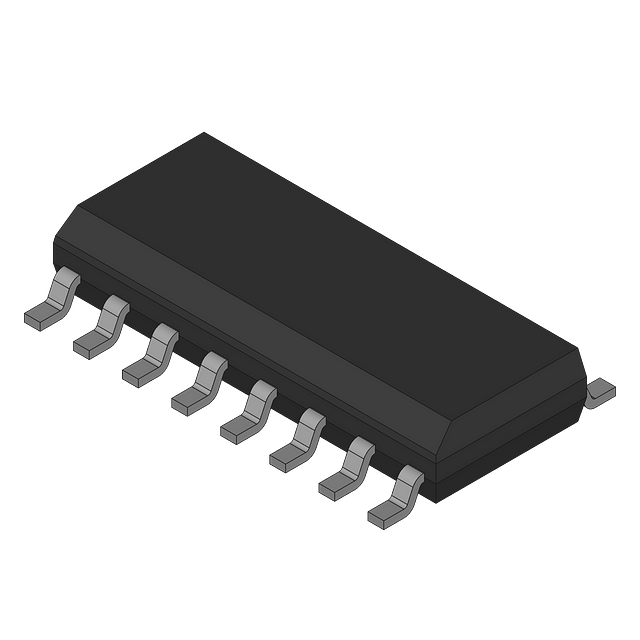

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Texas Instruments | Obsolete | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| onsemi | Production | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete | ||
| onsemi | Obsolete |
Authorized Distributors
| Distributor | SKU | Stock | USD | 1 | 10 | 50 | 100 | 1000 | 10000 | Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics |
US: 2300
|
$ | 0.2156 | 0.1789 | 0.1595 | |||||
| Verical |
US: 2300
|
$ | 0.1994 | |||||||
