SN74LVC1G08MDCKREP - Texas Instruments
Enhanced product, 1-ch, 2-input 1.65-V to 5.5-V 32-mA drive strength AND gate 5-SC70 -55 to 125
Technical Details
| Ambient Temperature Range High | 125°C |
| Case/Package | SC |
| Height | 1.1mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 2mm |
| Lifecycle Status | Production |
| Logic Function | AND |
| Low Level Output Current | 32mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Nominal Supply Current | 10µA |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 5 |
| Output Current | 32mA |
| Packaging | Digi-Reel® |
| Propagation Delay | 5ns |
| Quiescent Current | 10µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 900µm |
| Turn-On Delay Time | 6.5ns |
| Weight | 19.986414mg |
| Width | 1.25mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No

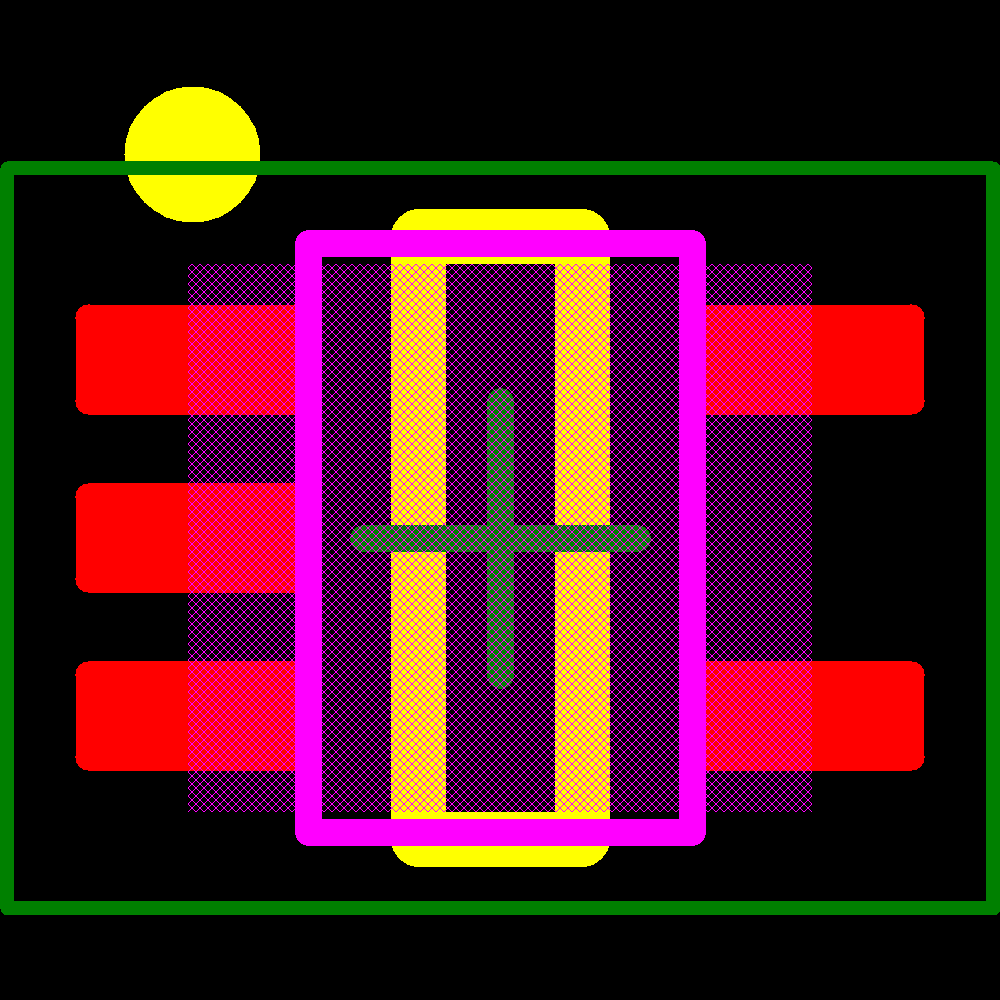

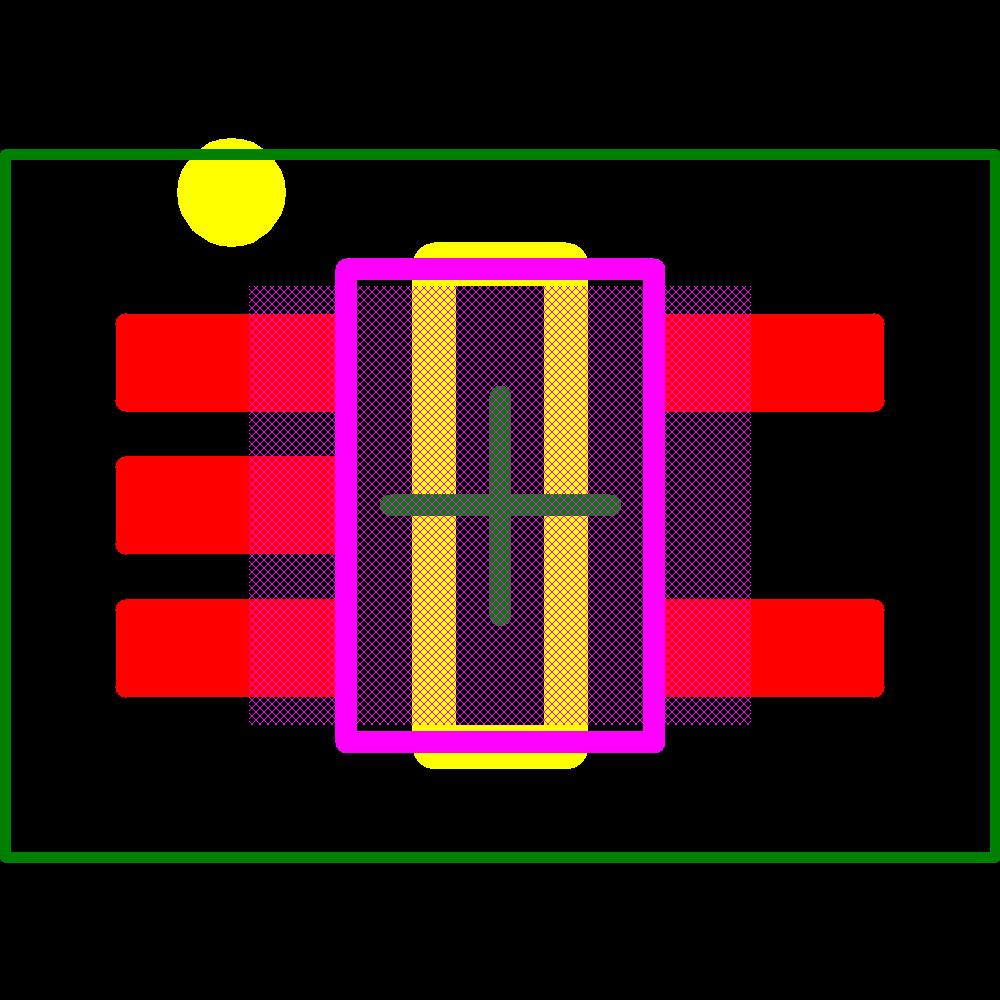

Images
Texas Instruments
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| onsemi | Obsolete | ||
| Toshiba | Obsolete | ||
| Toshiba | Obsolete | ||
| Toshiba | Production | ||
| Toshiba | Production | ||
| Toshiba | Production | ||
| Diodes Inc. | Production | ||
| NXP Semiconductors | Obsolete | ||
| NXP Semiconductors | Production | ||
| NXP Semiconductors | Obsolete |
