SN74LVC2G74DCURG4 - Texas Instruments
Single Positive-Edge-Triggered D-Type Flip-Flop with Clear and Preset 8-VSSOP -40 to 125
Technical Details
| Case/Package | VSSOP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 200MHz |
| Height | 900µm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 2.3mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type |
| Low Level Output Current | 32mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 8 |
| Packaging | Tape & Reel (TR) |
| Polarity | Non-Inverting |
| Propagation Delay | 6.2ns |
| Quiescent Current | 10µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000 |
| Thickness | 850µm |
| Turn-On Delay Time | 4.1ns |
| Weight | 9.610488mg |
| Width | 2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

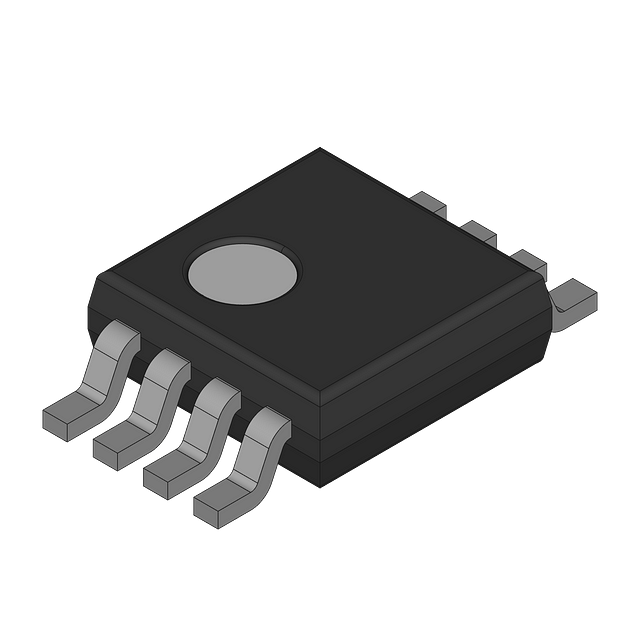

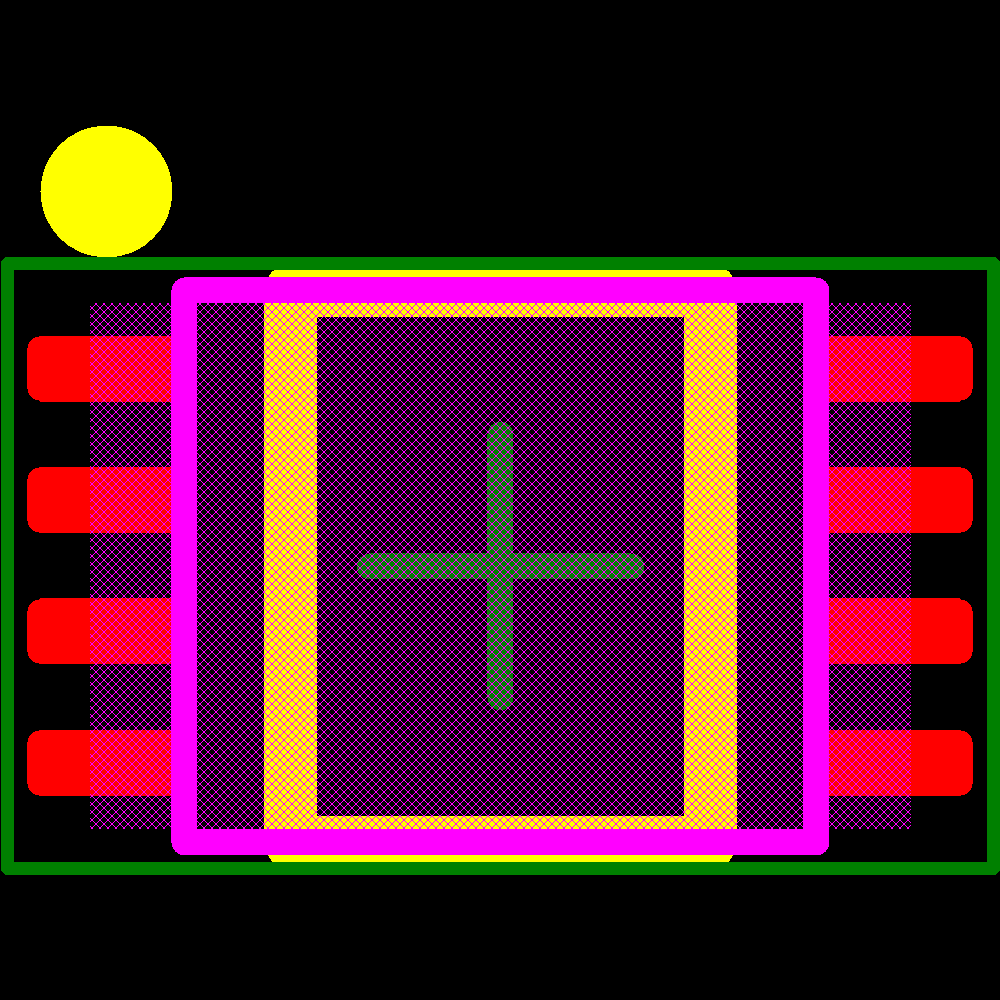

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Unknown | ||
| onsemi | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production |
