SN74LVC74ADR - Texas Instruments
Dual positive-edge-triggered D-type flip-flops with clear and preset 14-SOIC -40 to 125
Technical Details
| Case/Package | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 100MHz |
| Height | 0m |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 24mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Frequency | 100MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 14 |
| Output Current | 24mA |
| Polarity | Non-Inverting |
| Propagation Delay | 6ns |
| Quiescent Current | 10µA |
| Radiation Hardening | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Thickness | 1.58mm |
| Turn-On Delay Time | 1ns |
| Weight | 129.387224mg |
| Width | 3.91mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

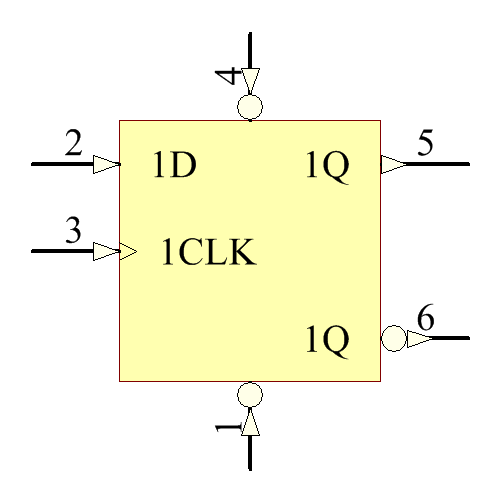

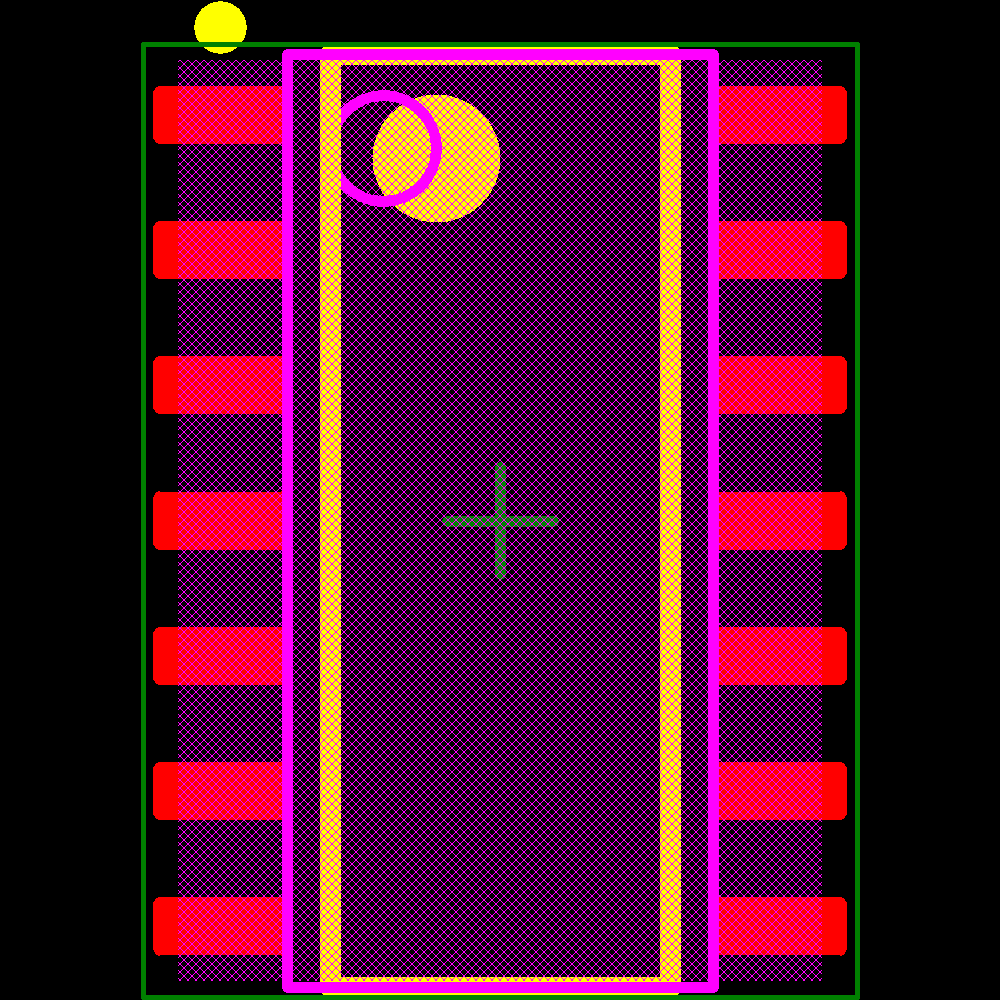

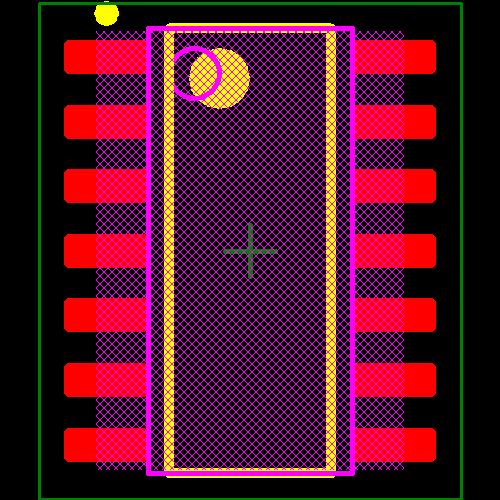

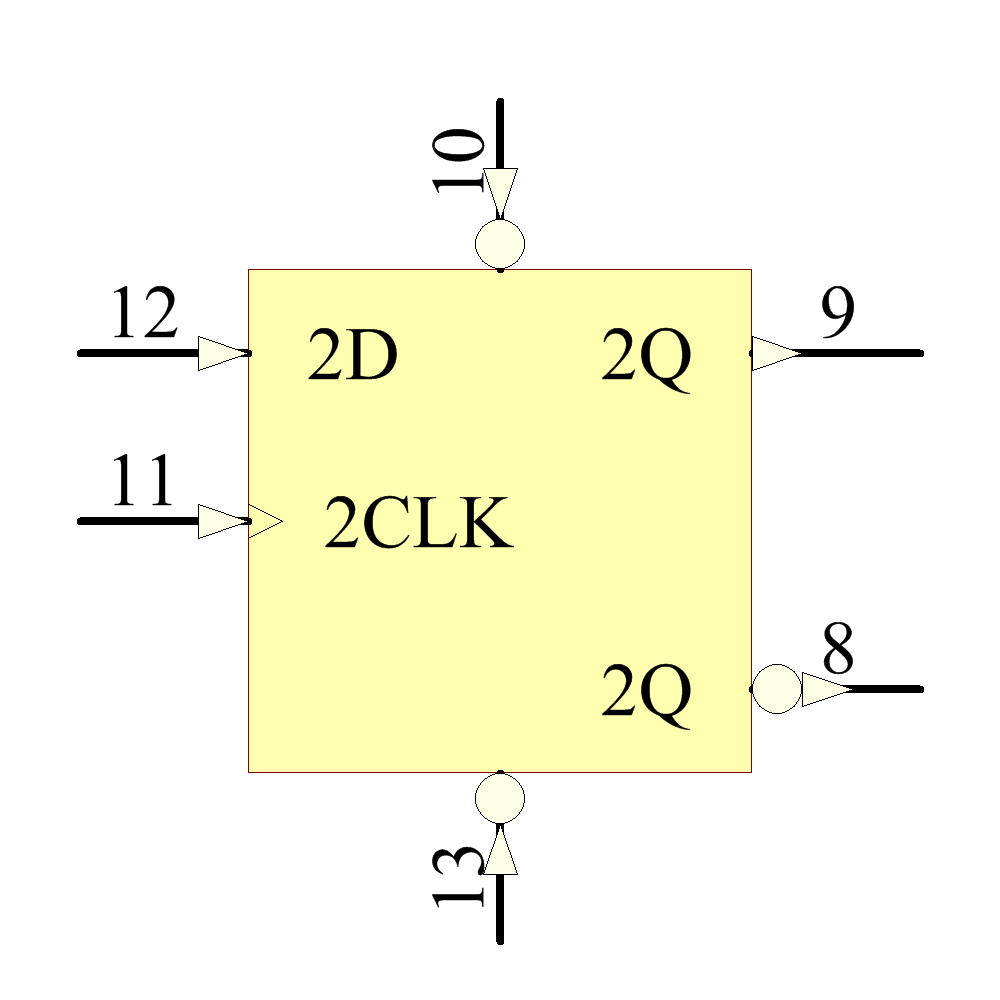

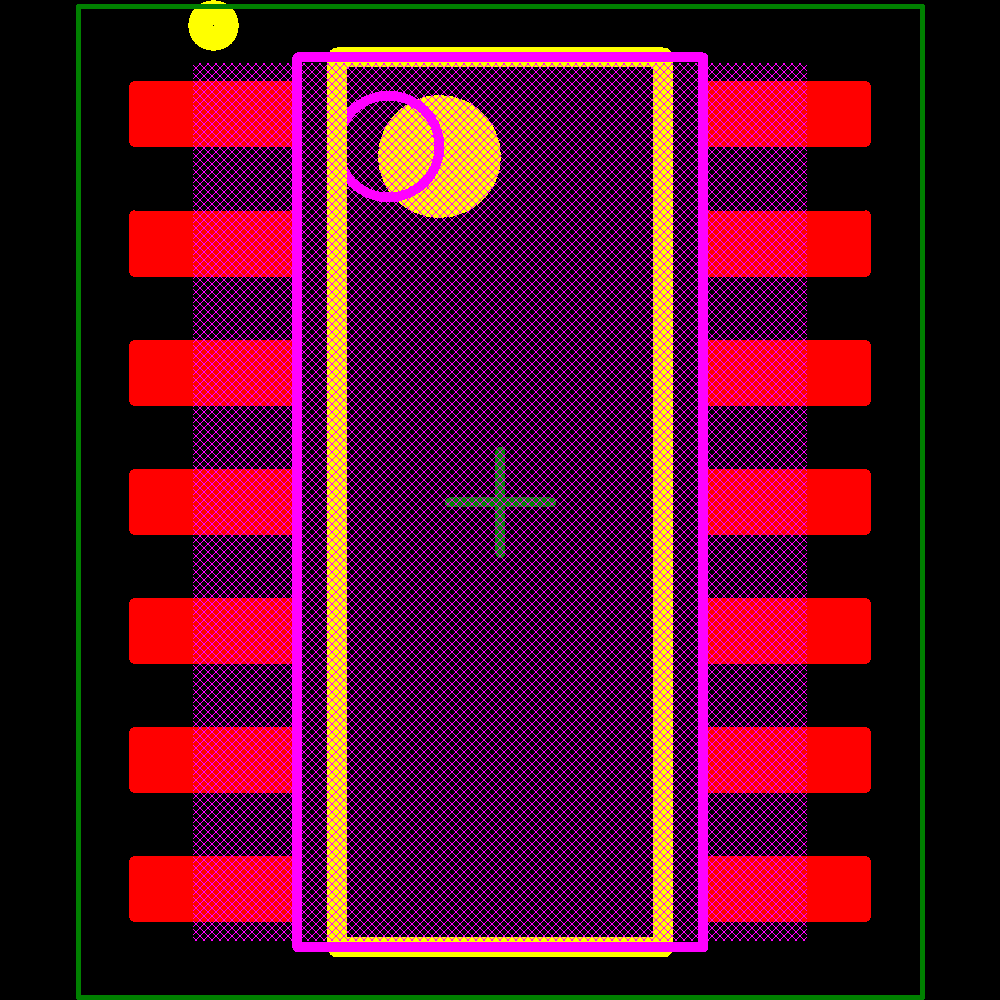

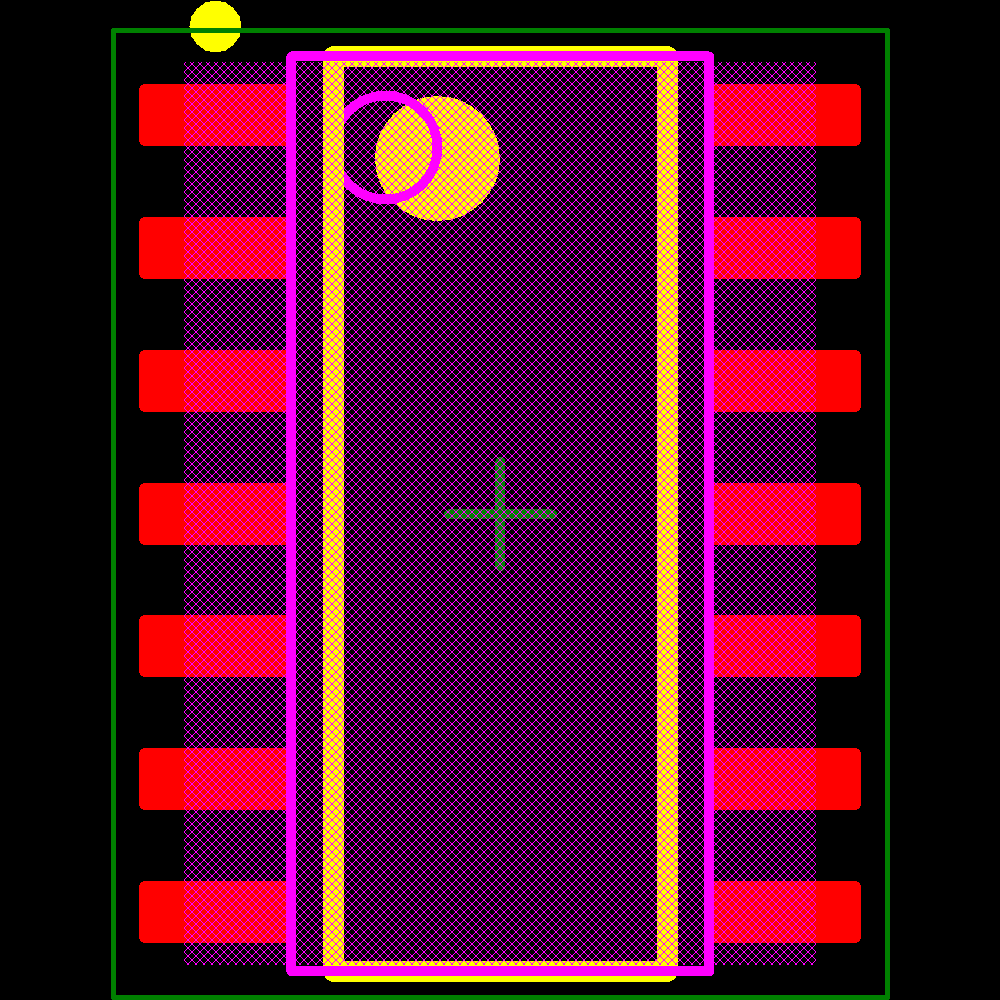

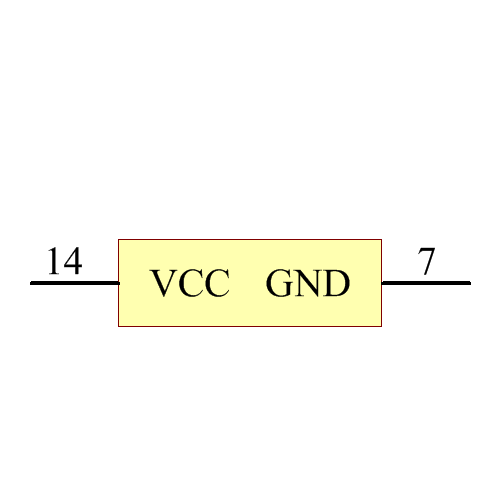

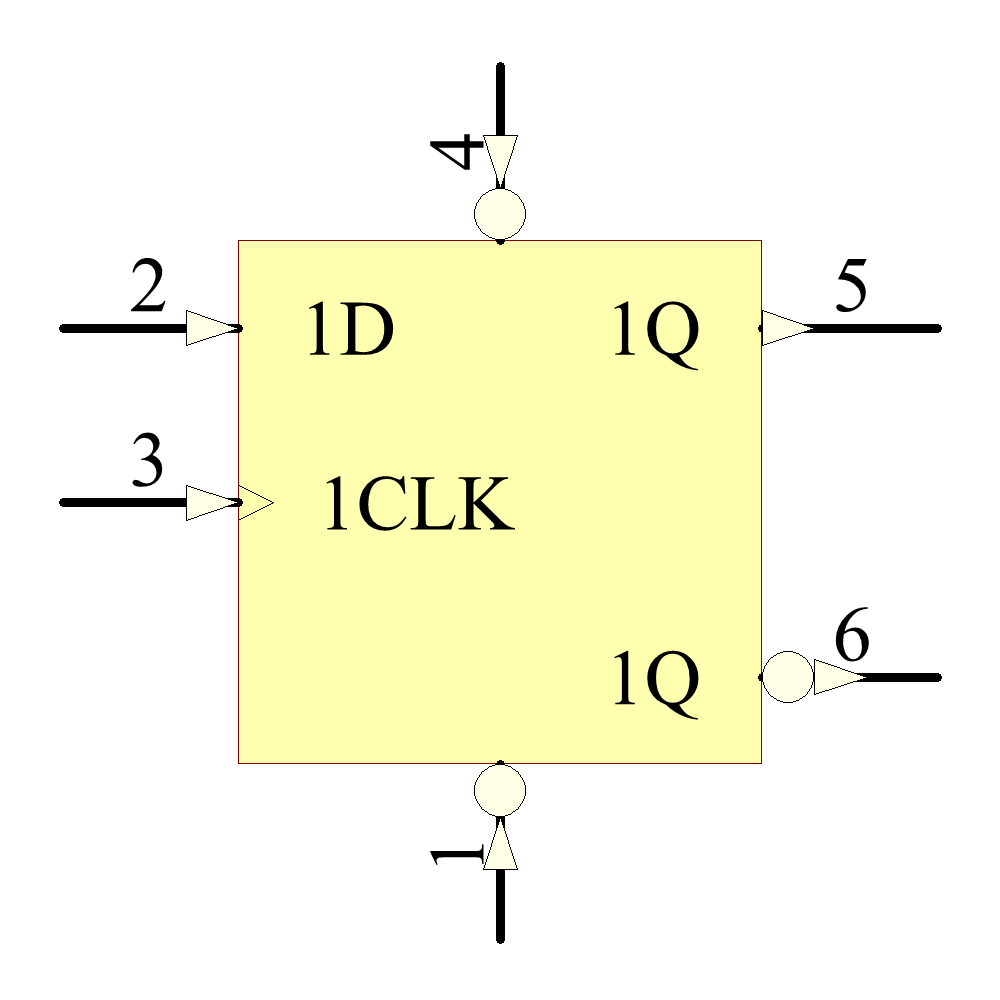

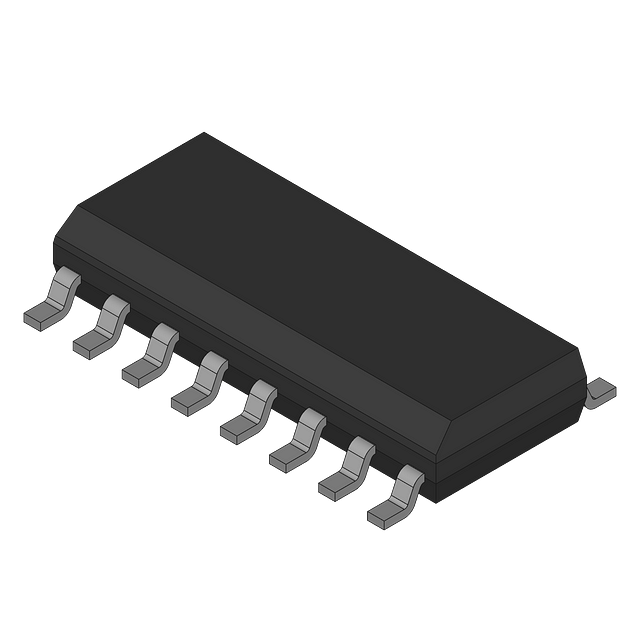

Images
Rochester Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Unknown | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| Texas Instruments | Production | ||
| onsemi | Obsolete |
